Description
3RT1054-3AF36

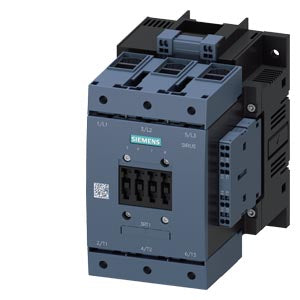

3RT1054-3AF36 is a Siemens Sirius power contactor designed for reliable three-phase motor control applications. This AC-3e/AC-3 rated contactor delivers 115 amperes at 400 volts with a power rating of 55 kW, making it suitable for industrial motor starter and control circuits operating at 50-60 Hz AC or DC control voltage of 110-127 V.The contactor features a 3-pole main circuit configuration with 2 NO (normally open) and 2 NC (normally closed) auxiliary contacts for flexible control logic integration. The unit employs conventional drive technology and box terminal connections for secure wiring. Size S6 frame provides compact mounting in control enclosures and motor control centers.
- Rated Current: 115 A
- Power Rating: 55 kW at 400 V
- Poles: 3-pole
- Control Voltage: AC/DC 110-127 V
- Frequency: 50-60 Hz
- Duty Rating: AC-3e/AC-3
- Auxiliary Contacts: 2 NO + 2 NC
- Frame Size: S6
- Terminal Type: Box terminals
- Drive Type: Conventional
Specifications
- Part Number: 3RT1054-3AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- Weight : 8
