3RT1054-1NP36

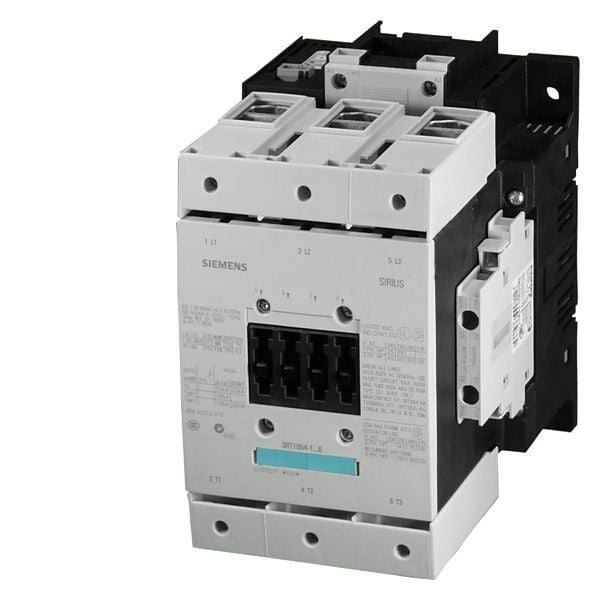

3RT1054-1NP36 is a Siemens power contactor designed for AC-3e/AC-3 motor control applications with a rated current of 115 A and power capacity of 55 kW at 400 V. This 3-pole contactor features electronic operating mechanism with auxiliary contacts (2 NO + 2 NC) and is suitable for industrial automation and PLC-based control systems. The unit operates on AC (50-60 Hz) or DC supply voltage ranging from 200 to 277 V, with 24 V DC PLC input for seamless integration into automated control environments. Key Specifications
- Rated Current: 115 A (AC-3e/AC-3)
- Power Capacity: 55 kW at 400 V
- Poles: 3-pole main contacts
- Control Supply Voltage: 200-277 V AC/DC
- Frequency: 50-60 Hz
- PLC Input: 24 V DC
- Auxiliary Contacts: 2 NO + 2 NC
- Size: S6
- Terminal Type: Box terminals
- Operating Mechanism: Electronic
Specifications
- Part Number: 3RT1054-1NP36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 200
Product Data
- UPC : 004089294236
- GTIN : 00040892942361
- Weight : 8
