Product Info
- Manufacturer:Socomec
- Sub-Category:Disconnect
Description
22003010

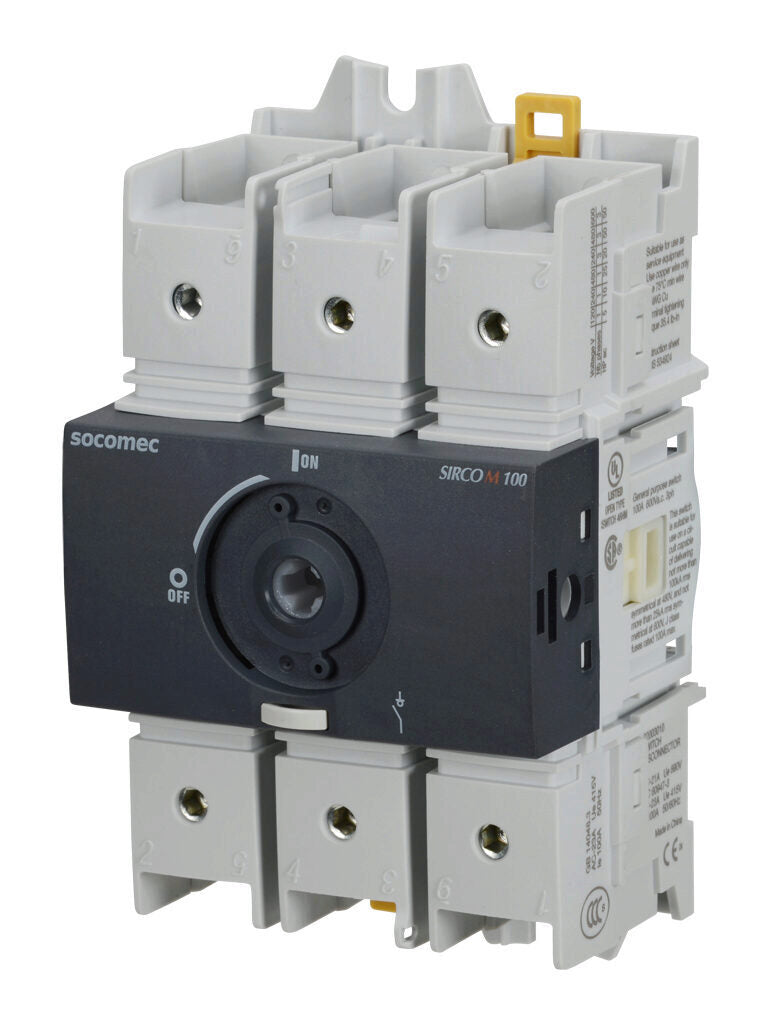

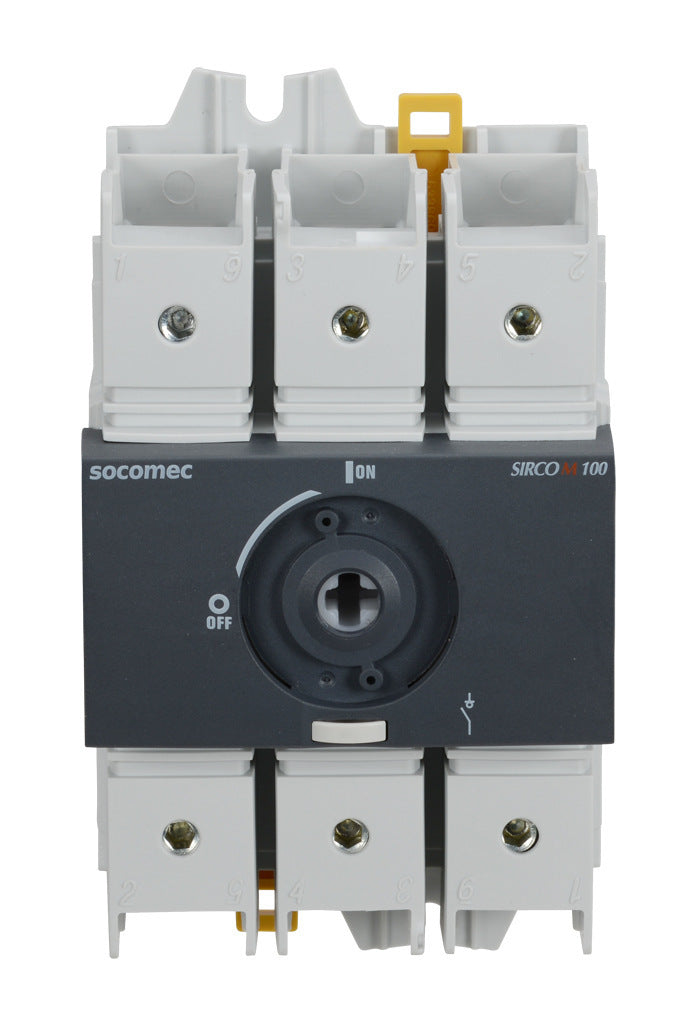

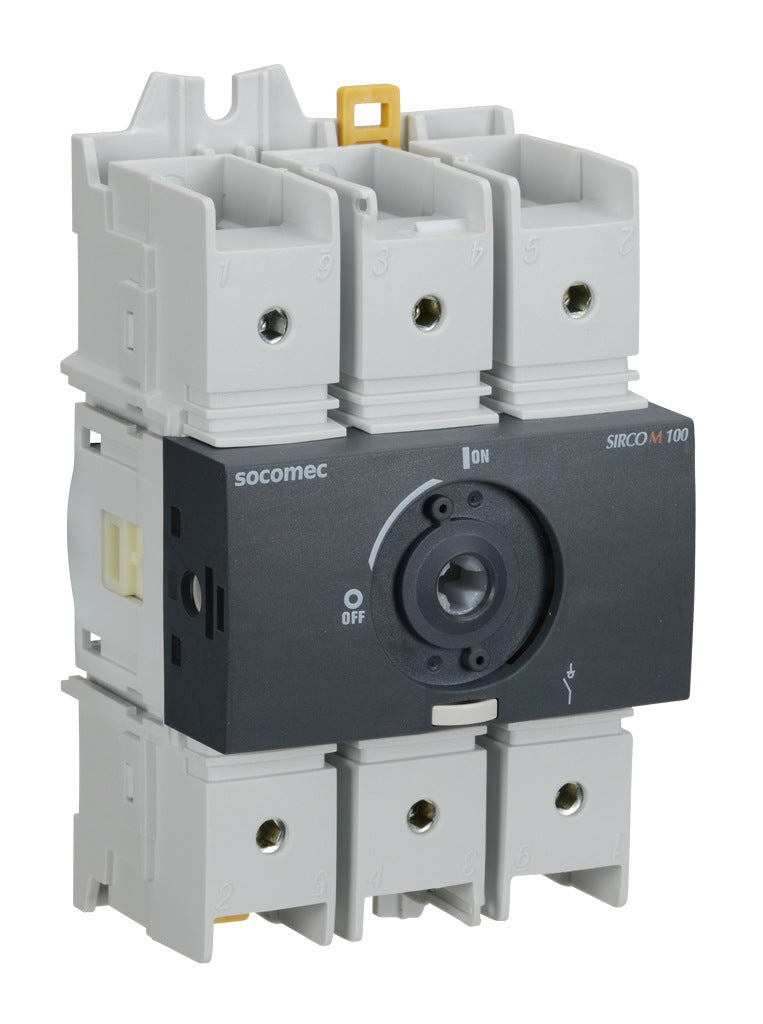

22003010 is a Socomec SIRCO M Compact series rotary disconnect switch designed for safe isolation and load break capability.This 3-pole switch supports 100A amperage and a voltage rating of 600 VAC. It features a rotary handle operation that can be front or side operated and accepts a 5 x 5 mm shaft. The switch is UL 98 rated and offers a high short circuit current rating (SCCR) of 100kA. It can be mounted on DIN rail or panel, making it versatile for various installation requirements. The product is UL Listed and CSA certified, compliant with RoHS and EU REACH standards.
- Series: SIRCO M Compact
- Poles: 3
- Amperage: 100A
- Voltage Rating: 600 VAC
- Interrupt Rating (SCCR): 100kA
- Mounting Type: DIN rail or panel mount
- UL Rating: UL 98 Listed
- Operation: Front or side rotary handle
- Shaft Size: Accepts 5 x 5 mm shaft
- Certifications: UL Listed, CSA Certified, RoHS Compliant, EU REACH Compliant
Specifications
- Part Number: 22003010
- Brand : Socomec
- Category : Switch
- Item Subcategory : Disconnect
- Compatible Frames : PLP
Product Data
- Weight : 5
