Product Info
- Manufacturer:Socomec
- Sub-Category:Disconnect
Description
22003009

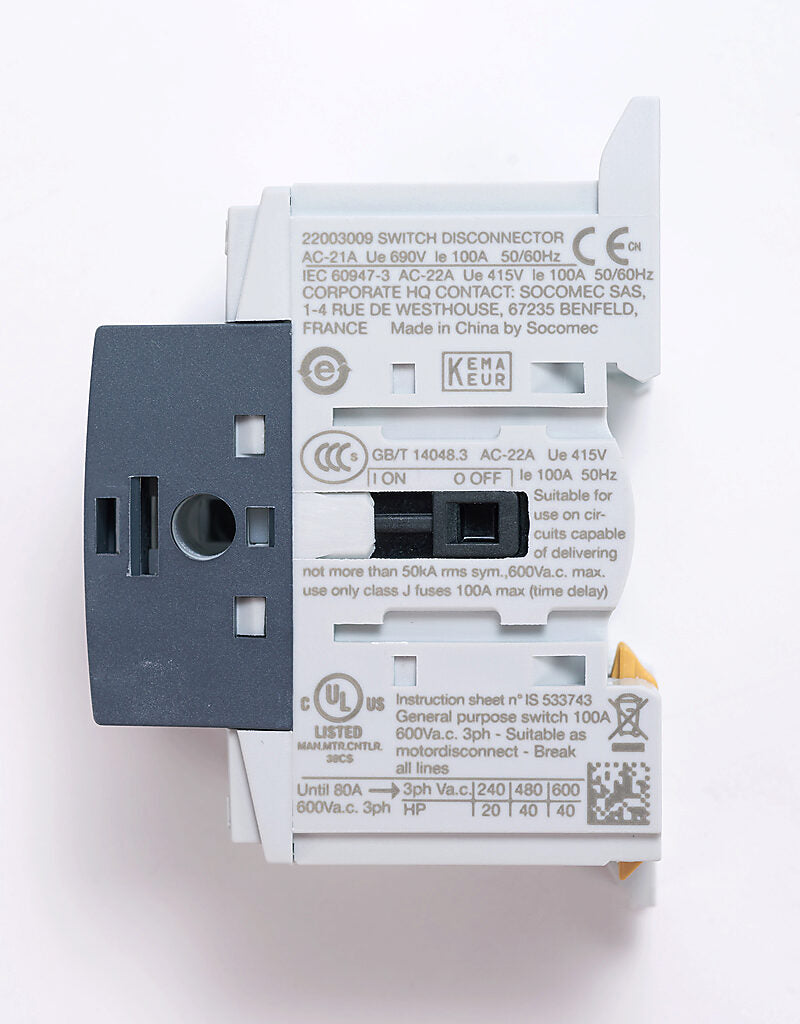

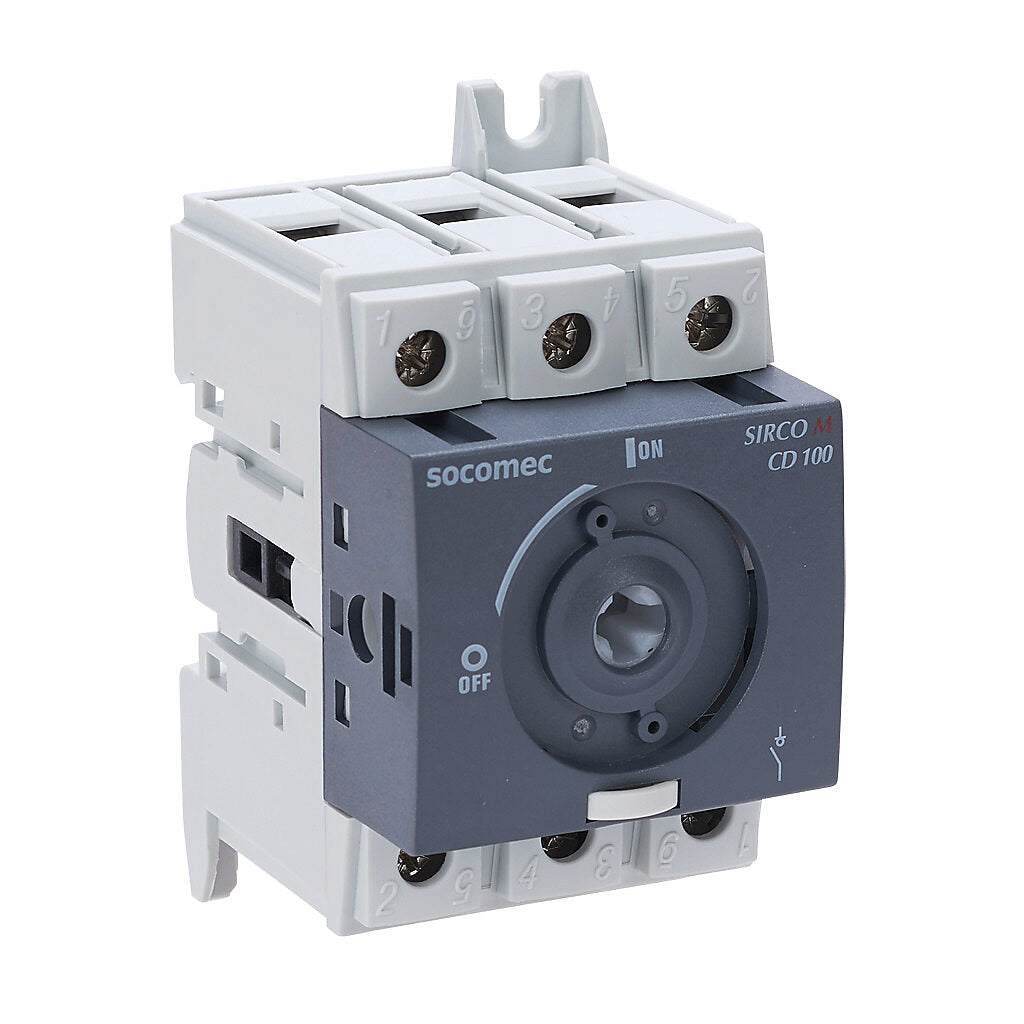

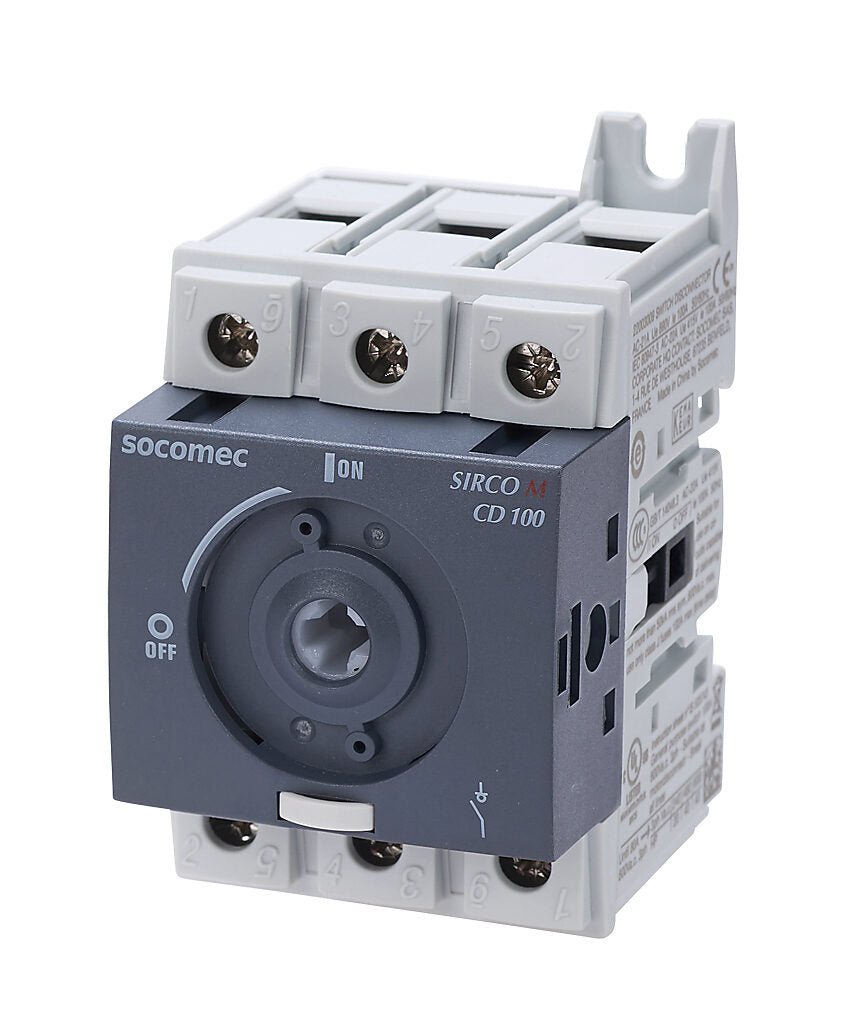

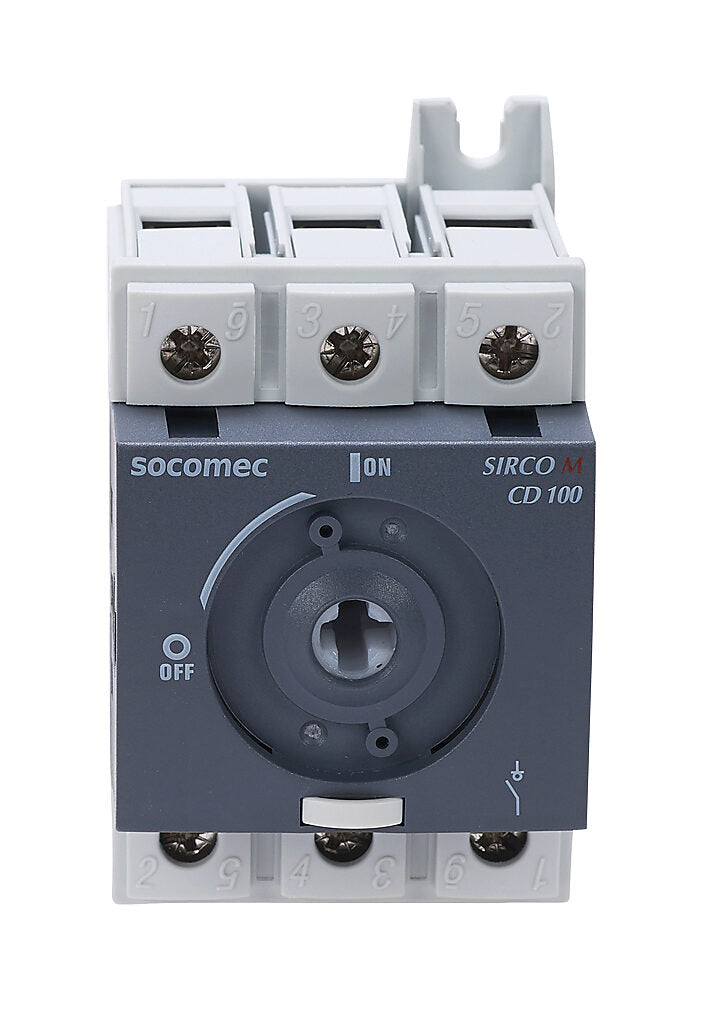

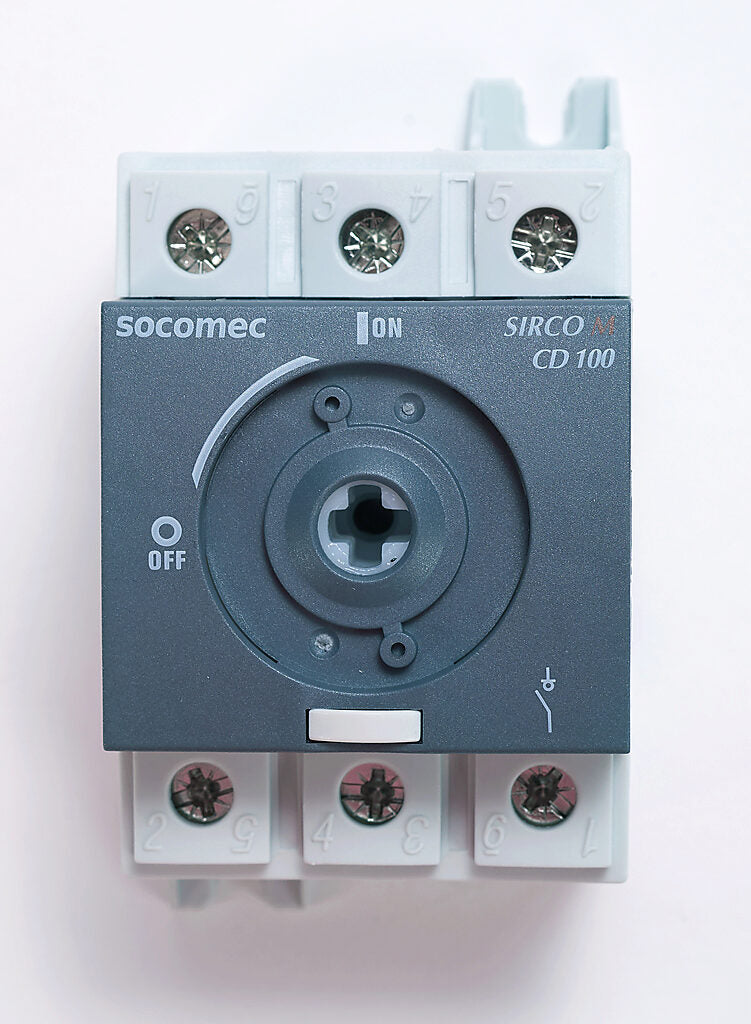

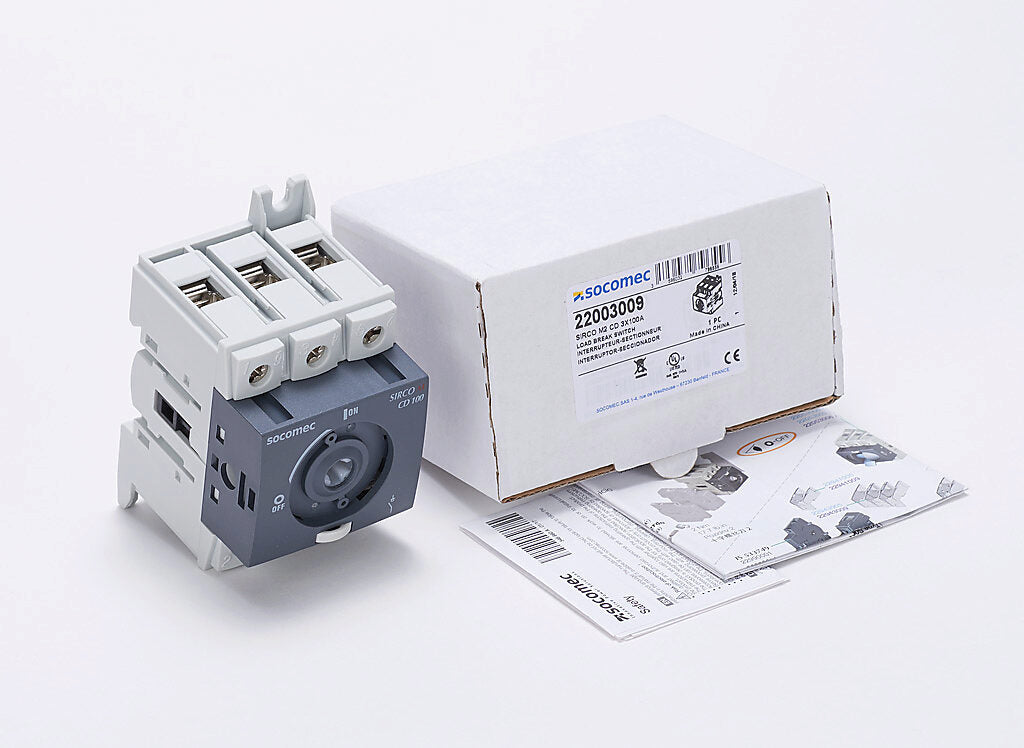

22003009 is a Socomec SIRCO M series rotary load break disconnect switch designed for reliable power isolation and protection.This switch features a compact M2 frame with 3 poles, rated for 100 amps and 600 VAC operation. It offers a high short circuit current rating (SCCR) of 65 kA, ensuring robust performance under fault conditions. The device supports DIN rail or panel mounting and is UL 508 certified for industrial control equipment. It can be operated from the front or side and accepts a 5 x 5 mm shaft for handle operation.
- Manufacturer: Socomec
- Part Number: 22003009
- Series/Frame: SIRCO M, Frame M2
- Poles: 3
- Amperage: 100A
- Voltage Rating: 600 VAC
- Short Circuit Current Rating (SCCR): 65 kA

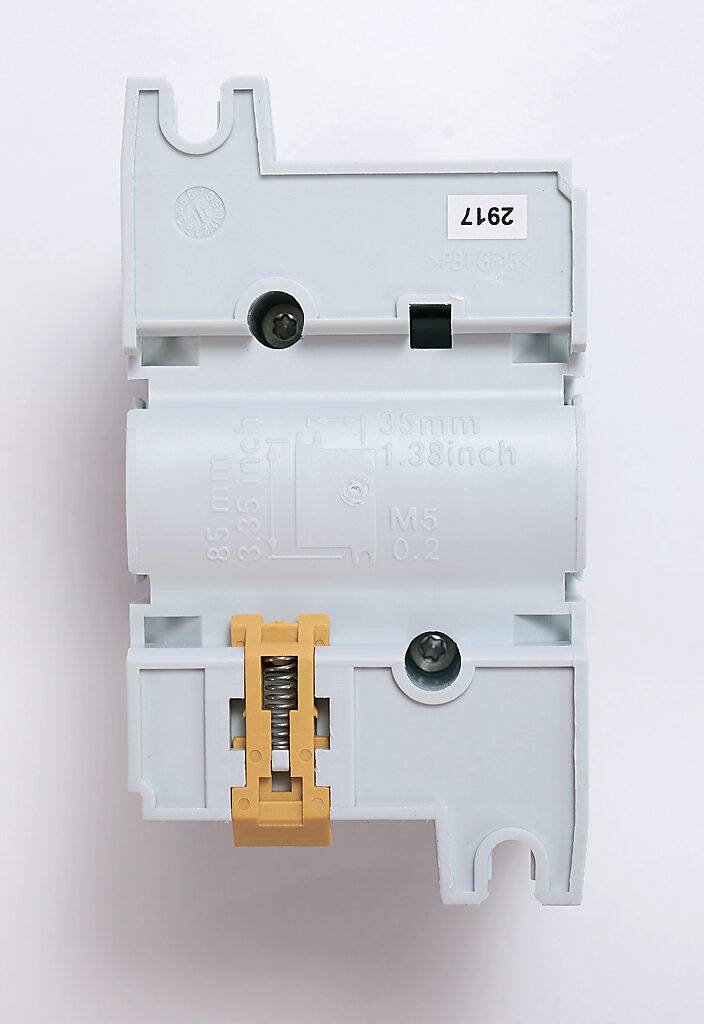

- Mounting Type: DIN rail or panel mount
- Operation: Rotary load break switch, front or side operated
- Certification: UL 508
Specifications
- Part Number: 22003009
- Brand : Socomec
- Category : Switch
- Item Subcategory : Disconnect
- Compatible Frames : PLP
Product Data
- Weight : 5
