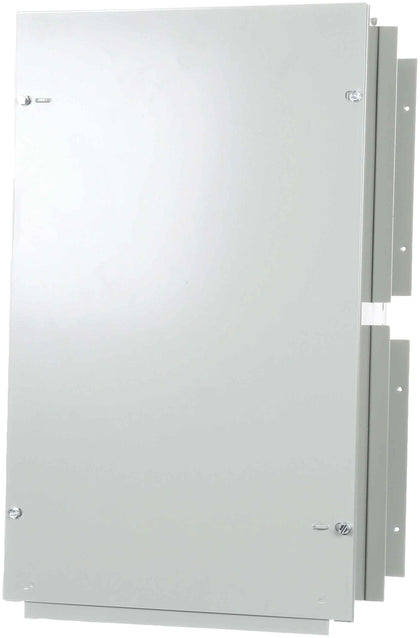

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Gould
- Brand
- Siemens
- Sub-Category
- Fusible
- Series
- BD Series
- Frame
- BOS
- Rated current
- 200
- Voltage
- 600 ACV
- Phases
- 3
- Interrupting rating
- 65kA@480V
- Wires
- 3
- Fuse class
- R,H,K
- Country of origin
- Mexico
- UPC
- 783643700420
- GTIN
- 00783643700420
Show all specifications (3 more)
- Dimensions
- 21.654 x 11.811 x 12.598 inch
- Weight
- 30.468
- Certification
- UL Listed
Product description & additional details
BOS14354
BOS14354 is a 200 amp, 600 volt, 3-pole fusible bus plug from Gould's BD Series designed for plug-in bus duct systems.This bus plug features a 3-phase, 3-wire configuration with a fusible design suitable for overcurrent protection using R-class fuses. It supports a maximum horsepower rating of 150 HP (time delay) and 60 HP standard per NEC. The unit includes 250 MCM mechanical lugs and is floor-operable, providing reliable power distribution and protection in industrial and commercial applications.
- Key Specifications
- Amperage: 200 Amps
- Voltage: 600 VAC
- Poles: 3
- Wires: 3
- Series/Frame: BD Series (Bulldog)
- Fuse Type: Fusible, R-class standard
- Interrupt Rating: 65kA at 480V
- Horsepower Rating: 60 HP standard, 150 HP max (time delay)
- Mounting Type: Plug-in busway
- Mechanical Lugs: 250 MCM standard
- Certifications: NEC compliant
- Part Number: BOS14354
- Manufacturer : Gould
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 600 AC
- Amperage : 200
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 3
- UPC : 783643700420
- GTIN : 00783643700420
- Country of Origin : Mexico
- Dimensions : 21.654 x 11.811 x 12.598 inch
- Weight : 30.468
- Certification : UL Listed
