ZB4BW0B15 - Schneider Electric 10A 24V AC/DC Harmony XB4 Metal Light Block with 1NO+1NC Contacts

ZB4BW0B15

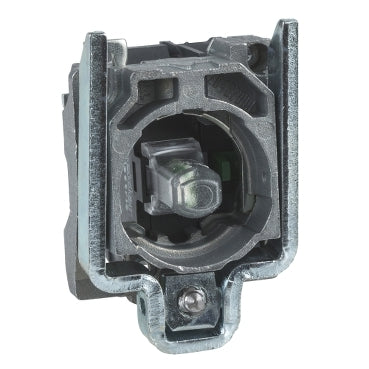

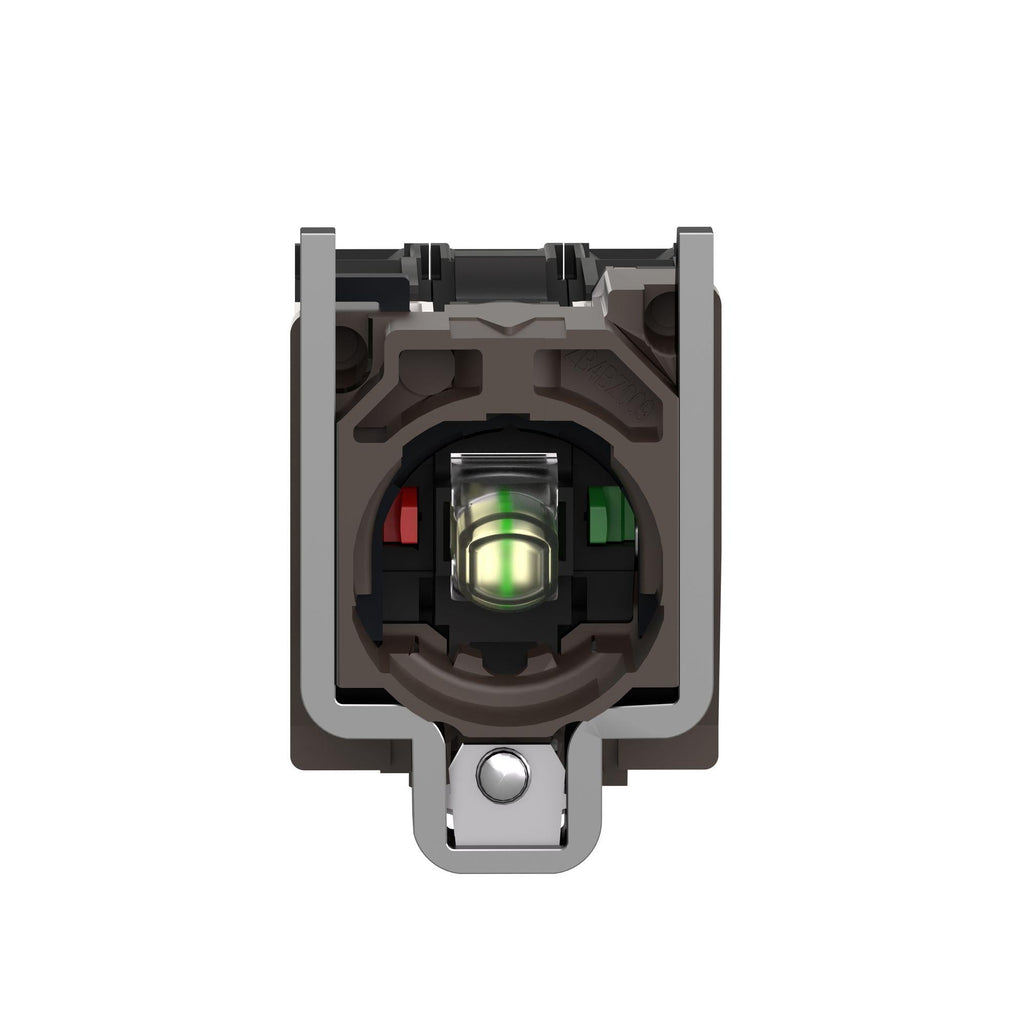

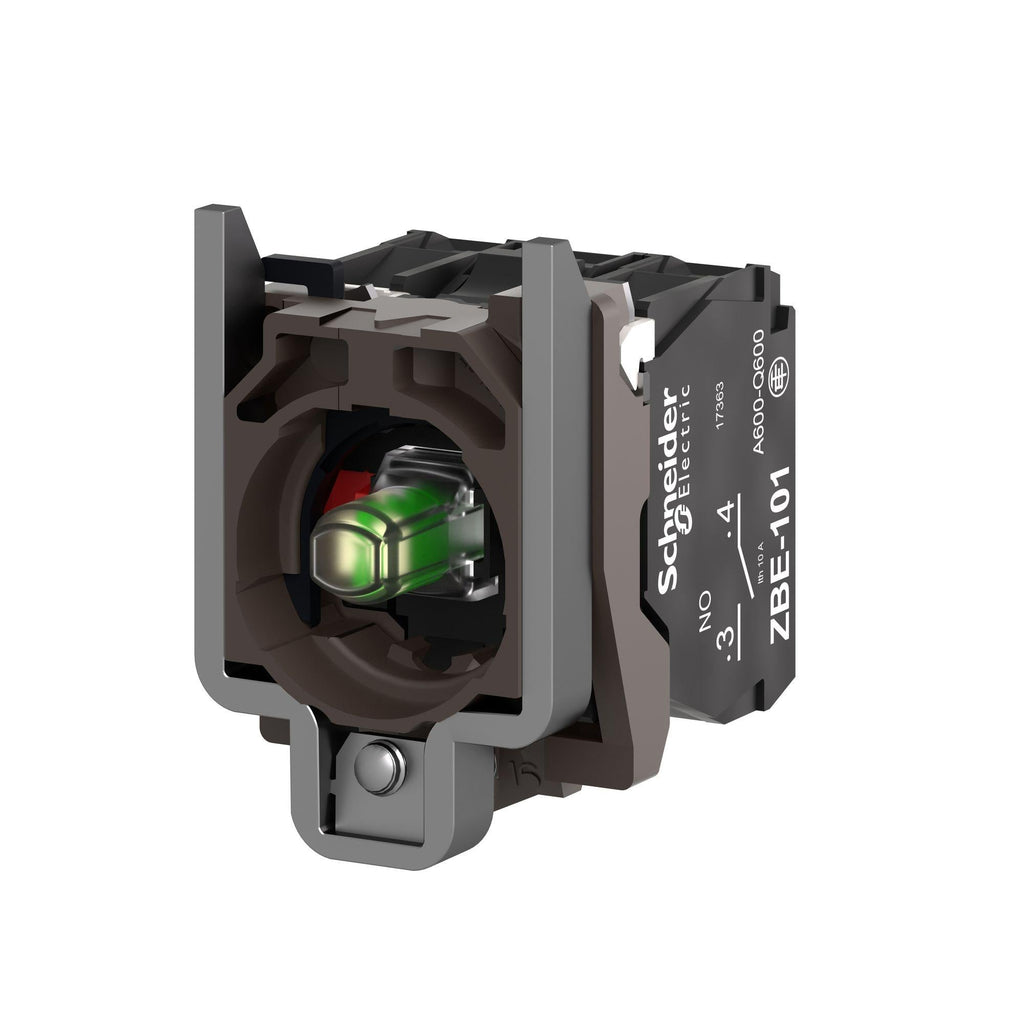

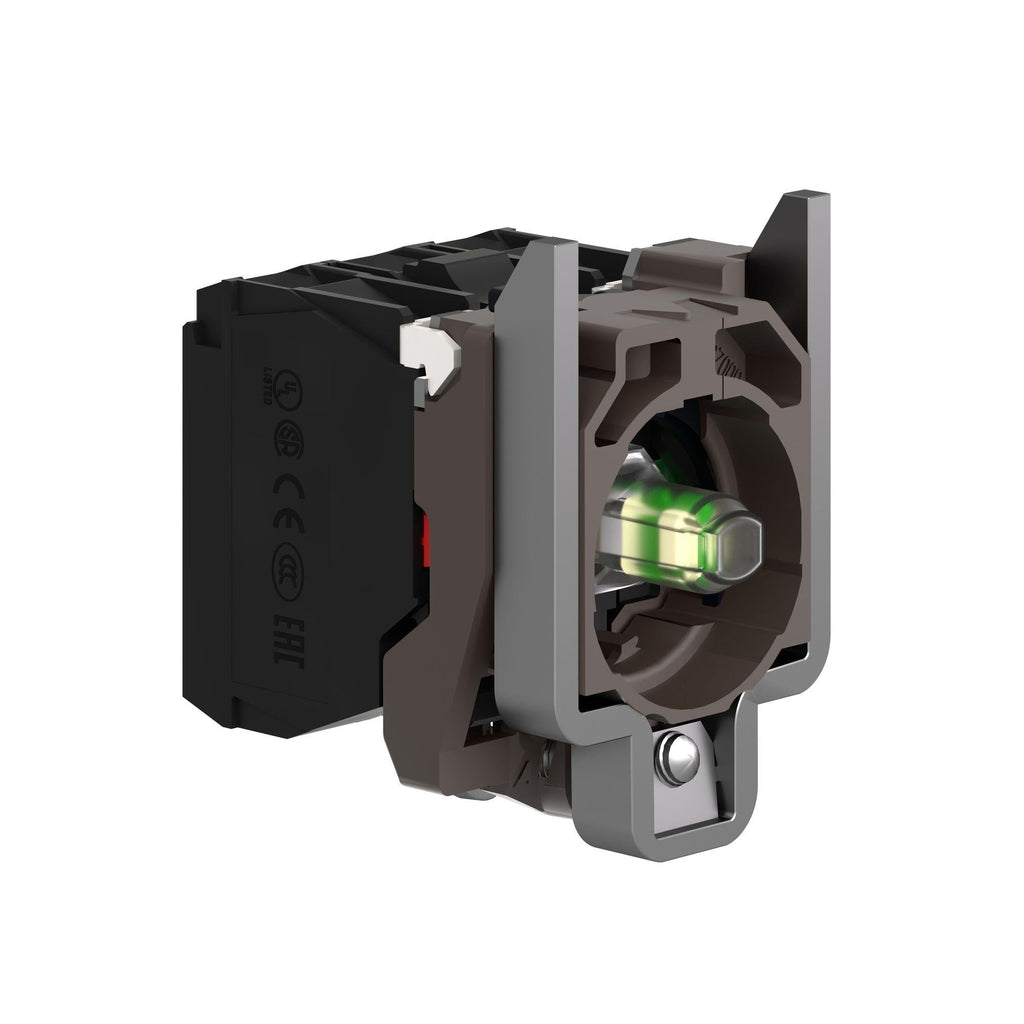

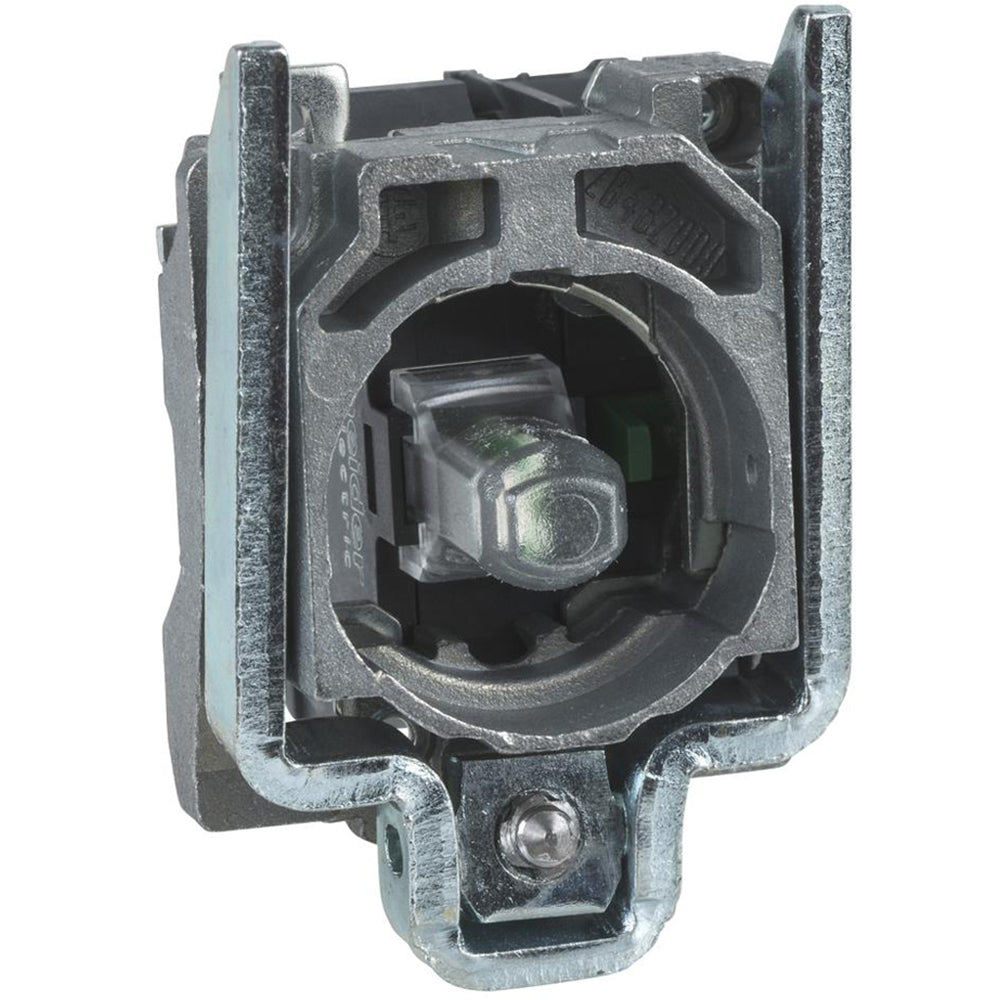

ZB4BW0B15 is a Schneider Electric Harmony XB4 metal light block with integral white LED, 1 normally open (NO) and 1 normally closed (NC) contact, designed for motor control applications.ZB4BW0B15 features a universal LED lamp operating at 24V AC/DC with screw clamp terminals, compatible with Harmony XB4 pilot lights and metal operators. It offers robust construction with IP65 protection, suitable for harsh environments, and supports utilization categories AC-15 and DC-13. The unit is UL listed, CSA certified, and CE marked, ensuring compliance with major safety standards.

Key Specifications
• Amperage: 10 Amps
• Voltage: 24 V AC/DC

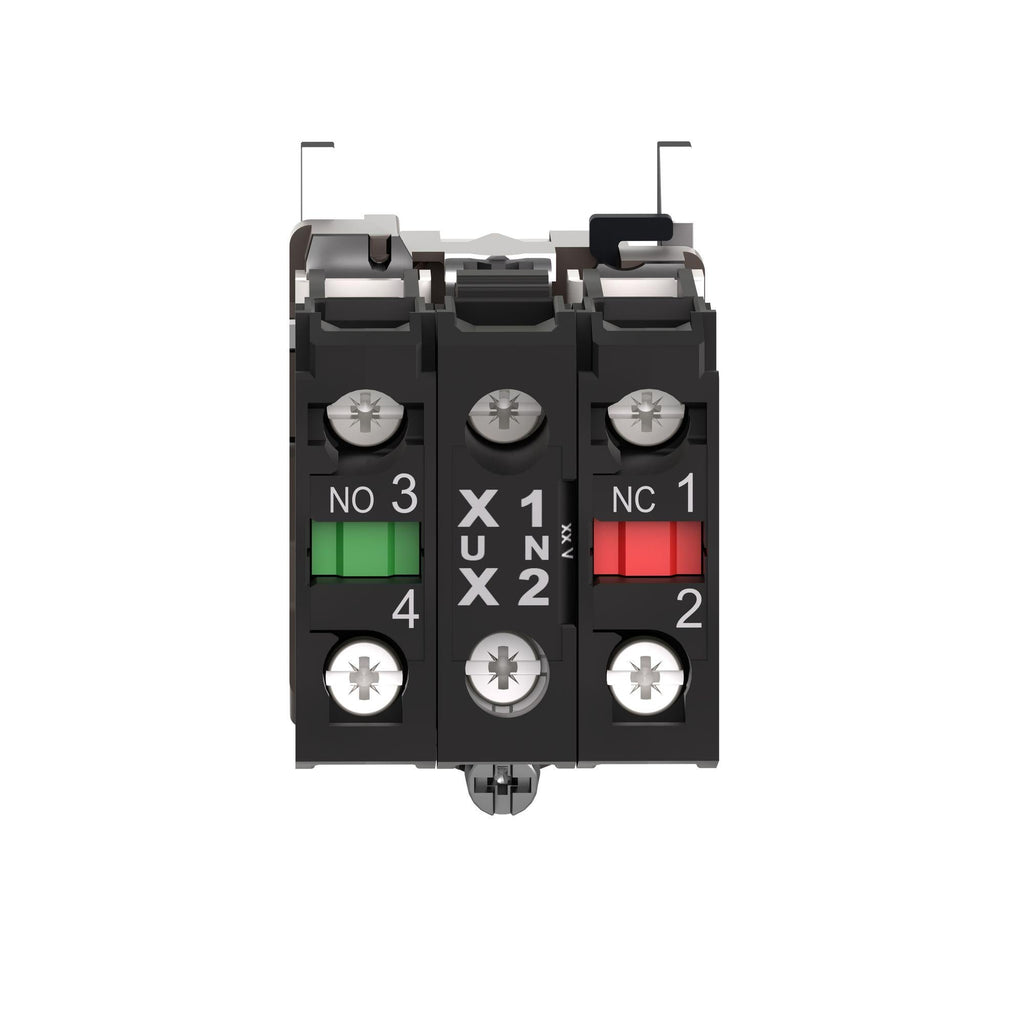

• Contact Configuration: 1 NO + 1 NC
• Mounting Size: 22 mm
• Terminal Type: Screw Clamp
• Enclosure Rating: NEMA 1/2/3/4/4X/12/13, IP65
• Light Source: White Universal LED
• Utilization Category: AC-15, DC-13
• Certifications: UL Listed, CSA Certified, CE Marked
• Operating Temperature: -40°C to 70°C
• Compatible With: Harmony XB4 Metal Operators

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB4BW0B15
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Misc. Kit
• Family : Harmony XB4
• Type : ZB4
• Voltage : 24 AC/DC
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 1NO, 1NC

Product Data

• UPC : 038911089311
• GTIN : 03389110893113
• Country of Origin : France
• Weight : 0.154
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA, EN, IEC, JIS, GL, DNV, LROS, BV
