Product Info
- Manufacturer:Eaton
- Sub-Category:Motor Control Part And Accessory
Description
XTPR6P3BC1

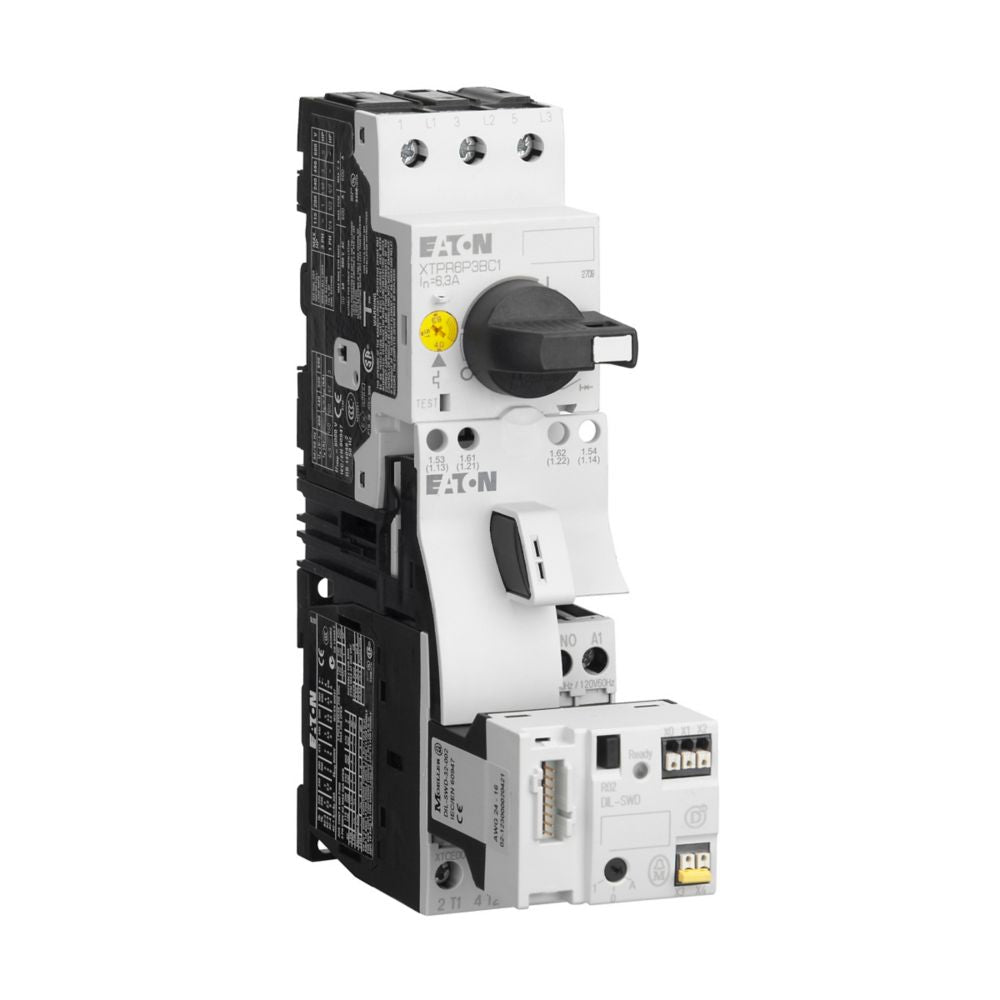

XTPR6P3BC1 is a manual motor protector designed for reliable motor overload and short-circuit protection in industrial applications. This Eaton device features a Class 10 adjustable bimetallic overload relay, thermal-magnetic trip mechanism, and a rotary ON/OFF disconnect for easy operation. Suitable for use with a wide range of motor loads, it provides dependable protection and is UL listed for safety. The XTPR6P3BC1 offers a 4-6.3A adjustable amperage range, 35-175A overload protection, and is designed for 3-pole, 3-phase applications. It mounts to standard 35mm DIN rail and is compatible with various Eaton contactors. The unit includes a short-circuit trip and supports auxiliary contacts and undervoltage trips for added flexibility.
- Part Number: XTPR6P3BC1
- Manufacturer: Eaton
- Amperage Range: 4-6.3A adjustable
- Overload Range: 35-175A
- Poles: 3
- Mounting Type: 35mm DIN rail
- Interrupt Rating: 100kA
- Frame Size: 110mm
- Trip Unit: Class 10 adjustable bimetallic overload relay
- Short-Circuit Trip: Yes
- Certifications: UL listed
- Series: XT IEC Motor Control
Specifications
- Part Number: XTPR6P3BC1
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Voltage : 2
Product Data
- UPC : 015082653396
- Country of Origin : Germany
- Dimensions : 3.7 in x 3.66 in x 1.77 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : ATEX Compliant, CE, CSA, UL 508 Group Motor Type E Compliant, UL Listed
