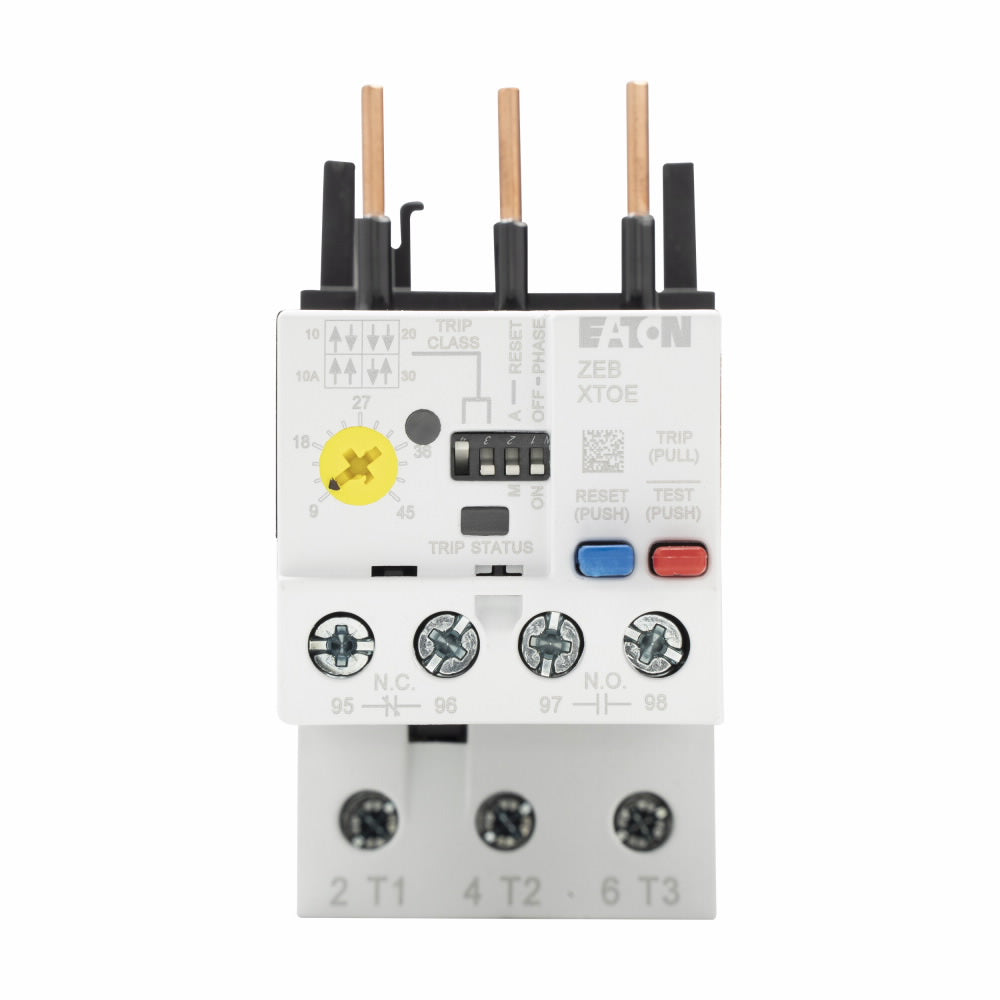

XTOE045DCS - Cutler Hammer 9-45A Electronic Overload Relay, 55mm Frame, Direct Mount, Selectable Trip Class

XTOE045DCS

XTOE045DCS is a Cutler Hammer electronic overload relay designed for motor control applications with an adjustable current range of 9-45 amps.This compact Eaton C440 series relay features a 55 mm frame size and mounts directly to XTCE contactors. It offers selectable trip classes (10A, 10, 20, 30) for flexible motor protection, includes one normally open (NO) and one normally closed (NC) auxiliary contact, and provides phase loss sensitivity. The device is UL listed, CSA certified, CE marked, and RoHS compliant.

• Adjustable overload range: 9-45 amps
• Frame size: 55 mm
• Mounting: Direct to contactor
• Contact configuration: 1 NO and 1 NC auxiliary contacts
• Selectable trip classes: 10A, 10, 20, 30
• Phase loss protection included
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Compact and economical design
• Compatible with XTCE040D, XTCE050D, XTCE065D contactors
• Test/Trip button for easy maintenance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOE045DCS
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Relay Style : Solid State
• Amperage Maximum : 45
• Amperage Minimum : 9

Product Data

• UPC : 78668541653
• GTIN : 00786685416533
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 4.3 in x 1.42 in (Length/Depth x Height x Width)
• Weight : 0.87
• Certification : ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
