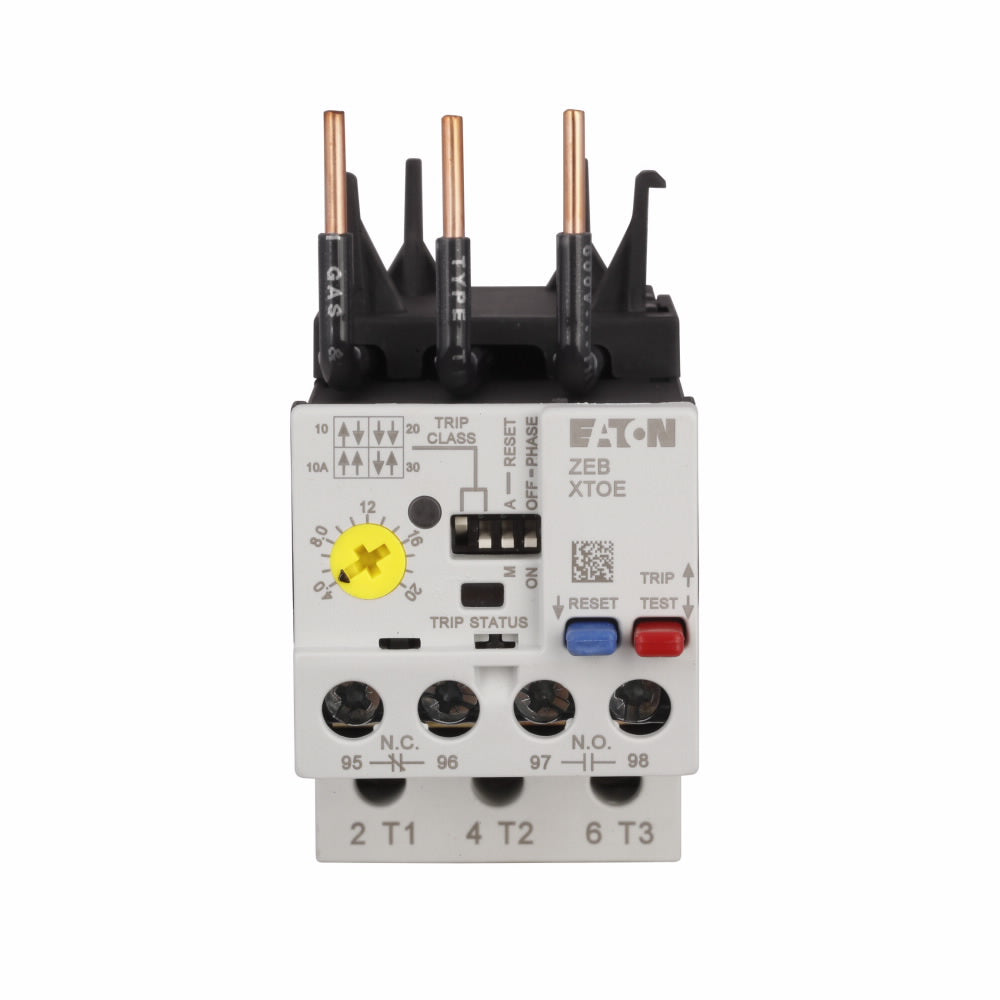

XTOE045CCS - Cutler Hammer Electronic Overload Relay 9-45A, 3 Poles, 45mm Frame, Selectable Trip Class

XTOE045CCS

XTOE045CCS is a Cutler Hammer electronic overload relay designed for motor protection with an adjustable current range of 9-45 amps and a compact 45 mm frame size.This electronic overload relay features selectable trip classes (10A, 10, 20, 30), 3 poles, and direct mounting capability to compatible contactors. It includes 1 normally open (NO) and 1 normally closed (NC) contact for alarm and fault signaling, phase loss sensitivity, and selectable auto or manual reset. Certified to UL, CSA, and CE standards, it supports reliable and accurate motor protection in industrial applications.

• Adjustable current range: 9-45 Amps
• Poles: 3
• Frame size: 45 mm
• Contact configuration: 1 NO, 1 NC
• Trip class selectable: 10A, 10, 20, 30
• Mounting type: Direct to contactor
• Certifications: UL Listed, CSA Certified, CE Marked
• Phase loss sensitivity included
• Reset type: Automatic or manual selectable
• Compact and flexible design
• Operating ambient temperature: -13 to 149 °F
• RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOE045CCS
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOE
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Solid State
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 45
• Amperage Minimum : 9

Product Data

• UPC : 786685416489
• GTIN : 00786685416489
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 4.3 in x 1.42 in (Length/Depth x Height x Width)
• Weight : 0.87 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
