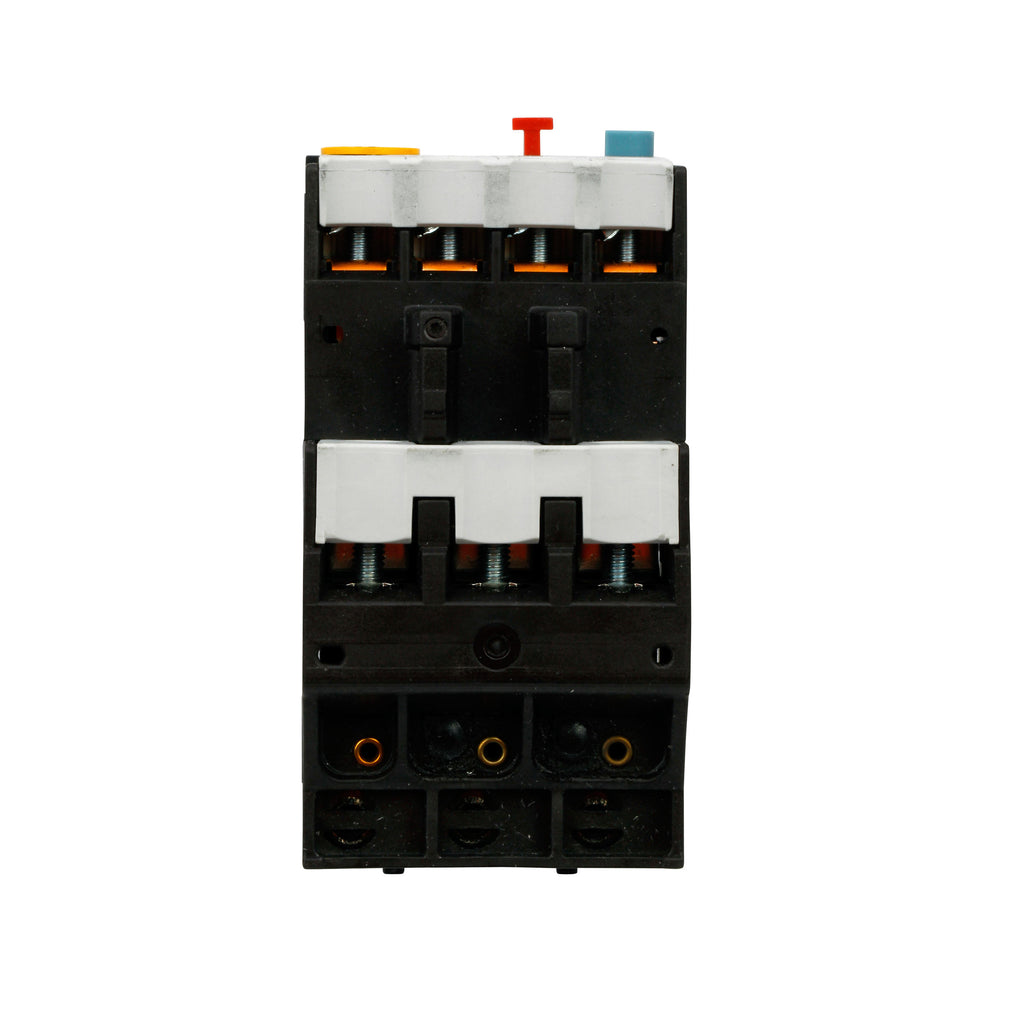

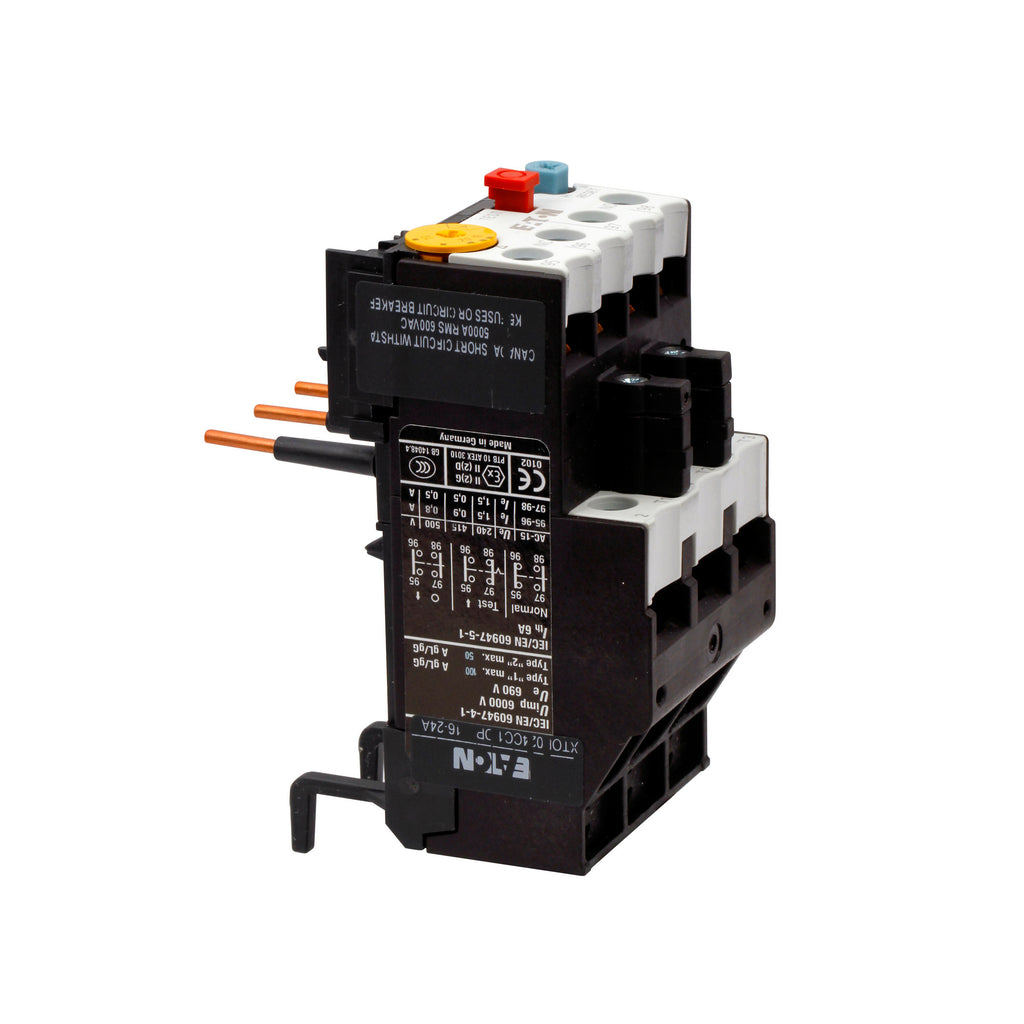

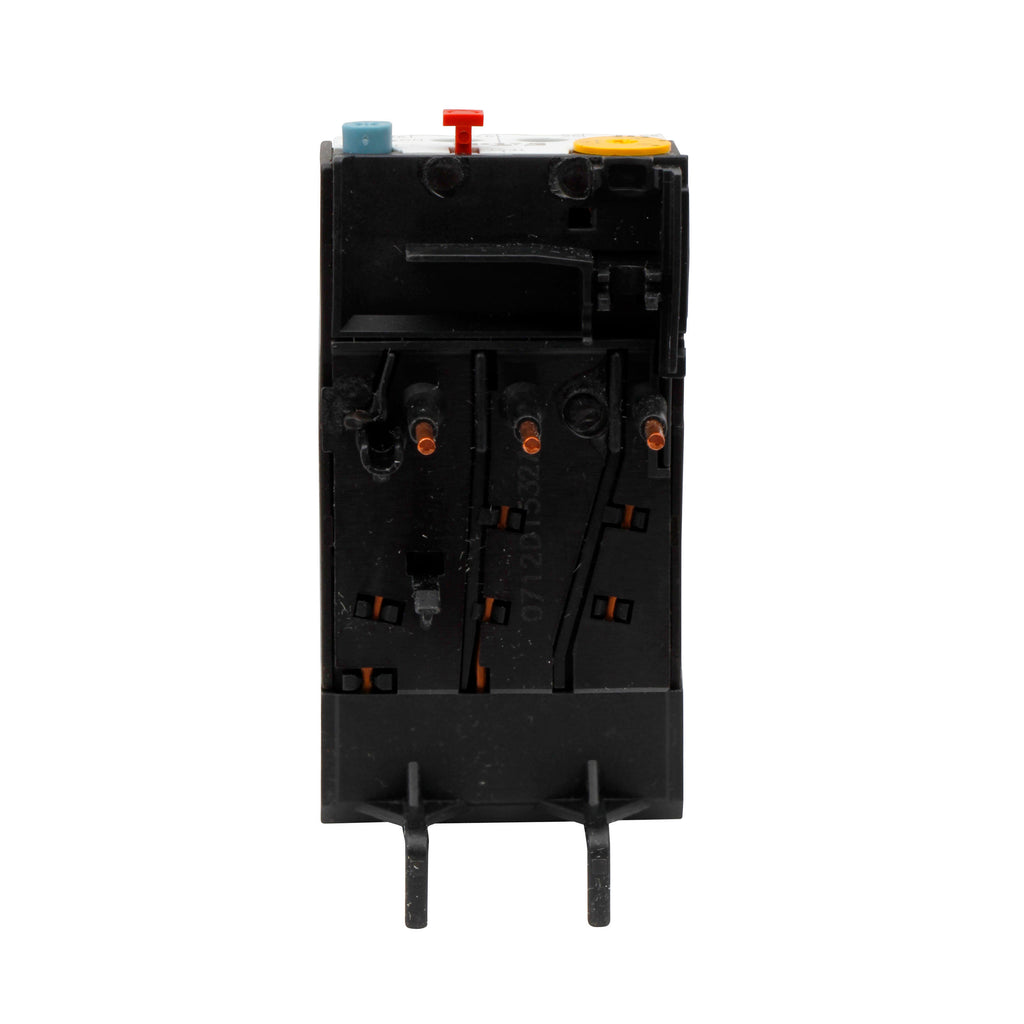

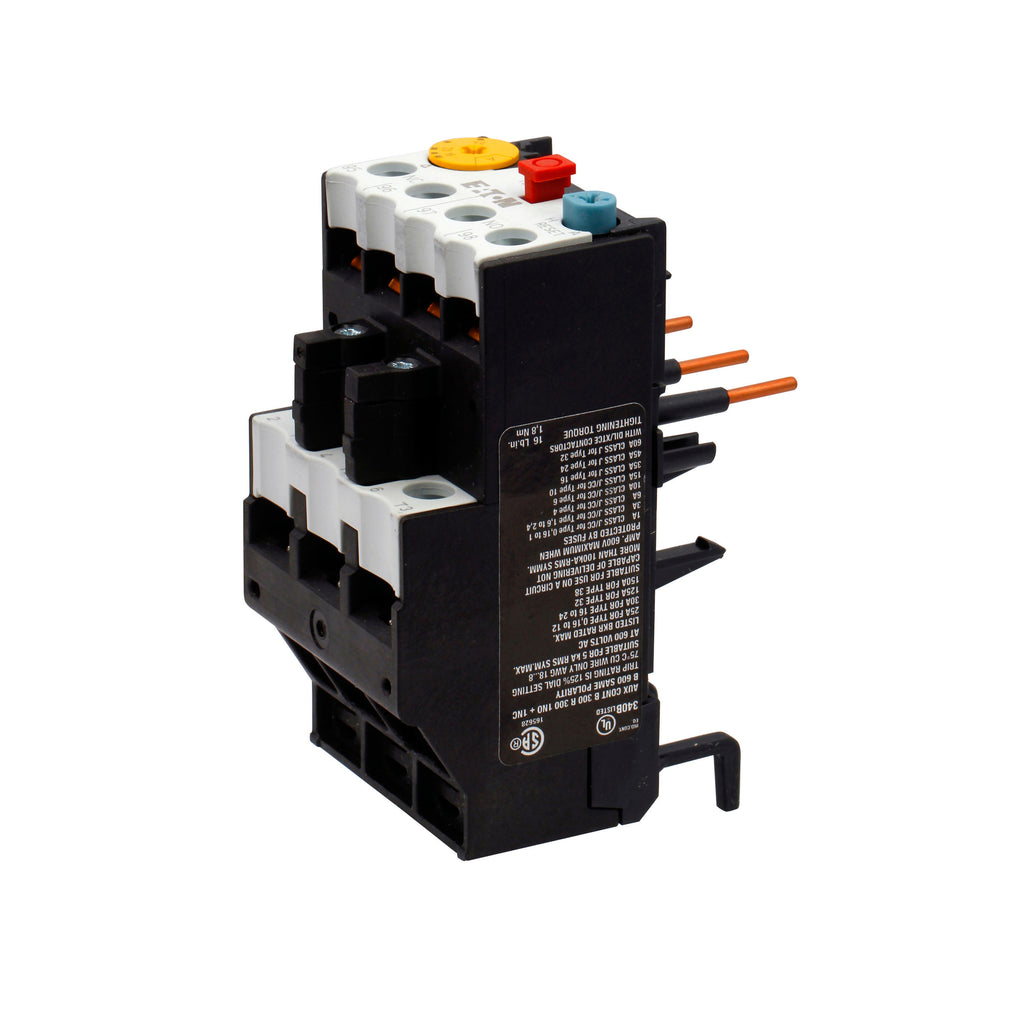

XTOBP16CC1DP - Cutler Hammer Thermal Overload Relay 0.10-0.16A Adjustable, 3 Pole, C25 Series

XTOBP16CC1DP

XTOBP16CC1DP is a Cutler Hammer thermal overload relay with an adjustable amperage range from 0.10 to 0.16 amps designed for motor protection.This overload relay mounts directly to any 3 pole C25D definite purpose contactor rated from 15 to 40 amps. It features manual or automatic reset options, phase loss sensitivity, and includes one normally open and one normally closed auxiliary contact. The relay has a Class 10 trip rating, tripping within 10 seconds or less, and uses screw terminals for easy installation. It also includes a push-to-test feature for convenient testing.

Key Specifications
• Amperage Range: 0.10 to 0.16 Amps
• Poles: 3
• Mounting: Direct mount to C25D contactors
• Series/Frame: C25 Series
• Reset Type: Manual or Automatic
• Trip Class: 10
• Auxiliary Contacts: 1 Normally Open, 1 Normally Closed
• Terminals: Screw type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOBP16CC1DP
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Relay Style : Thermal
• Amperage Maximum : 0.16
• Amperage Minimum : 0.1

Product Data

• UPC : 782116978106
• GTIN : 00782116978106
• Country of Origin : United States
• Dimensions : 1.811 in x 3.819 in x 2.835 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
• Certification : UL/CUL listed
