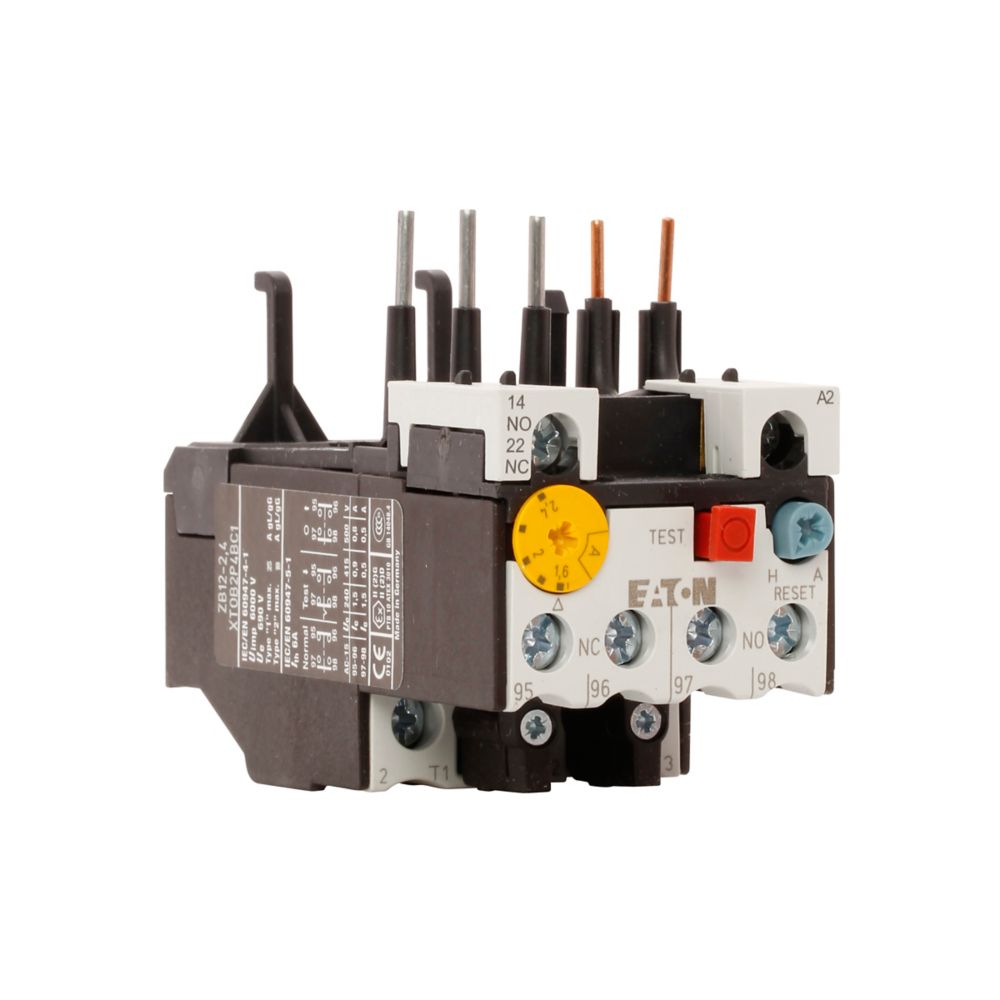

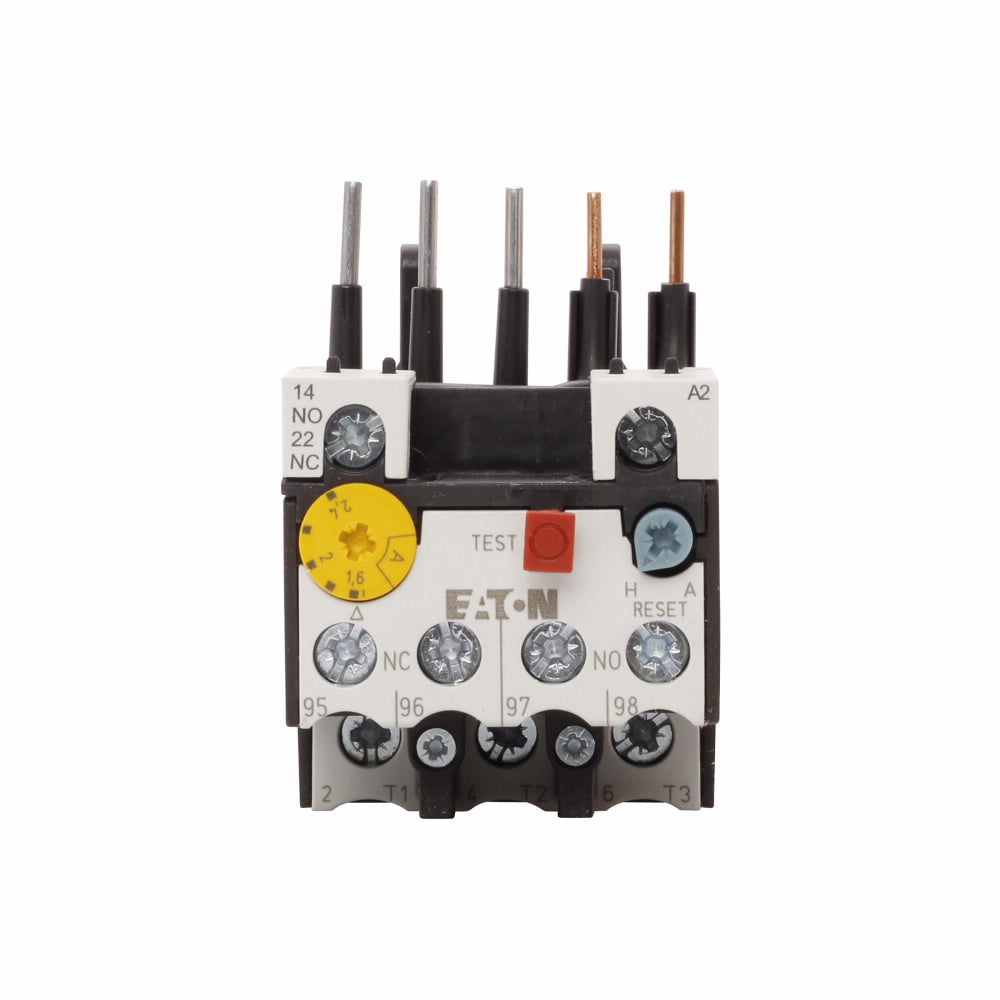

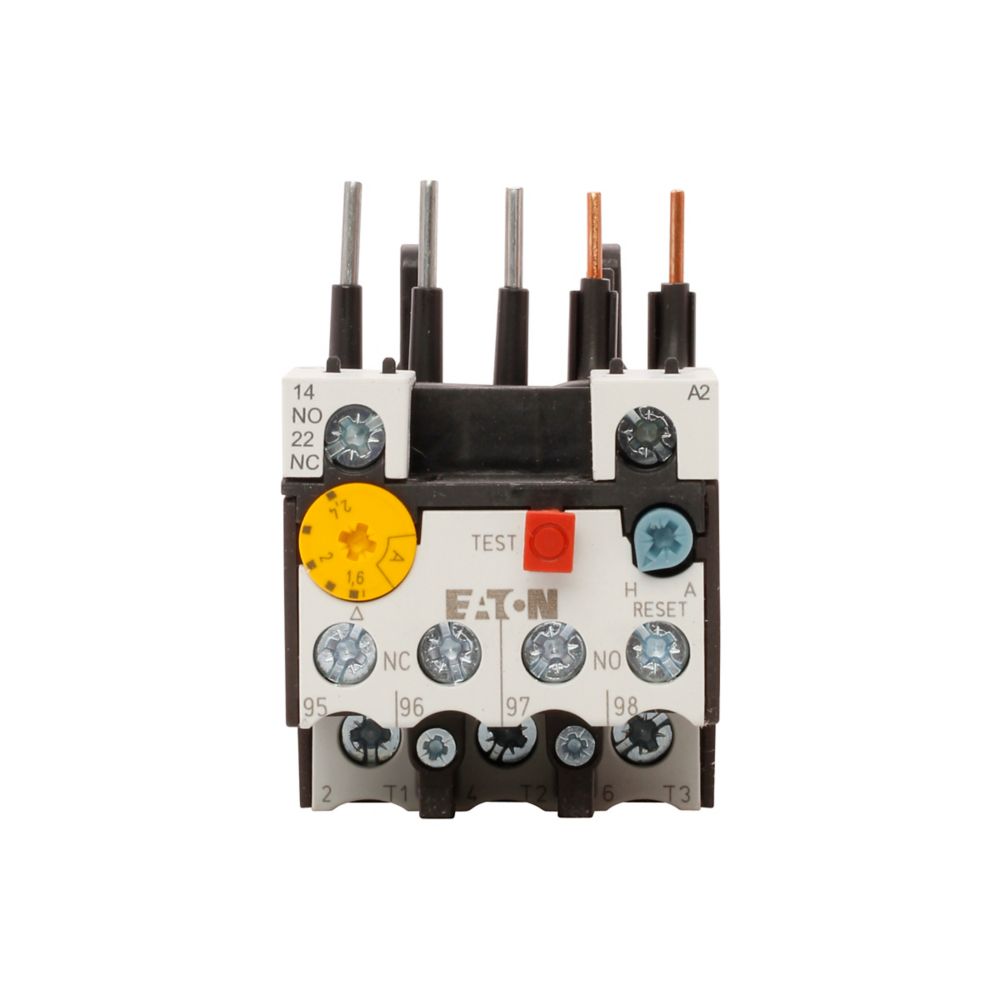

XTOB2P4BC1 - Cutler Hammer 1.6-2.4A Thermal Overload Relay, 3 Pole, Frame B, Class 10, Direct Mount

XTOB2P4BC1

XTOB2P4BC1 is a Cutler Hammer thermal overload relay designed for motor protection with an adjustable current range of 1.6 to 2.4 amps.This 3-pole overload relay mounts directly to XTCE frame size B contactors and features Class 10 trip characteristics for fast motor overload protection. It includes manual and automatic reset options, built-in normally open (N.O.) and normally closed (N.C.) auxiliary contacts for coil power interruption, and phase failure sensitivity compliant with IEC/EN 60947 standards. The relay is rated for 690V operational voltage with IP20 degree of protection and meets UL, CSA, IEC/EN 60947, and VDE 0660 certifications.

Key Specifications
• Amperage Range: 1.6 to 2.4 Amps
• Voltage Rating: 690 Vac operational voltage
• Poles: 3 Pole
• Mounting Type: Direct mount to XTCE frame B contactors
• Interrupt Rating: Class 10 trip (trips within 10 seconds)
• Frame Size: B (45 mm)
• Trip Unit: Thermal bimetallic overload
• Reset Type: Manual or automatic reset
• Auxiliary Contacts: 1 N.O. and 1 N.C.
• Degree of Protection: IP20
• Certifications: UL, CSA, IEC/EN 60947, VDE 0660

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB2P4BC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 2.4
• Amperage Minimum : 1.6

Product Data

• UPC : 015082784379
• GTIN : 04015082784379
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
