Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
XTOB1P6CC1DP

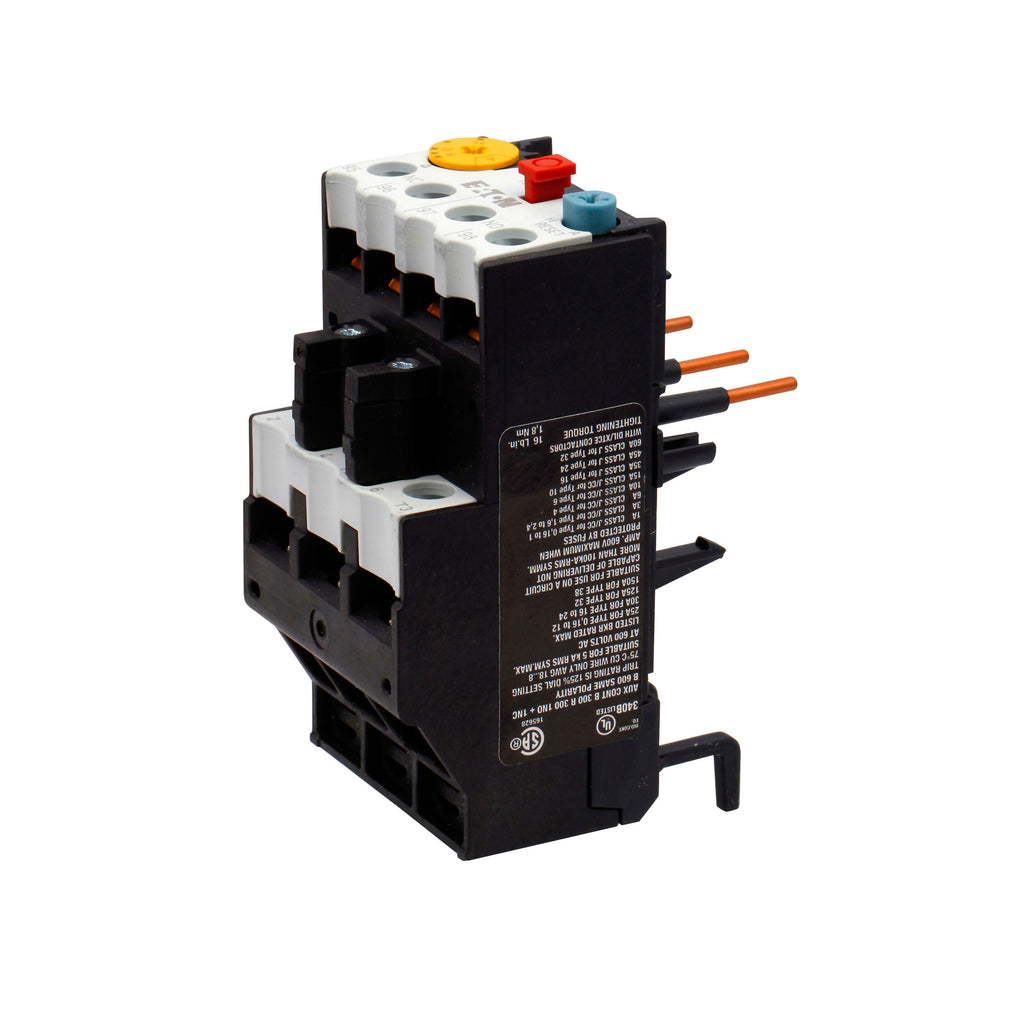

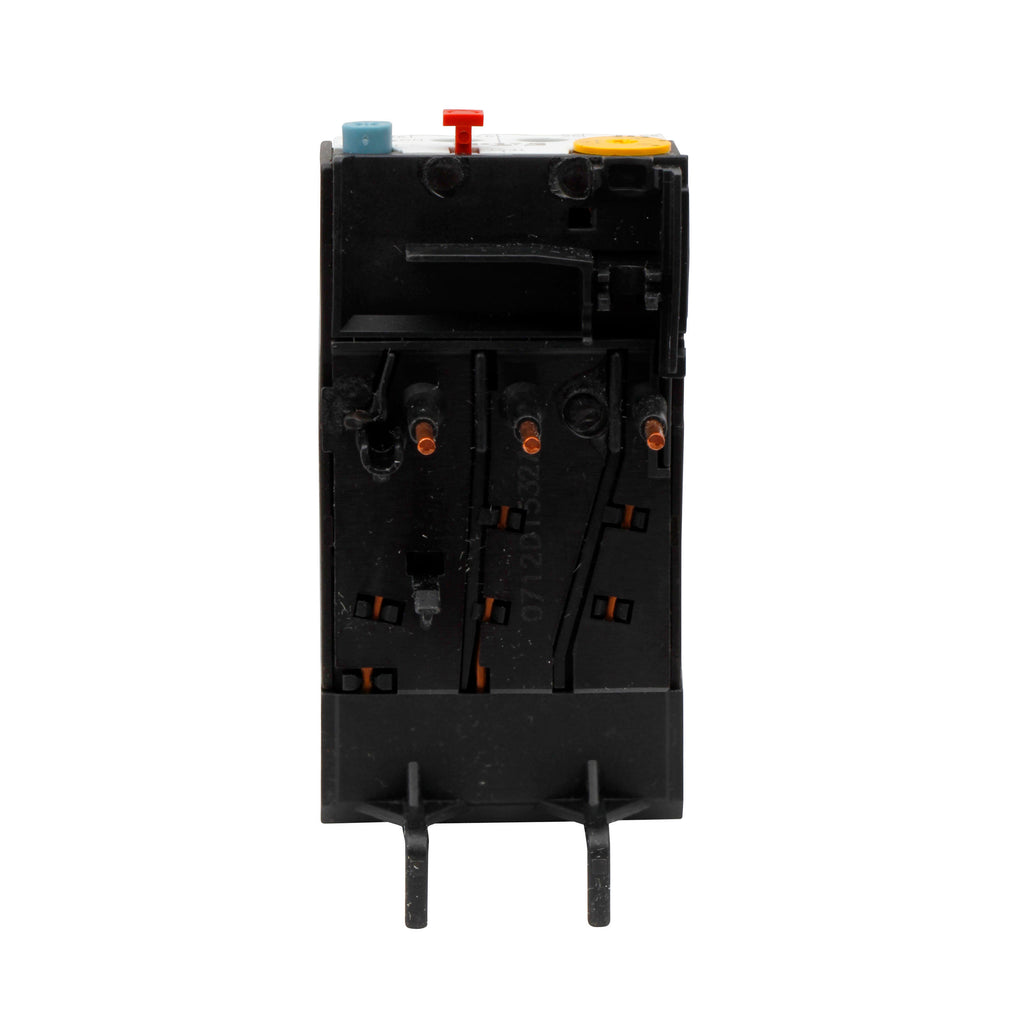

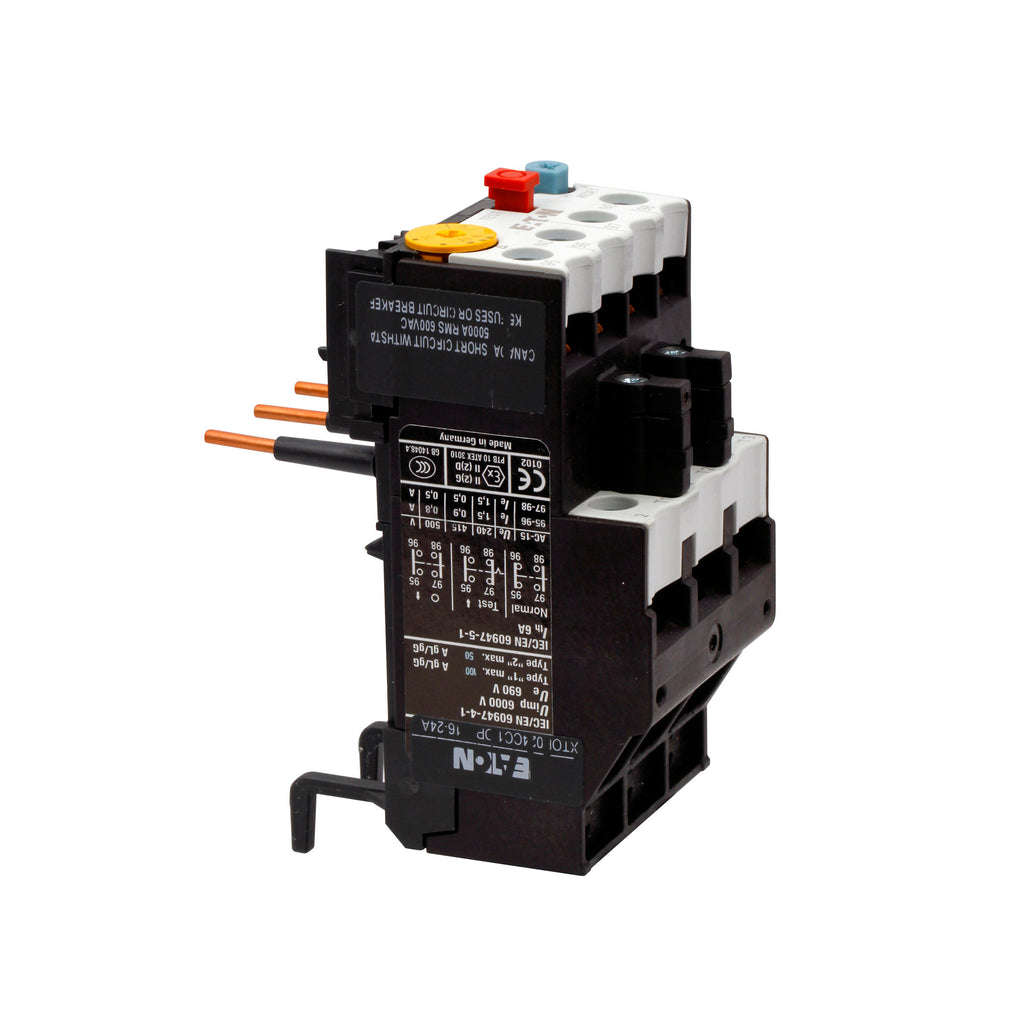

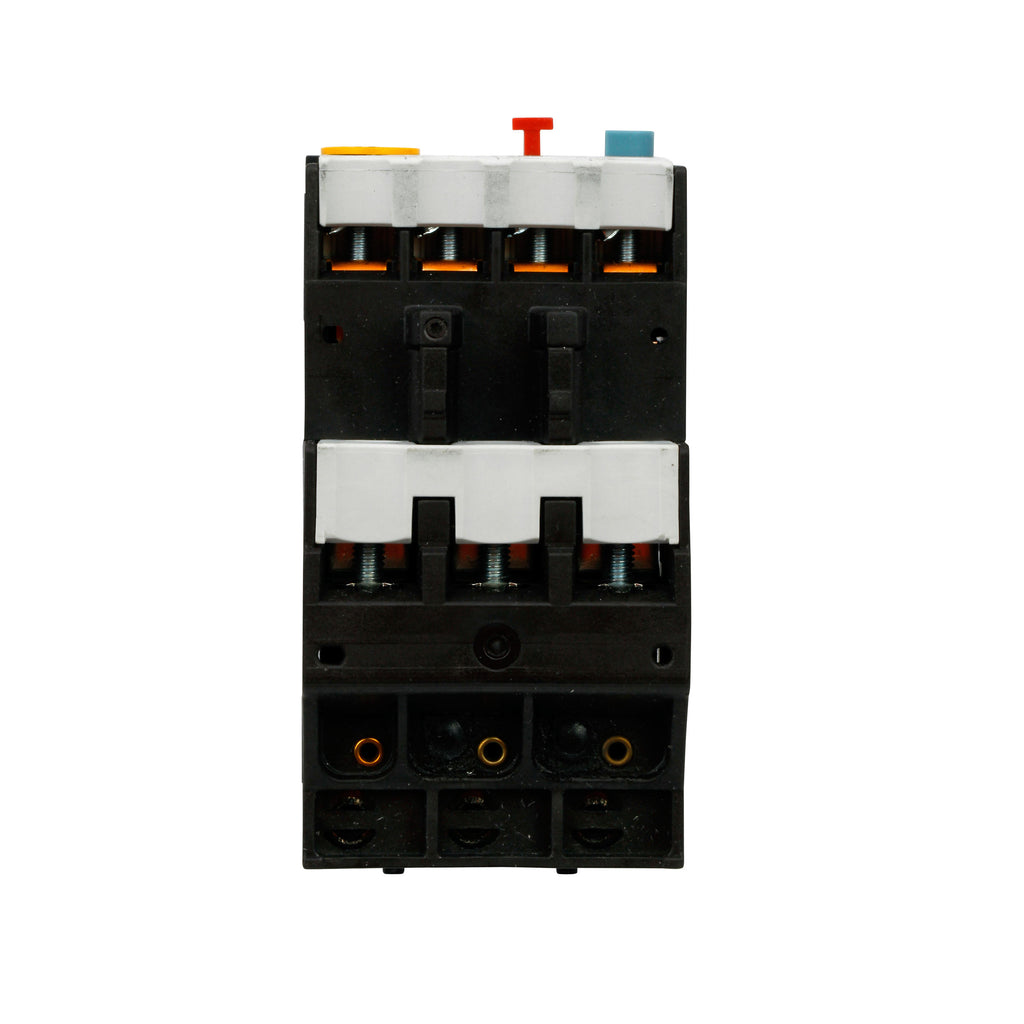

XTOB1P6CC1DP is a Cutler Hammer XT Series thermal overload relay designed for motor protection with an adjustable current range of 1 to 1.6 amps.
This bimetallic overload relay features a 45 mm frame size and is intended for direct mounting on compatible contactors, providing reliable overload protection in industrial and automation applications. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration and is suitable for use with contactors rated 18-32A. The relay supports coil voltages up to 220V DC and complies with RoHS standards.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: XTOB1P6CC1DP
- Series: XT Series
- Overload Current Range: 1 to 1.6 Amps
- Frame Size: 45 mm
- Mounting Type: Direct Mount
- Auxiliary Contacts: 1 NO + 1 NC
- Compatible Contactor Range: 18-32 Amps
- Coil Voltage Max: 220V DC
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: XTOB1P6CC1DP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Type : XTOB
- Relay Style : Thermal
- Amperage Maximum : 1.6
- Amperage Minimum : 1
Product Data
- UPC : 782116978151
- GTIN : 00782116978151
- Country of Origin : United States
- Dimensions : 4 in x 1.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 0.02 lb
- Certification : UL/CUL listed
