XTOB1P6BC1 - Cutler Hammer XT IEC Bimetallic Overload Relay, 1-1.6A, 45mm Frame, 1NO/1NC, Class 10, Direct Mount, UL/CSA/IEC

XTOB1P6BC1

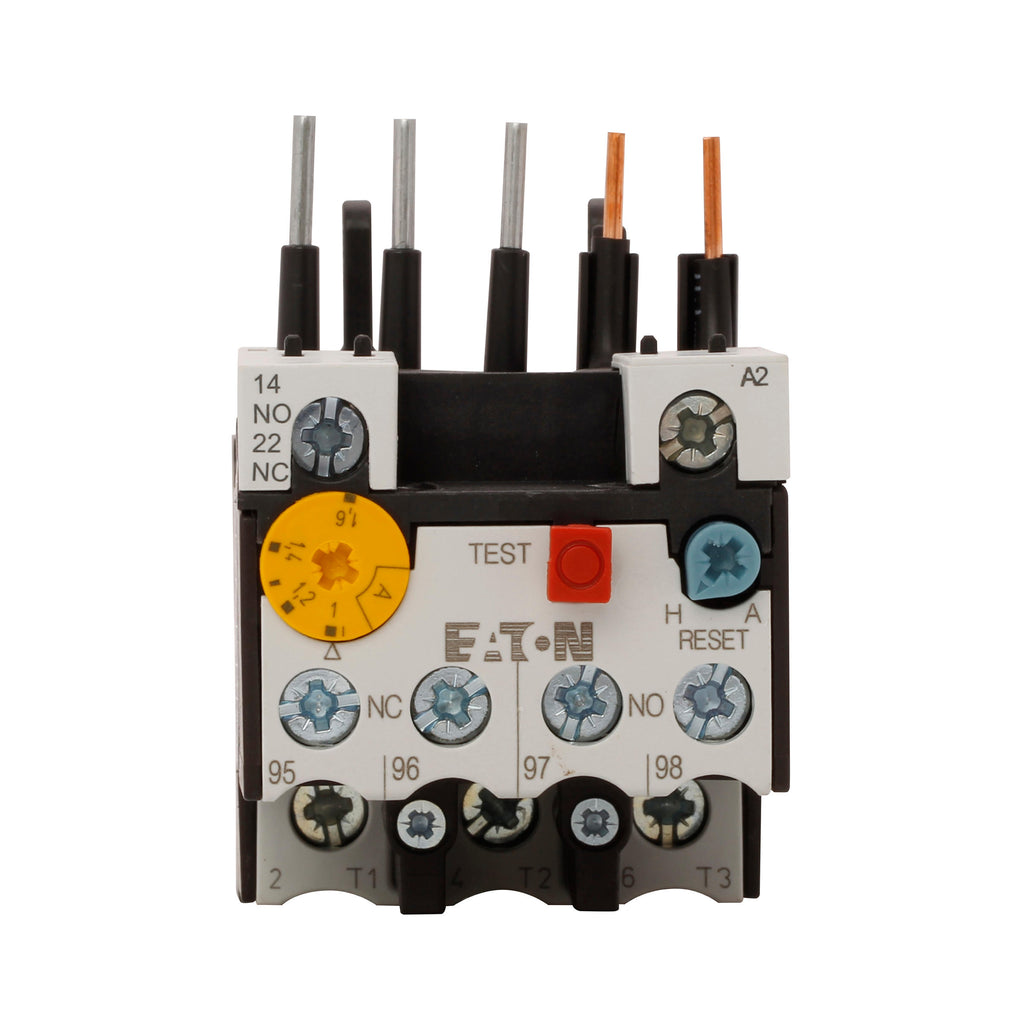

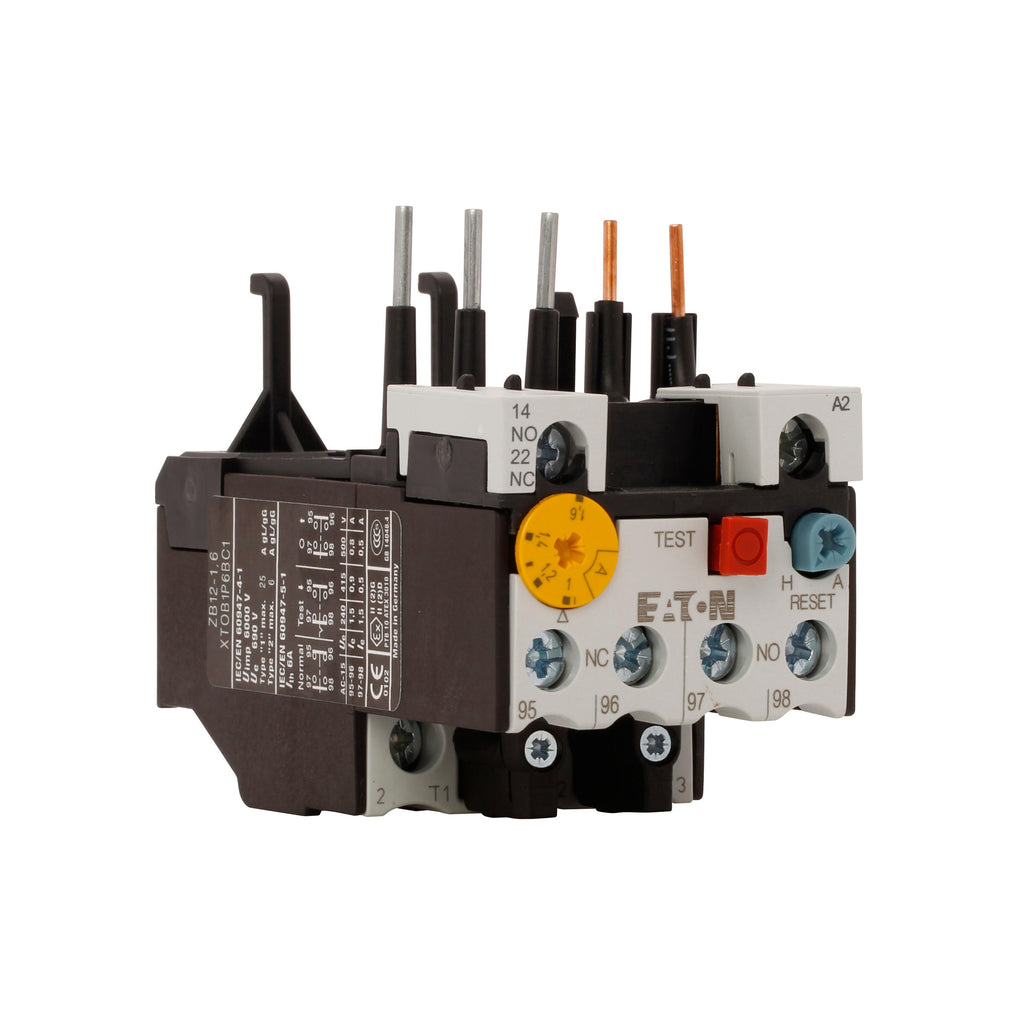

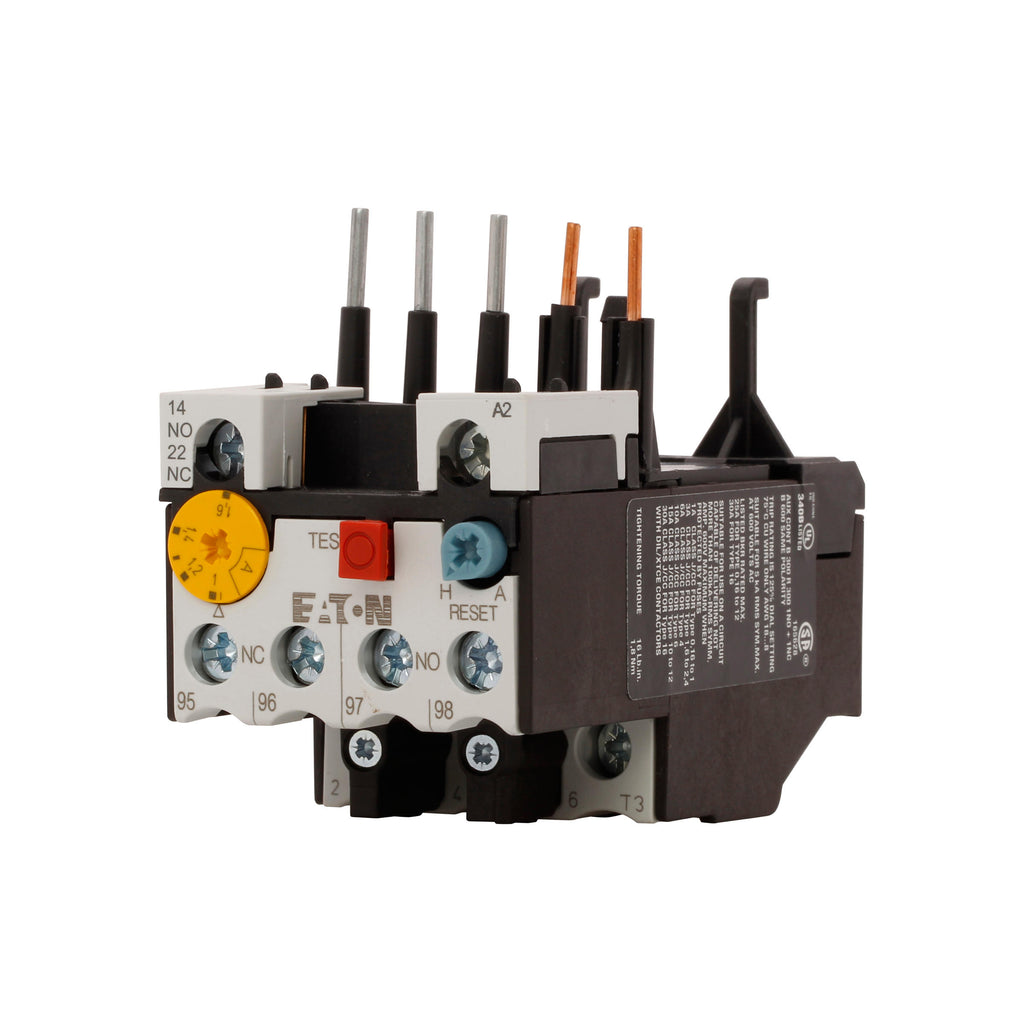

XTOB1P6BC1 is a Cutler Hammer (Eaton) XT Series IEC bimetallic thermal overload relay designed for three-phase motor protection.

This overload relay offers adjustable current settings, phase loss and asymmetry protection, and is compatible with select XT Series contactors. It features a compact 45mm frame size, direct mounting to contactors, and is suitable for a variety of industrial motor control applications.

Key Specifications
• Amperage: Adjustable 1.0–1.6A
• Voltage: Not specified in available sources
• Poles: 3 (for three-phase motor protection)
• Mounting Type: Direct to contactor
• Interrupt Rating: Not specified in available sources
• Series/Frame: XT Series, 45mm Frame Size B
• Trip Unit: Bimetallic, Class 10 trip
• Certifications: UL Listed, CSA Certified, IEC 60947
• Contact Configuration: 1NO + 1NC auxiliary contacts
• Reset: Manual and automatic options
• Protection: Overload, phase loss, phase asymmetry
• For Use With: XTCE007, XTCE009, XTCE012, XTCE015 contactors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB1P6BC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 1.6
• Amperage Minimum : 1

Product Data

• UPC : 015082784362
• GTIN : 04015082784362
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
