Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
XTOB100GC1

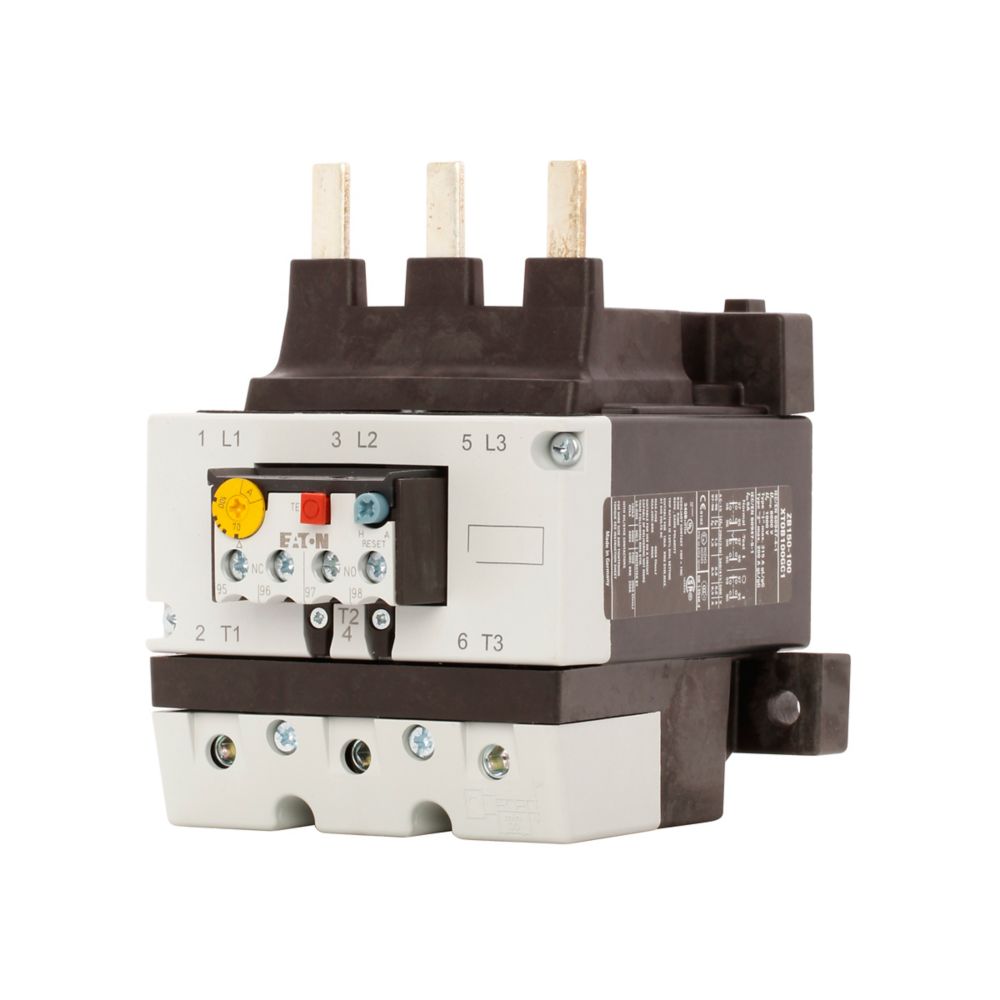

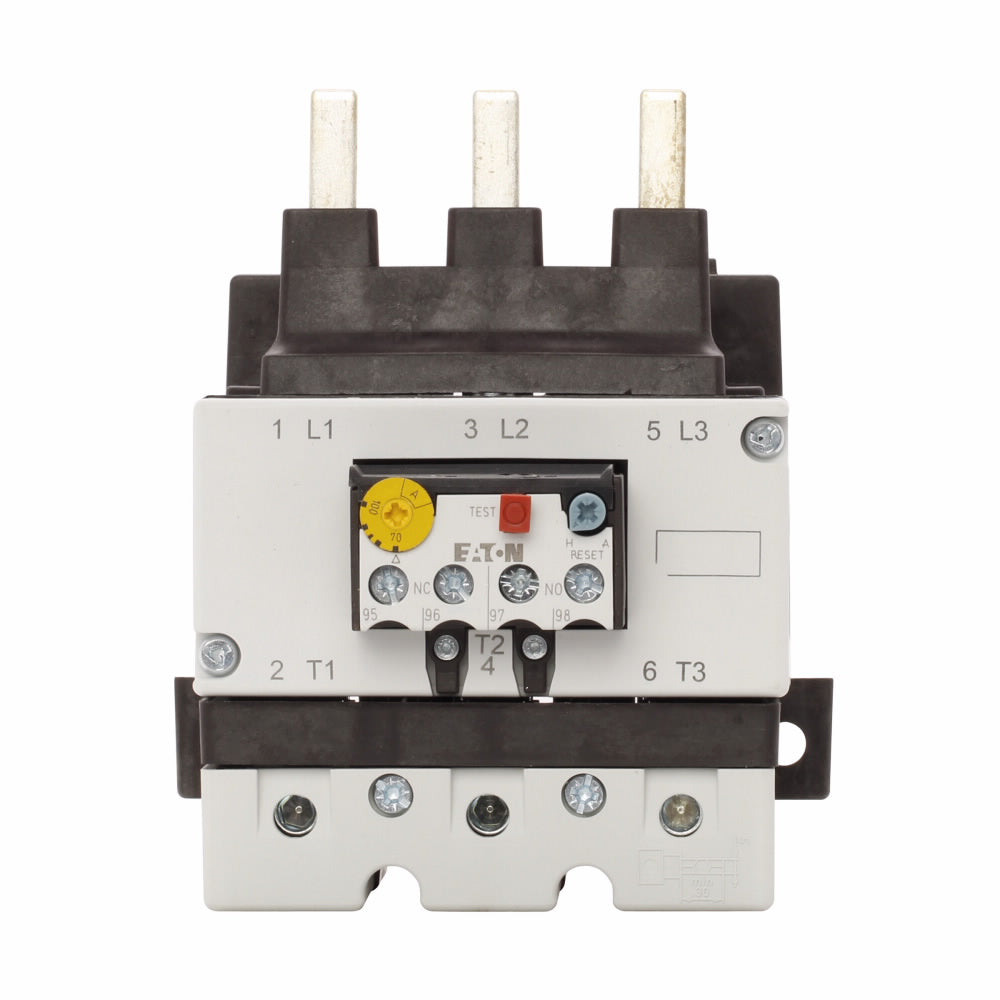

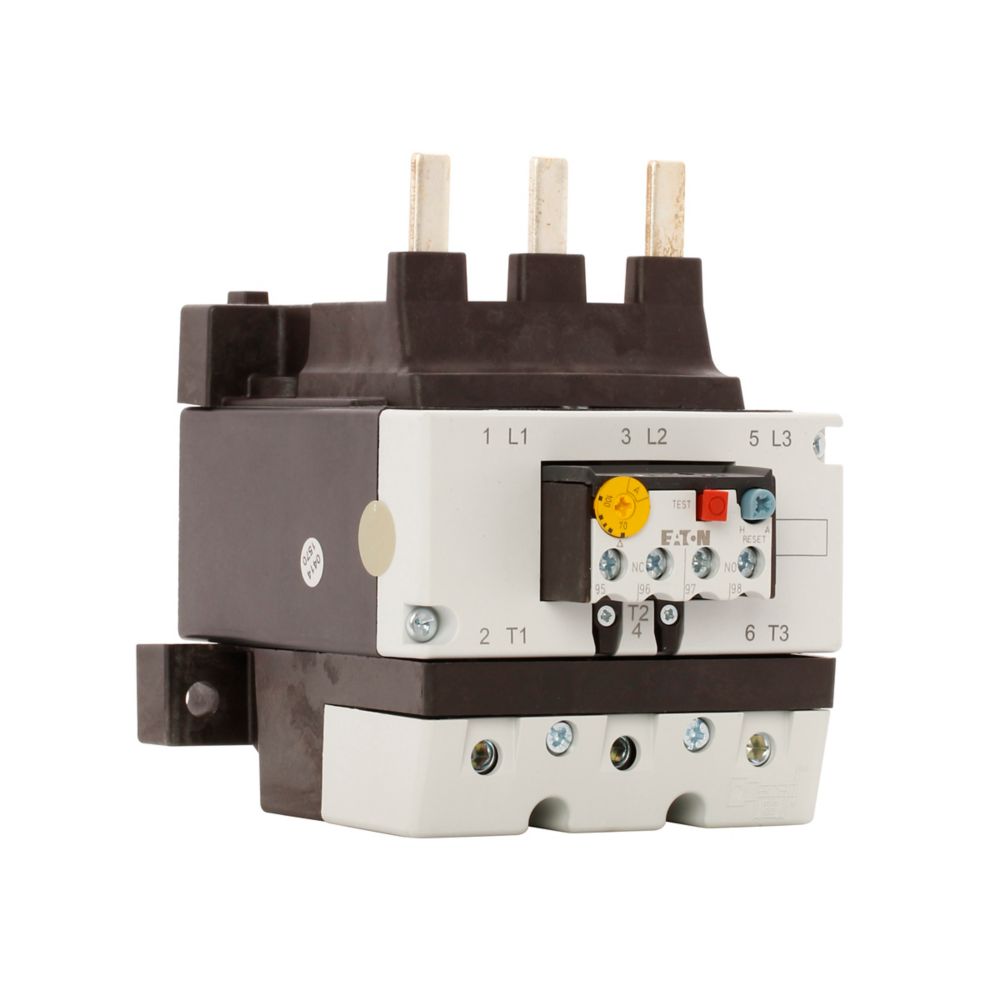

XTOB100GC1 is a Cutler Hammer bimetallic overload relay with an adjustable current range of 70-100 amps designed for motor control applications.This overload relay features a 90 mm frame size and a 3-pole configuration with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. It mounts directly to XT Series G frame contactors and provides Class 10 trip protection. The relay supports both manual and automatic reset options and is suitable for ambient temperatures from -13 to 131 °F. Certified to ATEX, CE, CSA, and UL standards, it ensures reliable motor protection in industrial environments.
- Key Specifications
- Adjustable Current Range: 70-100 Amps
- Poles: 3
- Frame Size: 90 mm
- Contact Configuration: 1NO + 1NC
- Trip Class: 10
- Mounting Type: Direct to Contactor
- Reset Type: Manual and Automatic
- Approvals: ATEX, CE, CSA, UL
- Ambient Temperature Range: -13 to 131 °F
- Weight: 2.98 lbs
Specifications
- Part Number: XTOB100GC1
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Relay Style : Thermal
- Amperage Maximum : 100
- Amperage Minimum : 70
Product Data
- UPC : 015082784649
- GTIN : 04015080000000
- Dimensions : 5.28 in x 5.43 in x 4.65 in (Length/Depth x Height x Width)
- Weight : 3.1
