Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
XTOB057DC1DP

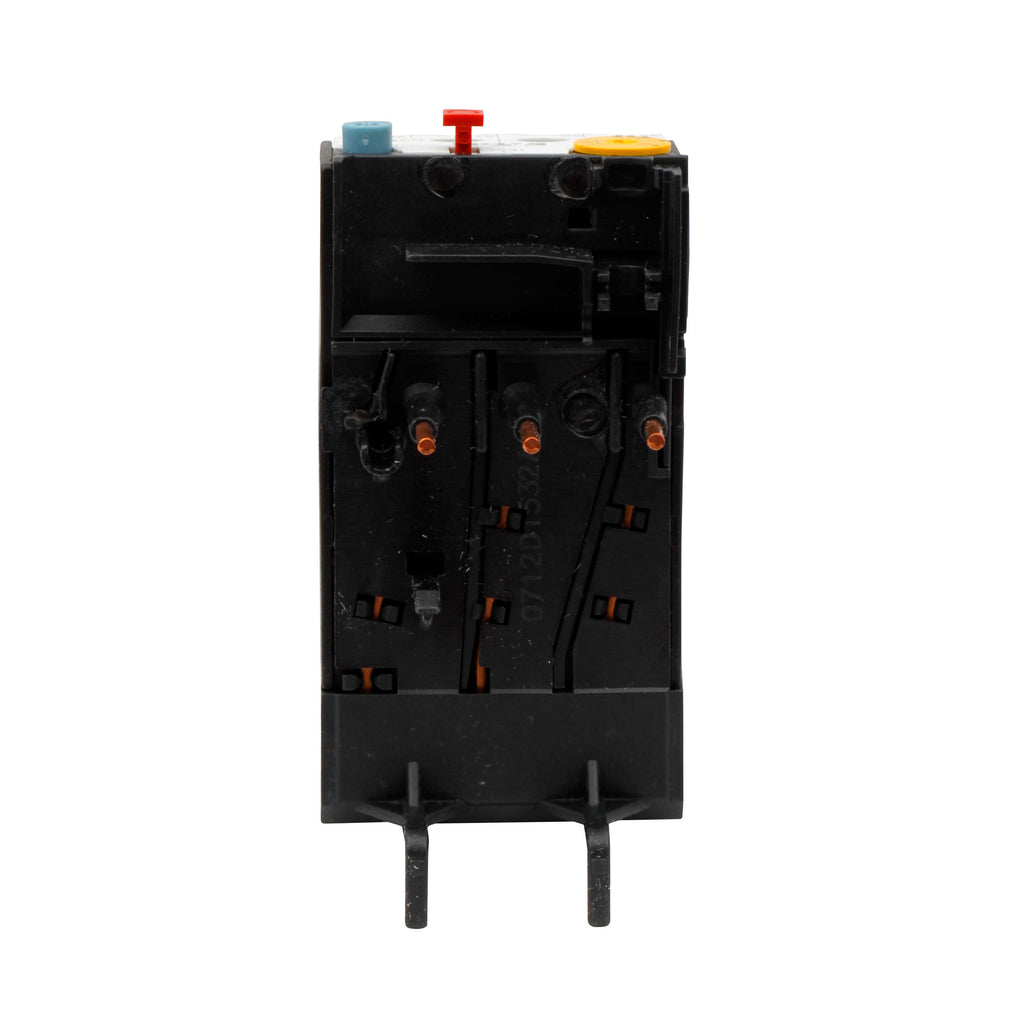

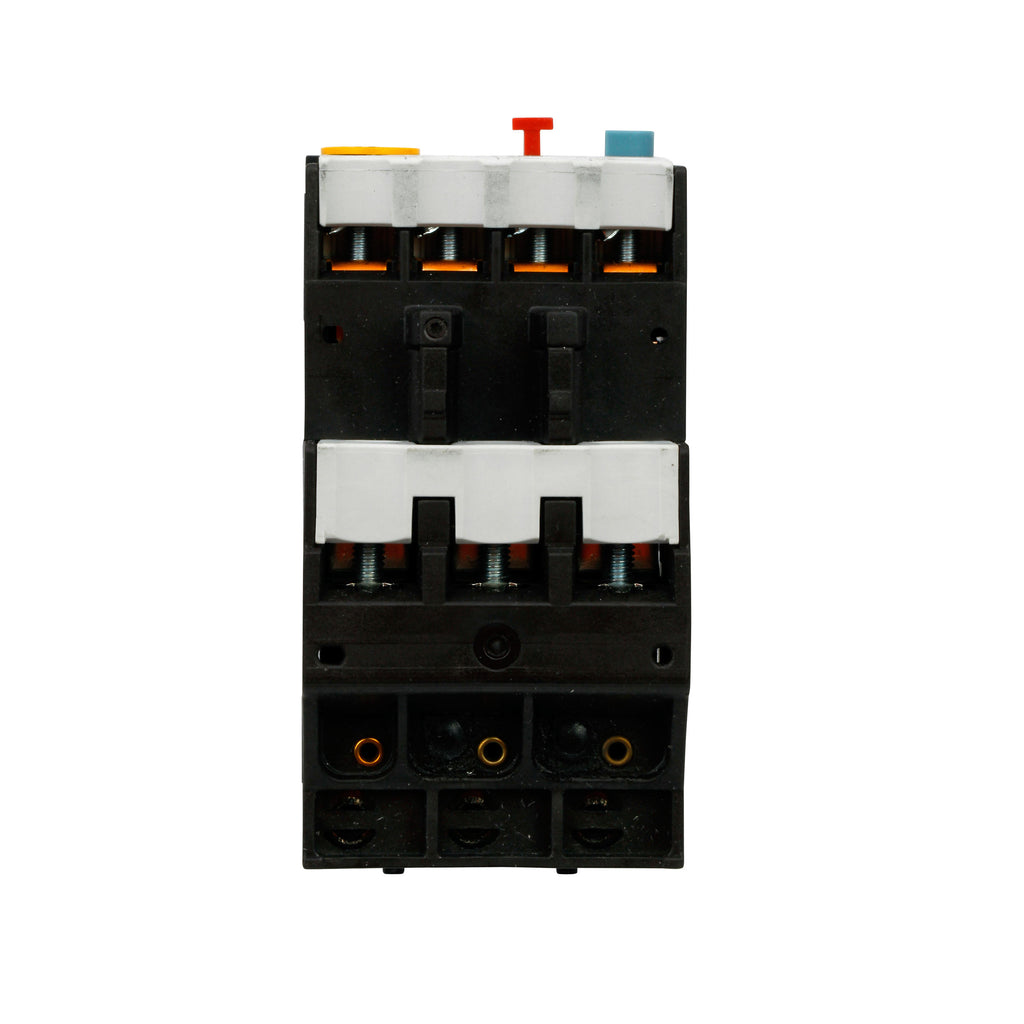

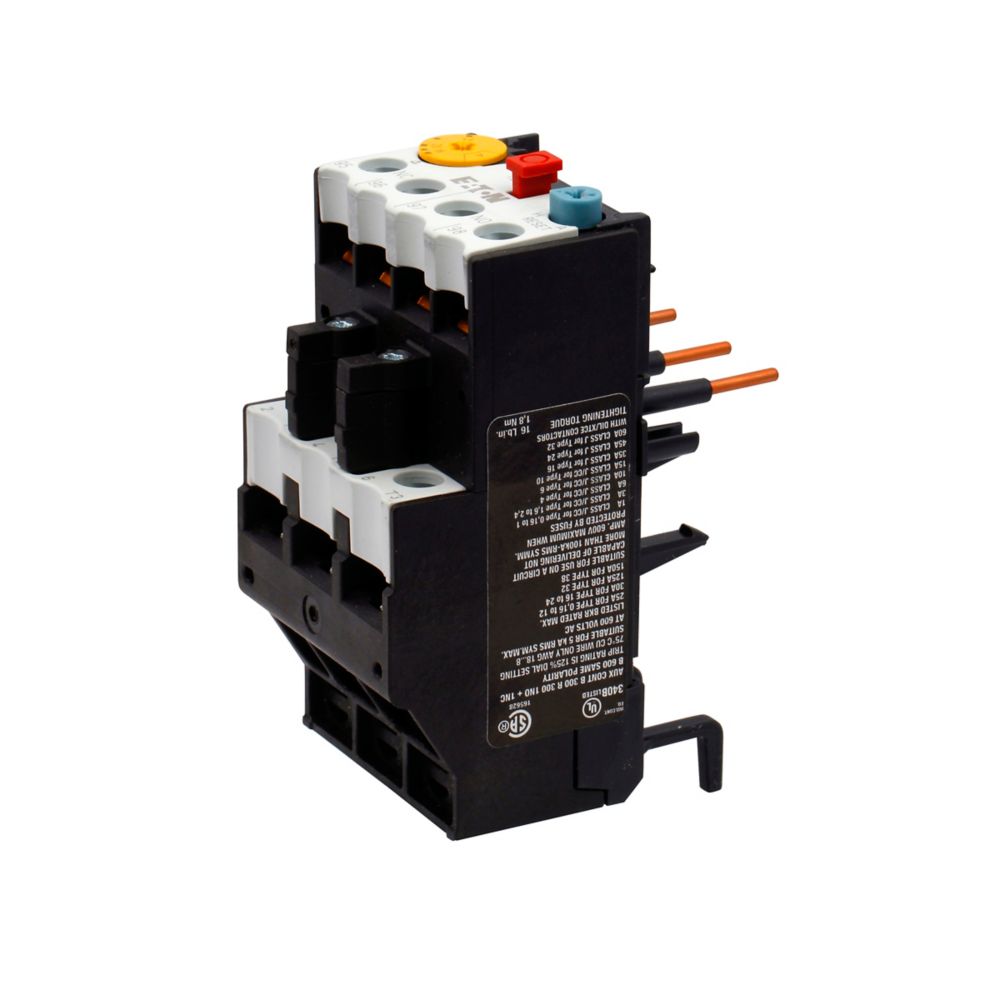

XTOB057DC1DP is a Cutler Hammer 57A thermal overload relay from the XT Series designed for motor protection in industrial applications.This bimetallic overload relay features continuous temperature compensation and an adjustable current range from 40 to 57 amps, allowing precise motor current monitoring and protection. It is designed to mount with Frame D contactors rated for 30-45A, providing reliable overload protection by disconnecting the motor in overcurrent conditions. The device offers IP20 finger and back-of-hand protection for safety.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: XTOB057DC1DP
- Amperage Range: 40-57A
- Series/Frame: XT Series, Frame D
- Type: Thermal (Bimetallic) Overload Relay
- Mounting: Designed for 30-45A contactors
- Protection Rating: IP20
- Temperature Compensation: Continuous
- Part Number: XTOB057DC1DP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Type : XTOB
- Relay Style : Thermal
- Amperage Maximum : 57
- Amperage Minimum : 40
- UPC : 782116978274
- GTIN : 00782116978274
- Country of Origin : United States
- Dimensions : 2.36 in x 3.58 in x 3.27 in (Length/Depth x Height x Width)
- Weight : 0.6 lb
- Certification : UL/CUL listed
