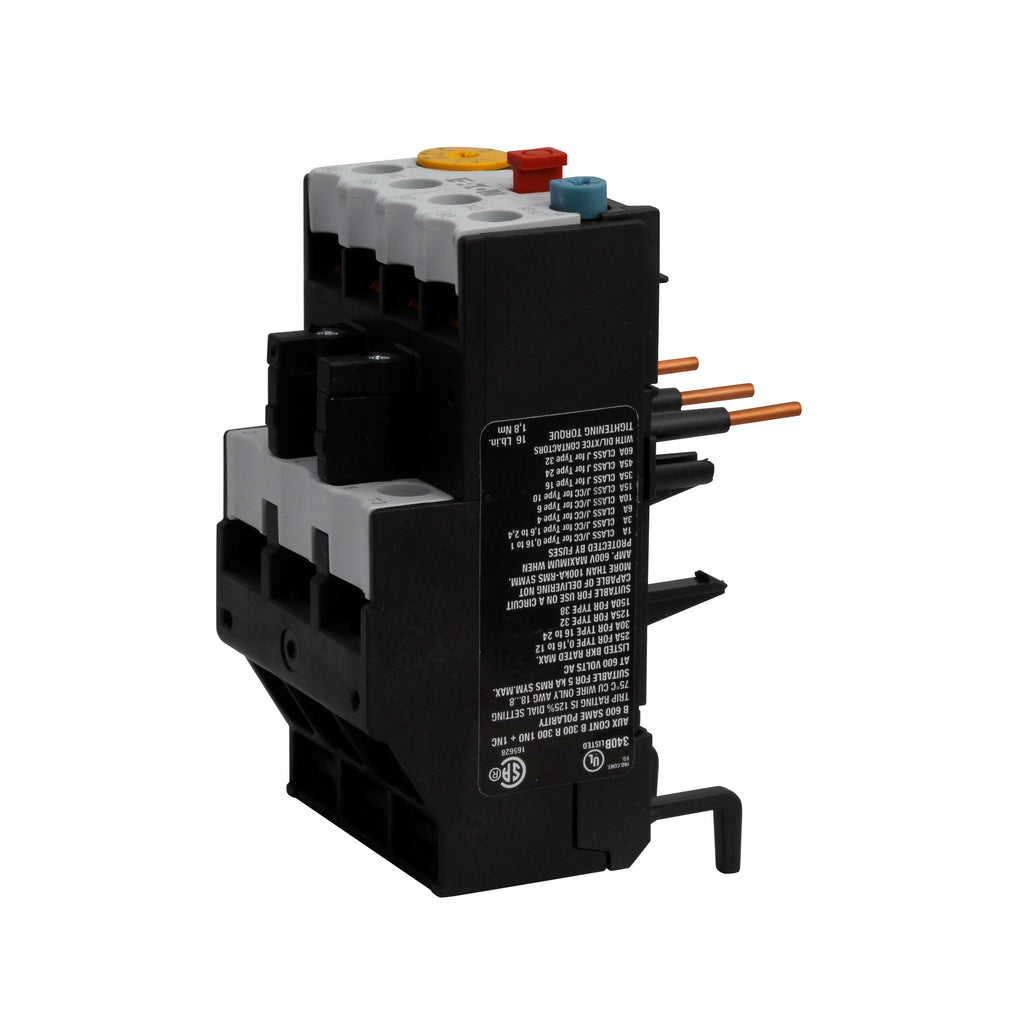

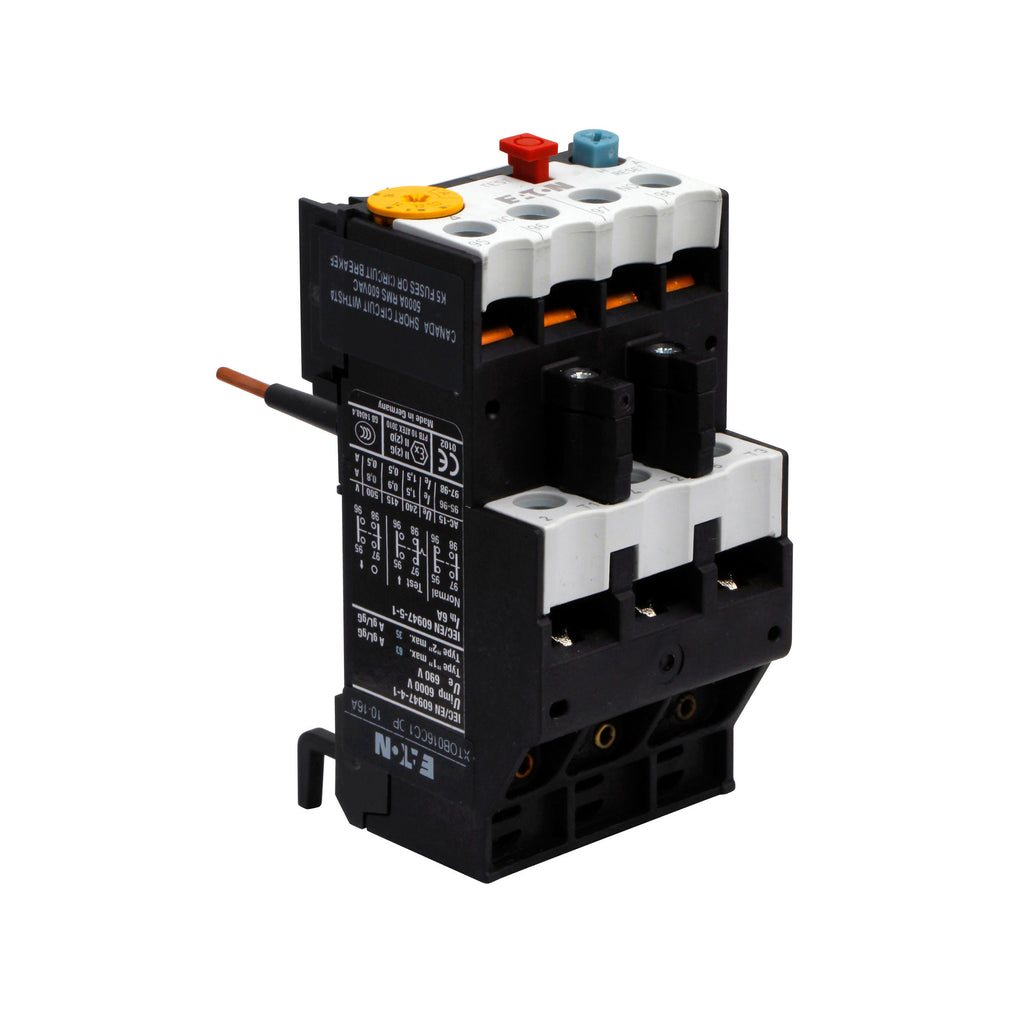

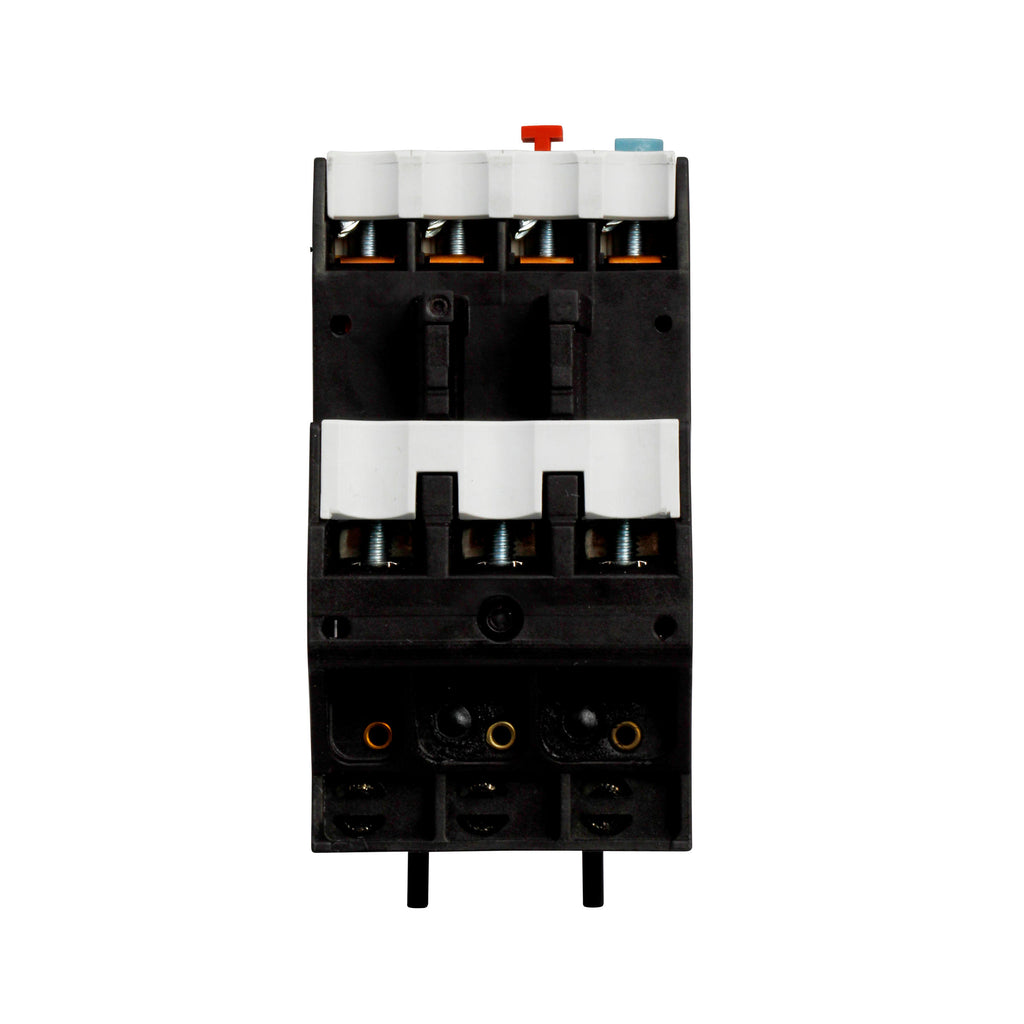

XTOB016CC1 - Cutler Hammer 12-16A IEC Bimetallic Overload Relay, 45mm Frame, 1NO-1NC, Direct Mount

XTOB016CC1

XTOB016CC1 is a Cutler Hammer IEC bimetallic thermal overload relay designed for motor protection with an adjustable current range of 12 to 16 amps.This overload relay features a 45 mm frame size, 1 normally open and 1 normally closed contact configuration, and direct mounting to contactors rated 18-32A. It provides reliable protection against overload, phase asymmetry, and phase failure with a 10A trip type and complies with UL, CSA, IEC 60947, RoHS, CE, and ATEX certifications.

• Adjustable overload range: 12-16A
• Frame size: 45 mm
• Contact configuration: 1 NO, 1 NC
• Direct mounting to contactor
• Trip type: 10A
• Compatible with 18-32A contactors
• IEC rated bimetallic thermal overload relay
• Phase loss and asymmetry protection
• Certifications: UL Listed, CSA Certified, IEC 60947, RoHS, CE, ATEX
• Weight: 0.34 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB016CC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 16
• Amperage Minimum : 10

Product Data

• UPC : 015082784522
• GTIN : 04015082784522
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.34 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, ATEX, UL, CSA, IEC, EN
