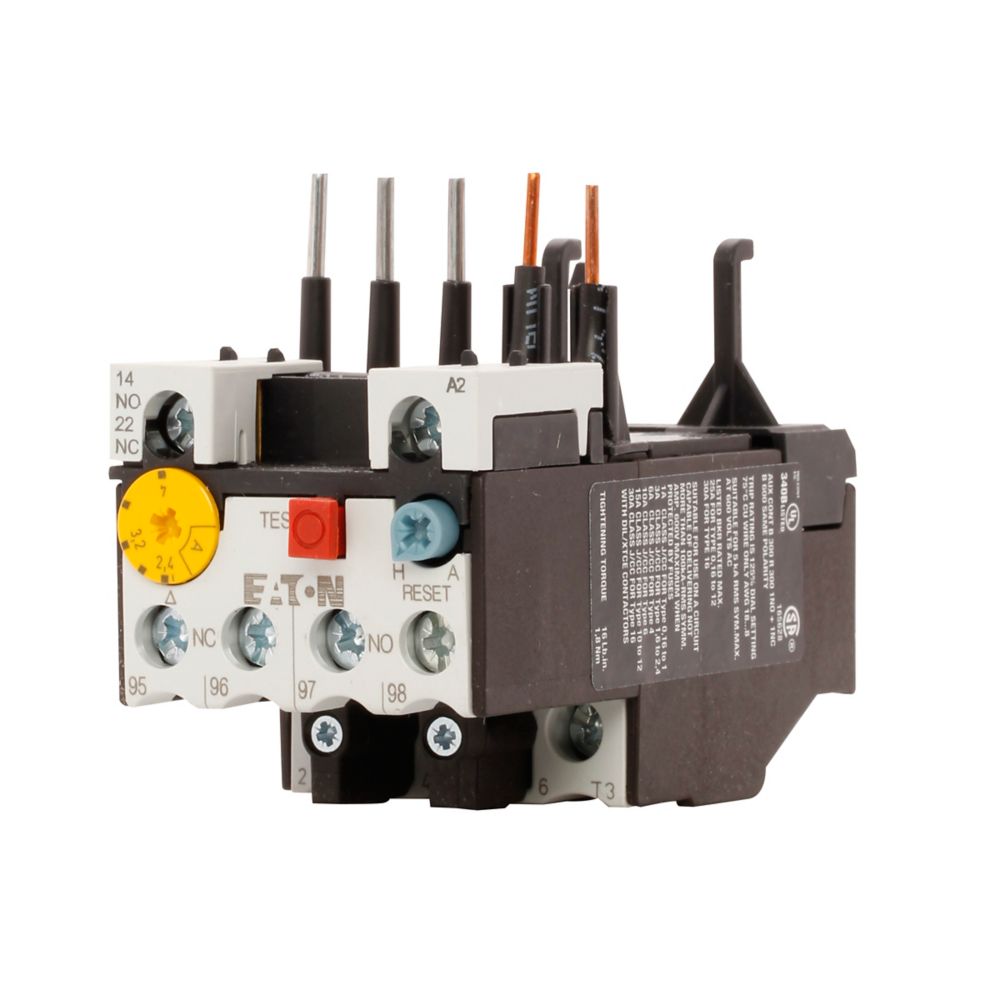

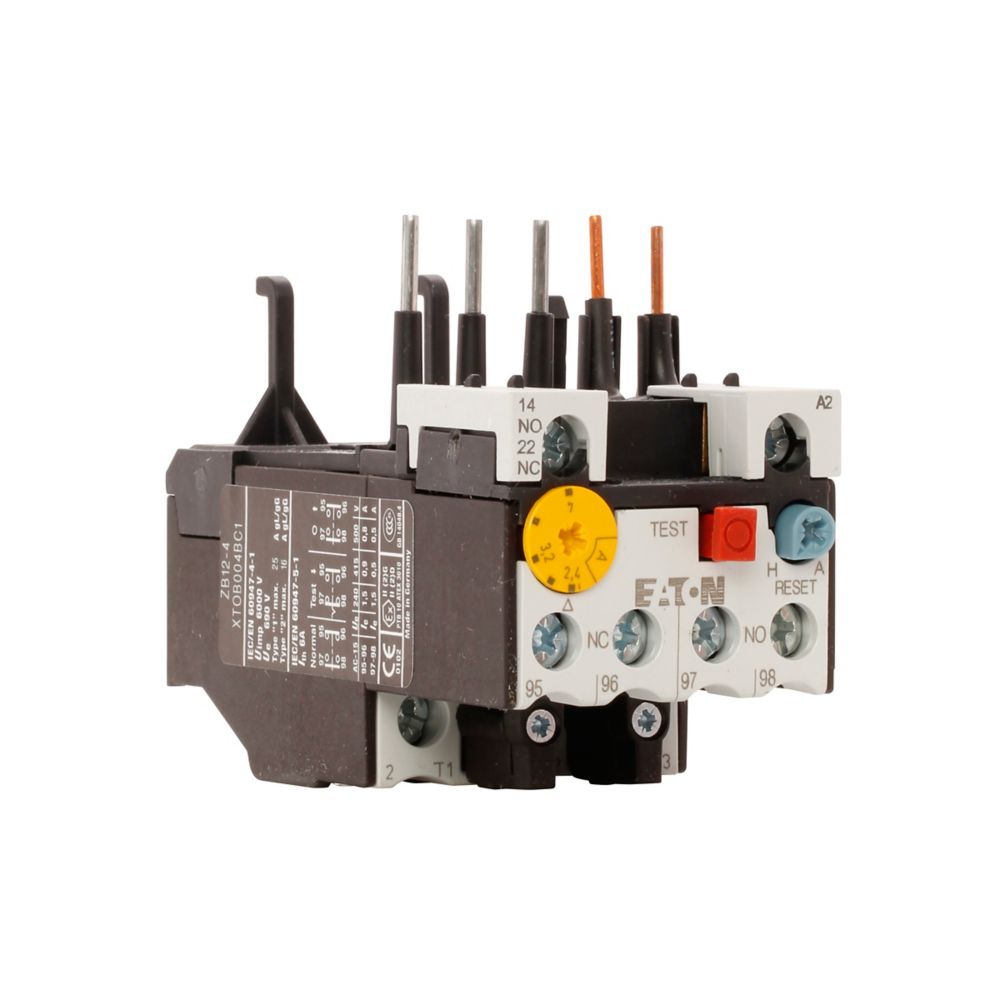

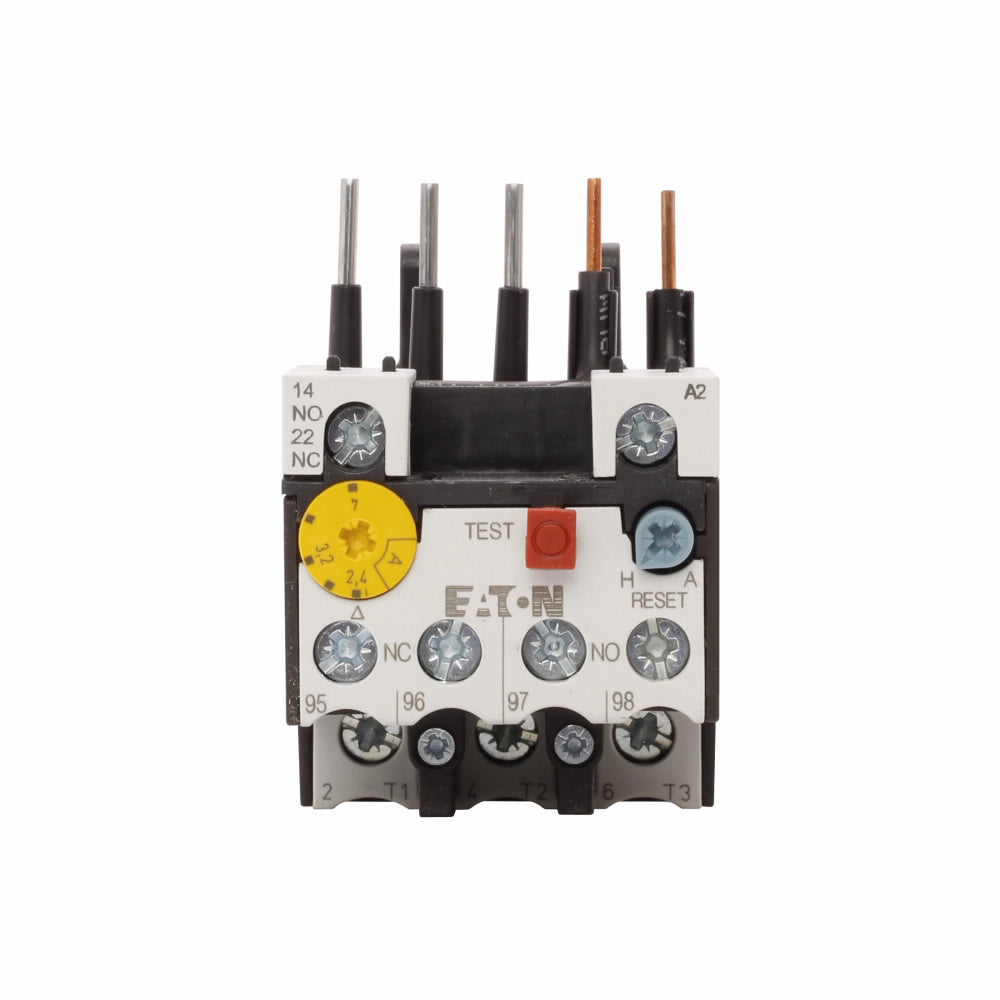

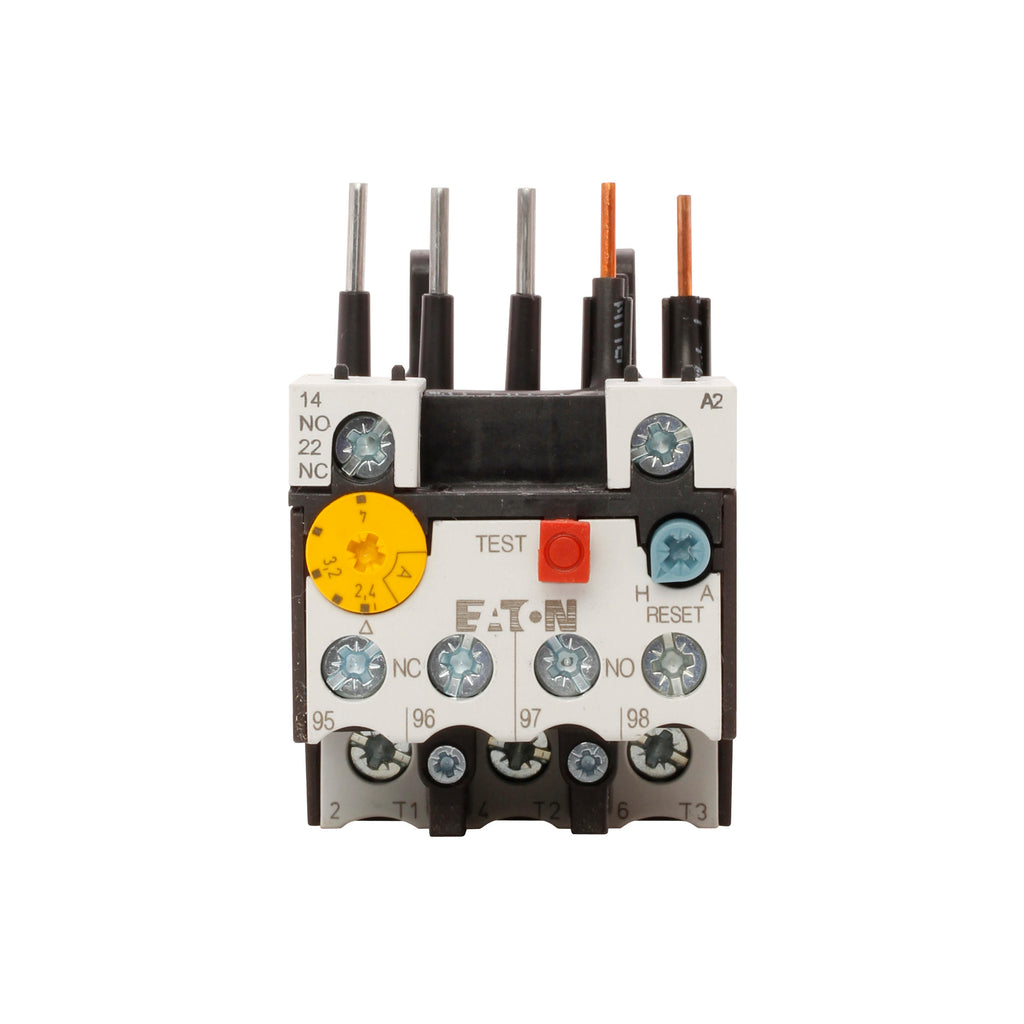

XTOB004BC1 - Cutler Hammer 2.4-4A 3-Pole IEC Thermal Overload Relay, Class 10, 45mm Frame, Direct Mount

XTOB004BC1

XTOB004BC1 is a Cutler Hammer IEC thermal overload relay designed for motor protection with a 2.4-4 amp adjustable current range and Class 10 trip rating.This 3-pole overload relay features a 45 mm B-frame size, 1NO-1NC contact configuration, and direct mounting to XT series B frame contactors. It provides reliable protection against motor overload, phase asymmetry, and phase failure with a 10 amp trip type. Certified to UL, CSA, CE, ATEX, and RoHS standards, it is suitable for use with 7-15 amp contactors and supports both automatic and manual reset.

Key Specifications
• Amperage Range: 2.4-4 A
• Poles: 3
• Frame Size: 45 mm (B-frame)
• Contact Configuration: 1 NO, 1 NC
• Trip Class: Class 10
• Trip Type: 10 A
• Mounting Type: Direct to contactor
• Reset Type: Automatic and Manual
• Certifications: UL Listed, CSA Certified, CE Marked, ATEX Compliant, RoHS Compliant
• Compatible Contactor Range: 7-15 A
• Ambient Temperature Range: -13 to 131 °F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB004BC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 4
• Amperage Minimum : 2.4

Product Data

• UPC : 015082784380
• GTIN : 04015082784386
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL Listed CSA Certified IEC 60947 EN 60947
