XTFC2P5BBA - Eaton Type F FVNR Combination Motor Controller 1.6-2.5A 110/120VAC

Save $483.59
SKU: XTFC2P5BBA-New
Condition: New
Price:
$380.12 $863.71
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

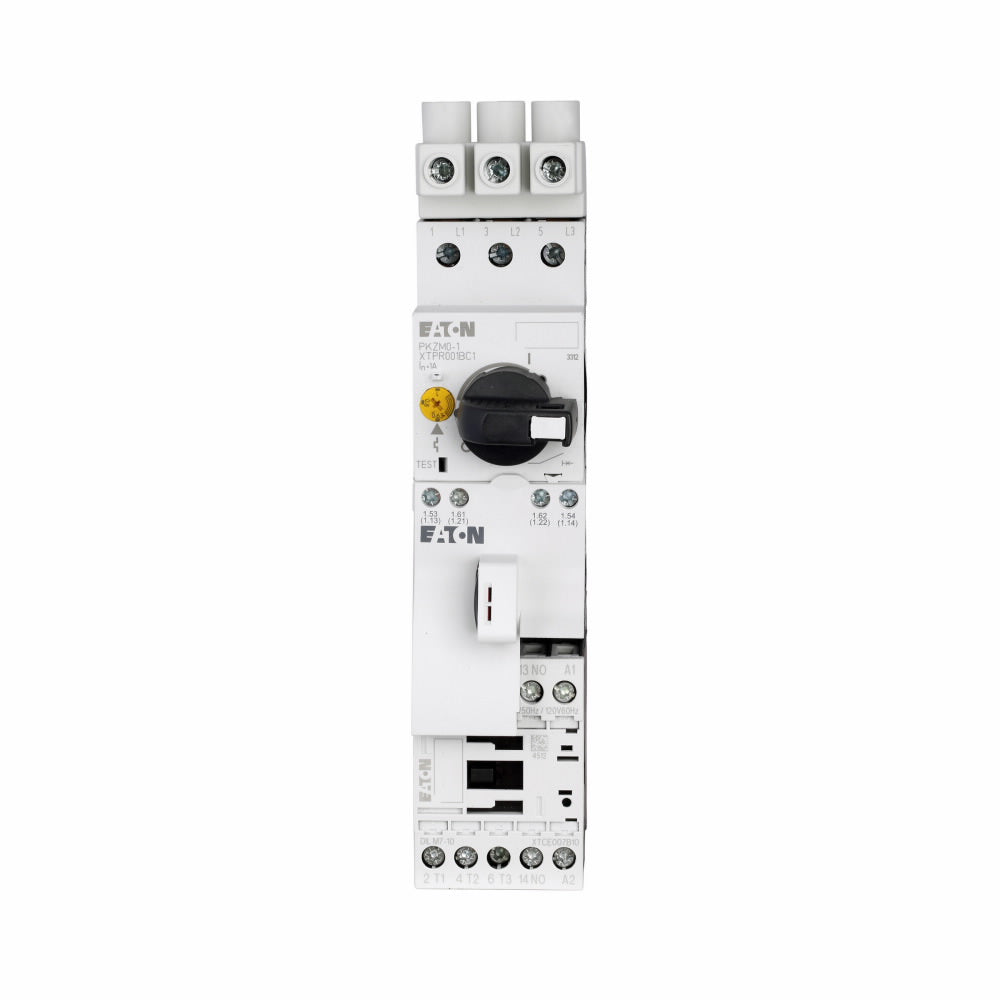

XTFC2P5BBA-New - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
XTFC2P5BBA-New - Essential Electric Supply

Description

XTFC2P5BBA


XTFC2P5BBA is an Eaton UL 508 Type F Full Voltage Non-Reversing (FVNR) combination motor controller designed for reliable motor protection and control in industrial applications. This compact unit integrates a manual motor protector with an IEC contactor to deliver complete motor protection including disconnect function, thermal overload protection, and magnetic short-circuit protection in a single assembled package.Technical Overview The XTFC2P5BBA combines Eaton's XTCE contactor technology with XTPR manual motor protectors to cover motor applications with FLA ratings from 0.10A to 65A. The unit features an ON/OFF rotary handle with lockout provision, visible trip indication, and a test trip function for enhanced operational safety. Built-in heater and magnetic trip elements provide comprehensive motor protection with Class 10 overload protection and phase loss sensitivity. The controller is ambient compensated up to 55 degrees Celsius (140 degrees Fahrenheit) and features Type 2 coordination for reliable performance.
  • Amperage Range: 1.6A to 2.5A adjustable
  • Contactor Rating: 9 AMP
  • Coil Voltage: 110VAC 50Hz / 120VAC 60Hz
  • Frame Size: 45mm B-Frame
  • Certification: UL 508 Type F
  • Motor Protection: Class 10 overload protection
  • Mounting: DIN rail mount
  • Control Access: Front-located control inputs for easy wiring
  • Trip Indication: Visible with test trip function
  • Temperature Compensation: Up to 55 degrees Celsius
  • Coordination Type: Type 2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Reversing


Specifications

  • Part Number: XTFC2P5BBA
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Voltage : 3
  • Amperage : 1 Amp
  • Coil Voltage Maximum : 110 VAC
  • Frequency : 50 Hz

Product Data

  • UPC : 782116601387
  • GTIN : 00782116601387
  • Country of Origin : Germany
  • Dimensions : Length .01in Height .01in Width .01in
  • Weight : 0.01
  • Certification : UL Listed file E245398,IEC 60947-4-1,CE Marked
