XTFC012BBTD - Cutler Hammer 12A 24VDC Non-Reversing Combination Motor Controller 45mm Frame

XTFC012BBTD

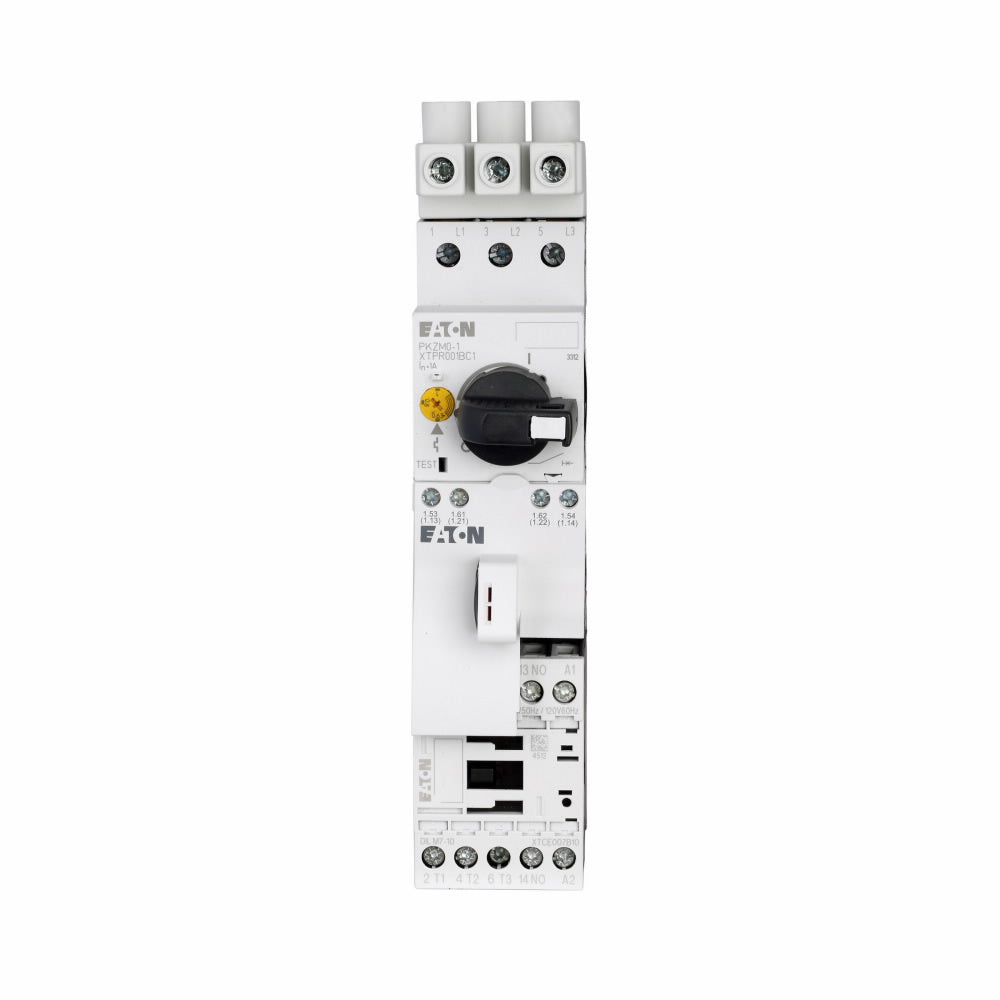

XTFC012BBTD is a Cutler Hammer UL 508 Type F combination motor controller designed for reliable motor protection and control in industrial applications. This non-reversing unit features a 12A current rating, 24VDC coil, and a 45mm frame size for compact installation.Engineered for ease of use, the XTFC012BBTD includes a manual ON/OFF rotary handle with lockout provision, visible trip indication, and a test trip function. It offers Class 10 overload protection, built-in heater and magnetic trip elements, and phase loss sensitivity for comprehensive motor protection. The controller is ambient compensated up to 55°C and supports DIN rail mounting for flexible installation options. Front-mounted control inputs simplify wiring and access.

• 12A current rating
• 24VDC coil voltage
• 45mm frame size
• Non-reversing configuration
• Manual ON/OFF rotary handle with lockout
• Visible trip indication
• Test trip function
• Class 10 overload protection
• Built-in heater and magnetic trip elements
• Phase loss sensitivity
• Type 2 coordination
• UL Listed (File E245398)
• CE Marked
• IEC 60947-4-1 compliant
• DIN rail mountable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: XTFC012BBTD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : XT Series
• Amperage : 12
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 24 VDC

Product Data

• UPC : 78211659989
• GTIN : 00782116599899
• Country of Origin : Germany
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : IEC 60947-4-1,UL Listed file E245398,CE Marked
