XTCS400M22A - Cutler Hammer 400A 3-Pole Full Voltage Non-Reversing Contactor, 110-120V Coil, S-Series Frame M

XTCS400M22A

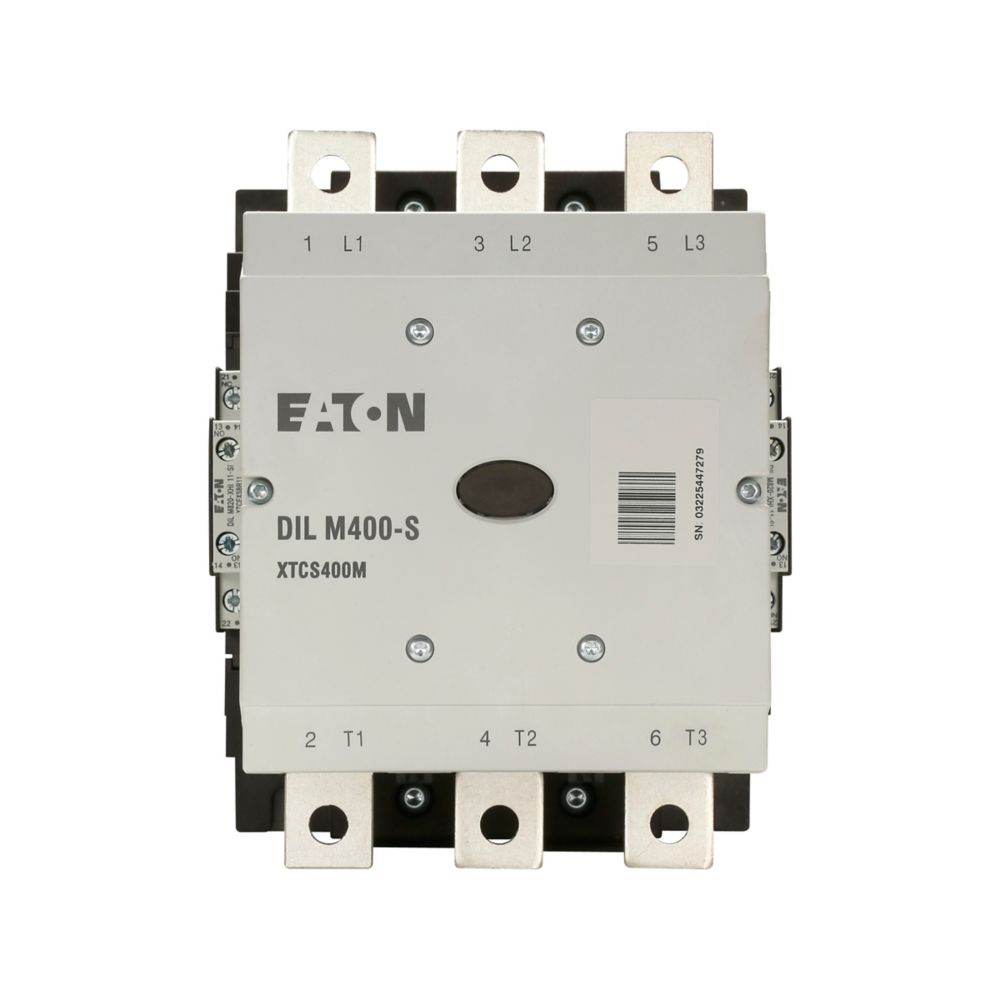

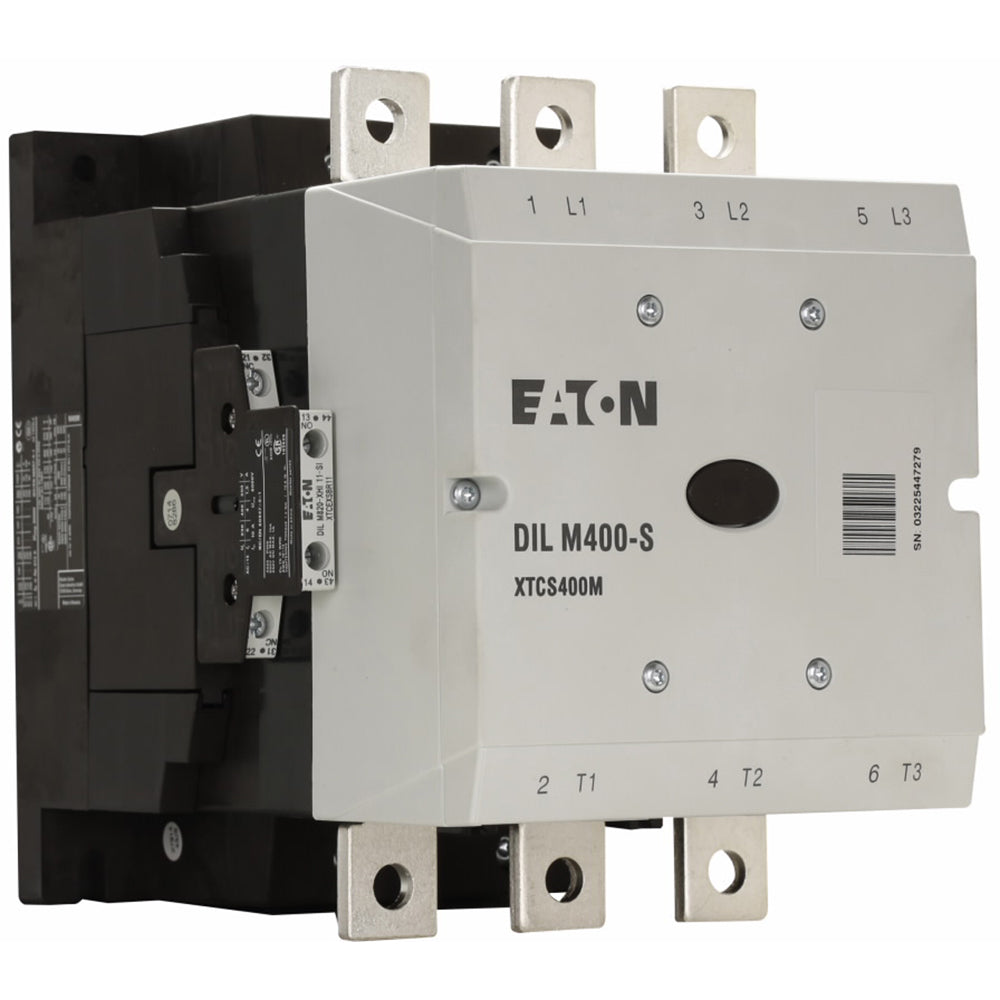

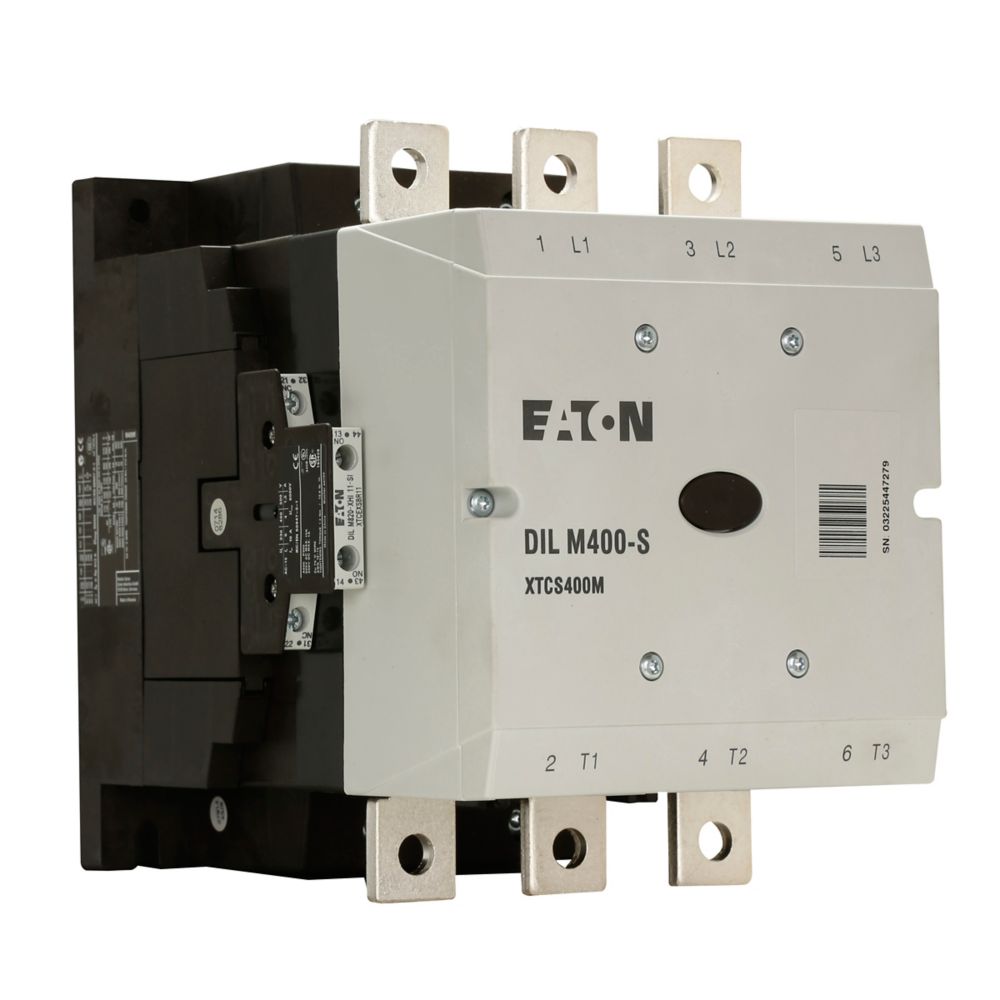

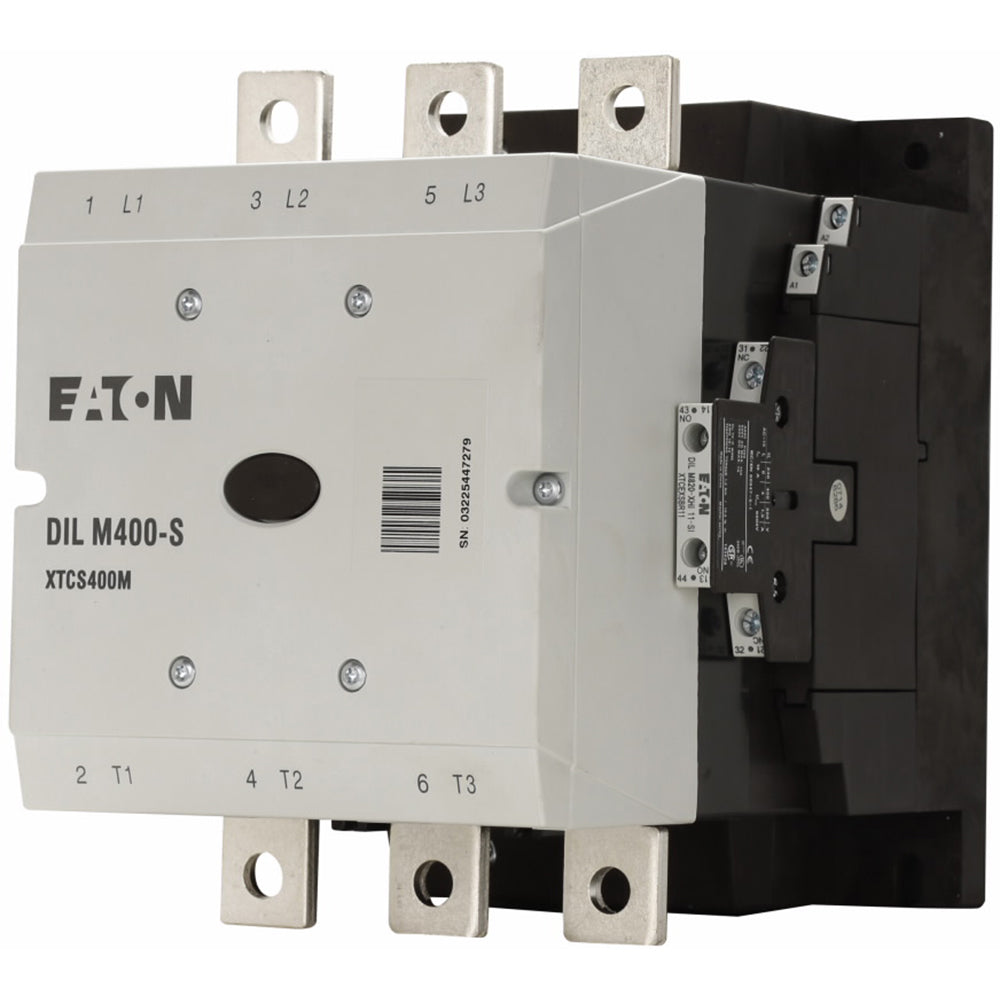

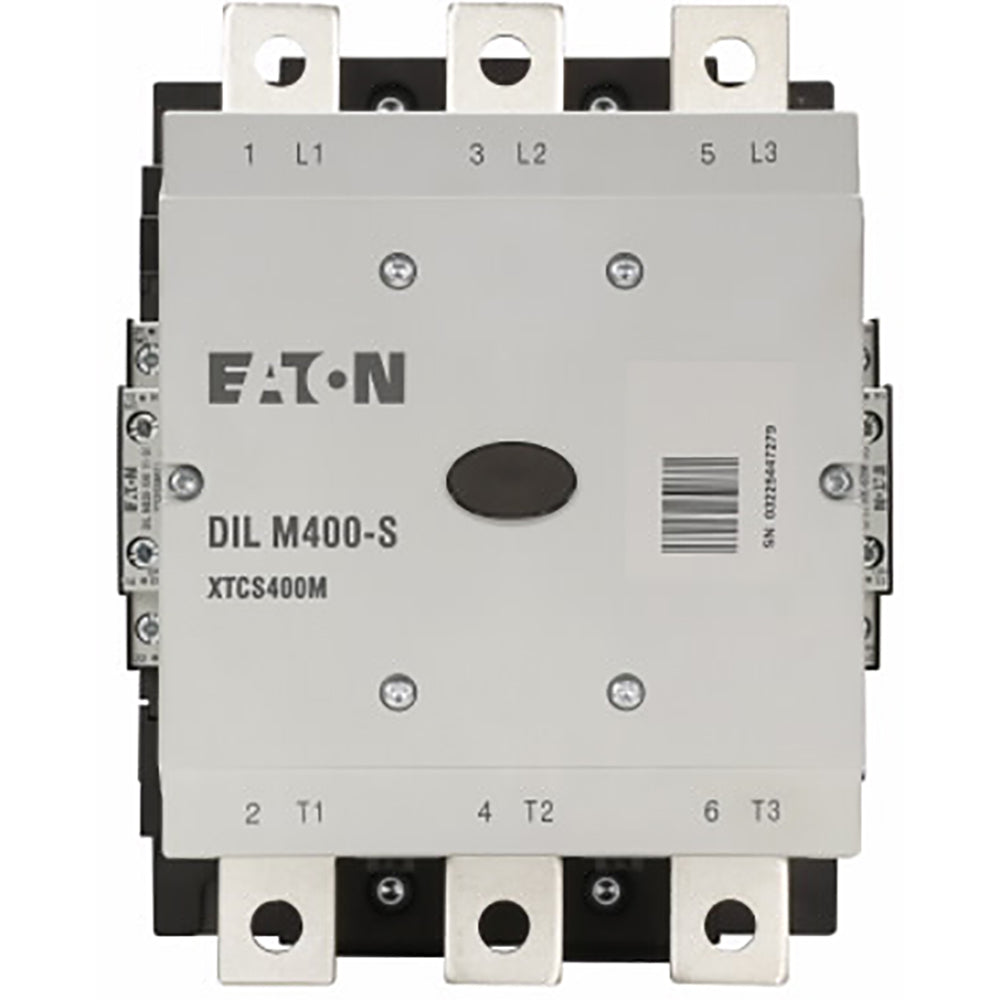

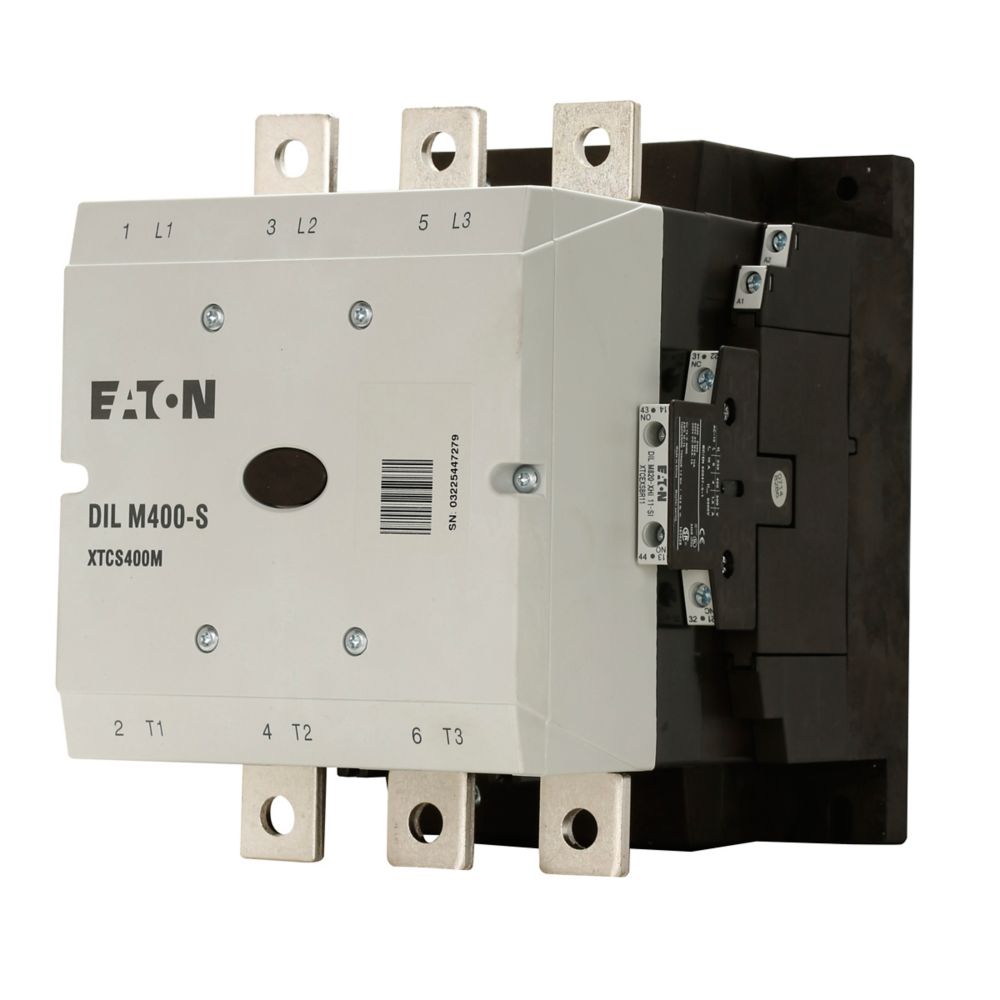

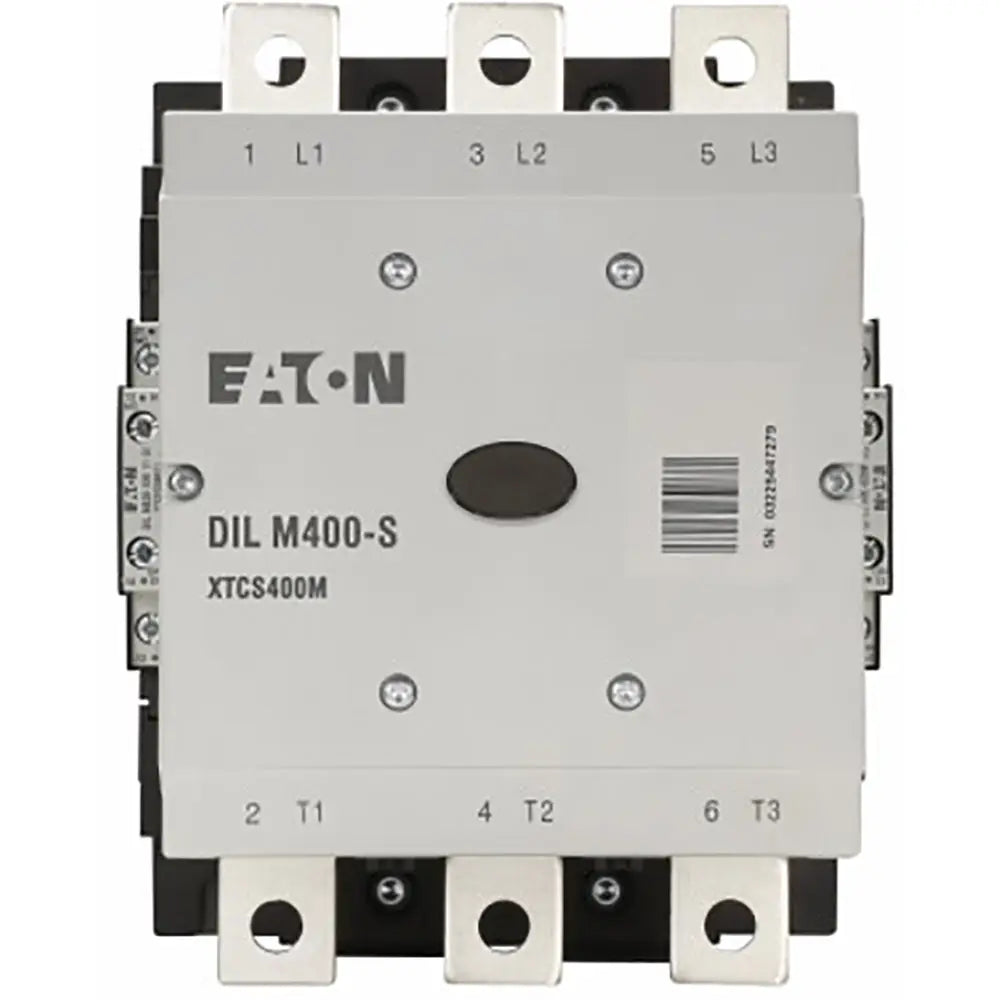

XTCS400M22A is a Cutler Hammer 3-pole full voltage non-reversing contactor with a continuous ampere rating of 400A and a coil voltage of 110-120 Vac at 50/60 Hz.This Eaton XT IEC FVNR S-series contactor features screw terminals and is designed for motor control applications with a maximum horsepower rating of up to 400 hp at 575 V (3-phase). It is built on Frame M with dimensions approximately 10 in x 10 in x 7.5 in and weighs 19.4 lb. The contactor includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts and complies with UL, CSA, IEC 60947, and EN 60947 standards. It is CE marked and RoHS compliant.

Key Specifications
• Amperage Rating: 400A
• Number of Poles: Three-pole
• Coil Voltage: 110-120 Vac, 50/60 Hz
• Contact Configuration: 2 NO, 2 NC
• Maximum Horsepower Rating: 125, 150, 300, 400 hp (3PH @ 200, 230, 460, 575 V)
• Series/Frame: XT IEC S-series, Frame M
• Mounting Type: Screw terminals
• Operation: Full voltage non-reversing
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Compliance: CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: XTCS400M22A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCS
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Aux Contacts : 2 NO + 2 NC
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 01508274195
• GTIN : 04015082741952
• Country of Origin : Germany
• Dimensions : 10 in x 10 in x 7.5 in (Length/Depth x Height x Width)
• Weight : 19.4 lb
