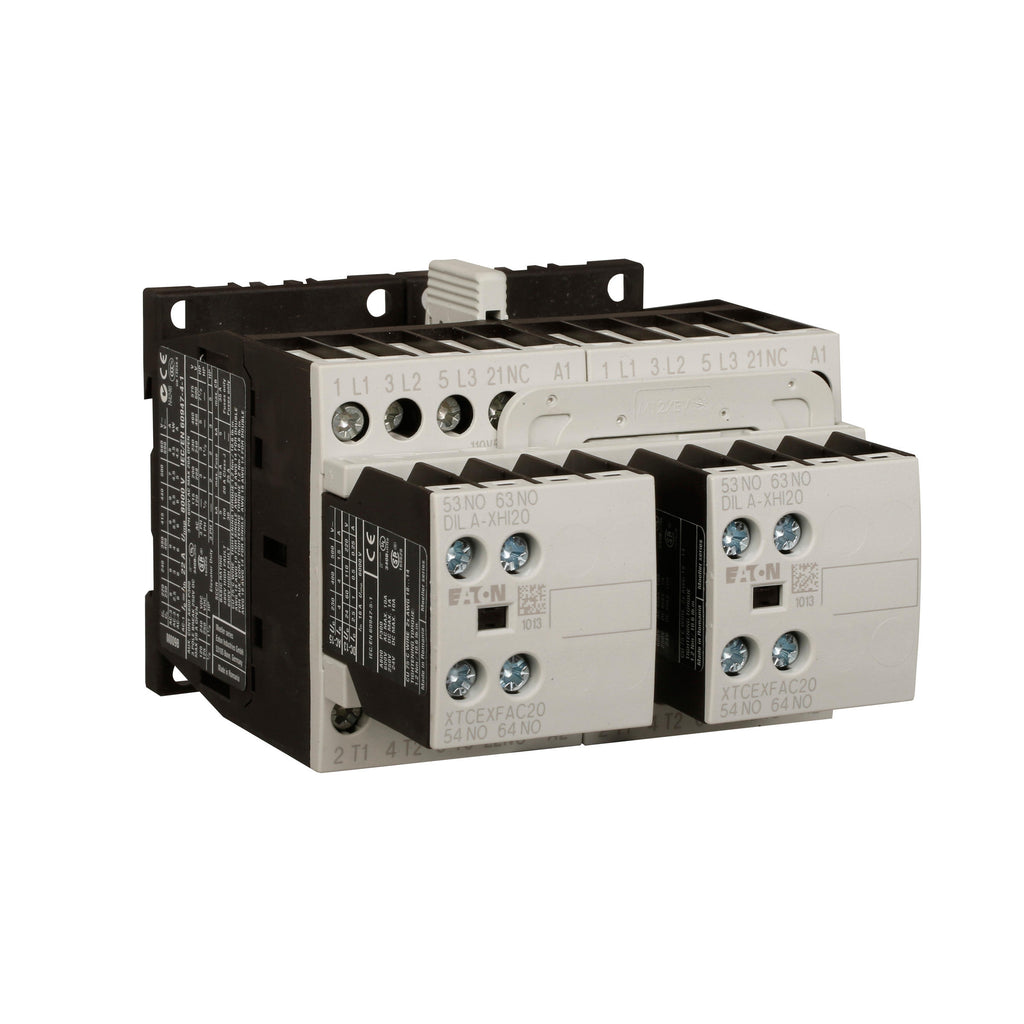

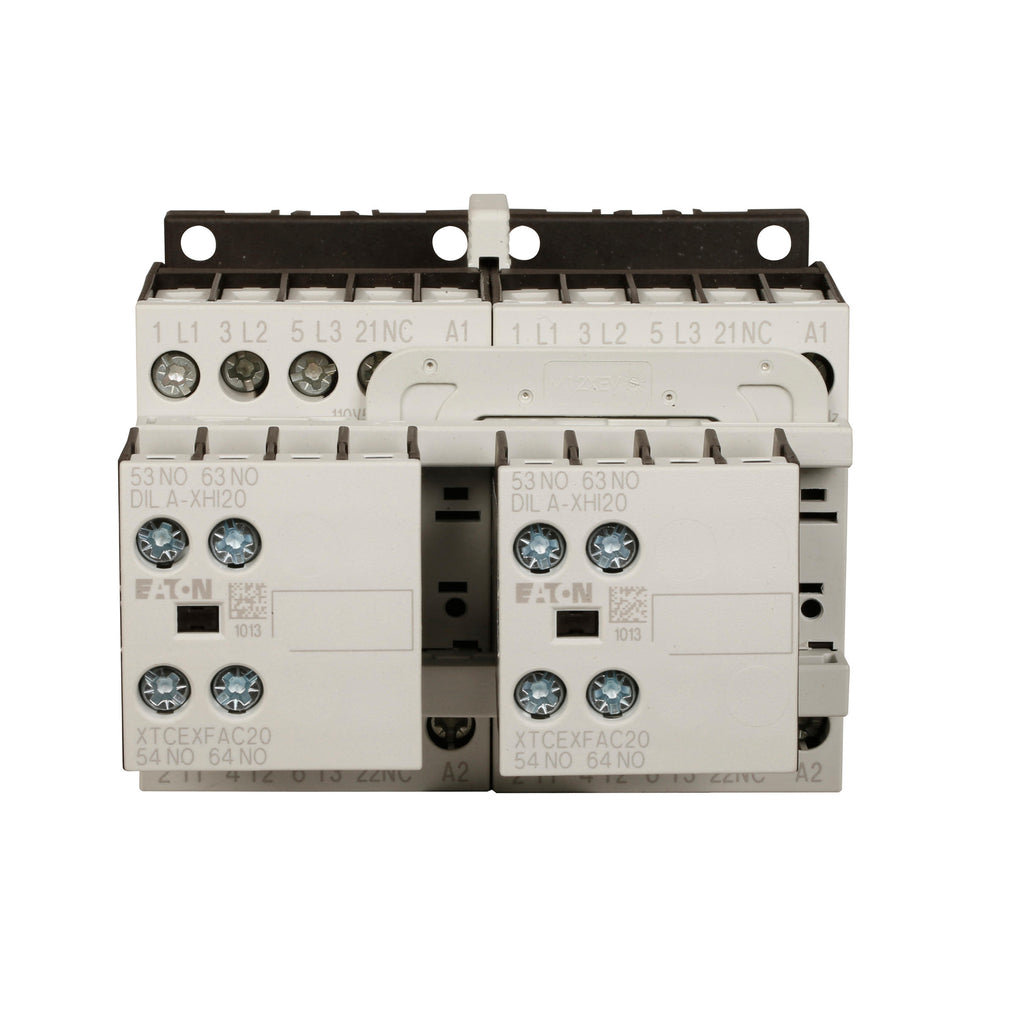

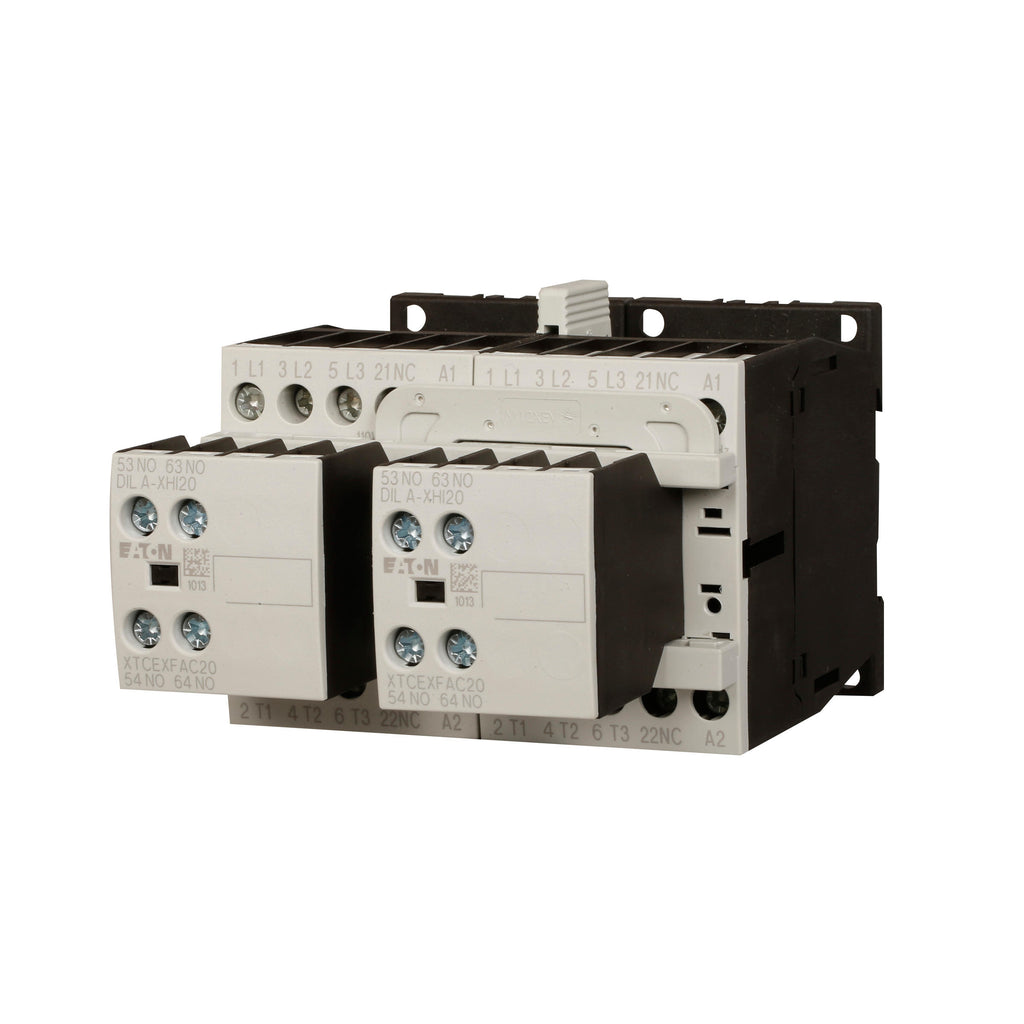

XTCR009B21A - Cutler Hammer 9A 3 Pole 600V XT Series IEC Contactor Reversing Coil 110/120V AC

XTCR009B21A

XTCR009B21A is a Cutler Hammer XT Series IEC contactor designed for motor control applications with a 9 amp rating and 3 poles.

This reversing contactor operates at 600 volts AC and features a 110V 50Hz / 120V 60Hz AC coil. It supports multiple horsepower ratings across various voltages and phases, making it suitable for a wide range of motor control tasks. The device includes auxiliary contacts configured as 2 normally open and 1 normally closed contacts. It is built on Frame B with a compact 45 mm width, ensuring compatibility with standard motor control panels.

• Amperage: 9A
• Voltage: 600V AC operational voltage
• Coil Voltage: 110V 50Hz / 120V 60Hz AC
• Number of Poles: 3 (Three-pole)
• Type: Reversing IEC contactor
• Frame: B, 45 mm width
• Auxiliary Contacts: 2 Normally Open (NO), 1 Normally Closed (NC)
• Horsepower Ratings: 0.5 to 7.5 HP depending on voltage and phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTCR009B21A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCR
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
• Aux Contacts : 2NO/1NC
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 9A Full Load Amps-Resistive 22A
• Coil Voltage Minimum : 120

Product Data

• UPC : 786685180298
• GTIN : 00786685180298
• Country of Origin : Germany
• Dimensions : 3.5 in x 4 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 1.2 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
