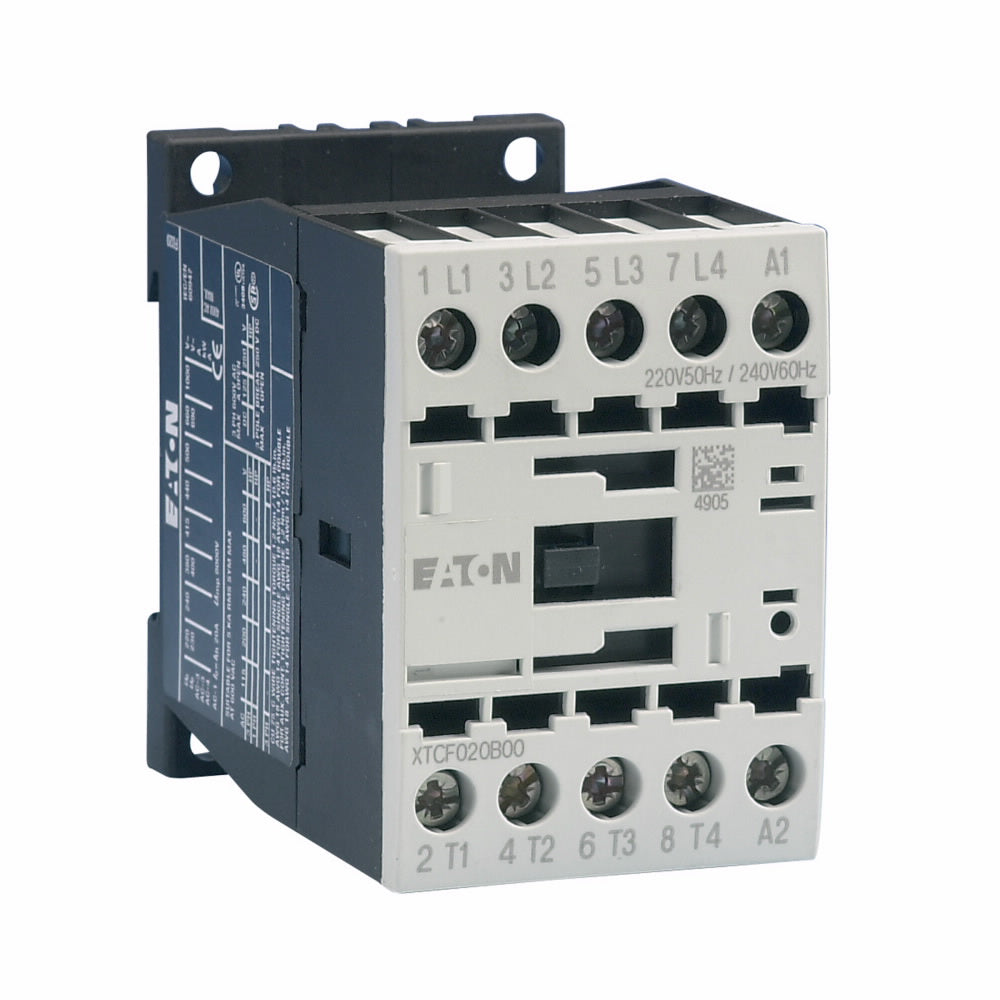

XTCF020B00TD - Eaton 20A 24VDC 4-Pole IEC Contactor, Frame B, DIN Rail/Panel Mount, Non-Reversing, 0NO-0NC, XT Series

XTCF020B00TD

XTCF020B00TD is a high-quality Eaton XT Series IEC contactor designed for reliable motor control applications.

This four-pole, non-reversing contactor features a 20A continuous current rating, 24VDC coil voltage, and is suitable for a wide range of motor loads. It is engineered for DIN rail or panel mounting, offers screw terminal connections, and is built to Eaton's rigorous standards for performance and durability.

Key Specifications
• Amperage: 20A continuous
• Voltage: 24VDC coil
• Poles: 4
• Mounting Type: DIN rail or panel
• Interrupt Rating: Not specified in available sources
• Series/Frame: XT Series, Frame B, 45mm
• Trip Unit: Not specified in available sources
• Certifications: Not specified in available sources
• Contact Configuration: 0NO-0NC
• Terminal Type: Screw
• HP Rating: 1, 2/3, 3, 10, 10 HP (1/3PH @115, 230/200, 230, 460, 575V)
• Non-reversing operation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VDC coil.

Specifications

• Part Number: XTCF020B00TD
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Amperage : 20
• Phase : 3
• Poles : 4
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 22A

Product Data

• UPC : 015082769851
• Country of Origin : Romania
• Dimensions : 3 in x 2 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.61729433
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
