XTCEXFBG22 - Eaton 16A 4-Pole Front Mount Auxiliary Contact Block 2NO 2NC Frame D-G Screw Terminals

XTCEXFBG22

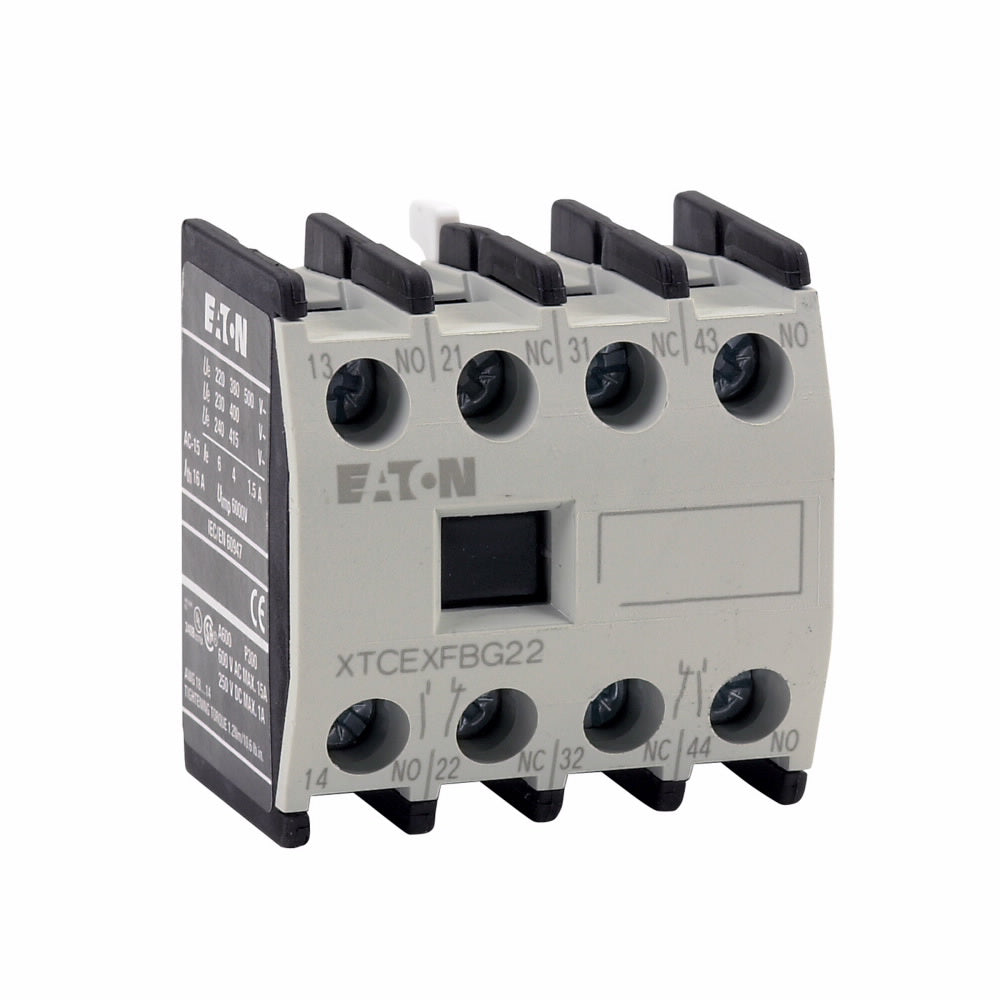

XTCEXFBG22 is a 4-pole front-mounted auxiliary contact block by Eaton designed for motor control applications. It features 2 normally open (NO) and 2 normally closed (NC) contacts for reliable control signaling.This Eaton auxiliary contact block is compatible with XT series contactors Frame D to G, providing 16A conventional thermal current with screw terminal connections. It mounts on the front of the contactor and includes interlocked opposing contacts for enhanced safety and performance. The product is certified to IEC 60947, UL Listed, CSA Certified, CE Marked, ATEX Compliant, and CCC Marked.

Key Specifications
• Amperage: 16A conventional thermal current
• Number of Poles: 4
• Contact Configuration: 2 NO (normally open), 2 NC (normally closed)
• Mounting Type: Front mount
• Terminal Type: Screw terminals
• Frame Compatibility: Eaton XT series Frame D to G
• Certifications: IEC 60947, UL Listed, CSA Certified, CE Marked, ATEX Compliant, CCC Marked
• Weight: 0.12 lb
• Contact Block Type: Auxiliary contact block
• Interlocked Opposing Contacts for safety

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTCEXFBG22
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : XT Series
• Type : XTCEX
• Voltage : 690 AC/220 DC
• Configuration : 2NO/2NC

Product Data

• UPC : 015082779508
• GTIN : 04015082779504
• Country of Origin : Romania
• Dimensions : 1.5 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.12 lb
• Certification : IEC 60947, CCC Marked
