XTCEXFAC31 - Eaton 4-Pole 3NO-1NC Front Mount Auxiliary Contact Block with Screw Terminals

XTCEXFAC31

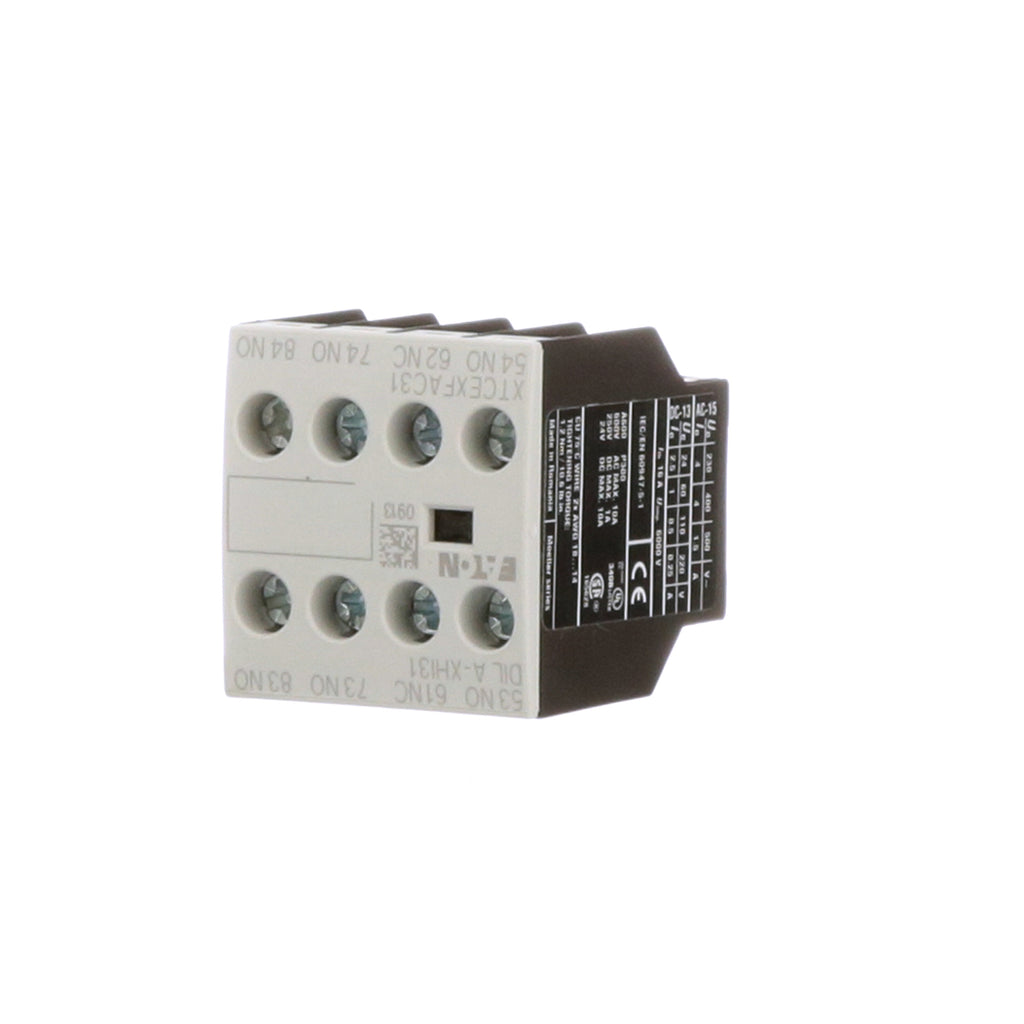

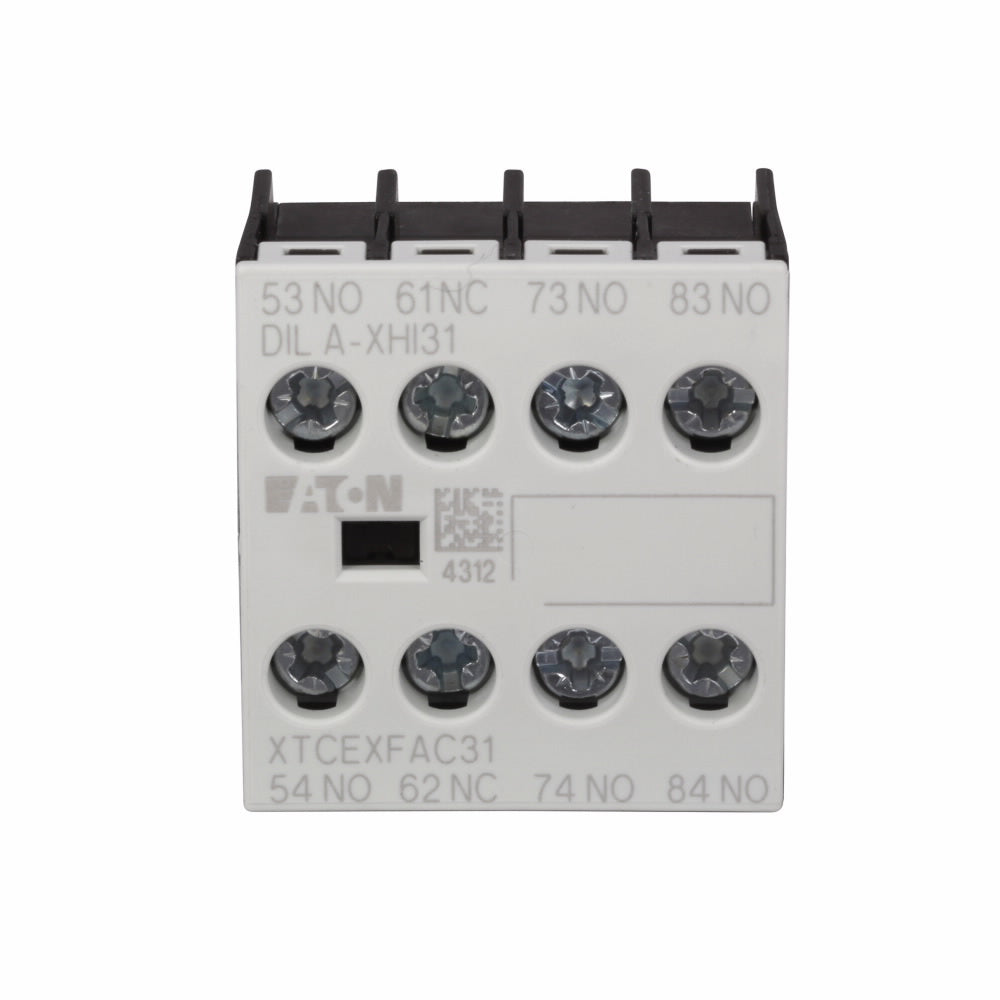

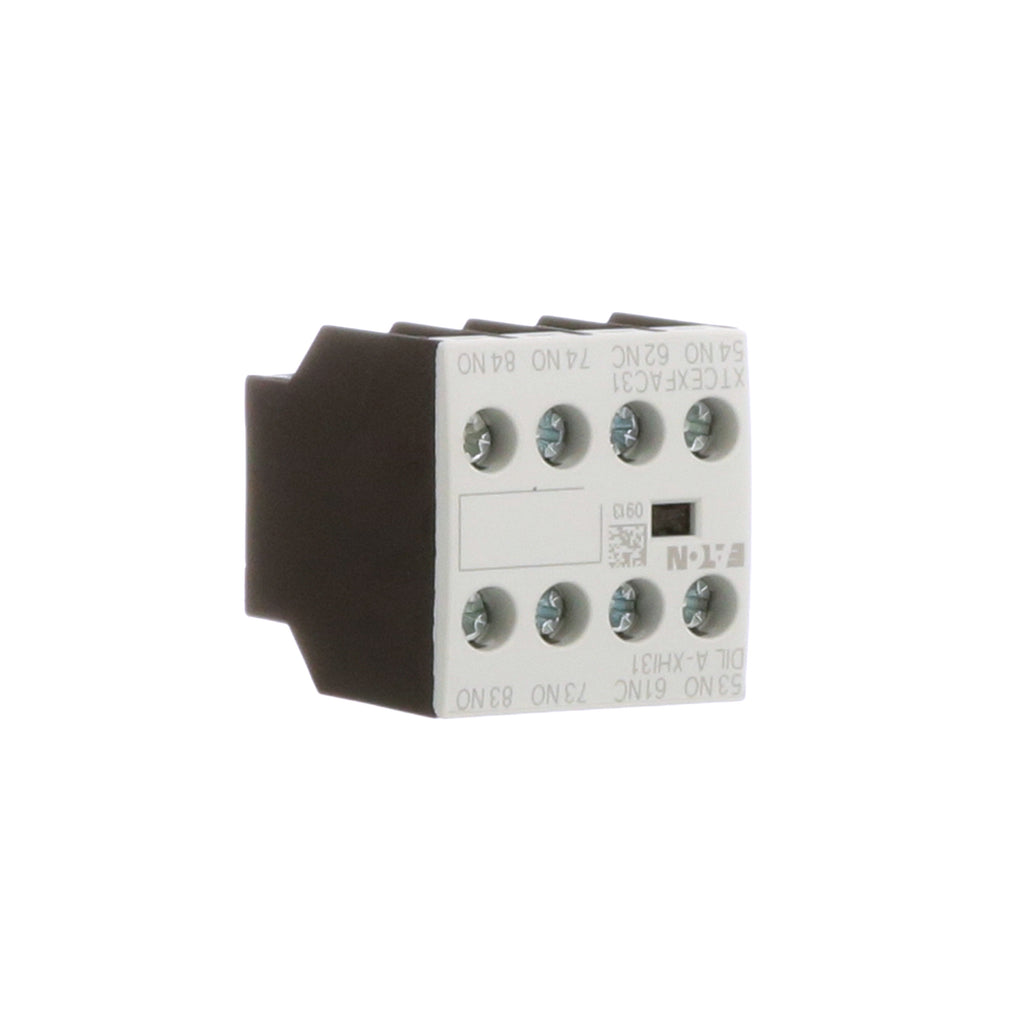

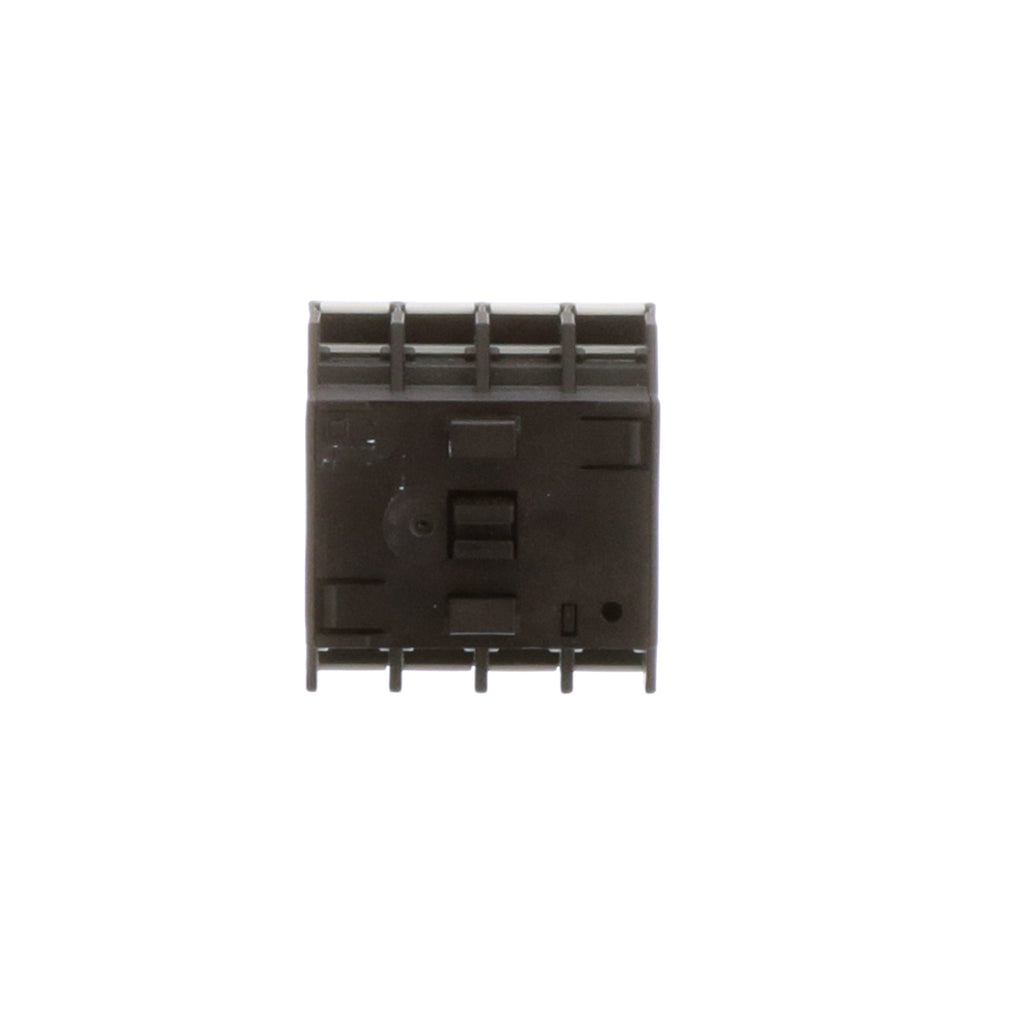

XTCEXFAC31 is a 4-pole front-mounted auxiliary contact block from Eaton featuring 3 normally open and 1 normally closed contacts with screw terminals.

This auxiliary contact block is designed for use with Eaton XTRE 4-pole relays and XTCE contactors up to frame C. It provides reliable control and protection for motors, compressors, pumps, and other loads. The contact block has a 16A conventional thermal rating and supports various voltage ratings with a 3NO-1NC contact configuration. It mounts easily on the front of compatible devices and includes screw terminals for secure wiring.

• 4 poles with 3 normally open and 1 normally closed contacts
• Front mounting type for easy installation
• Screw terminal connections
• 16A conventional thermal current rating
• Voltage ratings: 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V
• Compatible with Eaton XTRE relays and XTCE contactors up to frame C
• Interlocked opposing contacts for reliable operation
• IEC power control series for motor and load protection
• Single auxiliary block per relay or contactor
• Suitable for use in motor control and power distribution applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTCEXFAC31
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : XT Series
• Type : XTCEX
• Configuration : 3NO/1NC

Product Data

• UPC : 786689004972
• GTIN : 04015082764272
• Dimensions : 1.5 in x 1.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 0.1 lb
