2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
XTCEXFAC04

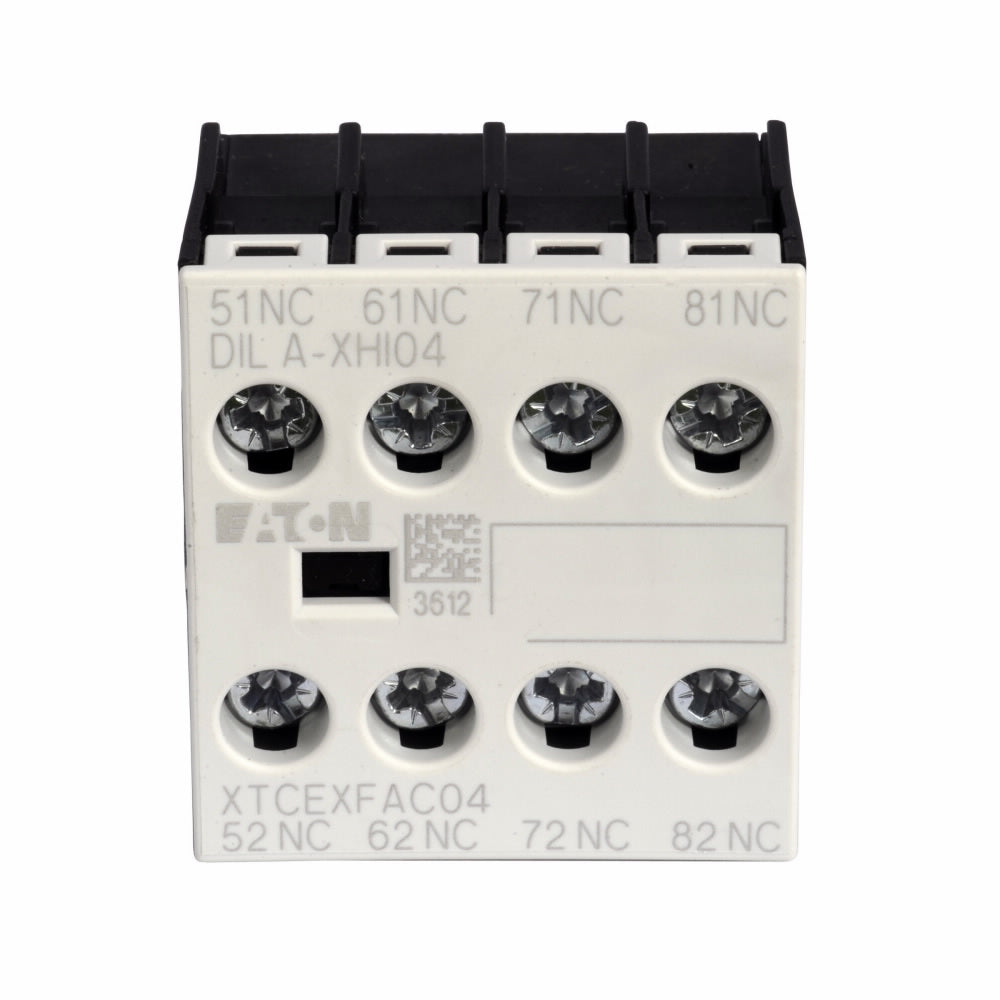

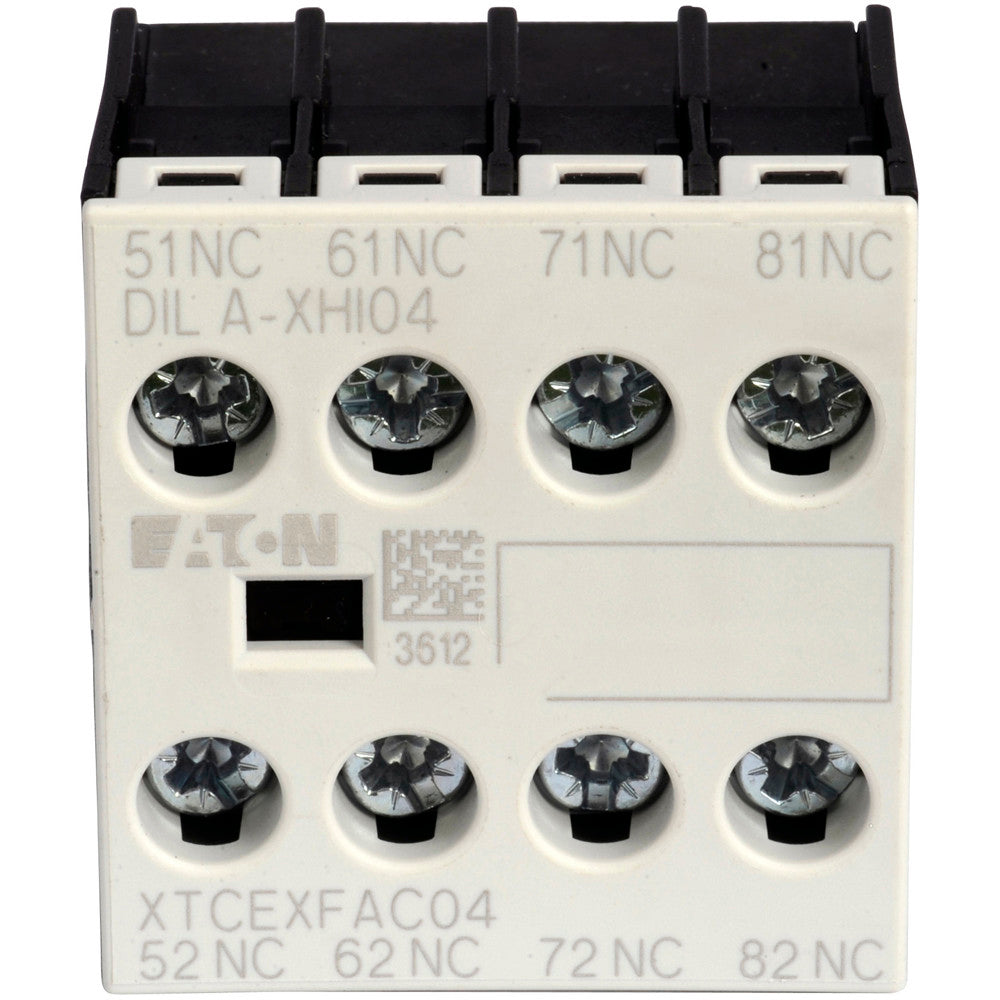

XTCEXFAC04 is a 4-pole auxiliary contact block from Eaton Cutler Hammer designed for motor control applications with 4 normally closed contacts and screw terminals.This auxiliary contact block features front or top mounting with snap-on installation and easy slide-off removal for quick replacement. It supports rated operational current of 6A at 220/230/240V and a conventional thermal current of 16A. The unit conforms to IEC and UL standards and is compatible with Eaton XTCE contactors up to frame C. It offers a rated insulation voltage of 690V and rated impulse withstand voltage of 6000V.
- Key Specifications
- Part Number: XTCEXFAC04
- Manufacturer: Eaton Cutler Hammer
- Poles: 4
- Contact Configuration: 4 Normally Closed (NC)
- Rated Operational Current: 6A at 230V
- Conventional Thermal Current: 16A
- Mounting Type: Front/Top Snap-On
- Termination: Screw Terminals
- Rated Insulation Voltage (Ui): 690V
- Rated Impulse Withstand Voltage (Uimp): 6000V
- Standards: IEC and UL Approved
Specifications
- Part Number: XTCEXFAC04
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Family : XT Series
- Type : XTCEX
- Voltage : 4
- Configuration : 4NC
Product Data
- UPC : 782116354559
- GTIN : 00782116354559
- Country of Origin : Romania
- Dimensions : 1.5 in x 1.3 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.12
