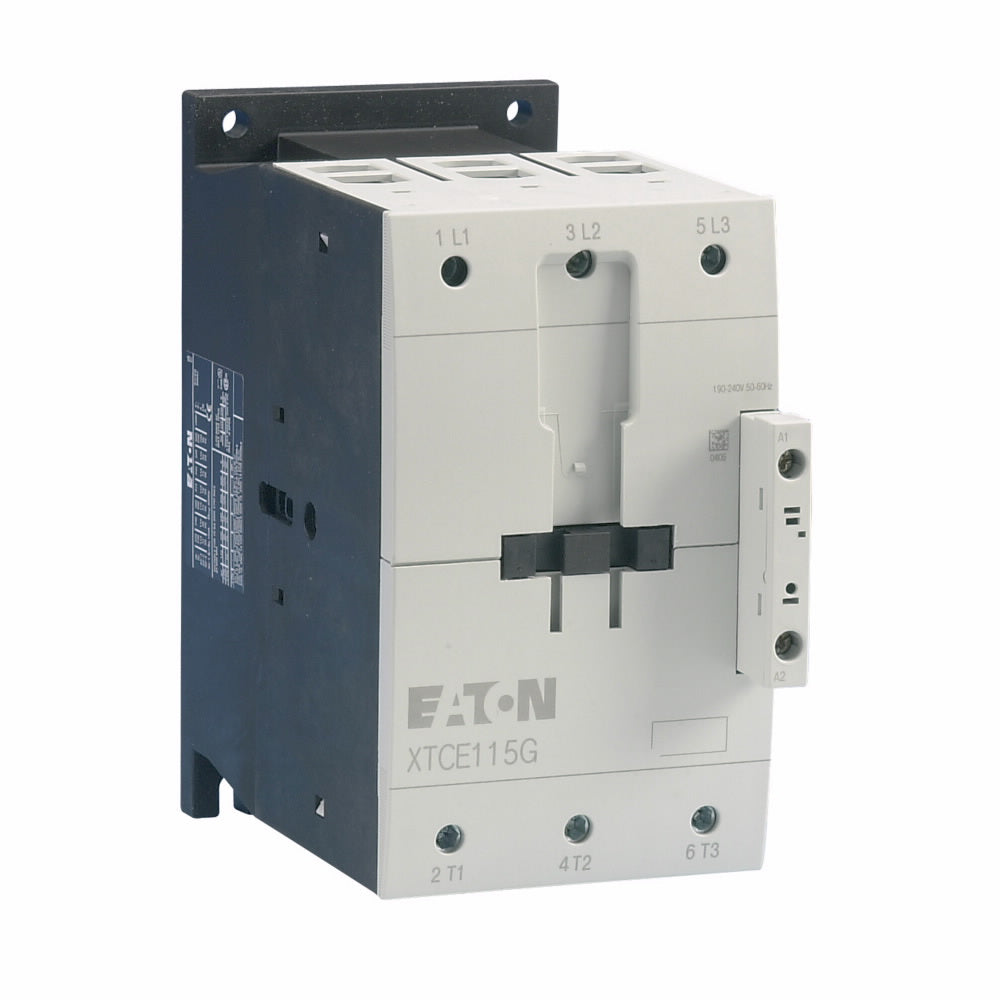

XTCE115G00A - Cutler Hammer 115A 3-Pole IEC Motor Contactor, 110-120V AC Coil, Frame G, 100 HP

XTCE115G00A

XTCE115G00A is a Cutler Hammer 115A 3-pole IEC motor contactor designed for controlling electric motors with a 110-120V AC coil voltage.This Eaton XT IEC contactor features a Frame G size with screw terminals and supports full voltage non-reversing operation. It is rated for up to 100 HP at 460V and 50 HP at 230V, suitable for three-phase motor control applications. The device complies with IEC 60947 standards and is UL Listed, CSA Certified, and RoHS compliant.

• Amperage Rating: 115A
• Voltage: 110-120 VAC coil, 50/60 Hz
• Poles: 3-pole
• Frame Size: G (90 mm)
• Horsepower Rating: Up to 100 HP at 460V
• Contact Configuration: 0 NO, 0 NC
• Mounting Type: DIN Rail / Panel Mount
• Terminals: Screw terminals
• Standards: IEC 60947, UL Listed, CSA Certified
• Operation: Full voltage non-reversing (FVNR)
• Weight: Approx. 0.5 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: XTCE115G00A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE115G
• Voltage : 600
• Amperage : 115
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 115A Full Load Amps-Resistive 160A
• Coil Voltage Minimum : 100
• Frequency : 50 Hz

Product Data

• UPC : 4015082395476
• GTIN : 04015082395476
• Country of Origin : Romania
• Dimensions : 6.2992126 in x 3.8 in x 4.37007874 in (Length/Depth x Height x Width)
• Weight : 0.5070632 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
