Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
XTCE080FS1A

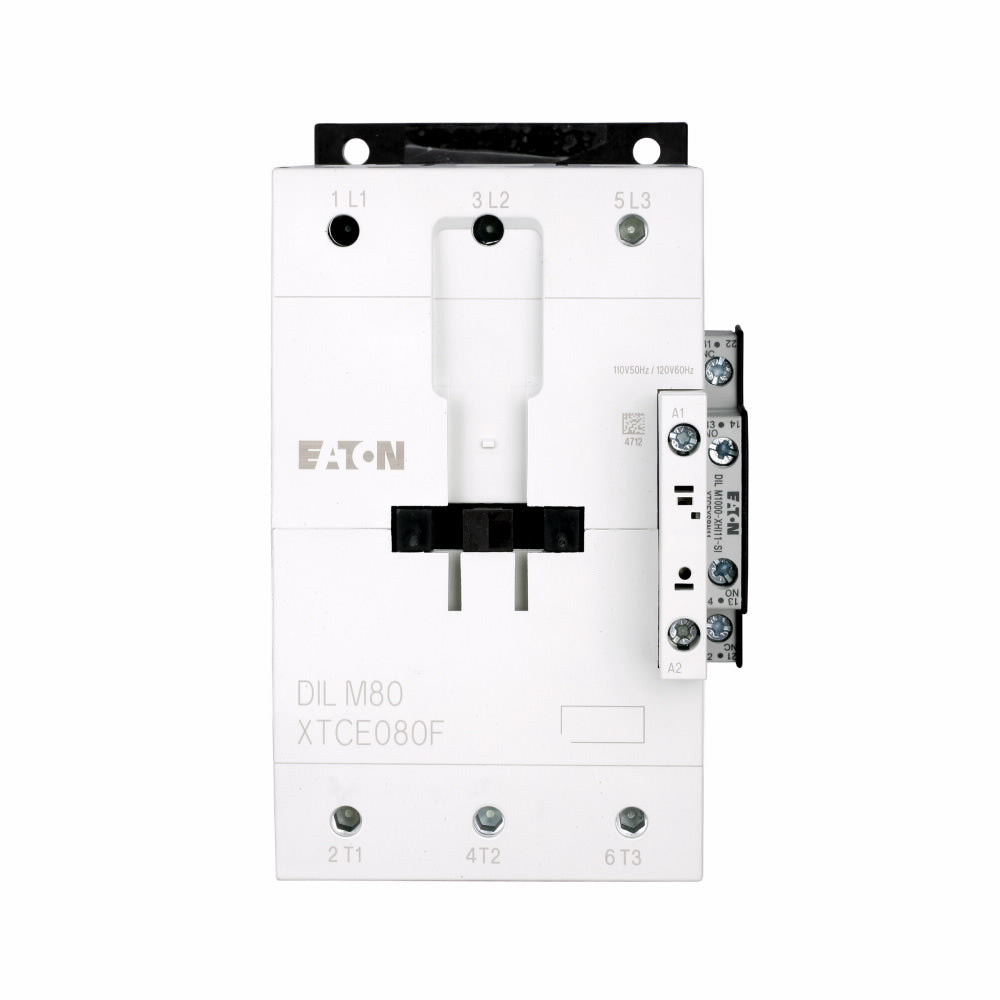

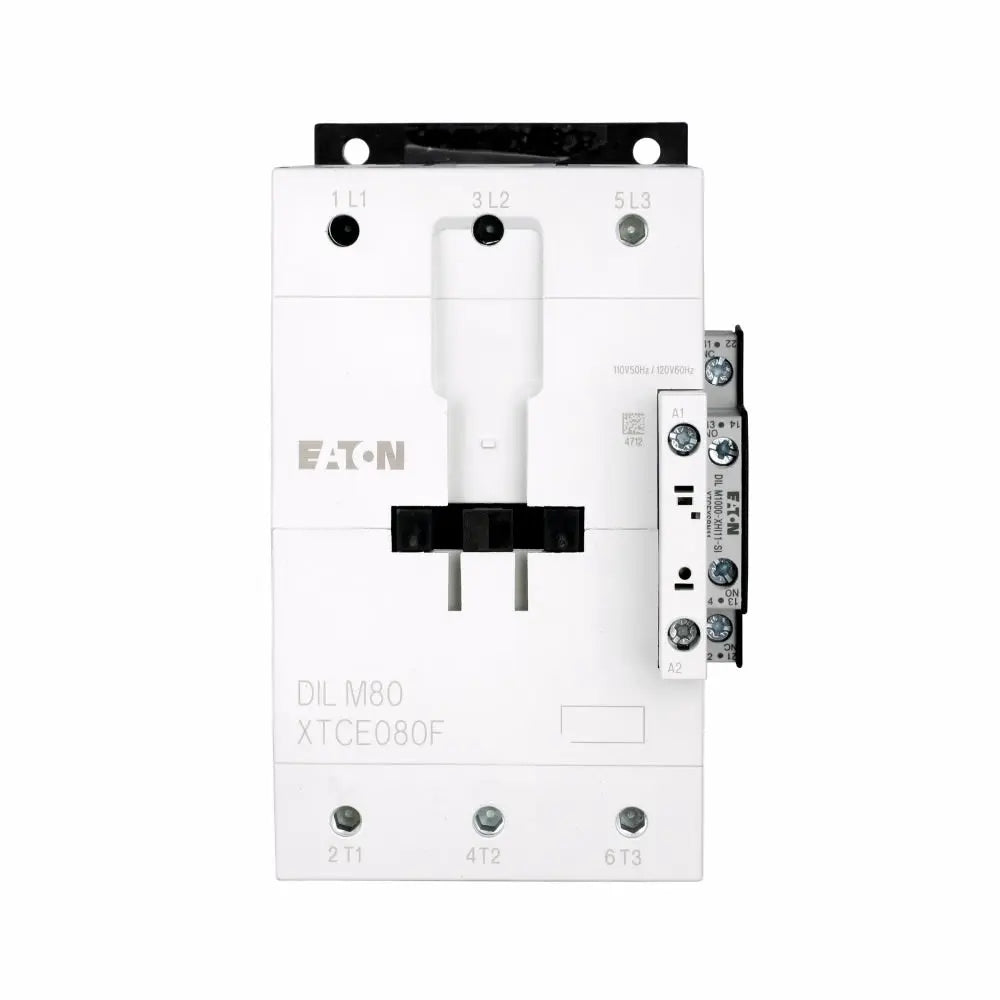

XTCE080FS1A is a three-pole, side-mounted IEC contactor designed for motor and power control applications. This contactor features an 80A current rating and is compatible with 110-120V AC coils operating at 50-60 Hz. It is non-reversing and includes one normally open and one normally closed auxiliary contact. The XTCE080FS1A is built for reliable switching in industrial environments, supporting a wide range of motor loads and voltage configurations. Its side-mounted design allows for easy integration into control panels and equipment.
- 80A continuous current rating
- Three-pole configuration
- Side-mounted installation
- 110-120V AC coil, 50-60 Hz
- 1NO-1NC auxiliary contacts
- Frame F, 90 mm
- Rated for 1/3-phase applications
- Supports up to 75 HP at 460V
- Compatible with 115, 200, 230, 460, 575V systems
- Non-reversing contactor
- ARRA and BAA compliant
Additional Information
This IEC Non-Reversing Contactor includes a 110 VAC coil.
Specifications
- Part Number: XTCE080FS1A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Type : XTCE080F
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Aux Contacts : 1 NO + 1 NC
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Frequency : 50 Hz
Product Data
- UPC : 786685365138
- GTIN : 00786685365138
- Country of Origin : Germany
- Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 1 lb
- Certification : UL Listed,CSA Certified,EN 60947,IEC 60947
