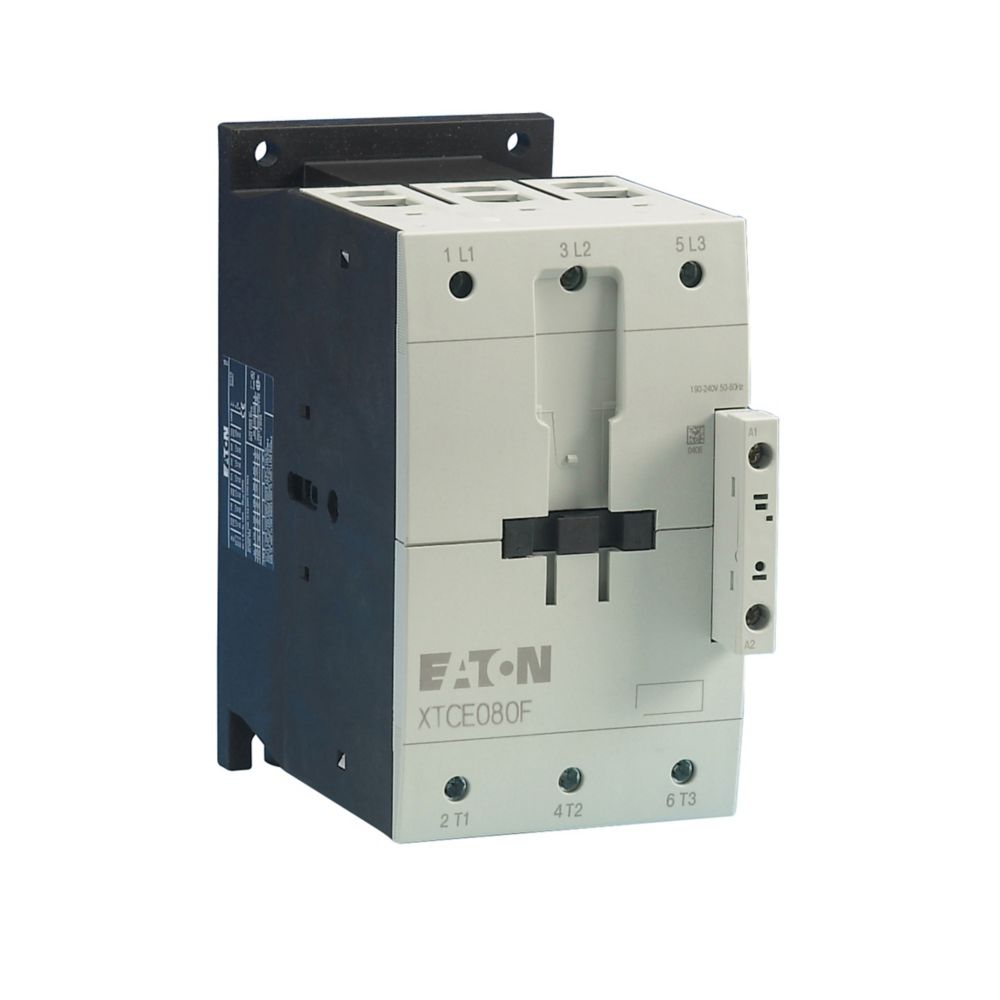

XTCE080F00A - Cutler Hammer 80A 3-Pole Full Voltage Non-Reversing Contactor, 110/120V Coil, Frame F, IEC Series

Save $562.23
SKU: XTCE080F00A-New
Condition: New
Price:
$293.87 $856.10
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

XTCE080F00A - Essential Electric Supply
XTCE080F00A - Cutler Hammer 80A 3-Pole Full Voltage Non-Reversing Contactor, 110/120V Coil, Frame F, IEC Series - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
XTCE080F00A - Essential Electric Supply
XTCE080F00A - Cutler Hammer 80A 3-Pole Full Voltage Non-Reversing Contactor, 110/120V Coil, Frame F, IEC Series - Essential Electric Supply

Description

XTCE080F00A


XTCE080F00A is a Cutler Hammer 80 amp, 3-pole full voltage non-reversing contactor designed for motor control applications.This Eaton XT IEC series contactor features a 90 mm frame size with screw terminals and operates at coil voltages of 110 Vac 50 Hz or 120 Vac 60 Hz. It supports a maximum horsepower rating ranging from 7.5 to 75 hp depending on voltage and phase, and complies with IEC 60947 standards. The device is UL Listed, CSA Certified, RoHS Compliant, and CE Marked, ensuring reliable and safe operation.
    Key Specifications
    • Amperage Rating: 80A
    • Number of Poles: Three-pole
    • Coil Voltage: 110 Vac 50 Hz, 120 Vac 60 Hz
    • Frame Size: 90 mm (Frame F)
    • Contact Configuration: 0 NO, 0 NC
    • Type: Full voltage non-reversing contactor
    • Maximum HP Rating: 7.5 to 75 hp (1/3PH @115, 200, 230/200, 230, 460, 575 V)
    • Terminals: Screw terminals
    • Frequency Rating: 50-60 Hz
    • Certifications: UL Listed, CSA Certified, IEC 60947, RoHS Compliant, CE Marked
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Additional Information

    This IEC Non-Reversing Contactor includes a 110 VAC coil.


    Specifications

    • Part Number: XTCE080F00A
    • Manufacturer : Cutler Hammer
    • Brand : Cutler Hammer
    • Category : Motor Control
    • Item Subcategory : Contactor
    • Family : XT Series
    • Type : XTCE080F
    • Voltage : 600
    • Amperage : 80
    • Phase : 3
    • Poles : 3
    • Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 60 hp
    • Configuration : Non-Reversing
    • Aux Contacts : 0 NO + 0 NC
    • Coil Voltage Maximum : 120
    • Full Load Amps : Full Load Amps-Inductive 80A Full Load Amps-Resistive 110A
    • Coil Voltage Minimum : 120
    • Frequency : 50 Hz

    Product Data

    • UPC : 015082393995
    • GTIN : 04015082393991
    • Country of Origin : Romania
    • Dimensions : 7 in x 7.25 in x 4 in (Length/Depth x Height x Width)
    • Weight : 6.23 lb
    • Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
