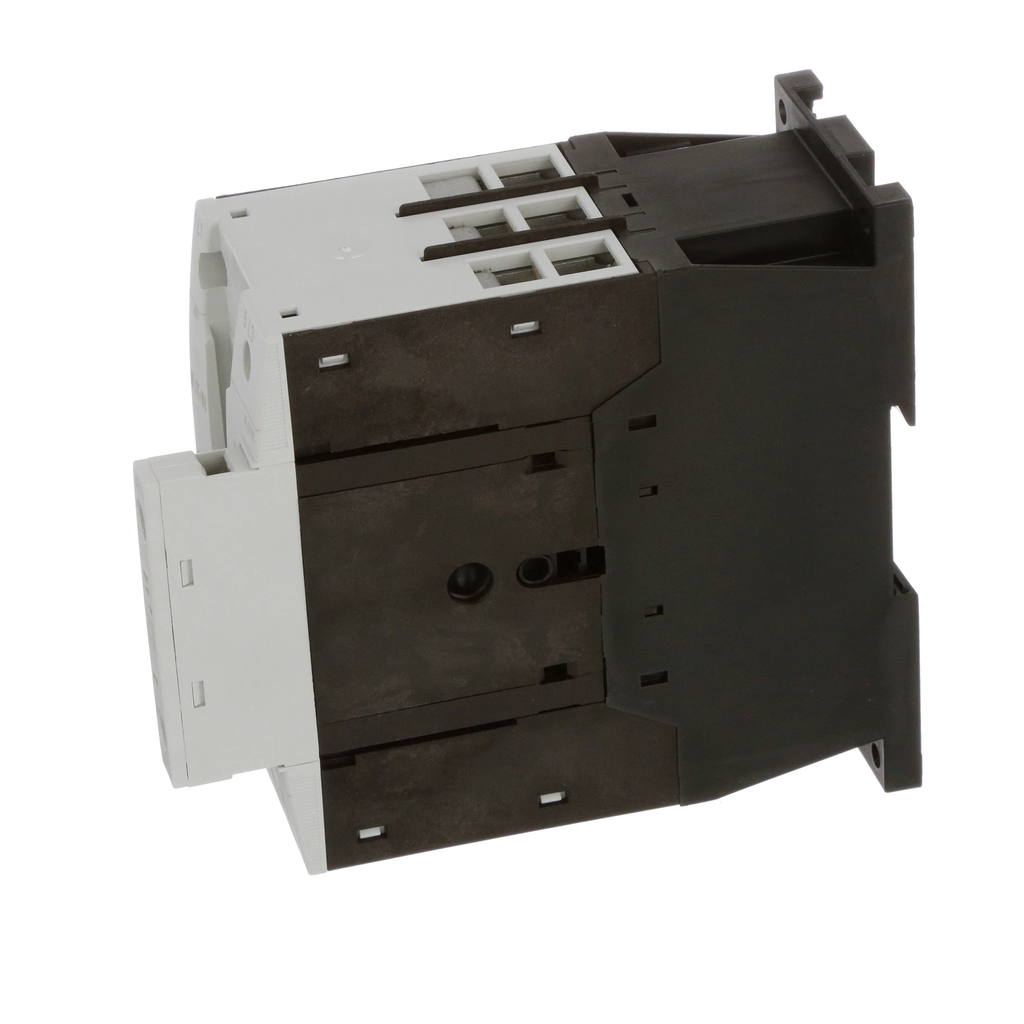

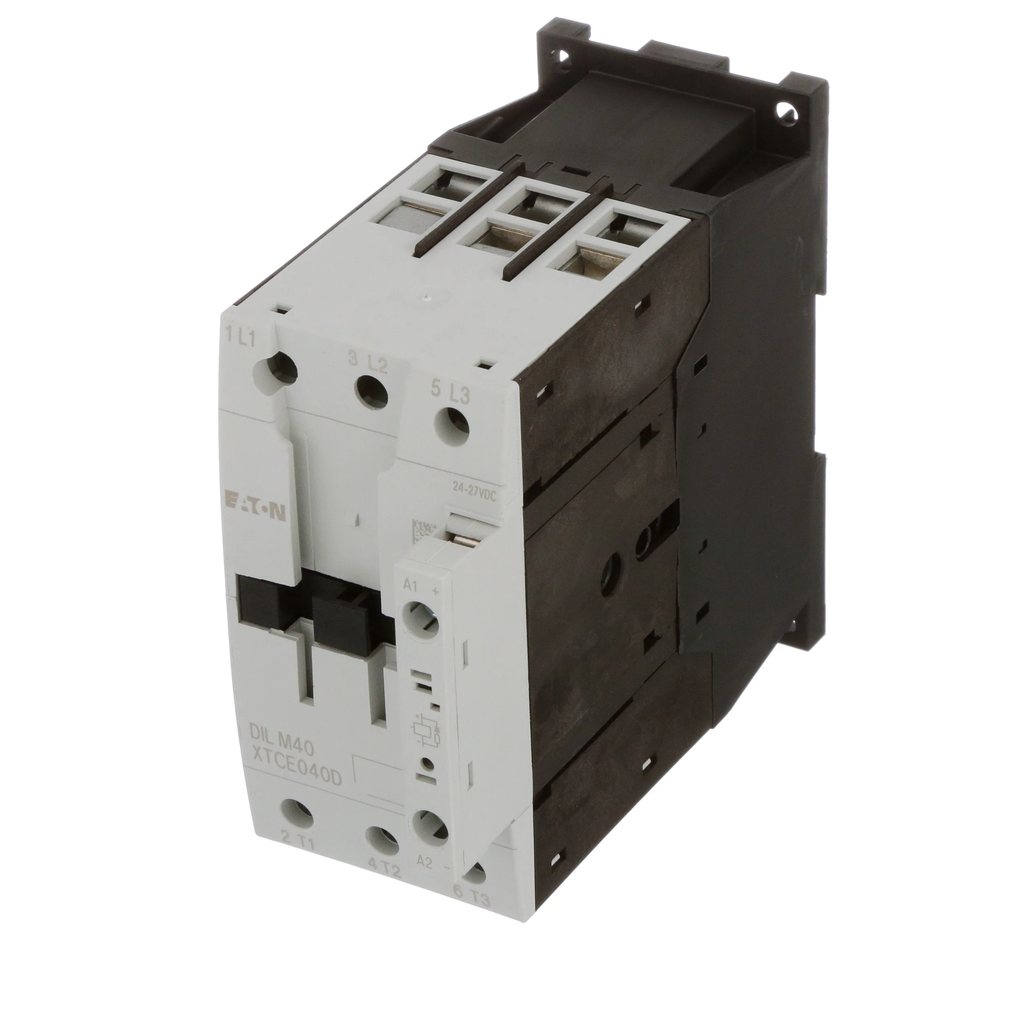

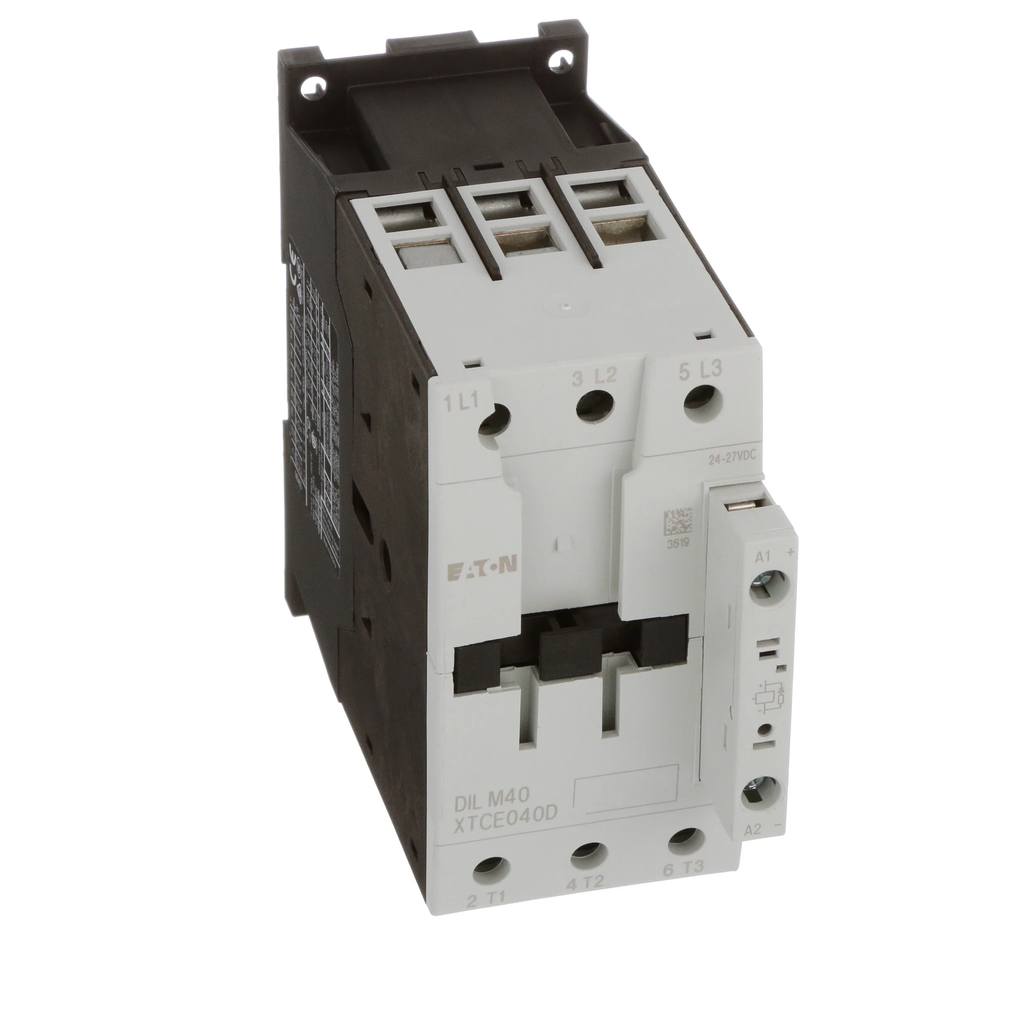

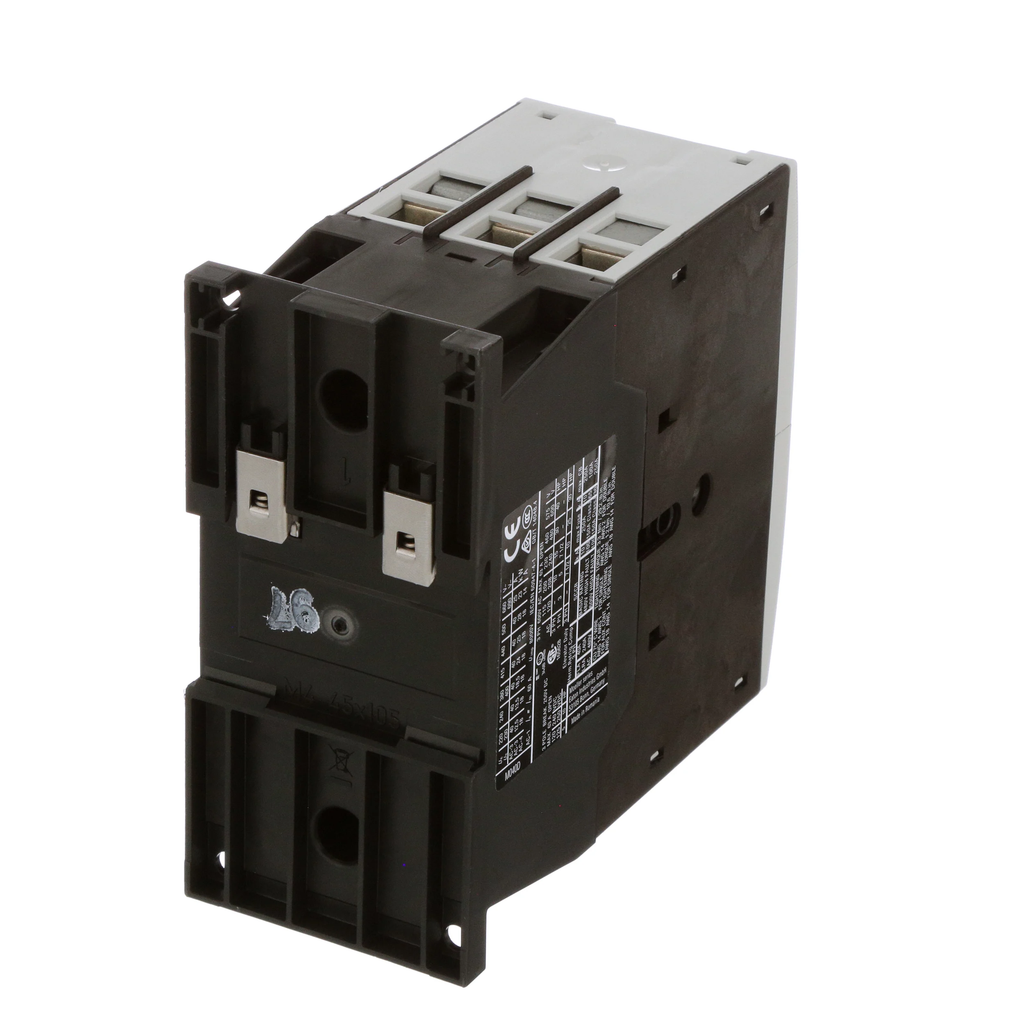

XTCE040D00TD - Cutler Hammer 40A 600V 3 Pole XT Series Contactor with 24V DC Coil

XTCE040D00TD

XTCE040D00TD is a Cutler Hammer XT Series 3 pole contactor rated for 40 amps and 600 volts with a 24-27 V DC coil.This 3 pole, non-reversing contactor features a Frame D size, screw terminals, and is designed for motor and power control applications. It supports AC control voltages from 12V to 600V and DC control voltages from 12V to 220V, with an insulation voltage rating of 690 Vac and an operating voltage up to 690 Vac. The contactor meets IEC/EN 60947, UL, CSA, CCC, and RoHS standards and offers a mechanical life of 10 million operations.

Key Specifications
• Amperage: 40A
• Voltage: 600V AC max
• Poles: 3
• Coil Voltage: 24-27 V DC
• Frame Size: D (55 mm)
• Mounting Type: DIN rail or panel mount
• Contact Configuration: 0 NO, 0 NC (non-reversing)
• Interrupt Rating: Suitable for motor control
• Standards: IEC/EN 60947, UL, CSA, CCC, RoHS
• Mechanical Life: 10,000,000 operations
• Degree of Protection: IP00

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 27 VDC coil.

Specifications

• Part Number: XTCE040D00TD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE040D
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 30 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 27
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
• Coil Voltage Minimum : 24
• Frequency : 50 Hz

Product Data

• UPC : 015082777801
• GTIN : 04015082777807
• Country of Origin : Romania
• Dimensions : 2.25 in x 6 in x 5 in (Length/Depth x Height x Width)
• Weight : 2.4 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
