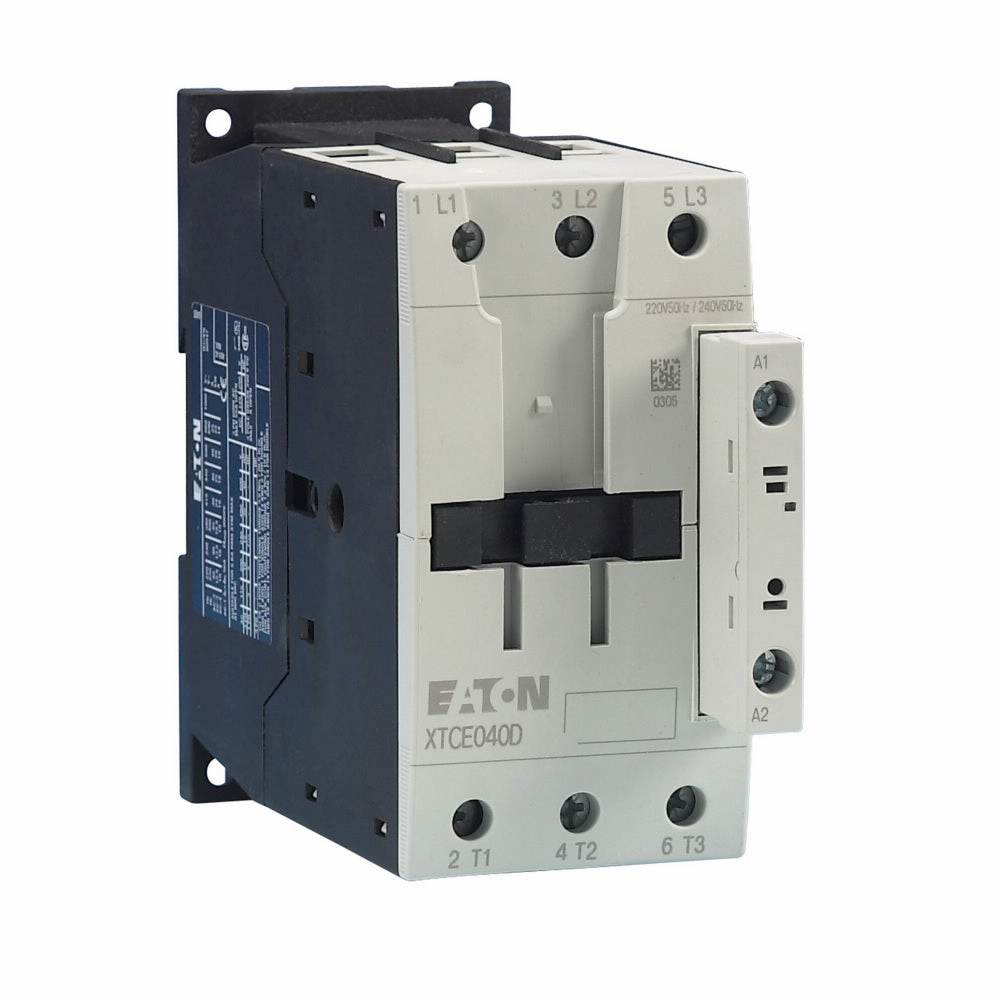

XTCE040D00B - Cutler Hammer 40A 3-Pole Motor Contactor Frame D 220V/240V Coil

XTCE040D00B

XTCE040D00B is a 3-pole motor contactor from Cutler Hammer designed for reliable motor control applications.This Eaton XT series IEC contactor features a 40 ampere rating with a Frame D size and supports coil voltages of 220V 50Hz and 240V 60Hz. It is rated for motor horsepower up to 40 HP at 460V and 15 HP at 230V, suitable for various industrial motor control needs. The contactor conforms to IEC 60947 standards and includes 0NO-0NC auxiliary contacts.

Key Specifications
• Amperage: 40A (AC-3), 63A (AC-1)
• Voltage: 220V 50Hz / 240V 60Hz coil
• Poles: 3
• Frame: D (55 mm)
• Horsepower Rating: Up to 40 HP @ 460V, 15 HP @ 230V
• Auxiliary Contacts: 0NO-0NC
• Standards: IEC 60947
• Mounting Type: Panel mount
• Interrupt Rating: Per IEC standards
• Manufacturer: Cutler Hammer (Eaton)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This IEC Non-Reversing Contactor includes a 220 VAC coil.




Specifications

• Part Number: XTCE040D00B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE040D
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 30 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
• Coil Voltage Minimum : 240
• Frequency : 50 Hz



Product Data

• UPC : 015082777658
• GTIN : 04015082777654
• Country of Origin : Romania
• Dimensions : 5.77952756 in x 4.09448819 in x 2.16535433 in (Length/Depth x Height x Width)
• Weight : 0.5070632 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
