XTCE018C10TD - Cutler Hammer XT IEC 18A 24VDC 3-Pole Contactor

XTCE018C10TD

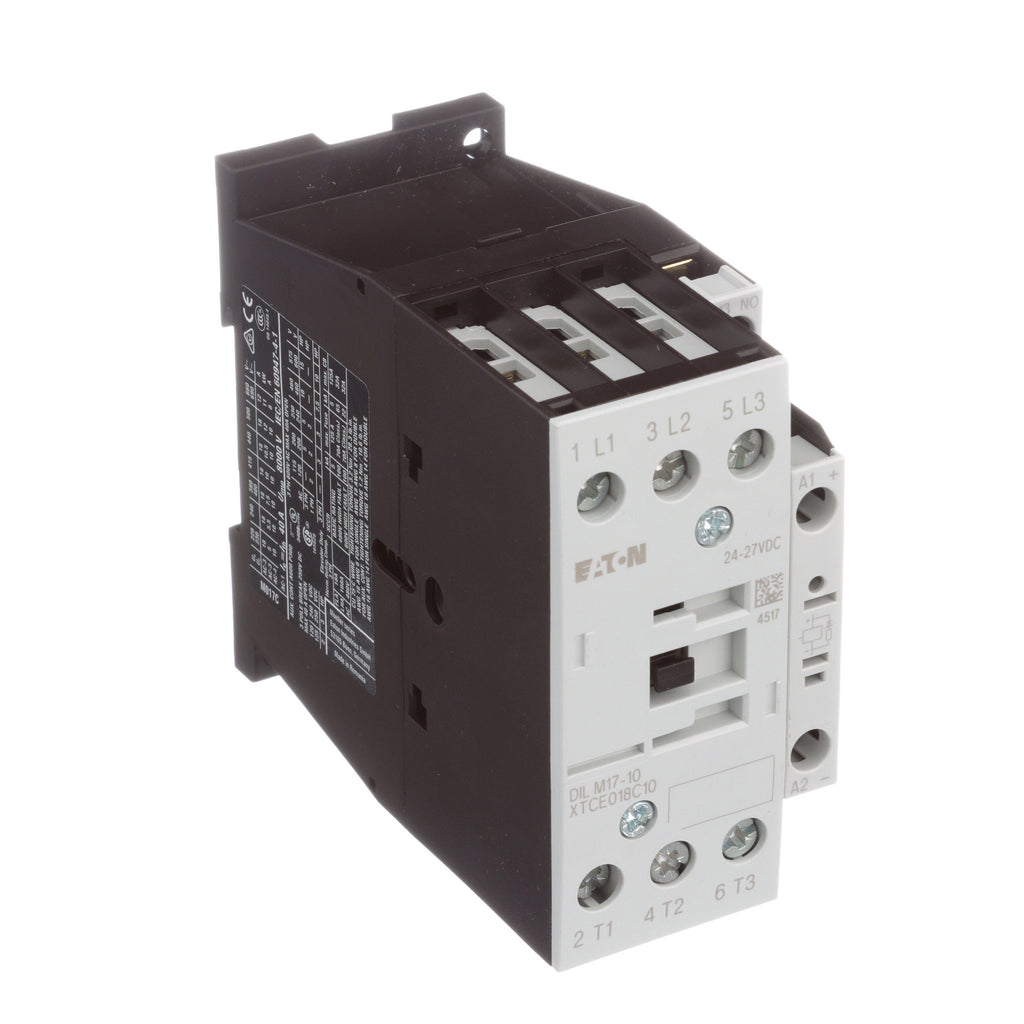

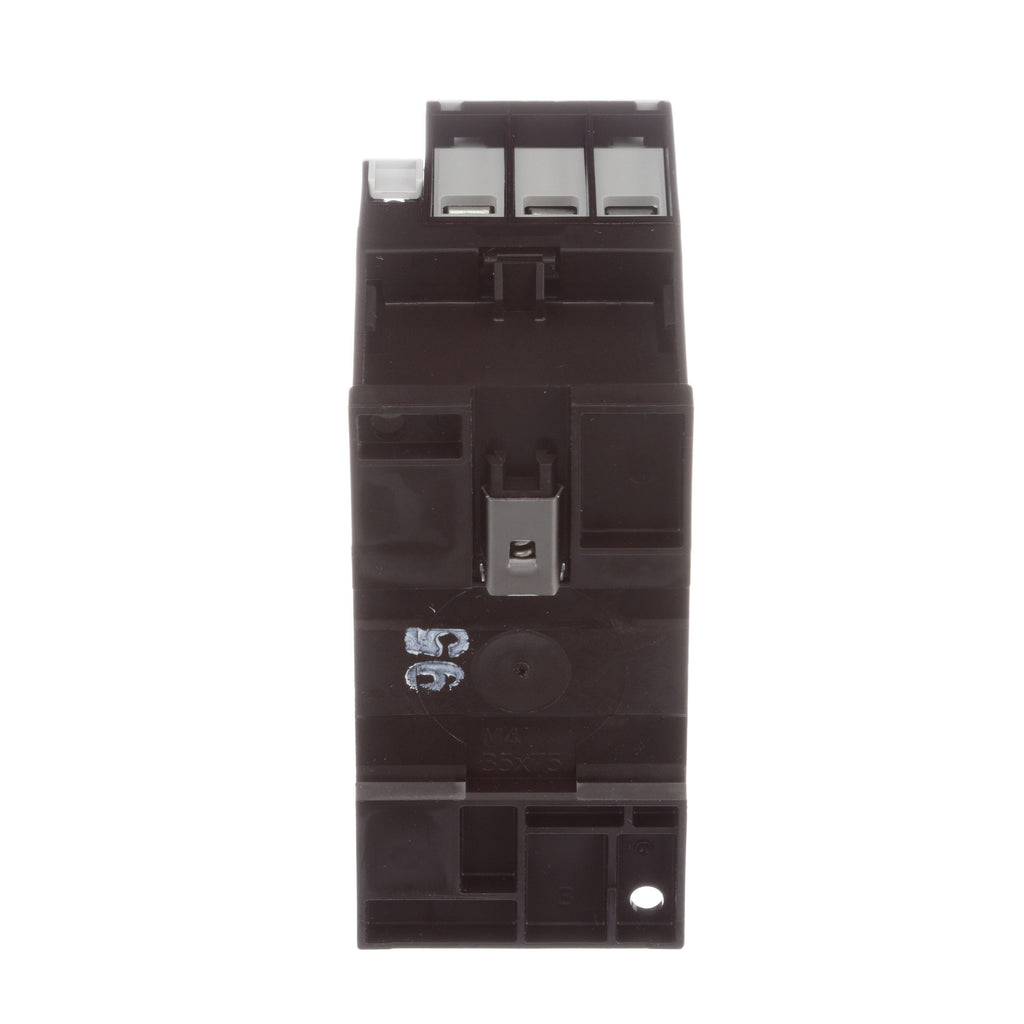

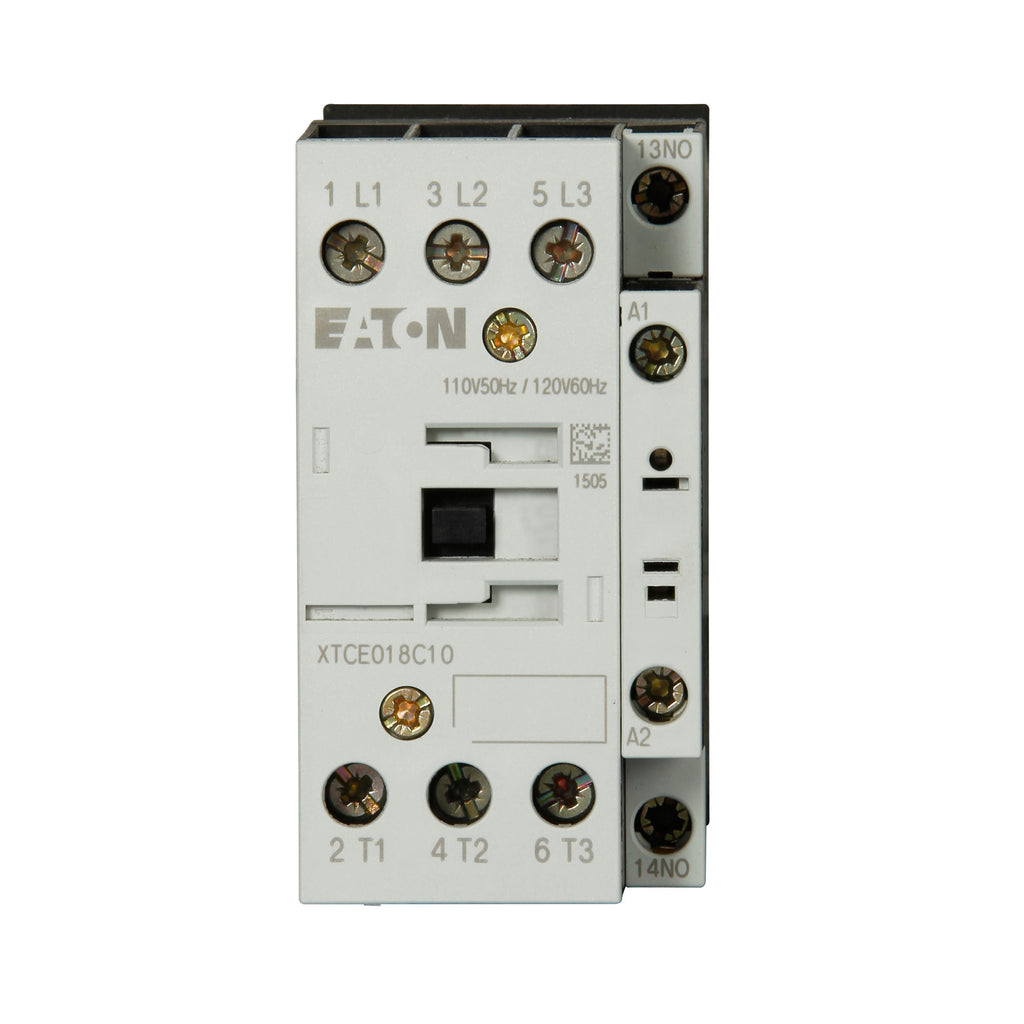

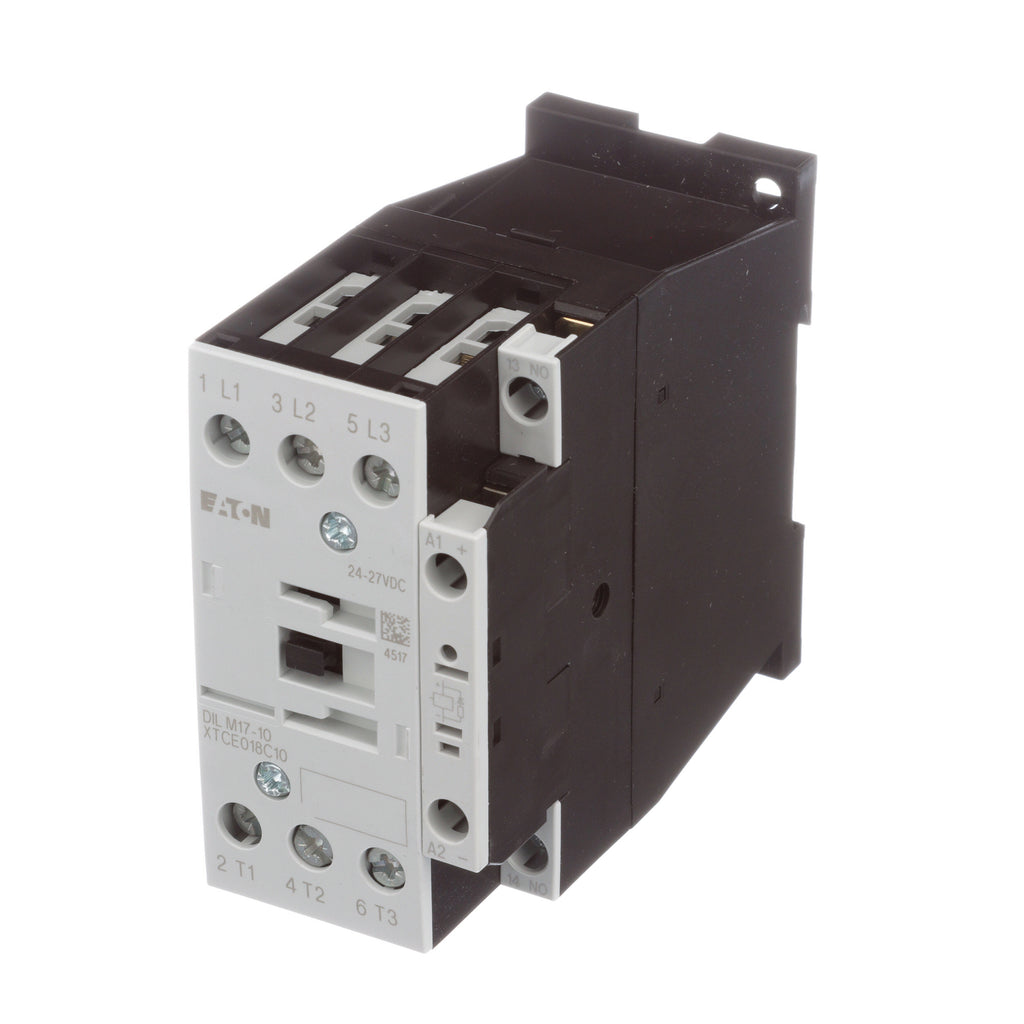

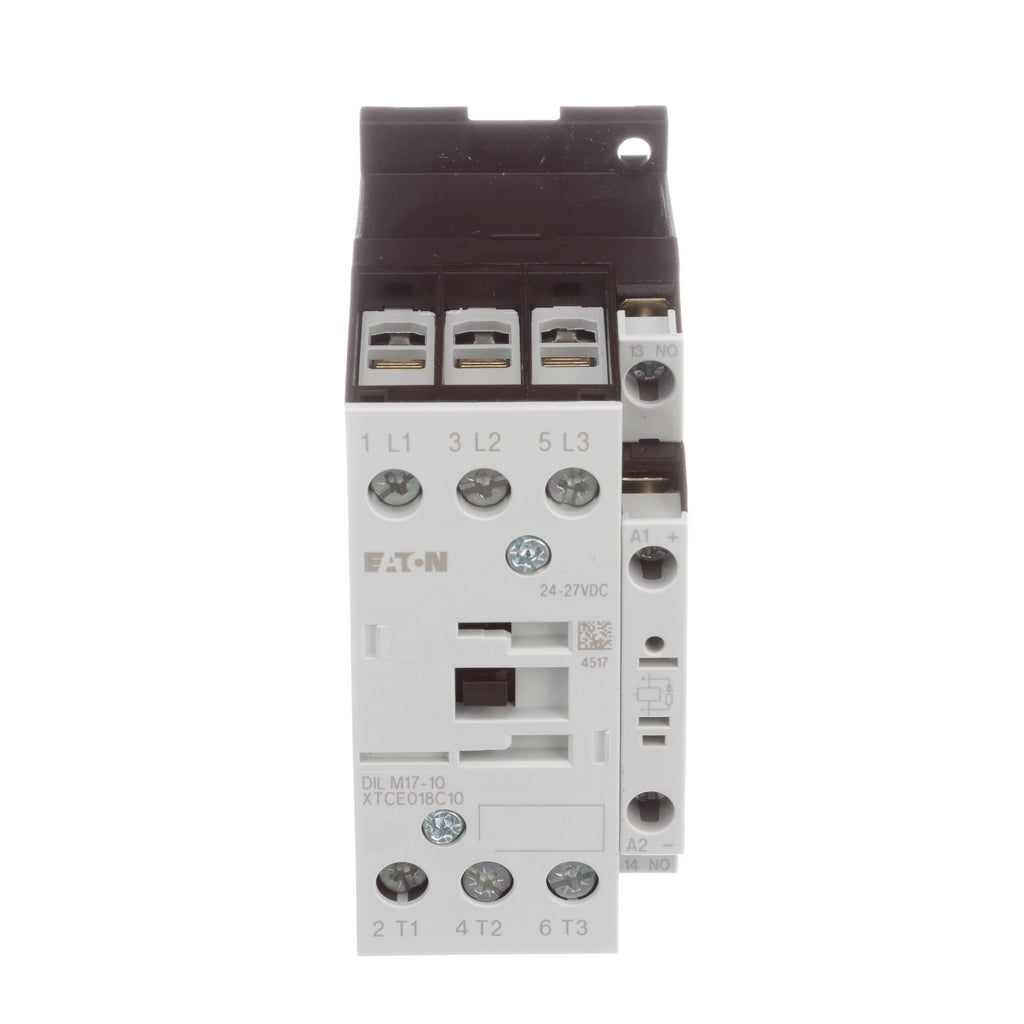

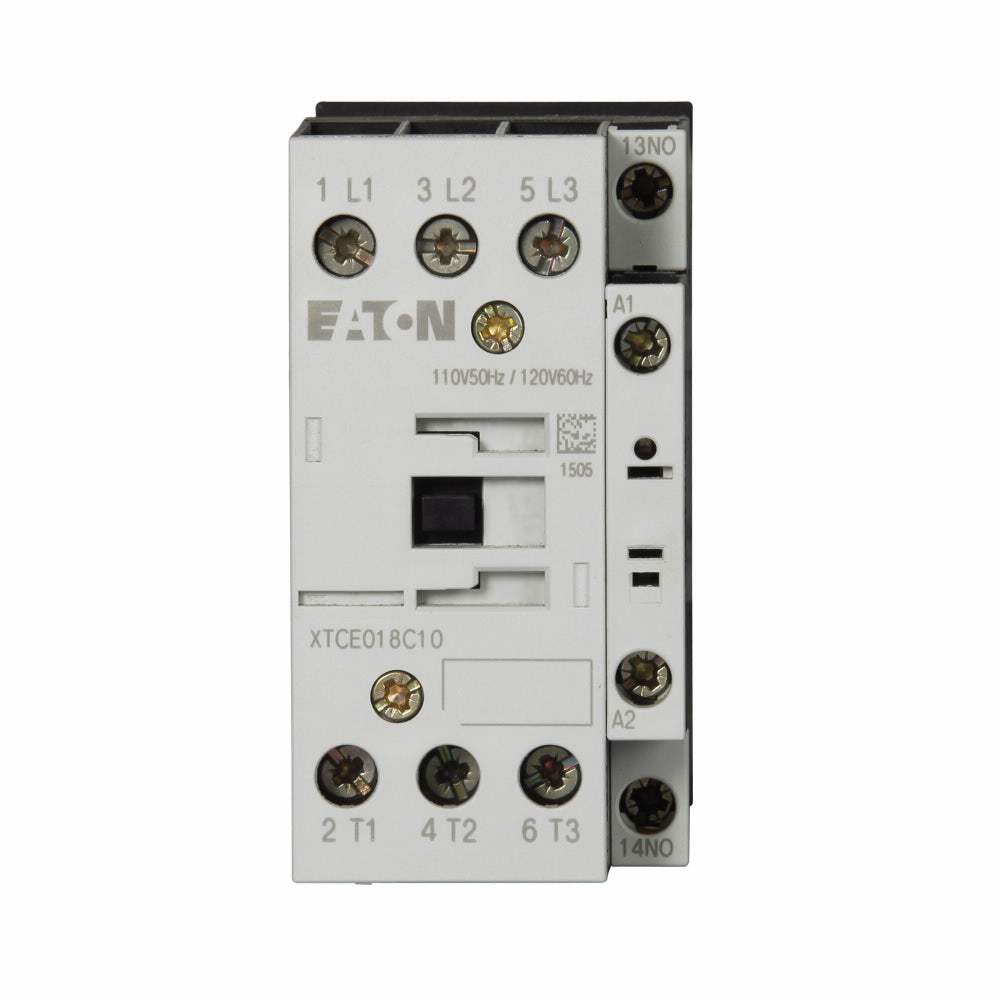

XTCE018C10TD is an Eaton XT IEC series full voltage non-reversing contactor designed for motor control and power distribution applications. This compact Frame C contactor delivers reliable switching performance for motors, compressors, pumps, and resistive loads across multiple voltage ratings. Key Specifications

• Amperage Rating: 18A continuous
• Coil Voltage: 24-27 VDC
• Number of Poles: Three-pole
• Horsepower: 2 HP @ 115V (1PH), 2 HP @ 200V (1PH), 3 HP @ 230V (1PH), 5 HP @ 200V (3PH), 5 HP @ 230V (3PH), 10 HP @ 460V (3PH), 15 HP @ 575V (3PH)
• Auxiliary Contacts: 1 NO (normally open)
• Terminal Type: Screw terminals
• Frame Size: Frame C, 45 mm
• Operation: Non-reversing
• Series: XT IEC
• Certifications: UL Listed, CSA Certified
• Standards: Conforms to IEC 60947

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 27 VDC coil.

Specifications

• Part Number: XTCE018C10TD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE018C
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 27
• Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 24
• Frequency : 50 Hz

Product Data

• UPC : 001508277018
• GTIN : 04015082770181
• Country of Origin : Romania
• Dimensions : 4 in x 2 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.61729433 lb
• Certification : CSA, UL Listed
