2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

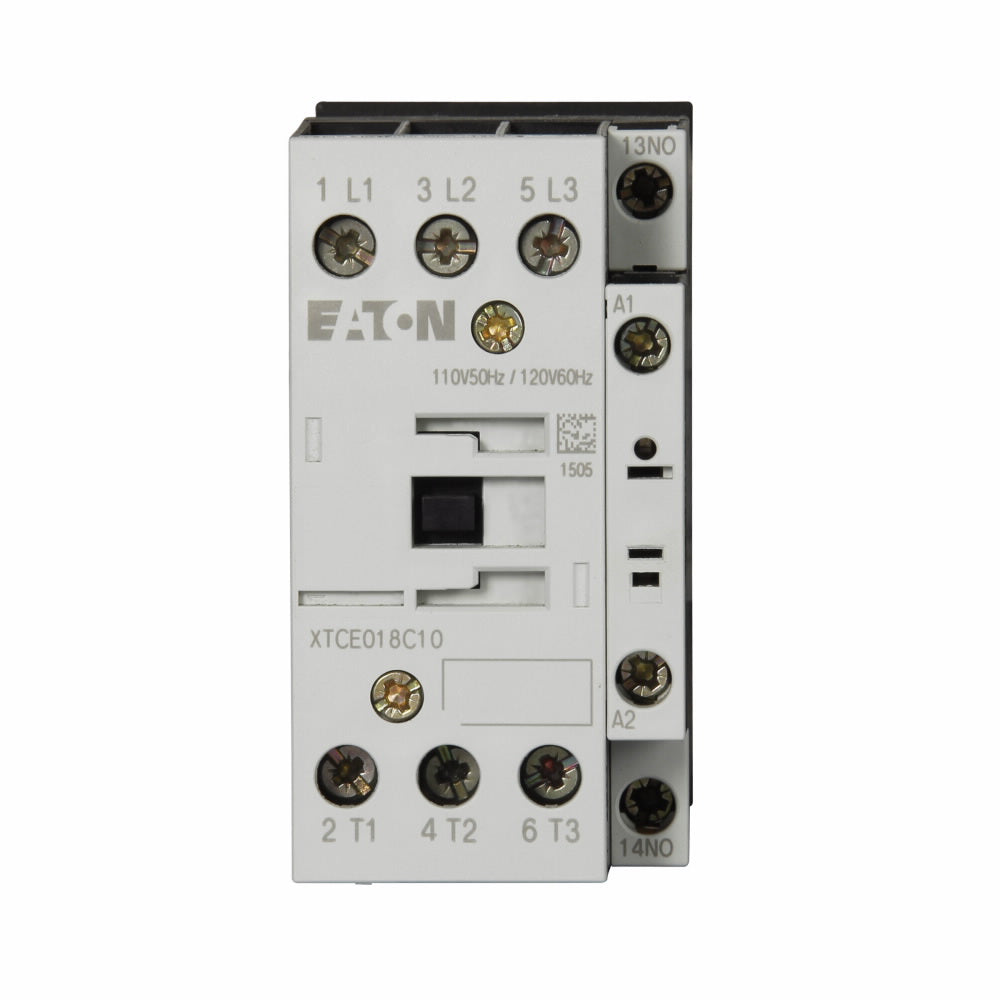

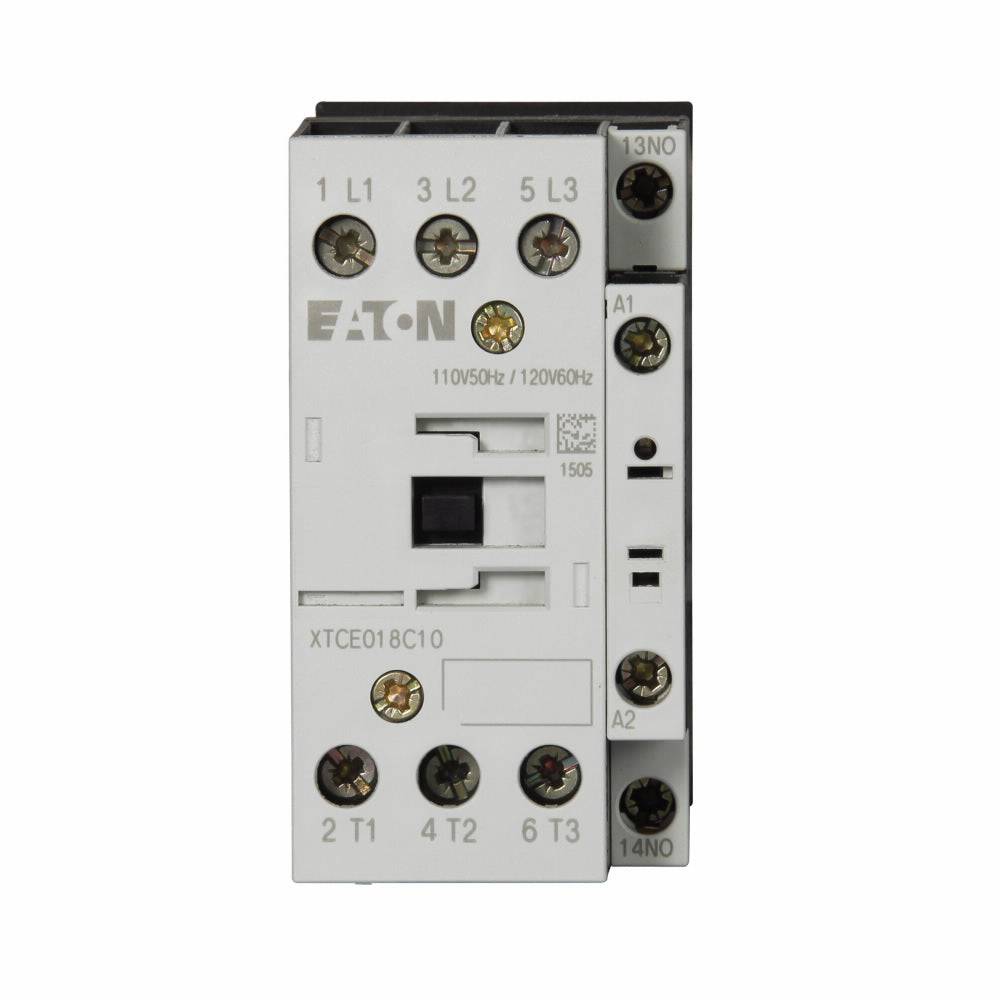

XTCE018C10B
XTCE018C10B is a Cutler Hammer 3-pole, 18 amp IEC non-reversing contactor designed for reliable motor control in industrial applications.
This contactor features a 220/240VAC coil, 1 normally open auxiliary contact, and is rated for 600VAC operation. It is suitable for both three-phase and single-phase systems, with a compact design that allows for DIN rail or screw mounting. The XTCE018C10B is part of the XT series, meeting IEC, UL, CSA, and CE standards for global compliance and safety.
-
Key Specifications
- Amperage: 18A AC-3 (40A AC-1)
- Voltage: 600VAC max
- Poles: 3
- Mounting Type: DIN rail or screw
- Interrupt Rating: Not specified
- Series/Frame: XT
- Trip Unit: Not applicable (contactor only)
- Certifications: IEC, UL, CSA, CE
- Coil Voltage: 220/240VAC
- Auxiliary Contacts: 1 NO
- Horsepower: 5 HP @ 230V, 10 HP @ 460V
- Frequency: 50/60 Hz
- Terminals: Screw or spring cage
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This IEC Non-Reversing Contactor includes a 220 VAC coil.
Specifications
- Part Number: XTCE018C10B
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Type : XTCE018C
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
- Configuration : Non-Reversing
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 240
- Frequency : 50 Hz
Product Data
- UPC : 015082770031
- GTIN : 04015082770037
- Country of Origin : Romania
- Dimensions : 3 in x 2 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.5070632 lb
- Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
