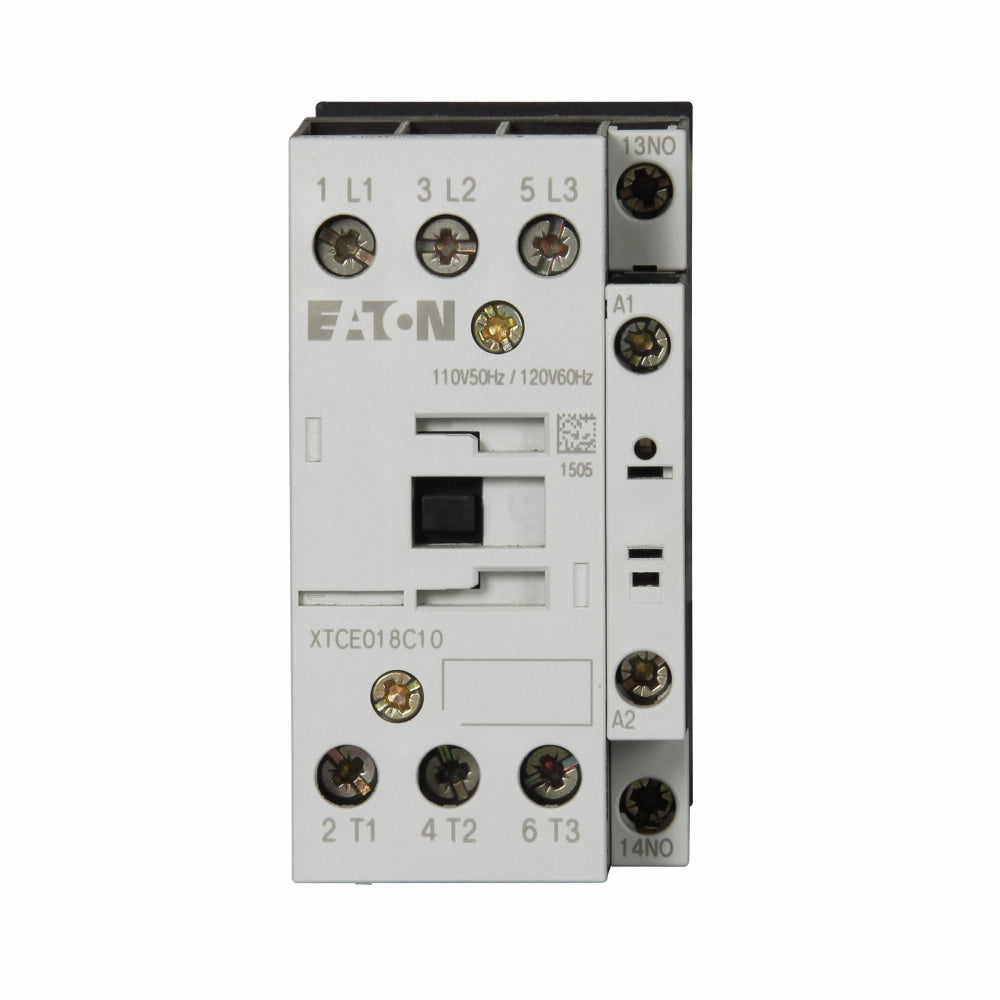

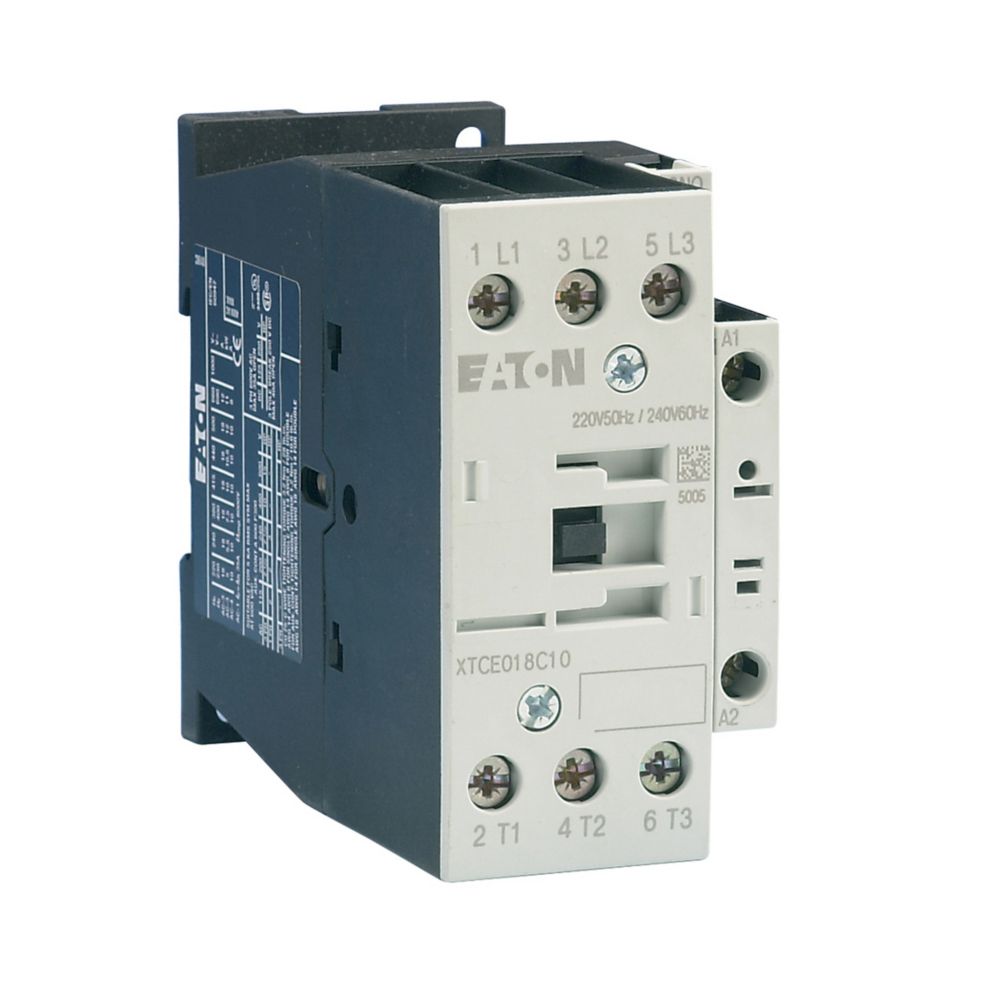

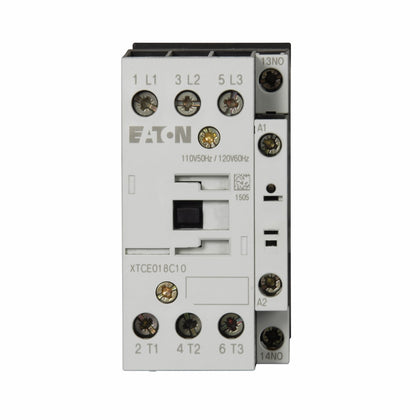

XTCE018C10T - Cutler Hammer 18A 3-Pole 24VAC IEC Motor Contactor Frame C

Save $228.75
SKU: XTCE018C10T-New
Condition: New
Price:
$110.86 $339.61
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

XTCE018C10T Eaton XT Series Contactor 3 pole 3 phase 1V 18A 24V coil - Essential Electric Supply
XTCE018C10T - Cutler Hammer 18A 3-Pole 24VAC IEC Motor Contactor Frame C - Essential Electric Supply
XTCE018C10T - Cutler Hammer 18A 3-Pole 24VAC IEC Motor Contactor Frame C - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
XTCE018C10T Eaton XT Series Contactor 3 pole 3 phase 1V 18A 24V coil - Essential Electric Supply
XTCE018C10T - Cutler Hammer 18A 3-Pole 24VAC IEC Motor Contactor Frame C - Essential Electric Supply
XTCE018C10T - Cutler Hammer 18A 3-Pole 24VAC IEC Motor Contactor Frame C - Essential Electric Supply

Description

XTCE018C10T


XTCE018C10T is a Cutler Hammer 3-pole motor contactor with an 18 amp rating and 24 VAC coil voltage designed for IEC motor control applications.This Eaton XT Series IEC contactor features a 3-pole, full voltage non-reversing design with a Frame C size and screw terminals. It includes one normally open (1NO) auxiliary contact and supports motor horsepower ratings up to 15 HP depending on voltage. The contactor operates at 50-60 Hz frequency and is UL listed, CSA certified, and RoHS compliant, meeting IEC 60947 and EN 60947 standards.
    Key Specifications
    • Amperage Rating: 18 A continuous
    • Coil Voltage: 24 VAC, 50-60 Hz
    • Number of Poles: 3 (Three-pole)
    • Frame Size: C
    • Auxiliary Contacts: 1 Normally Open (1NO)
    • Mounting Type: Screw terminals, DIN rail compatible
    • Interrupt Rating: IEC rated for motor control
    • Max HP Ratings: 2 HP @ 115V 1PH, 3 HP @ 230/240V 1PH, 5 HP @ 200/208V 3PH, 10 HP @ 460/480V 3PH, 15 HP @ 575/600V 3PH
    • Operation: Full voltage non-reversing
    • Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
    • Standards: IEC 60947, EN 60947
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VAC coil.


Specifications

  • Part Number: XTCE018C10T
  • Manufacturer : Cutler Hammer
  • Brand : Eaton
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : XT Series
  • Type : XTCE018C
  • Voltage : 1
  • Amperage : 18
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1 NO
  • Coil Voltage Maximum : 24
  • Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 40A
  • Coil Voltage Minimum : 24
  • Frequency : 50 Hz

Product Data

  • UPC : 015082770086
  • GTIN : 04015082770082
  • Country of Origin : Romania
  • Dimensions : 4 in x 1.5 in x 3.5 in (Length/Depth x Height x Width)
  • Weight : 0.5070632
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
