XTCE012B10TD - Cutler Hammer 12A 3-Pole IEC Contactor 24VDC Coil 10HP 460V DIN Rail Mount

XTCE012B10TD

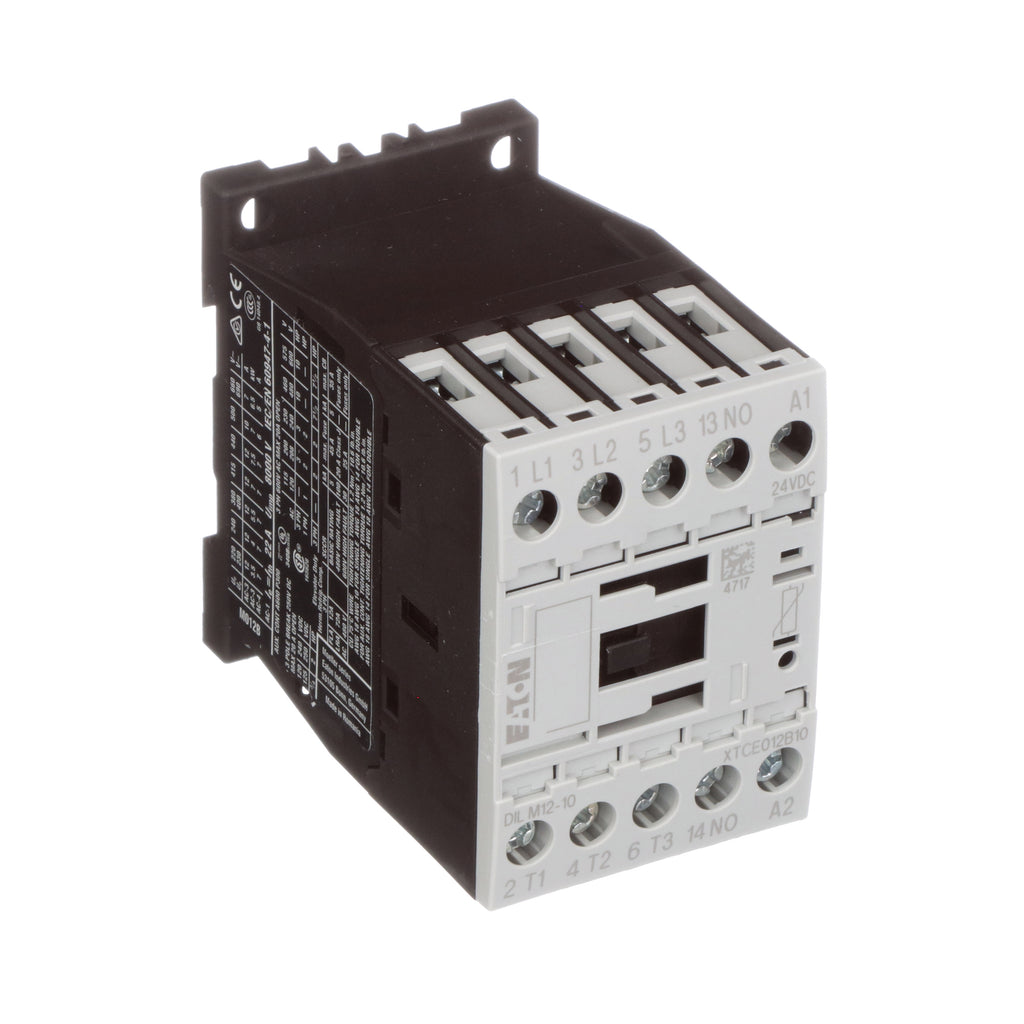

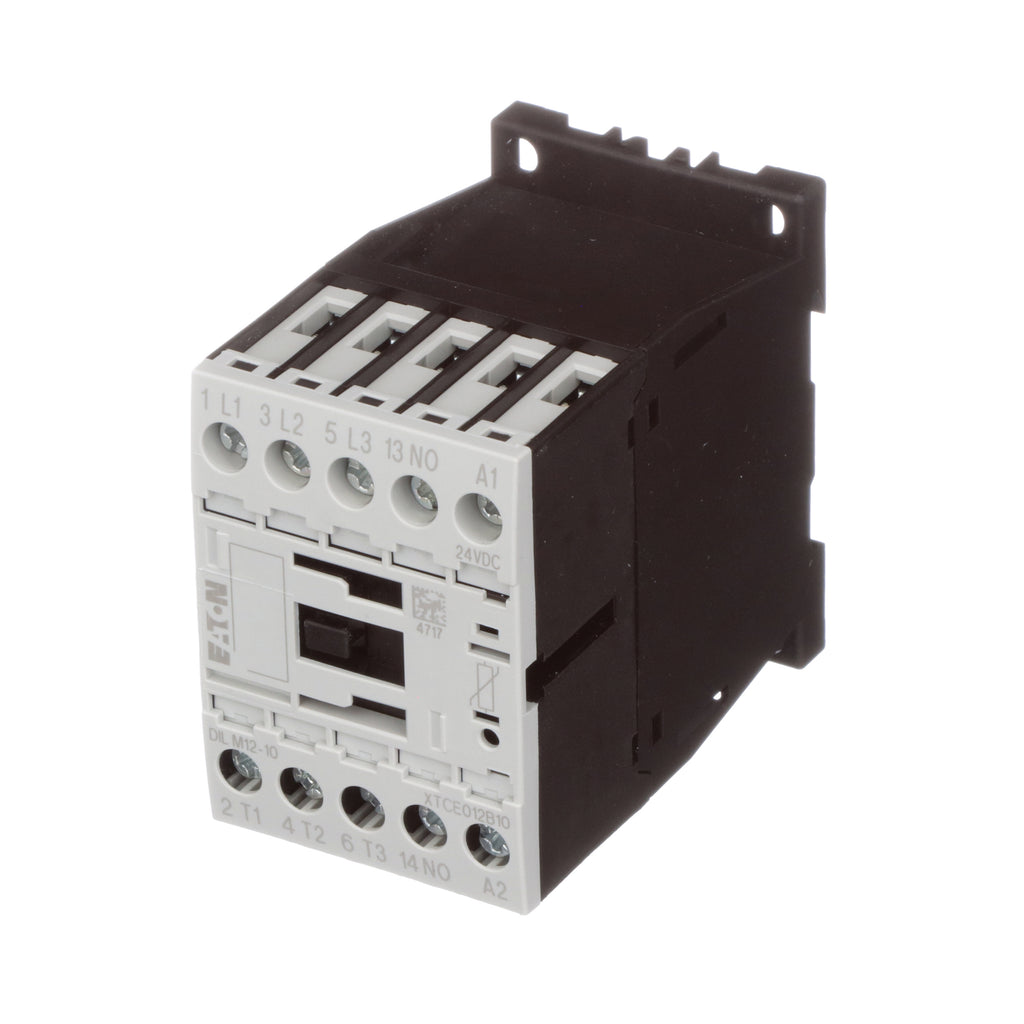

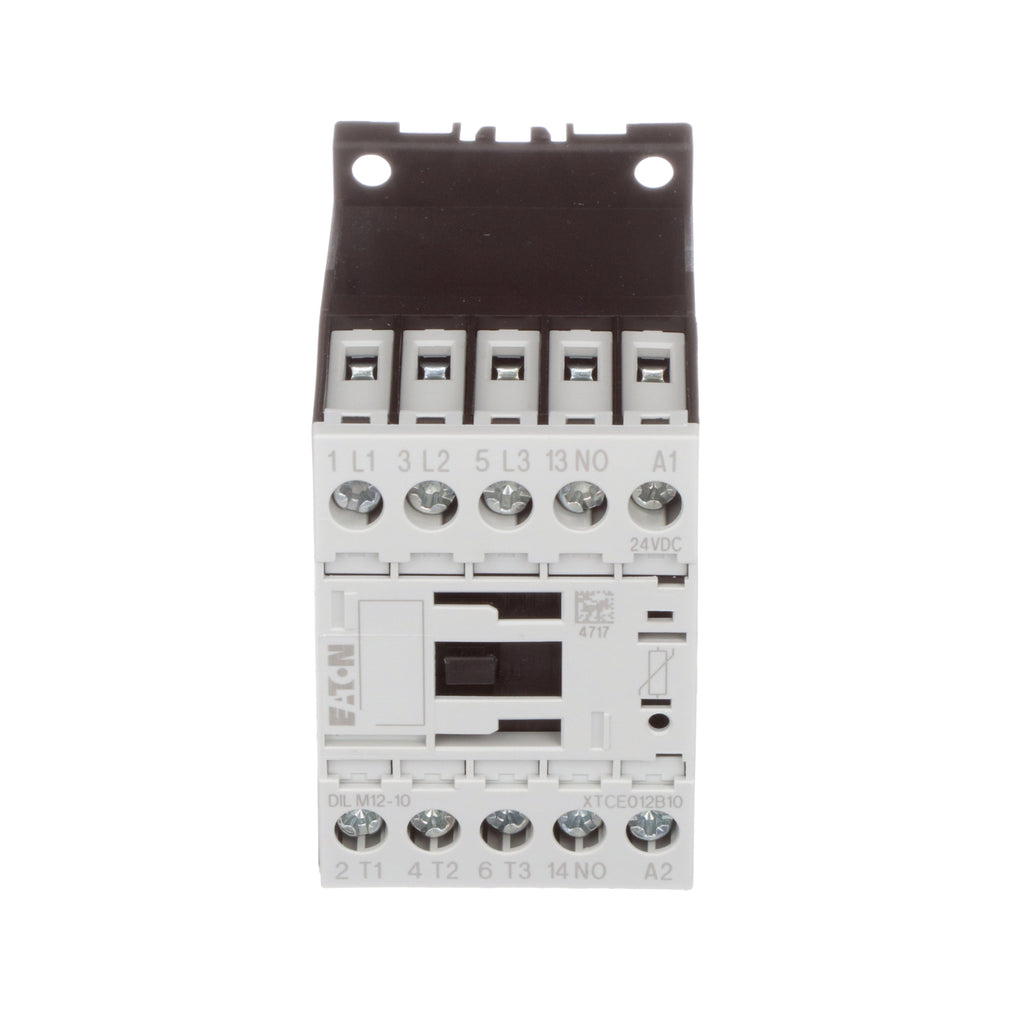

XTCE012B10TD is a 3-pole IEC contactor from Cutler Hammer designed for motor control applications with a 24VDC coil and 12 ampere rating.XTCE012B10TD features a compact DIN rail mount design suitable for industrial use, supporting up to 10 HP at 460V and 3 HP at 230V. It includes one normally open auxiliary contact and conforms to IEC 60947 standards. The contactor offers low power coil consumption, IP20 finger and back-of-hand protection, and operates reliably in ambient temperatures from -25 to 50°C.

Key Specifications
• Amperage Rating: 12A
• Voltage Rating: Up to 690VAC operating voltage
• Horsepower Rating: 10 HP at 460V, 3 HP at 230V
• Number of Poles: 3-pole (3PST-NO)
• Coil Voltage: 24VDC

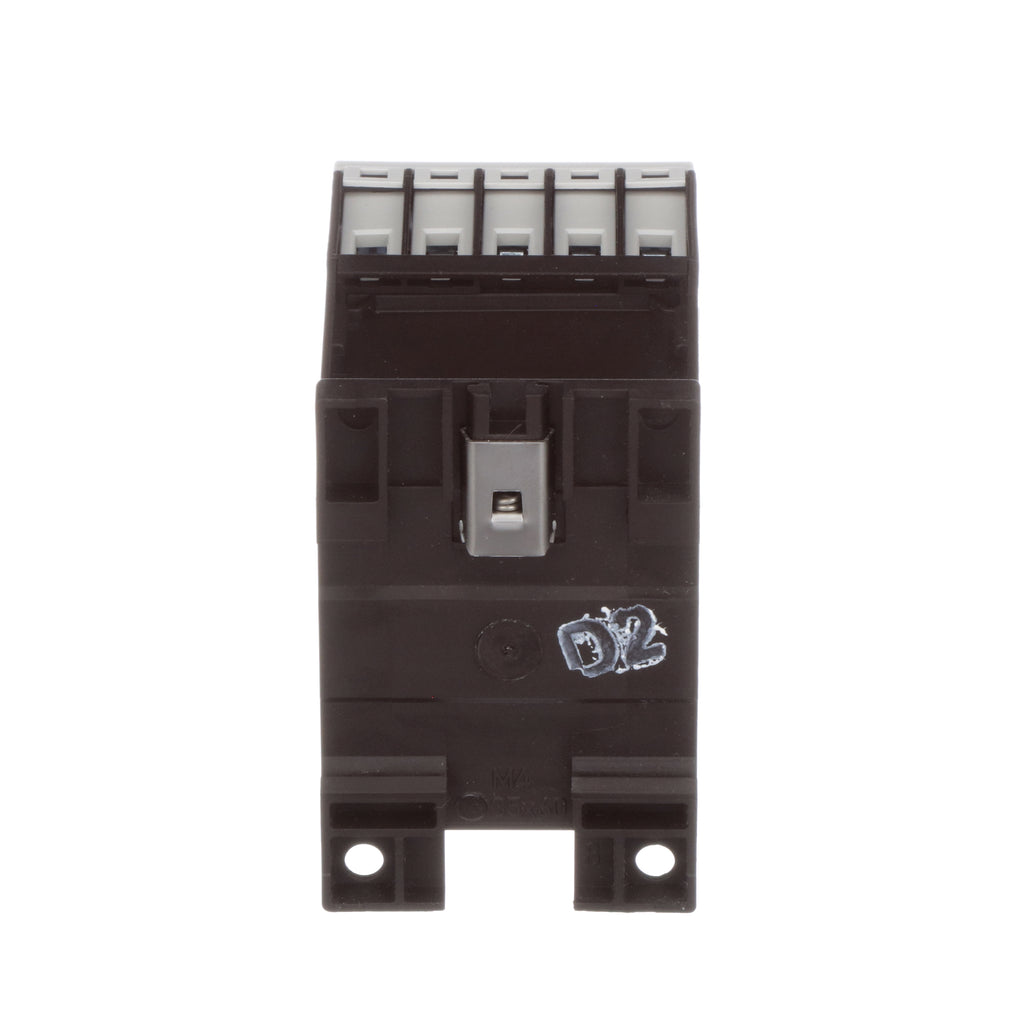

• Mounting Type: DIN rail and panel mount compatible
• Interrupt Rating: 22A switching current AC1
• Auxiliary Contacts: 1 normally open (NO)
• Standards: IEC 60947 compliant
• Ambient Temperature Range: -25 to 50°C
• Protection: IP20 finger and back-of-hand proof
• Certifications: RoHS compliant, no SVHC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VDC coil.

Specifications

• Part Number: XTCE012B10TD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE012B
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 22A
• Coil Voltage Minimum : 24

Product Data

• UPC : 001508276845
• GTIN : 04015082768454
• Country of Origin : Romania
• Dimensions : 3 in x 2 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
