XTCE012B10T - Cutler Hammer 12A 3 Pole 3 Phase IEC Contactor 24V AC Coil Non-Reversing Frame B

XTCE012B10T

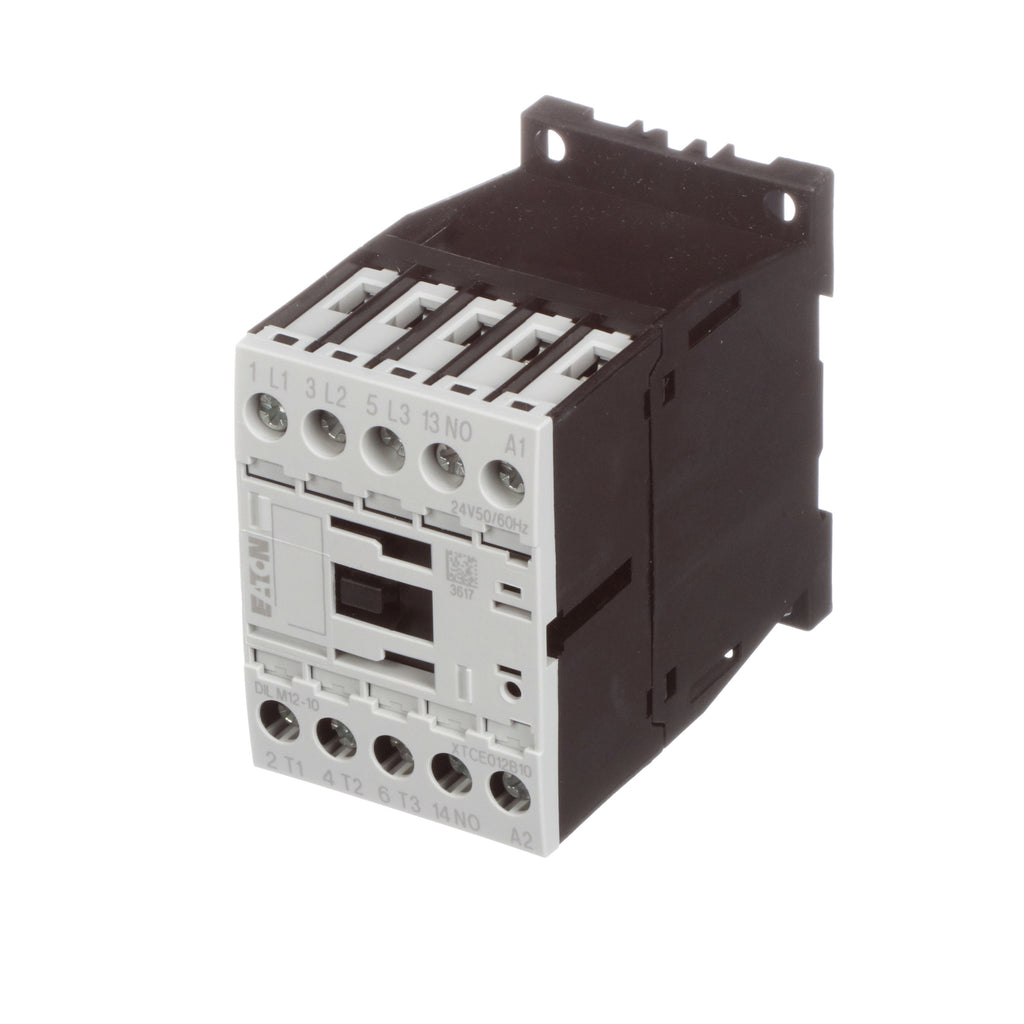

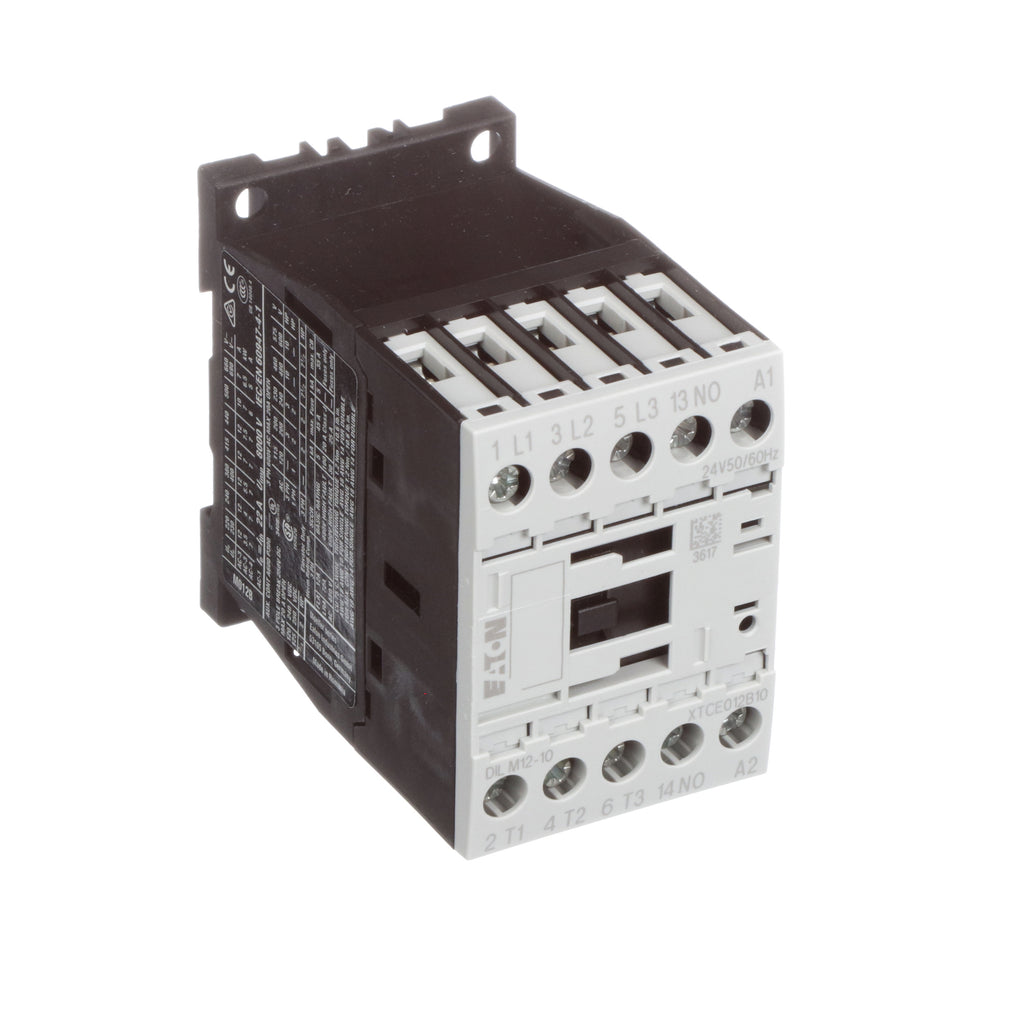

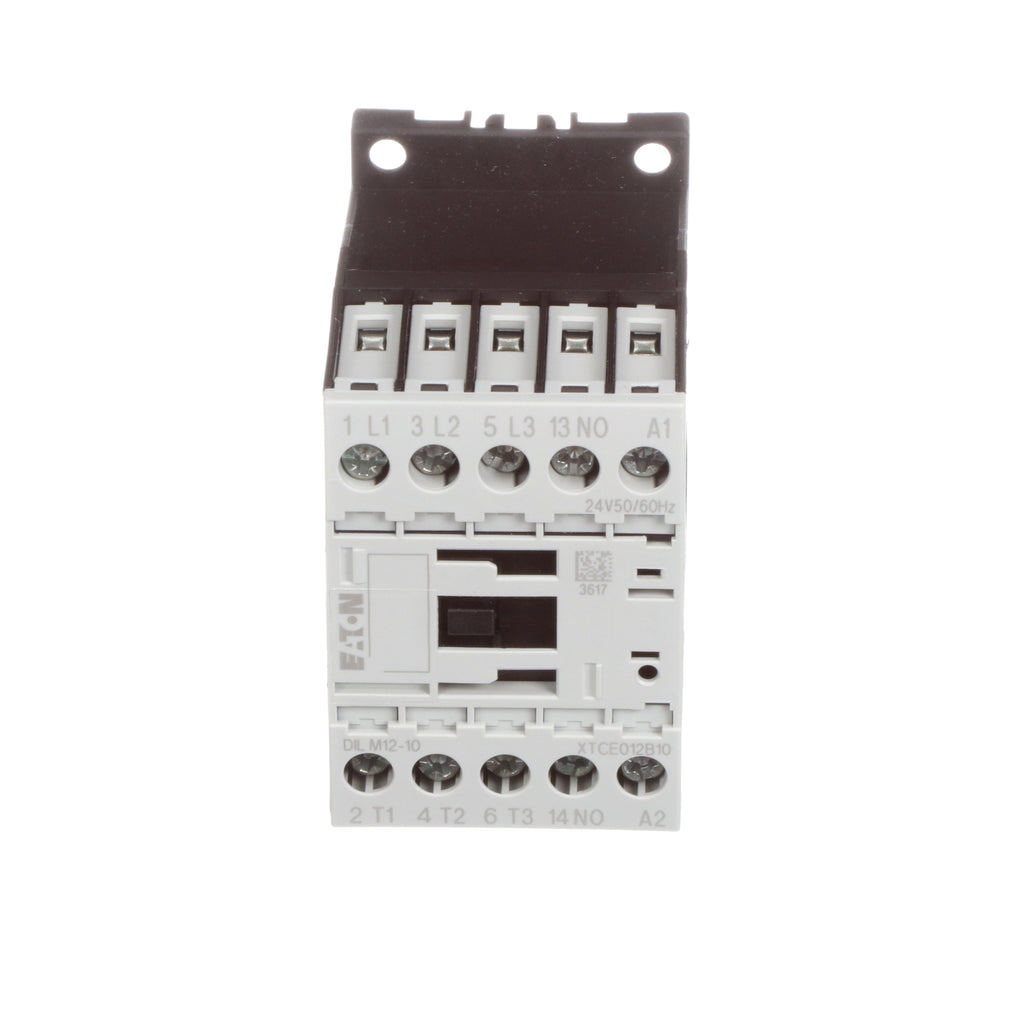

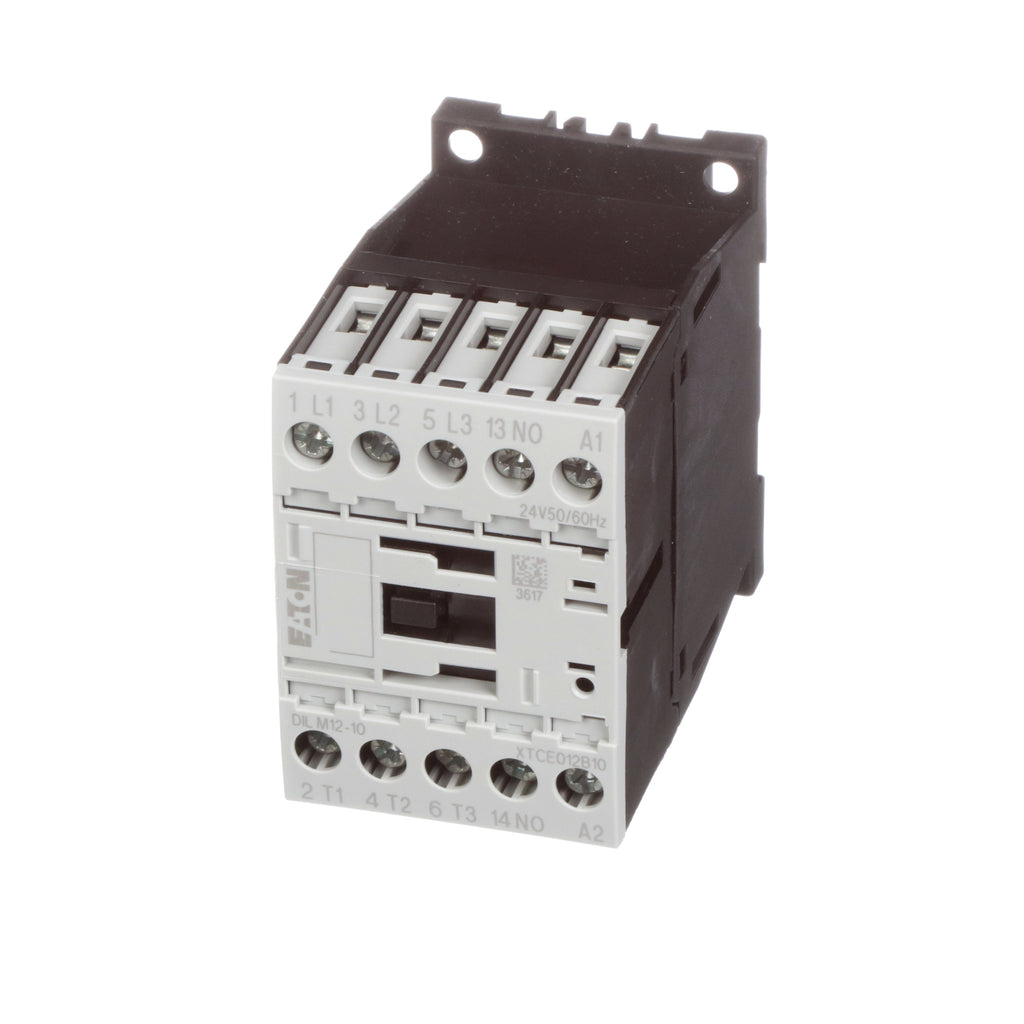

XTCE012B10T is a Cutler Hammer XT Series IEC contactor designed for motor control applications with a 12 amp continuous rating and 3 poles.This 3-phase, full voltage non-reversing contactor operates at 24 VAC coil voltage (50-60 Hz) and supports horsepower ratings up to 10 HP at 460V. It features 1 normally open (NO) auxiliary contact, screw terminals, and a compact 45 mm Frame B size. The contactor is suitable for panel or DIN rail mounting and complies with IEC 60947, UL, CSA, and CE standards.

• Amperage Rating: 12A continuous
• Voltage Rating: 600V max, 24 VAC coil
• Poles: 3-pole
• Horsepower Ratings: 3 HP at 230V, 10 HP at 460V

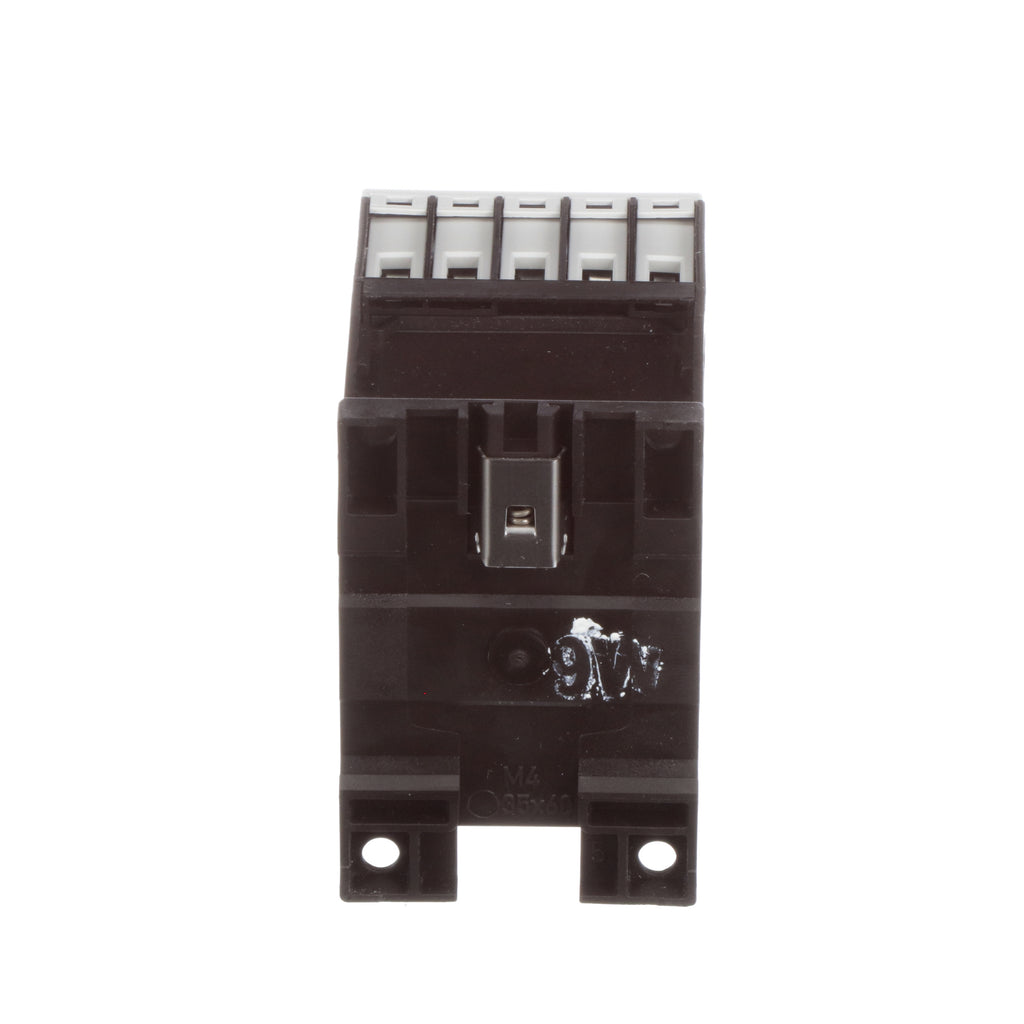

• Mounting: Screw or DIN rail mountable
• Contact Configuration: 1 Normally Open (NO) auxiliary contact
• Frame Size: 45 mm (Frame B)
• Operation: Full voltage non-reversing
• Interrupt Rating: IEC 60947 compliant
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 24 VAC coil.

Specifications

• Part Number: XTCE012B10T
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE012B
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 22A
• Coil Voltage Minimum : 24
• Compatible Frames : PDG,PDF
• Frequency : 50 Hz

Product Data

• UPC : 015082768342
• GTIN : 04015082768348
• Country of Origin : Romania
• Dimensions : 4.92913386 in x 2.67716535 in x 1.77165354 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
