XTCE009B10A - Cutler Hammer 9A 3-Pole 110-120VAC IEC Contactor with 1NO Auxiliary Contact

XTCE009B10A

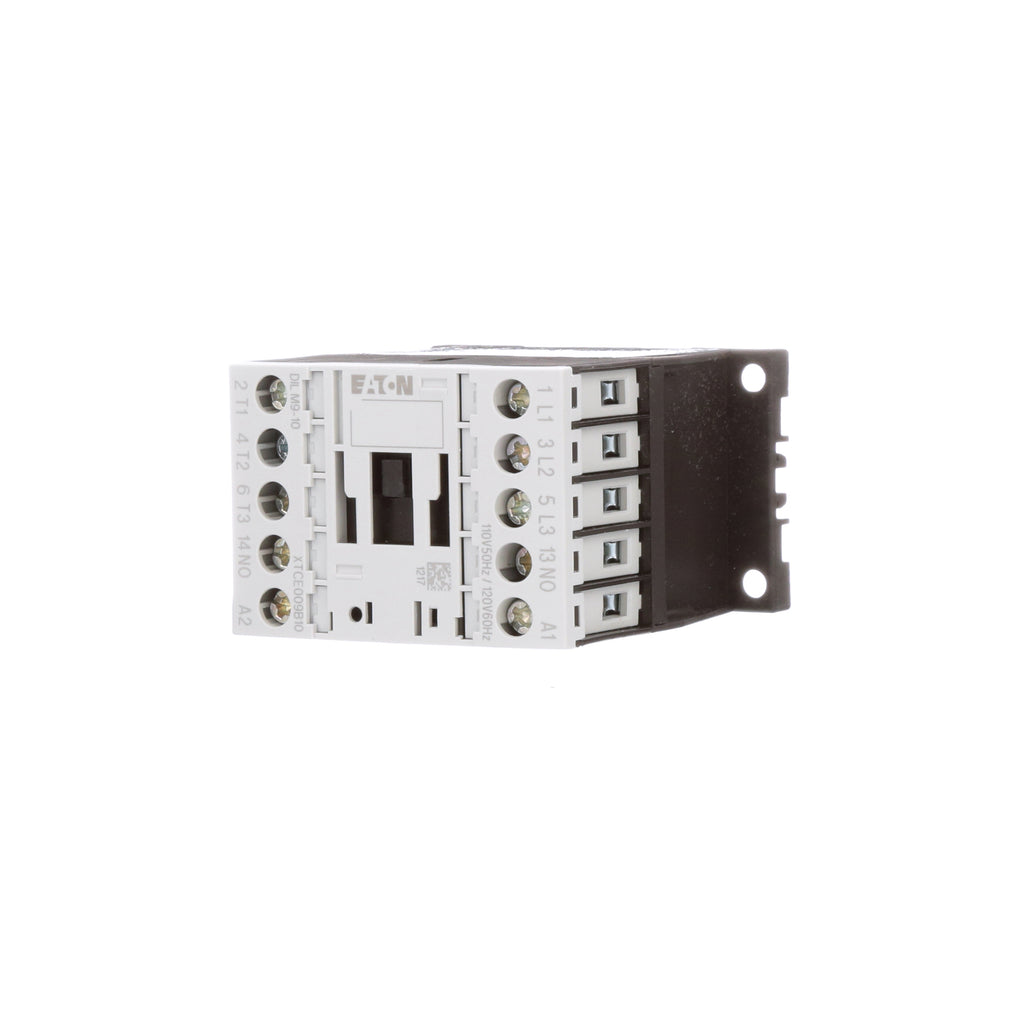

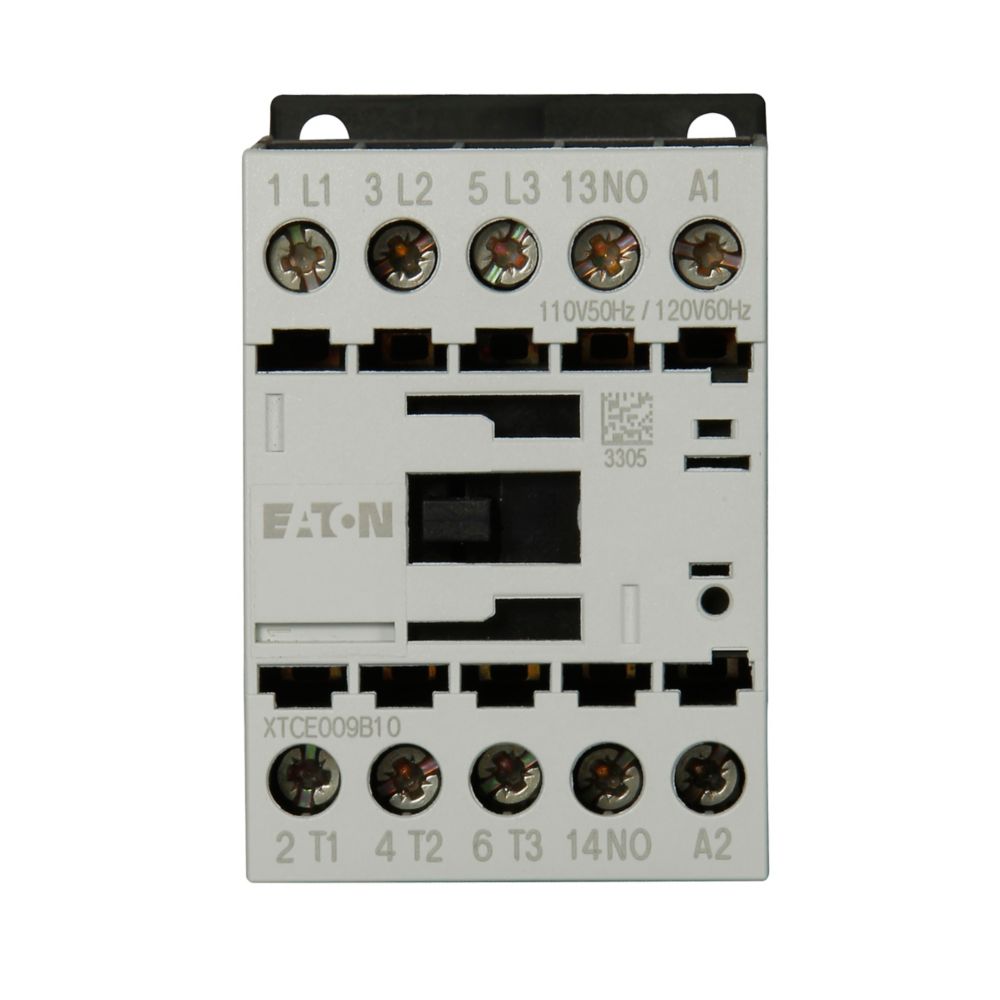

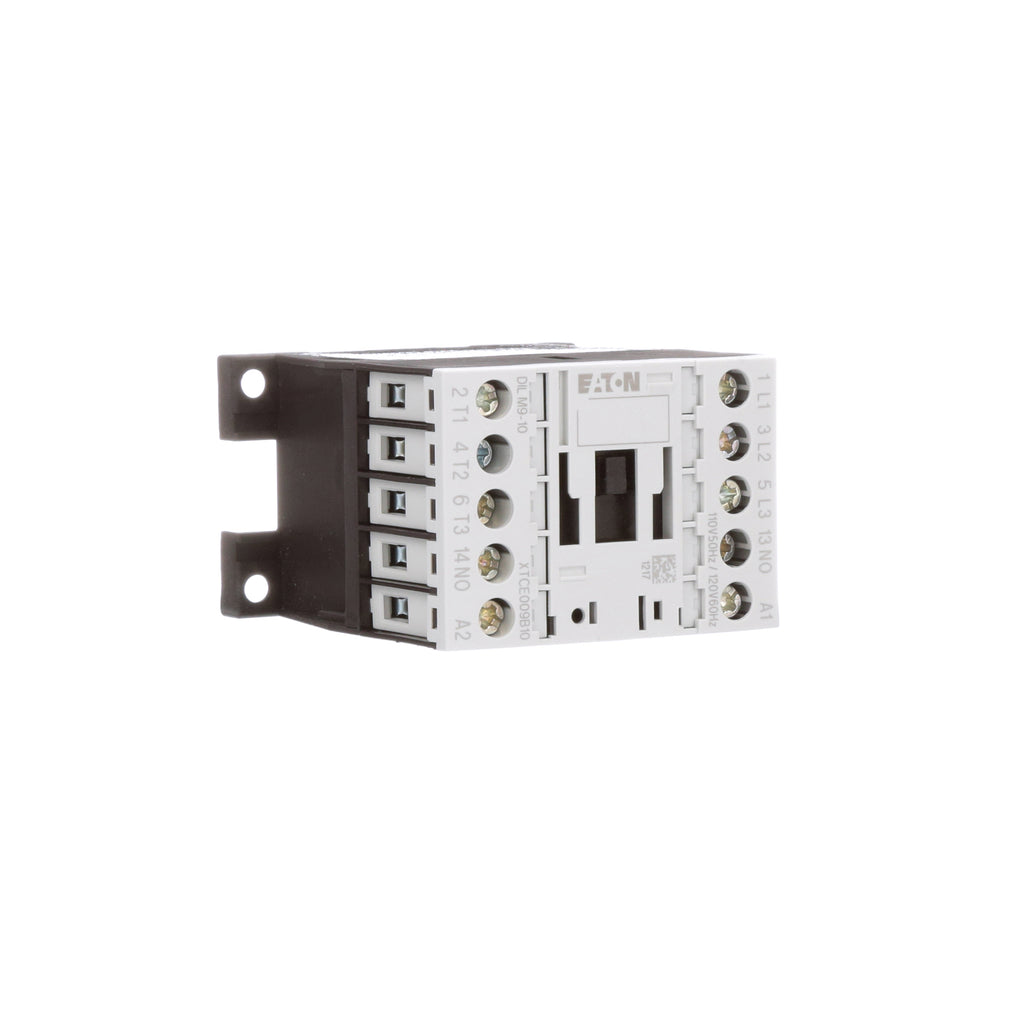

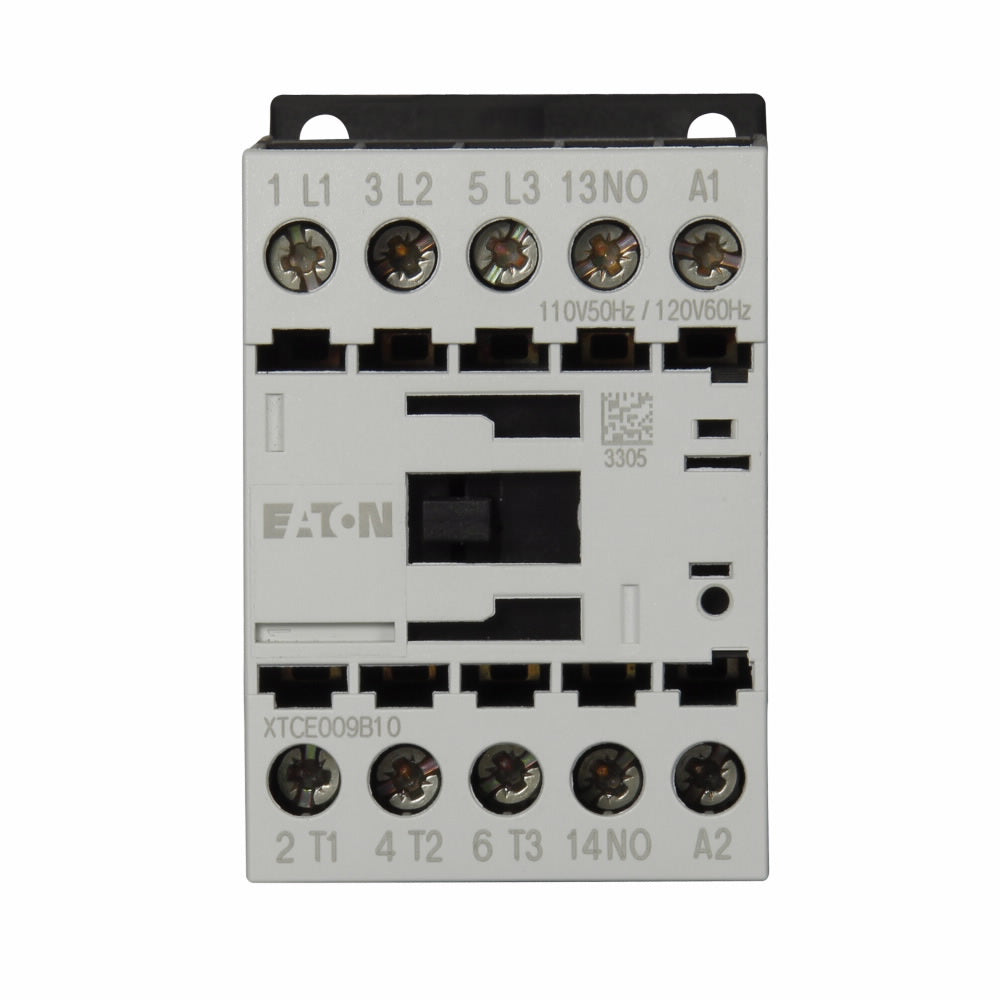

XTCE009B10A is a 3-pole, 9A IEC contactor designed for motor control applications with a 110-120VAC coil and 1NO auxiliary contact. This Eaton (Cutler Hammer) XTCE009B10A contactor features a compact 45mm frame, screw terminals, and is suitable for both panel and DIN rail mounting. It is rated for 3 HP at 230V and 5 HP at 460V, making it ideal for a wide range of industrial motor control needs. The contactor is UL Listed, CSA Certified, CE Marked, and RoHS compliant, meeting IEC 60947 standards.

• Amperage Rating: 9A
• Coil Voltage: 110-120VAC, 50/60Hz
• Number of Poles: 3

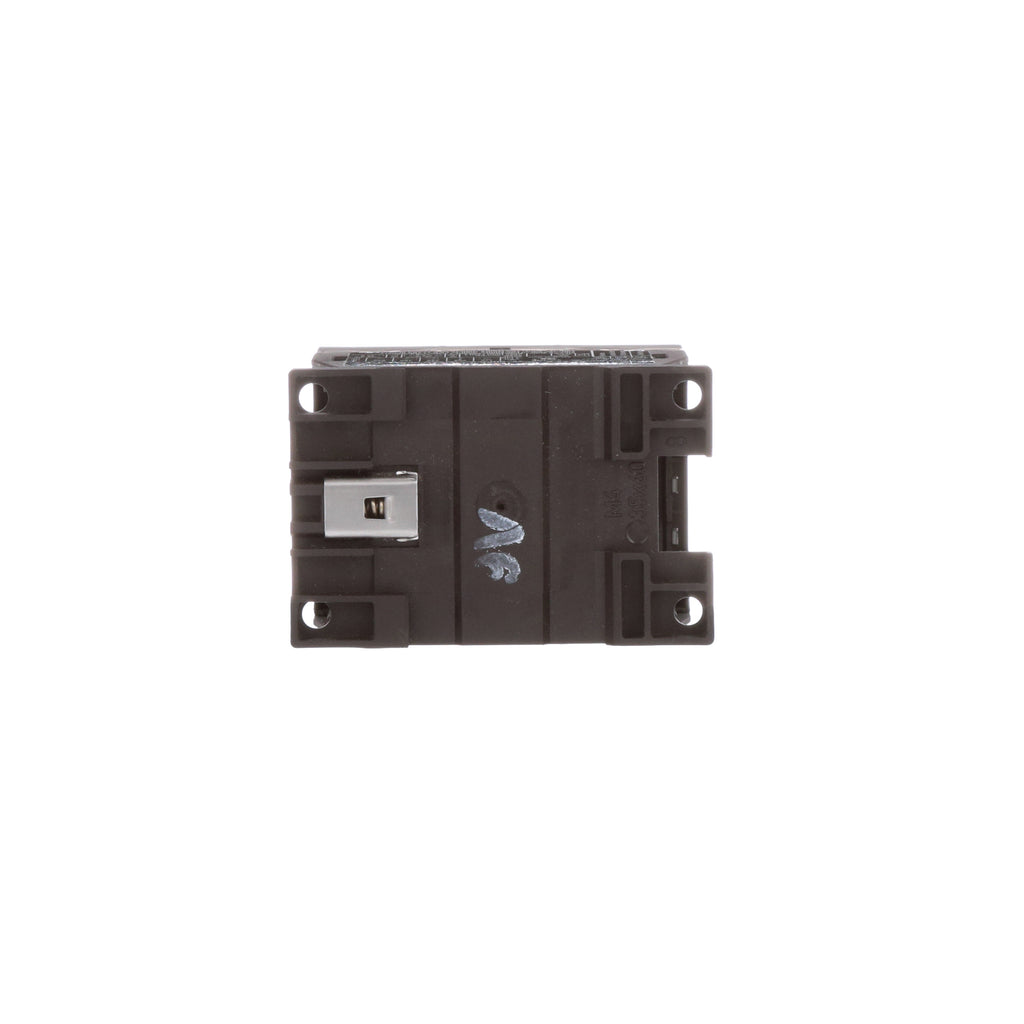

• Mounting Type: Panel or DIN rail
• Frame Size: 45mm
• Interrupt Rating: 600VAC
• Contact Configuration: 1NO auxiliary contact
• Series: XT IEC
• HP Rating: 3 HP @ 230V, 5 HP @ 460V
• Terminal Type: Screw terminals
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS, IEC 60947
• Operation: Full voltage non-reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: XTCE009B10A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE009B
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 9A Full Load Amps-Resistive 22A
• Coil Voltage Minimum : 120
• Frequency : 50 Hz

Product Data

• UPC : 786689005269
• GTIN : 04015082766870
• Country of Origin : Romania
• Dimensions : 1.77 in x 1.77 in
• Weight : 1 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
