2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT7HU312EFFF000XXX

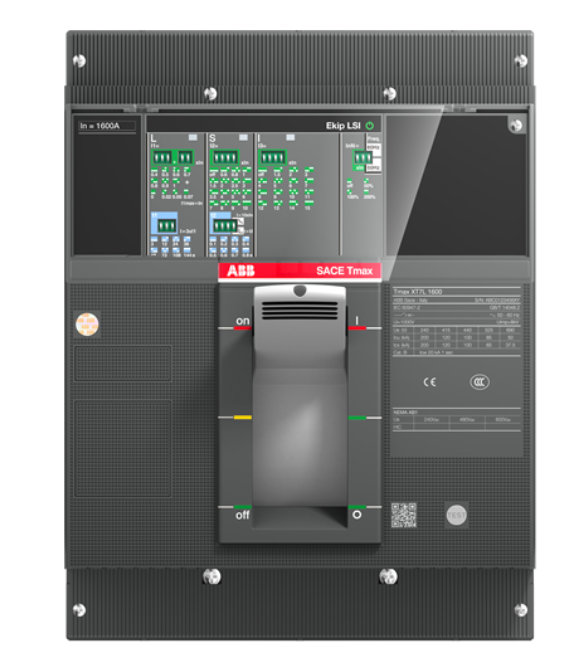

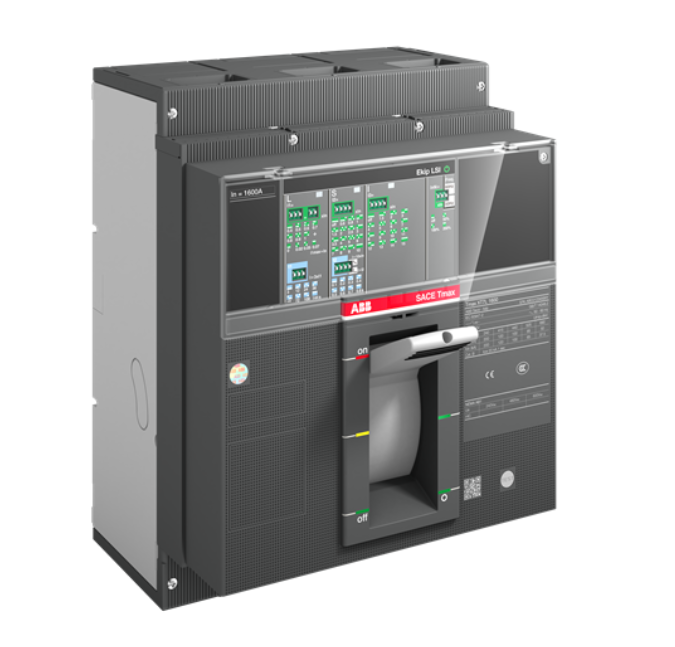

XT7HU312EFFF000XXX is a ABB SACE Tmax XT7 molded case circuit breaker with 1200A rating, electronic trip, and fixed mounting for industrial power distribution.This three-pole UL/CSA breaker from the XT7H frame features front terminals, lever operating mechanism, and Ekip Dip LSI solid-state electronic trip unit for reliable overcurrent protection in AC systems up to 600V. It offers high interrupt ratings including 100kA at 480VAC and 65kA at 600VAC, with fixed mounting and dimensions of 8.27in W x 6.57in D x 10.55in H for robust installation.
- Part Number: XT7HU312EFFF000XXX
- Manufacturer: ABB
- Frame Size: XT7 / T7H
- Amperage Rating: 1200A
- Number of Poles: 3
- Voltage Rating: 600V AC/DC
- Trip Unit: Ekip Dip LSI Electronic
- Mounting Type: Fixed
- Connection Type: Front Terminals
- Interrupt Rating: 100kA @ 480VAC
- Interrupt Rating: 65kA @ 600VAC
- Frequency Rating: 50/60Hz
- Temperature Rating: -40 to 125C
Specifications
- Part Number: XT7HU312EFFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT7HU
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01564403463
- GTIN : 08015644034634
- Country of Origin : United States
- Dimensions : 210 mm x 268 mm
- Weight : 55
- Standards : UL, CSA
- Certification : UL, CSA
