Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5NU340AFYN000XXX

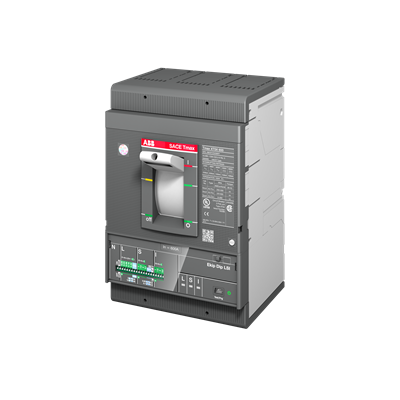

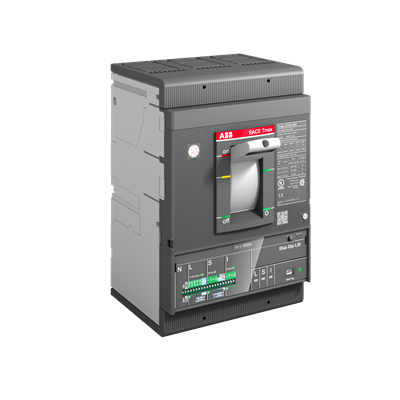

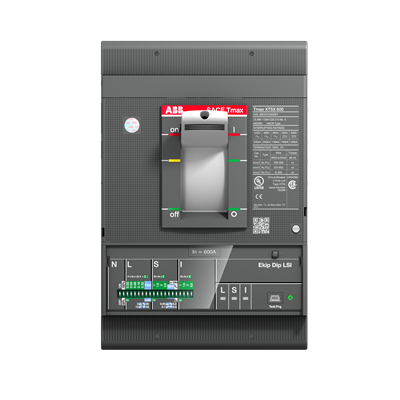

XT5NU340AFYN000XXX is a 3 pole, 400 amp, 600 volt circuit breaker from ABB designed for reliable power distribution protection.This ABB XT5N frame circuit breaker features a 25kA interrupting rating at 480V, suitable for industrial and commercial applications. It includes an electronic trip unit with long-time, short-time, and instantaneous protection functions. The breaker supports front flat terminals and is designed for panelboard or switchboard mounting.
- Key Specifications
- Amperage: 400A
- Voltage Rating: 600V AC
- Poles: 3
- Interrupting Rating: 25kA at 480V
- Frame Type: XT5N
- Trip Unit: Electronic (EK/DIP LSI)
- Mounting: Panelboard/Switchboard
- Terminal Type: Front flat terminals
- Certifications: UL Listed, IEC Compliant
- Part Number: XT5NU340AFYN000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5NU
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- UPC : 8056221790925
- Country of Origin : United States
- Weight : 20
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : 2x AWG 2/0 to 500KCmil, Cu/Al
