Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5LU330ABFF000XXX

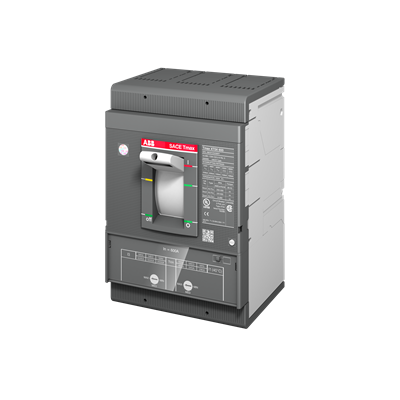

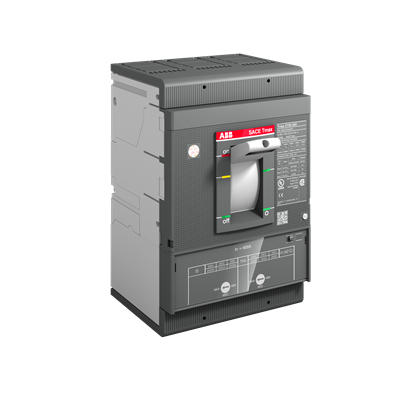

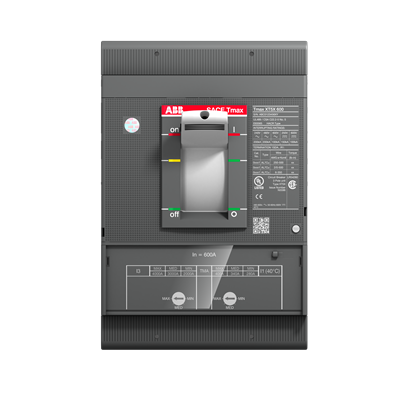

XT5LU330ABFF000XXX is a Tmax XT5L fixed mount circuit breaker rated at 300A with thermal magnetic adjustable trip unit.This ABB XT5L frame circuit breaker features 3 poles, front terminals, lever operating mechanism, and 100 kA interrupt rating at 480 VAC. It supports up to 600 V AC/DC with fixed mounting and thermal magnetic adjustable (TMA) trip type for reliable overcurrent protection in industrial applications.
- Part Number: XT5LU330ABFF000XXX
- Manufacturer: ABB
- Amperage Rating: 300 A
- Number of Poles: 3
- Frame Size: XT5L
- Trip Unit: TMA (Thermal Magnetic Adjustable)
- Mounting Type: Fixed
- Connection Type: Front Terminals
- Operating Mechanism: Lever
- Interrupt Rating: 100 kA @ 480 VAC
- Voltage Rating: 600 V AC/DC
- Certifications: UL/CSA
Specifications
- Part Number: XT5LU330ABFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5LU
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 05622173405
- GTIN : 08056221734059
- Country of Origin : United States
- Weight : 12
- Standards : UL, CSA
- Certification : UL, CSA
