2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5HU360BBFF000XXX

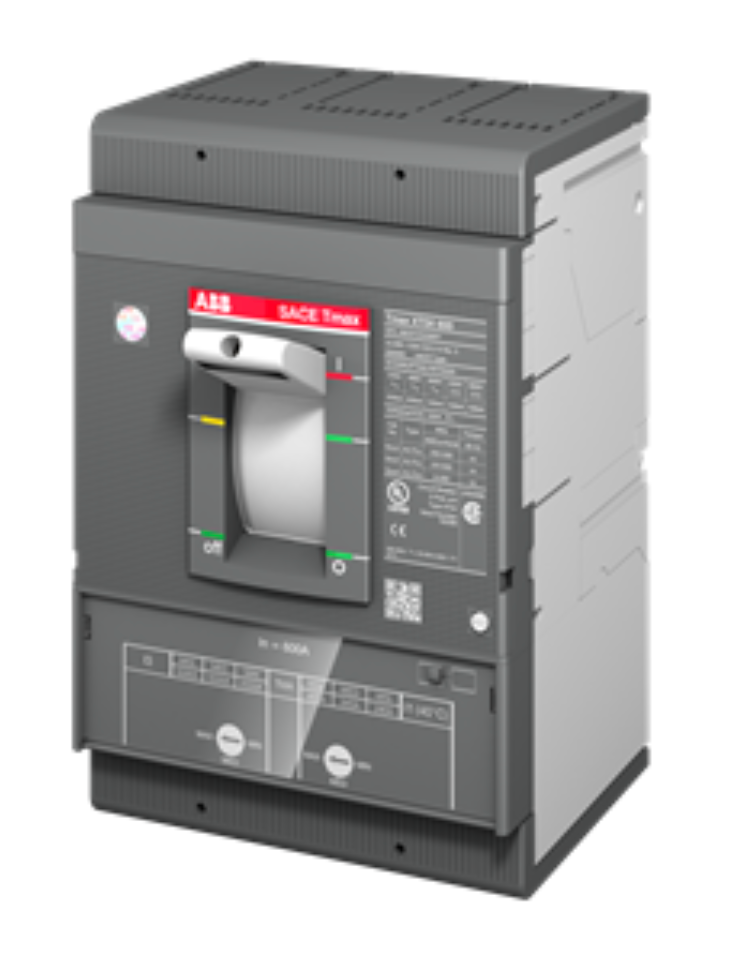

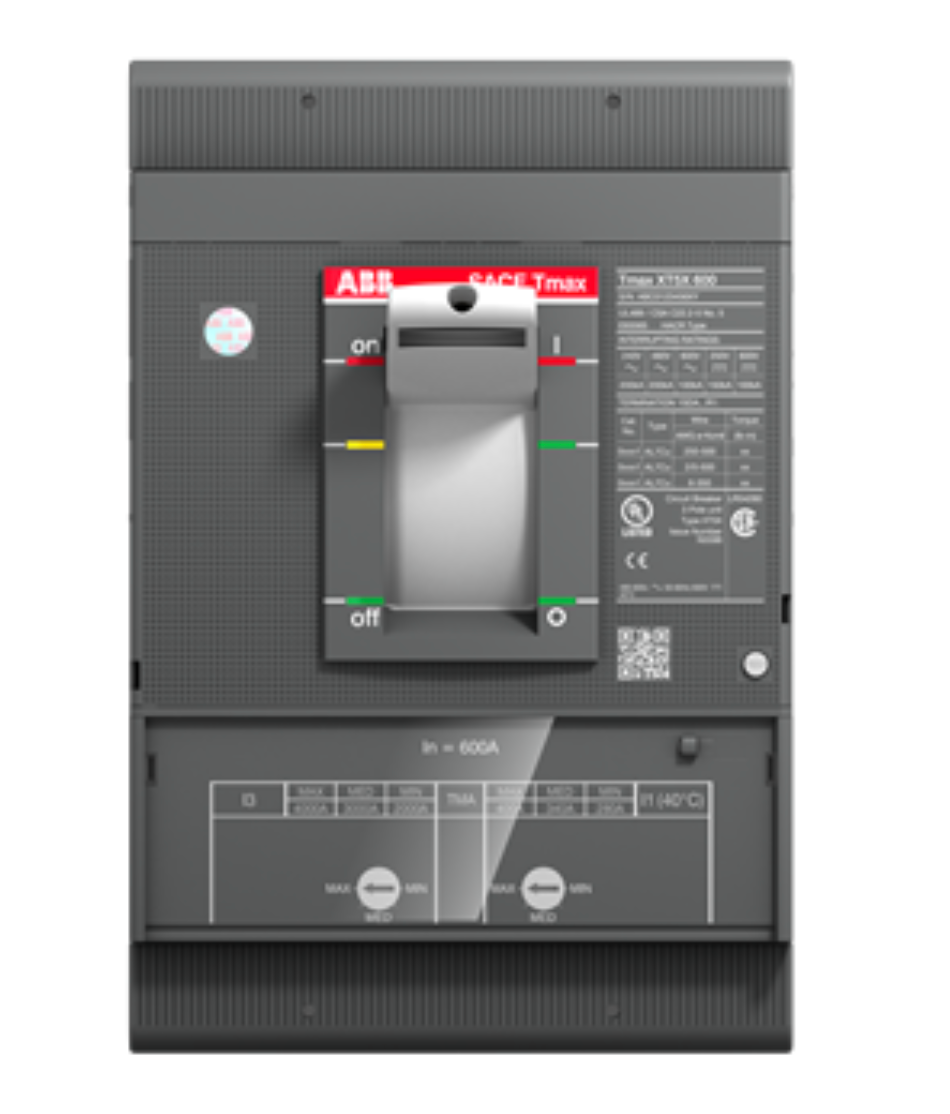

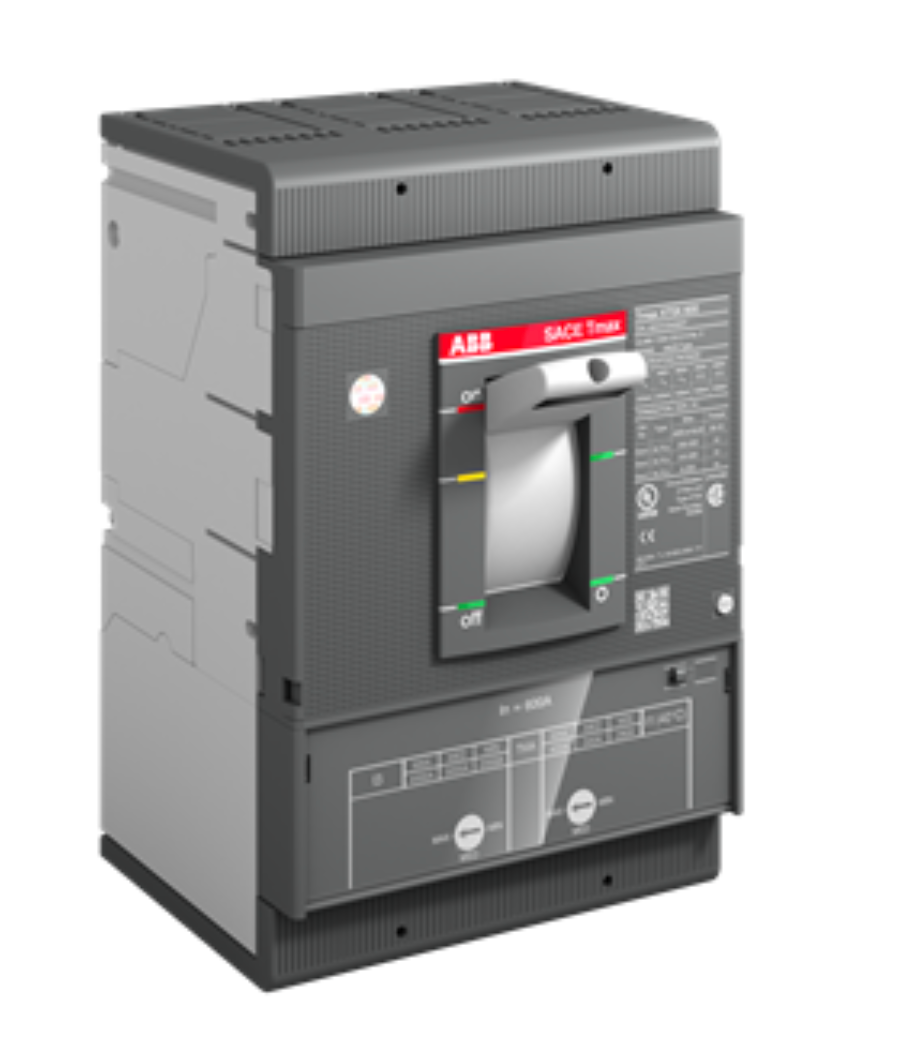

XT5HU360BBFF000XXX is an ABB Tmax XT molded case circuit breaker with thermomagnetic trip unit for reliable overcurrent protection.This fixed-mount, three-pole breaker features front terminals, TMA trip unit adjustable from 3000-6000A, and XT5H frame for industrial applications up to 600VAC/VDC.
- Part Number: XT5HU360BBFF000XXX
- Manufacturer: ABB
- Frame Size: XT5H
- Rated Current: 600A
- Voltage Rating: 600VAC/VDC
- Number of Poles: 3
- Trip Unit: TMA (Thermomagnetic Adjustable)
- Mounting Type: Fixed
- Connection: Front Terminals (FF)
- Interrupt Rating: 65kA @ 480VAC
- Standards: UL/CSA
Specifications
- Part Number: XT5HU360BBFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5HU
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 05622102250
- GTIN : 08056221022507
- Country of Origin : United States
- Weight : 15
- Standards : UL, CSA
- Certification : UL, CSA
