Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT5HU340ABFN000XXX

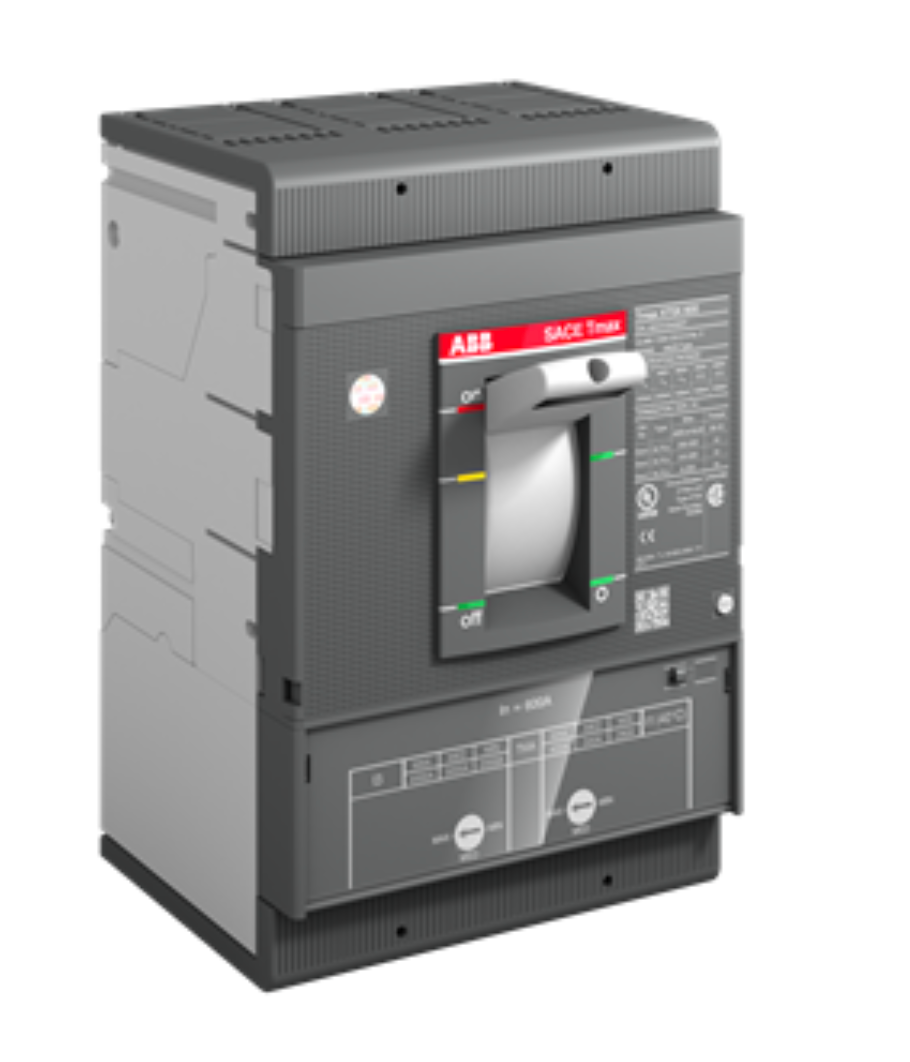

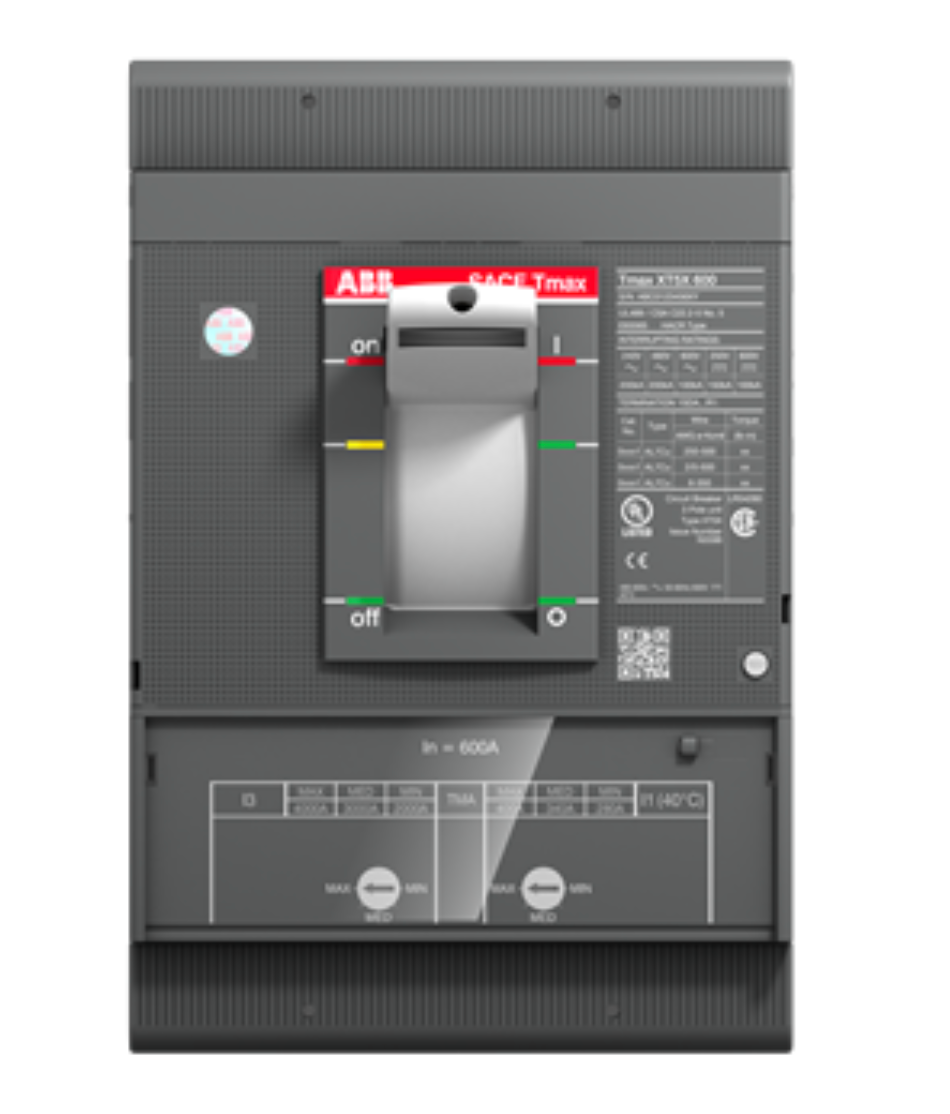

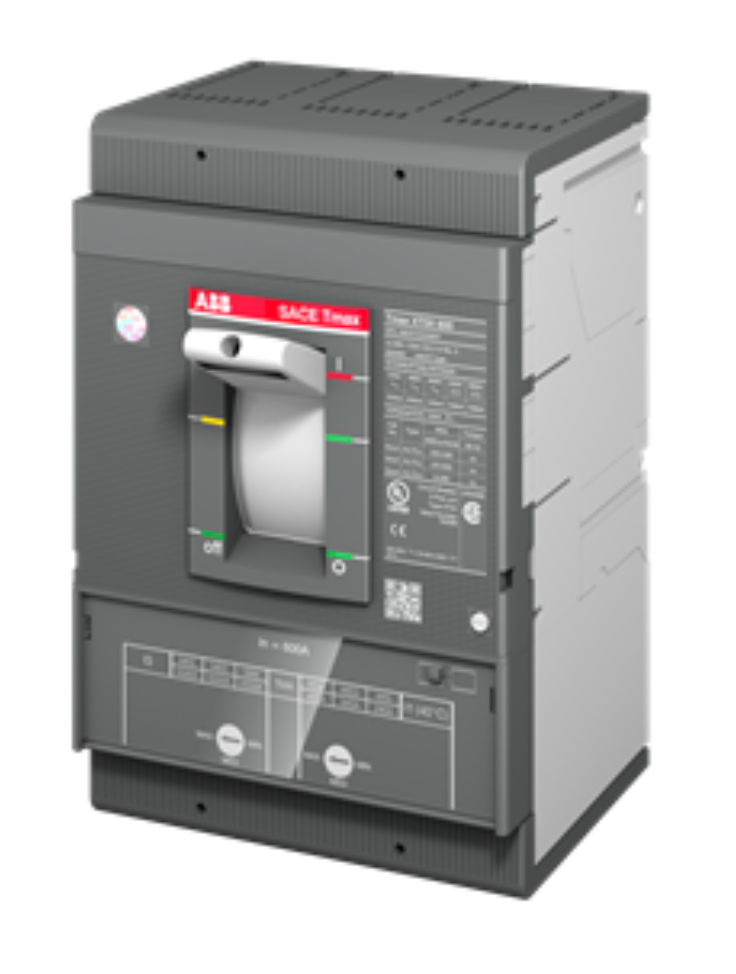

XT5HU340ABFN000XXX is a 3 pole molded case circuit breaker from ABB designed for reliable protection in electrical distribution systems.This ABB XT5H series breaker is rated for 400 amps and 600 volts AC, featuring a thermal magnetic adjustable (TMD/TMA) trip unit. It has an interrupt rating of 65kA at 480V and is UL and CSA certified. The breaker supports wire gauges from 2x AWG 2/0 to 500 kcmil for copper or aluminum conductors.
- Key Specifications
- Manufacturer: ABB
- Series: XT5H
- Amperage: 400A
- Voltage Rating: 600V AC
- Poles: 3
- Interrupt Rating: 65kA @ 480V
- Trip Unit: Thermal Magnetic Adjustable (TMD/TMA)
- Mounting Type: Molded Case
- Certifications: UL, CSA
- Wire Gauge Range: 2x AWG 2/0 to 500 kcmil Cu/Al
Specifications
- Part Number: XT5HU340ABFN000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT5HU
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 12
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : 2x AWG 2/0 to 500KCmil, Cu/Al
