Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4SU3150GFF000XXX

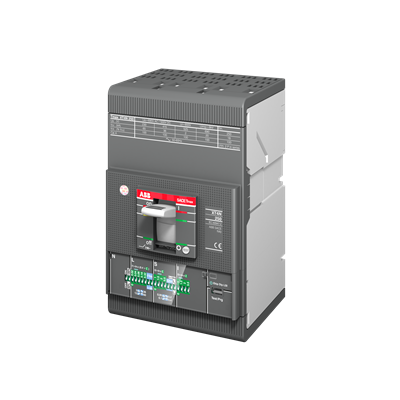

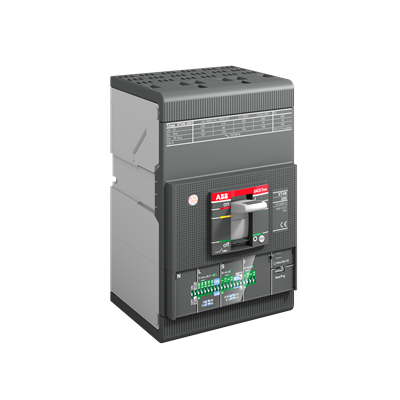

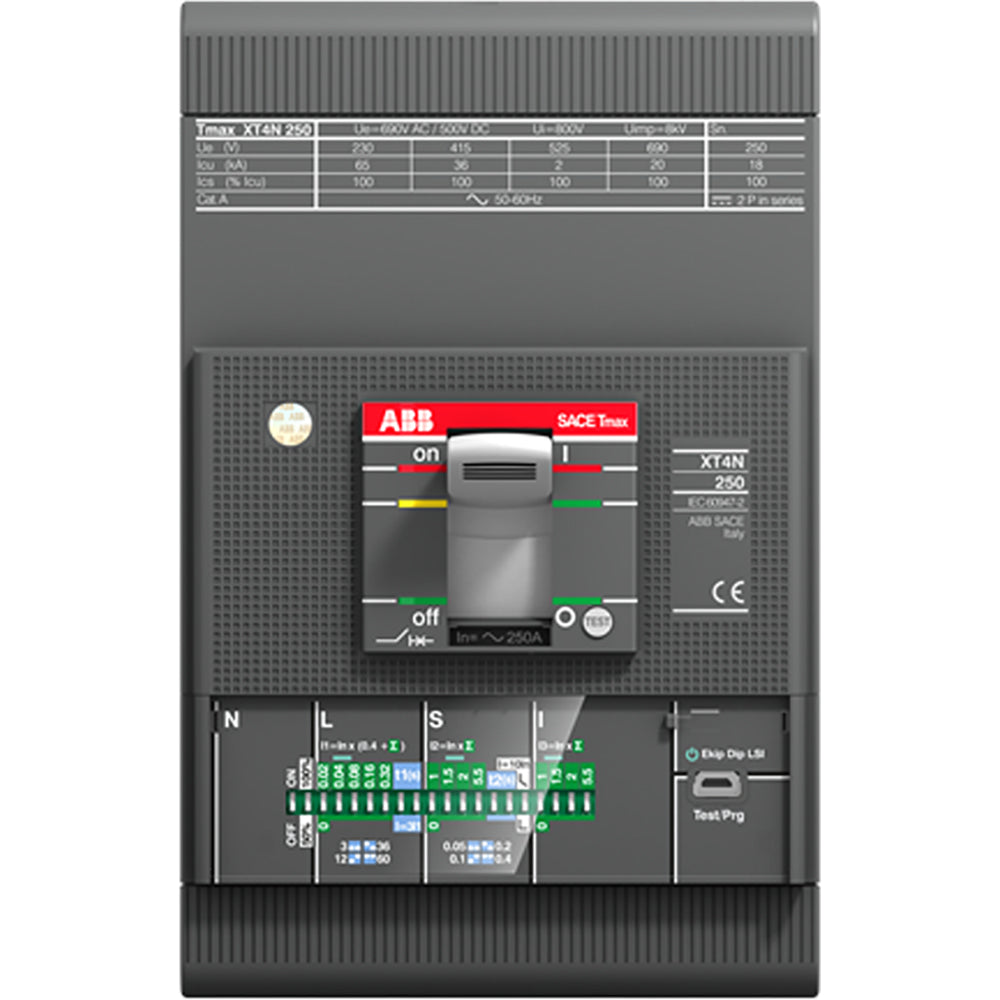

XT4SU3150GFF000XXX is an ABB Tmax XT molded case circuit breaker with electronic trip protection for low voltage applications.This 3-pole breaker features XT4 250A frame size, 150A rated current, 600V AC rating, front line/load side connections, and Ekip LSIG electronic trip unit. It provides high breaking capacity with 35kA @480VAC interruption rating (UL) and double insulated design for reliable performance in industrial environments.
- Part Number: XT4SU3150GFF000XXX
- Manufacturer: ABB
- Frame Size: XT4 250A
- Rated Current: 150A
- Number of Poles: 3
- Rated Voltage: 600V AC
- Trip Unit: Ekip LSIG Electronic
- Interruption Rating: 35kA @480VAC (UL)
- Connection Type: Front Line/Load Side
- Standards: UL
- Frequency: 50/60 Hz
- Insulation: Double Insulated
Specifications
- Part Number: XT4SU3150GFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4SU
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 01564479470
- GTIN : 08015644794705
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
