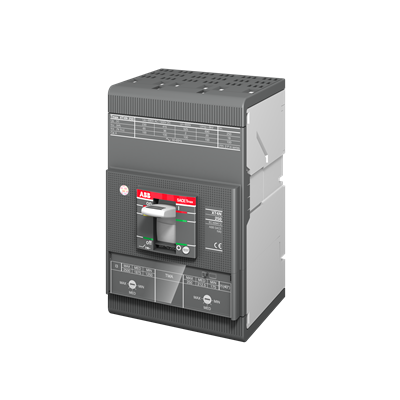

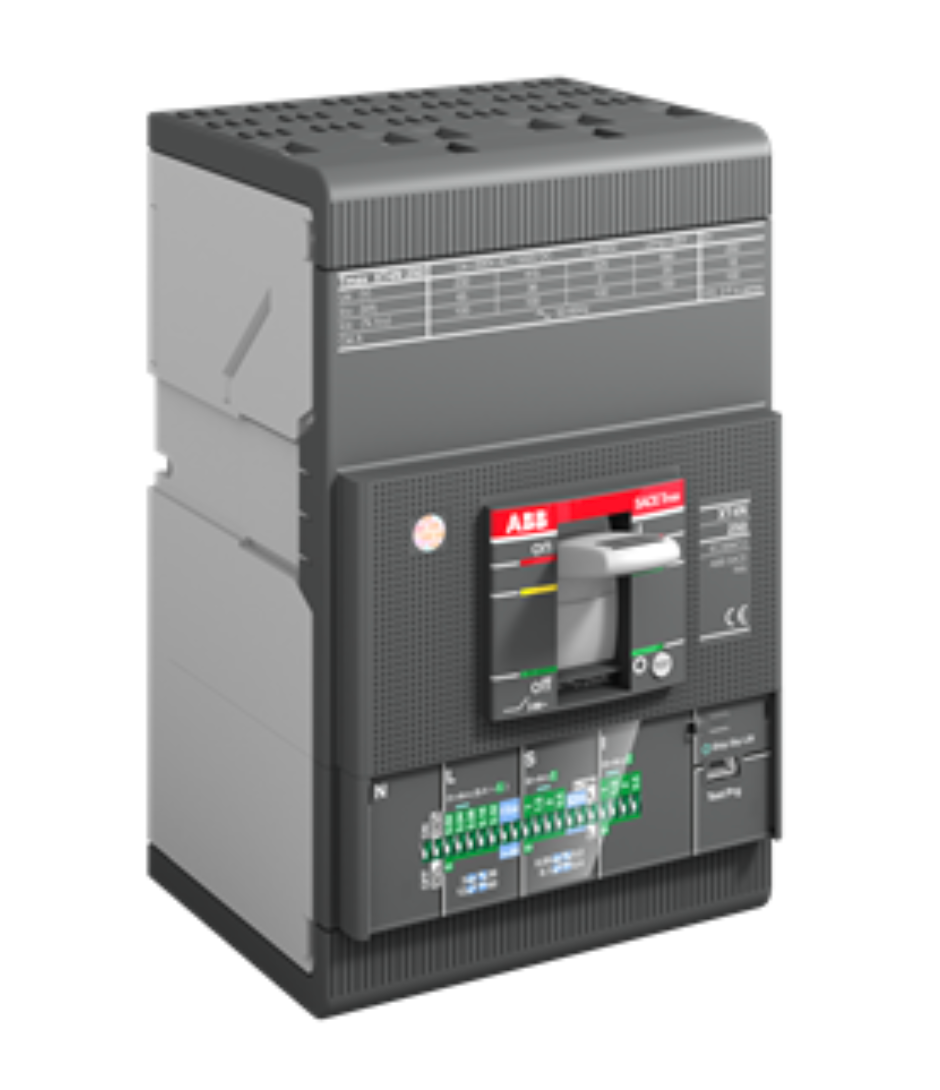

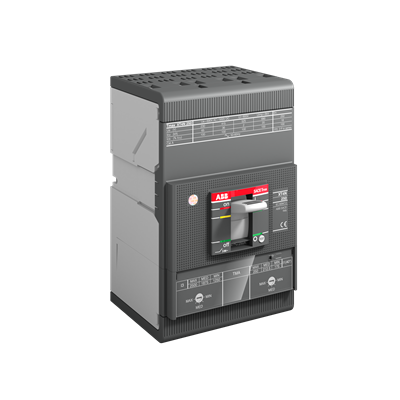

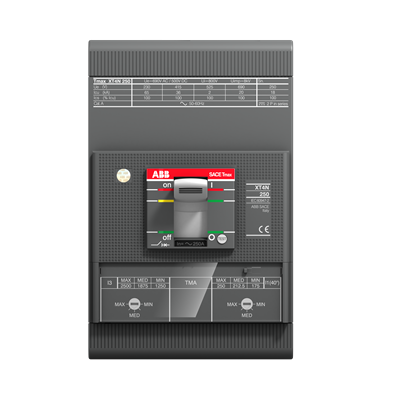

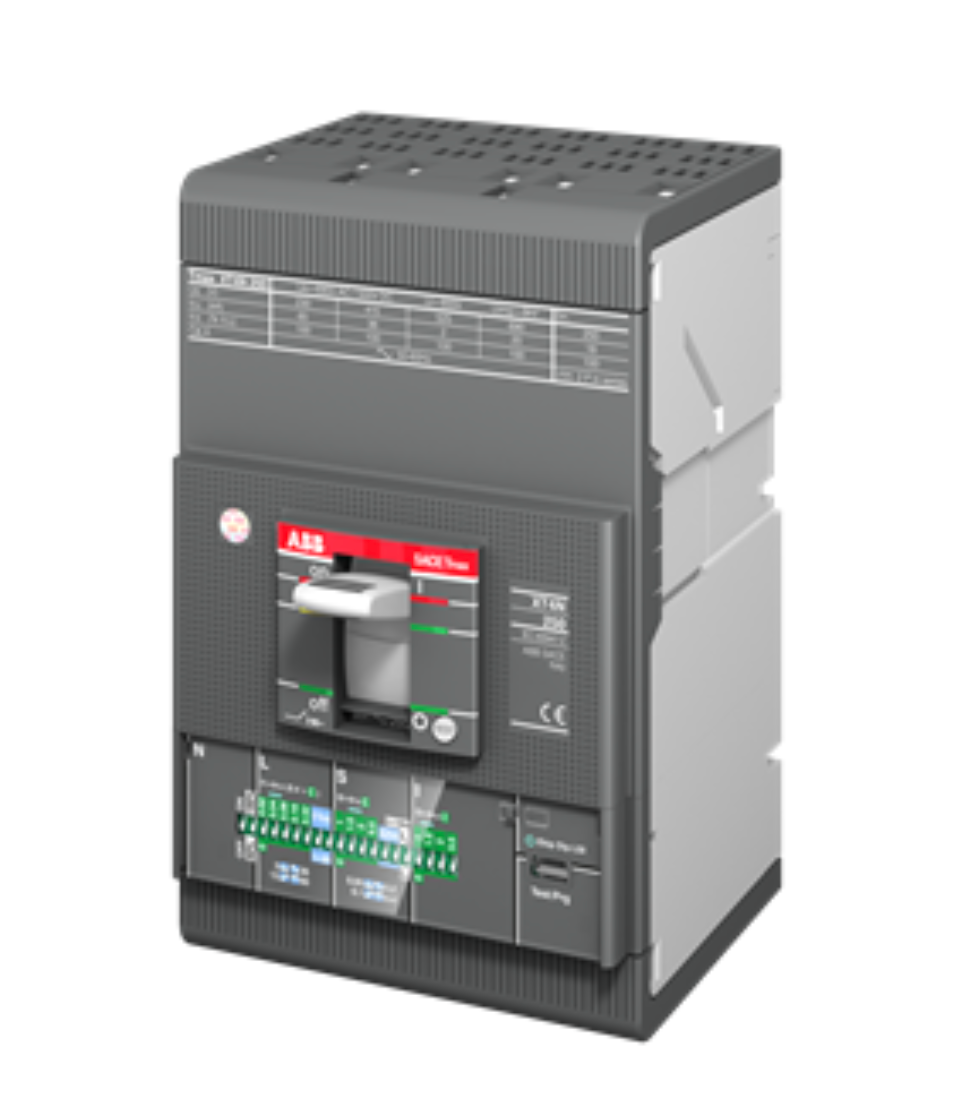

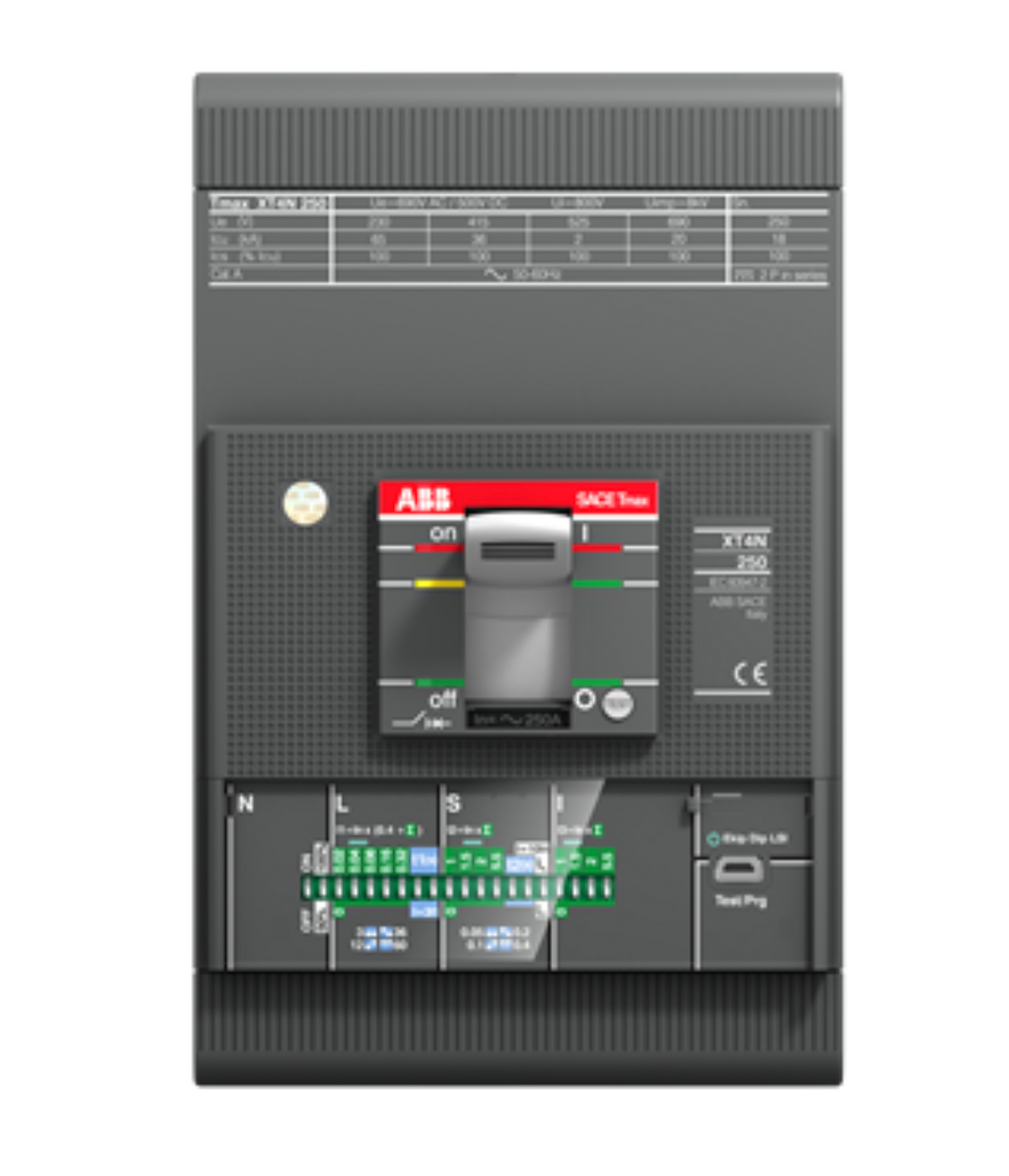

XT4NU3100AYJ000XXX - ABB 100A 600V 3 Pole Molded Case Circuit Breaker XT4N Frame

XT4NU3100AYJ000XXX

XT4NU3100AYJ000XXX is a 3 pole molded case circuit breaker from ABB designed for 100 amp, 600 volt applications with a robust XT4N frame.This circuit breaker features thermal magnetic trip protection, suitable for three-phase power systems, and offers a high interrupt rating of 25kA at 480V. It is a bolt-on mounting type breaker, compliant with UL standards, and supports continuous operation at full rated current with 90°C wire. The breaker is engineered for reliable circuit protection in industrial and commercial electrical distribution.

• Amperage: 100 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 3
• Frame Type: XT4N
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 480V
• Trip Unit: Thermal Magnetic
• Standards: UL Listed
• Phase: 3
• Suitable for continuous operation at 100% rating with 90°C wire

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4NU3100AYJ000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4NU
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On

Product Data

• Country of Origin : United States
• Weight : 8
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 4 to AWG 300, Cu/Al
