Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3250BY8000XXX

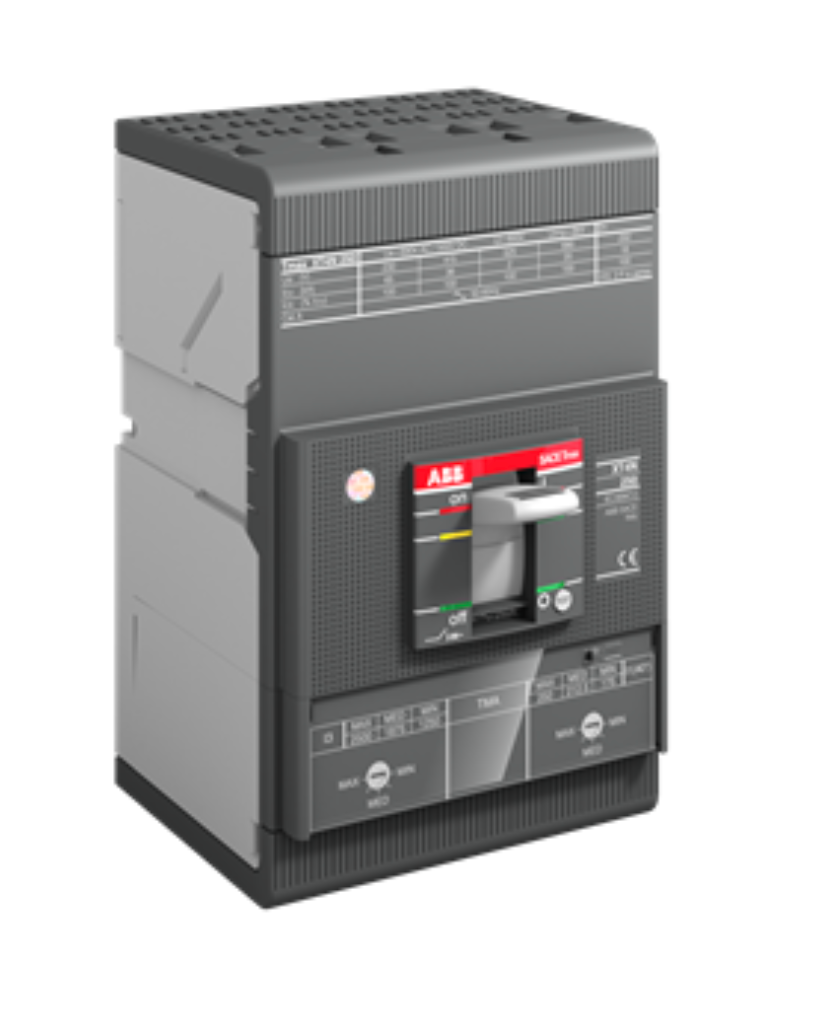

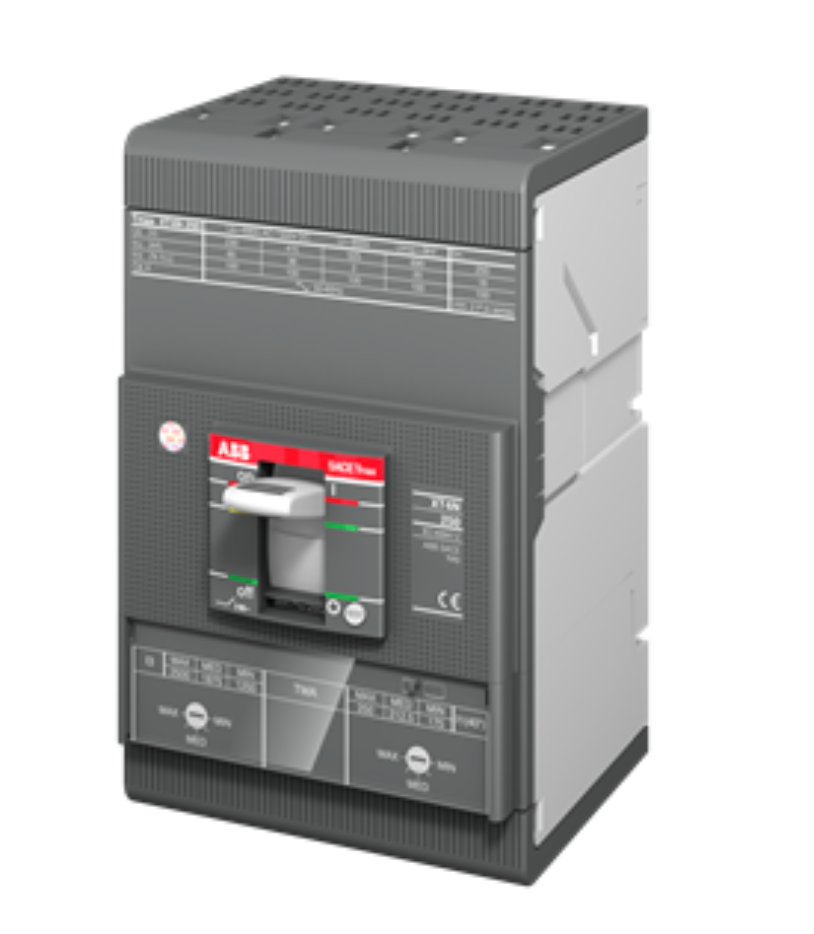

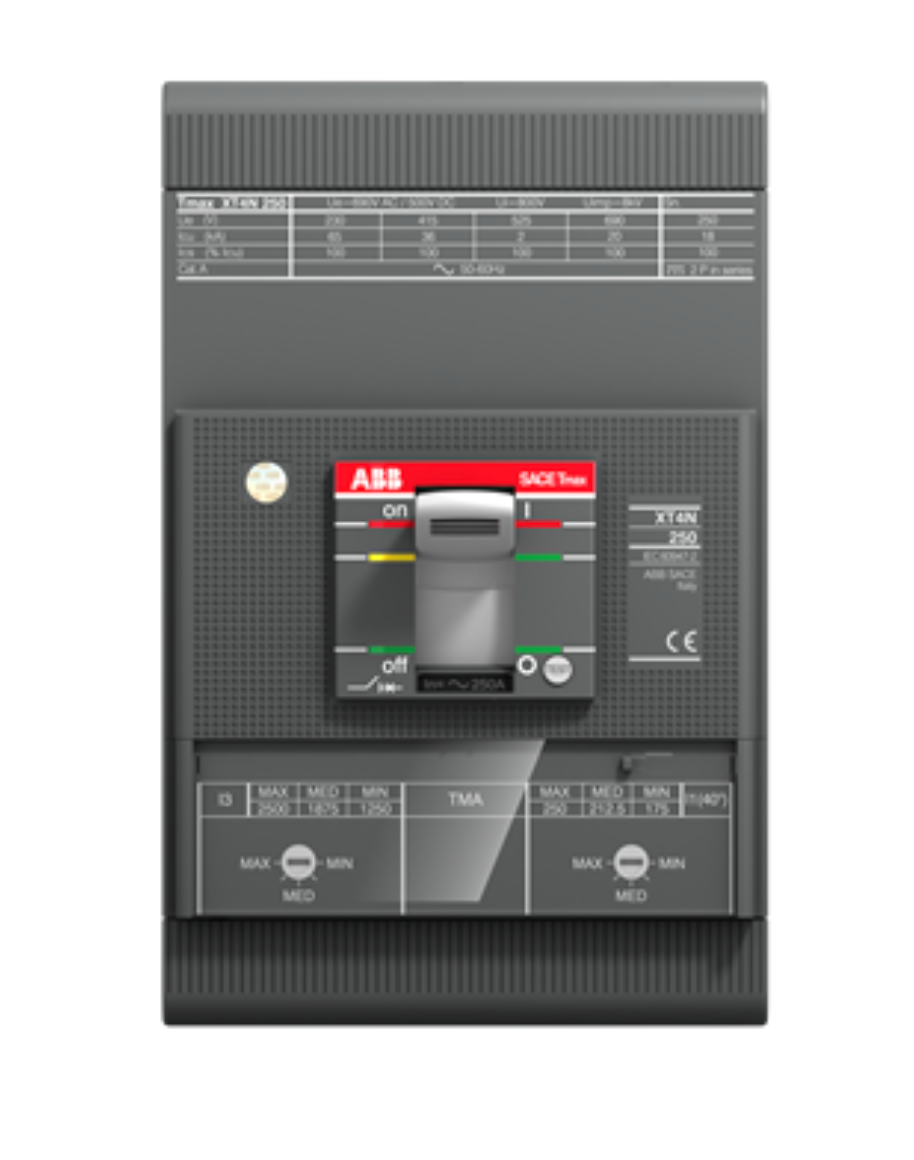

XT4HU3250BY8000XXX is a 3-pole molded case circuit breaker from ABBs Tmax XT series, rated at 250A with thermal magnetic protection.This XT4 frame breaker provides reliable low voltage protection up to 600VAC, featuring 3 poles, front terminals, and high interrupting capacity suitable for industrial applications. It belongs to the Tmax XT series with mechanical durability for demanding environments.
- Part Number: XT4HU3250BY8000XXX
- Manufacturer: ABB
- Amperage Rating: 250A
- Number of Poles: 3
- Voltage Rating: 600VAC
- Frame Size: XT4 250A
- Series: Tmax XT
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 65kA at 480VAC, 25kA at 600VAC
- Mounting: Fixed, Front Terminals
Specifications
- Part Number: XT4HU3250BY8000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 250
- Phase : 3
- Connection : Bolt-On
Product Data
- UPC : 57558696476
- Country of Origin : United States
- Weight : 5.19
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 3/0 to 250KCmil, Cu/Al
