Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3200AYJ000XXX

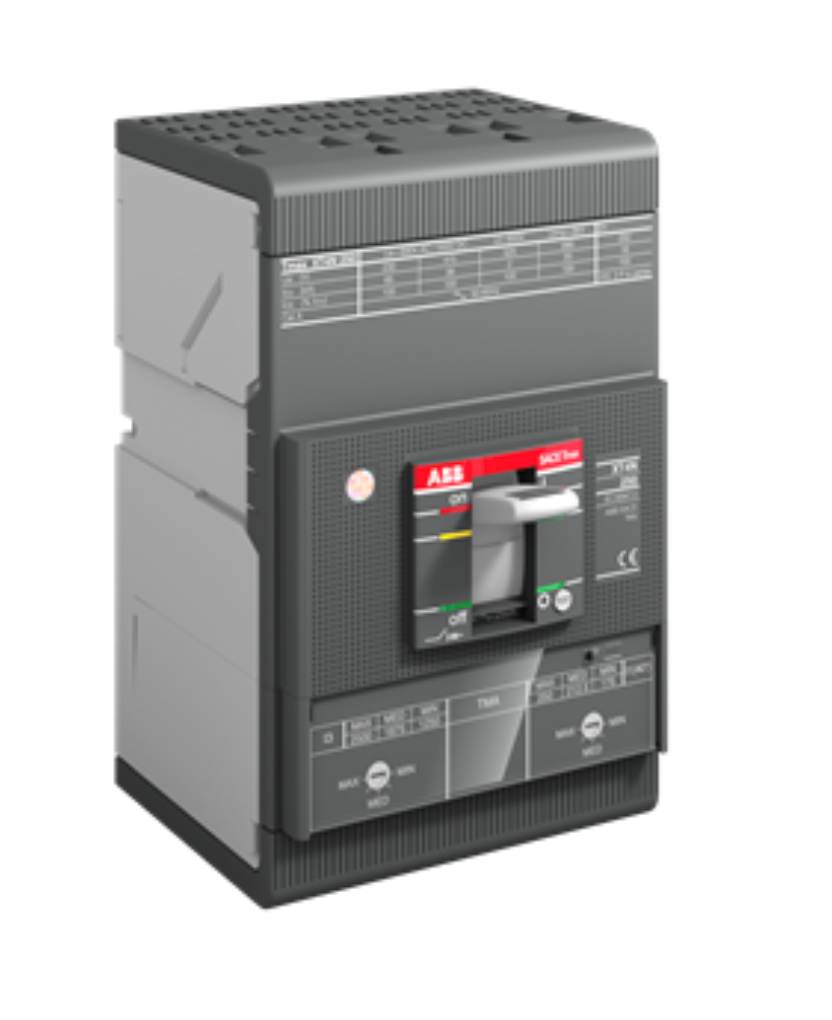

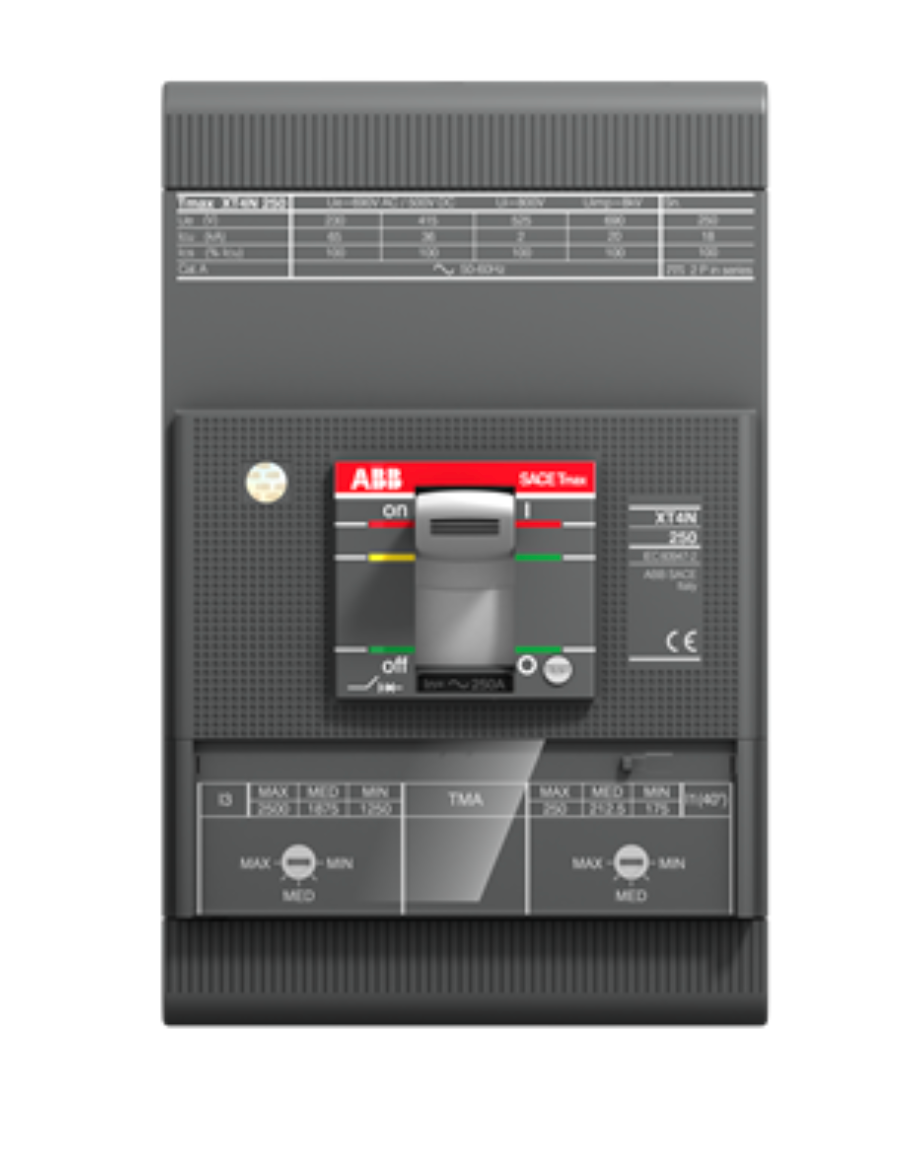

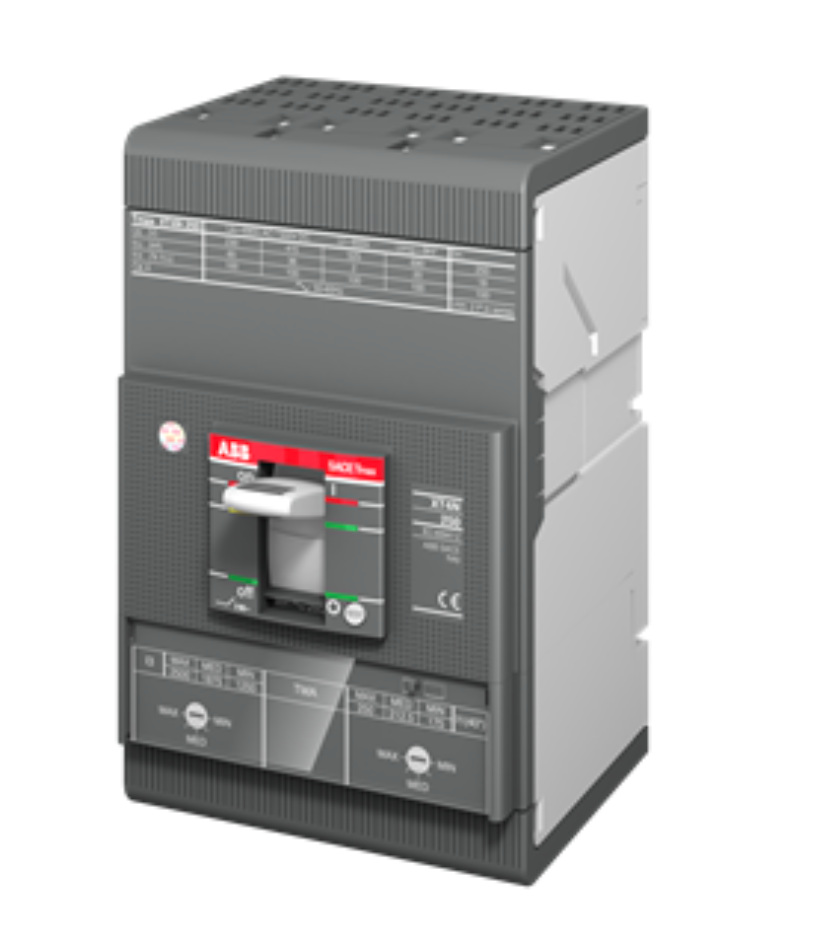

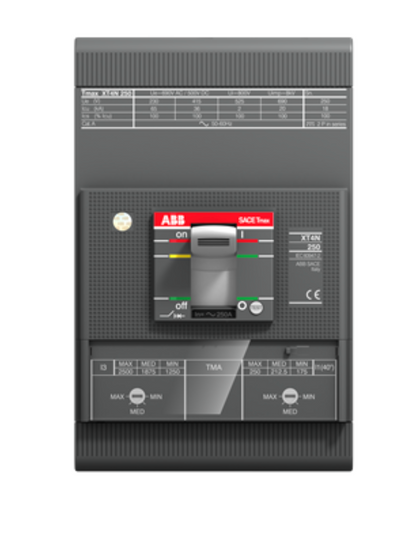

XT4HU3200AYJ000XXX is an ABB Tmax XT molded case circuit breaker with electronic trip unit for low voltage power distribution.This 3-pole breaker features a 250A XT4 frame, 200A rating, and 600VAC voltage rating with front line/load side terminals. It provides thermal-magnetic protection with adjustable trip range from 200 to 2000A, suitable for main and sub-switchboard applications.
- Part Number: XT4HU3200AYJ000XXX
- Manufacturer: ABB
- Series/Frame: Tmax XT4 250A
- Amperage: 200A
- Voltage: 600VAC
- Poles: 3
- Trip Unit: Electronic TMF 200-2000A
- Mounting Type: Fixed, front terminals
- Interrupt Rating: 25kA at 480VAC
- Frequency: 50/60Hz
Specifications
- Part Number: XT4HU3200AYJ000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 200
- Phase : 3
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 5.5 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 4 to AWG 300, Cu/Al
