Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3175AFJ000XXX

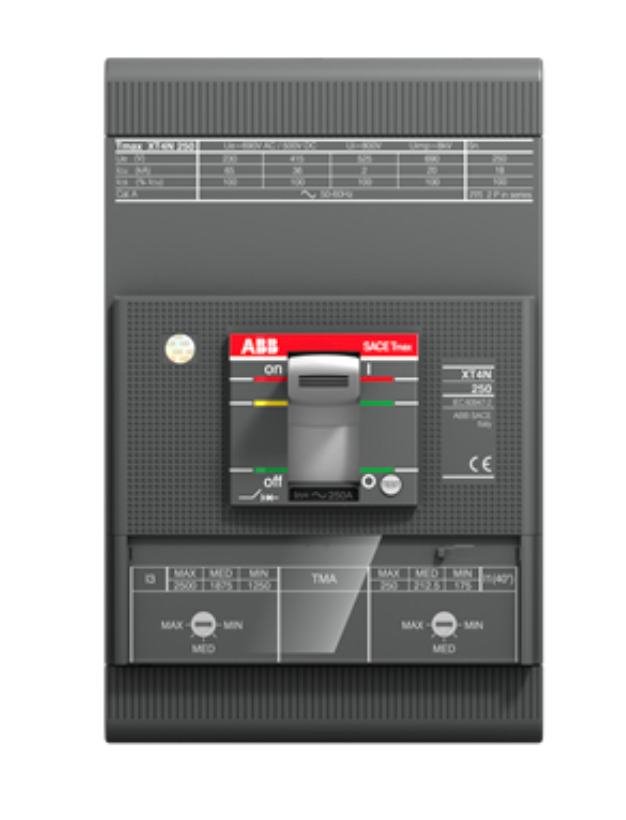

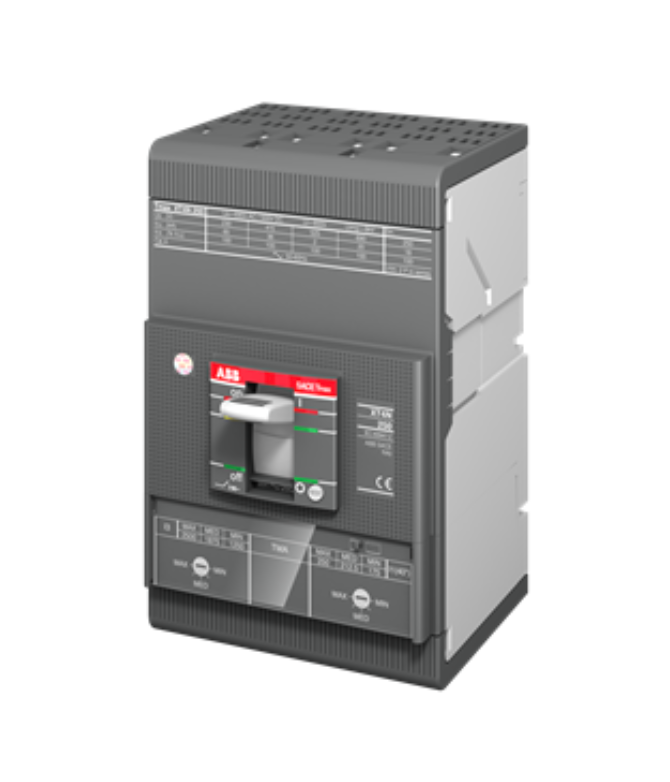

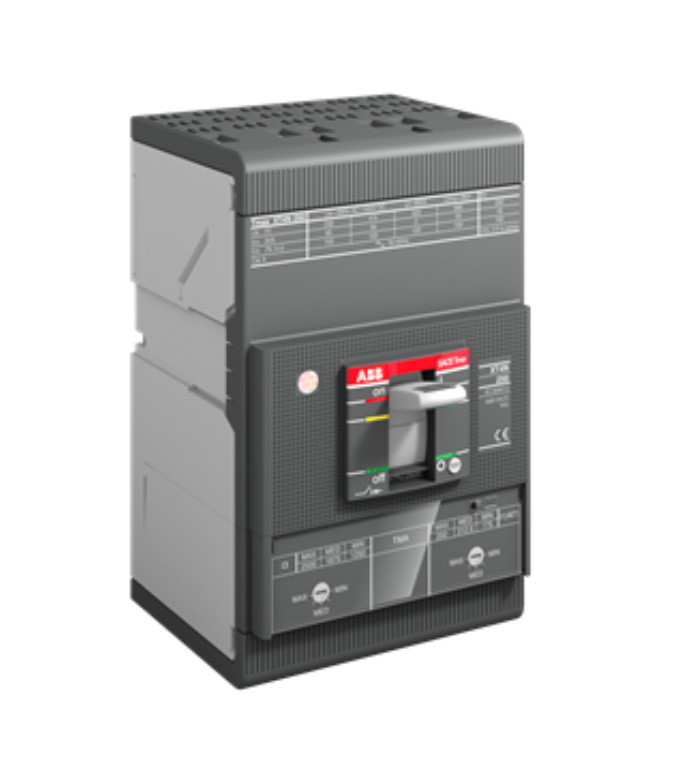

XT4HU3175AFJ000XXX is a 175 amp, 600 volt, 3-pole molded case circuit breaker from ABB's SACE Tmax XT4H series designed for reliable industrial and commercial electrical distribution and circuit protection.
This thermal magnetic circuit breaker features an XT4H frame rated for 250 amps and is engineered for low voltage applications across distribution levels from main switchboards to sub-switchboards. The breaker provides dependable overcurrent and short-circuit protection with front line and load side connection terminals.
- Amperage Rating: 175 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Frame Type: XT4H 250A
- Series: Tmax XT
- Protection Type: Thermal Magnetic
- Mounting: Panel
- Frequency Rating: 50/60 Hz
- Temperature Range: -13 to 158 deg F
- Dimensions: 6.3 in H x 4.13 in W x 3.25 in D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: XT4HU3175AFJ000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 175
- Phase : 3
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 4 to AWG 300, Cu/Al
