Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3100FYJ000XXX

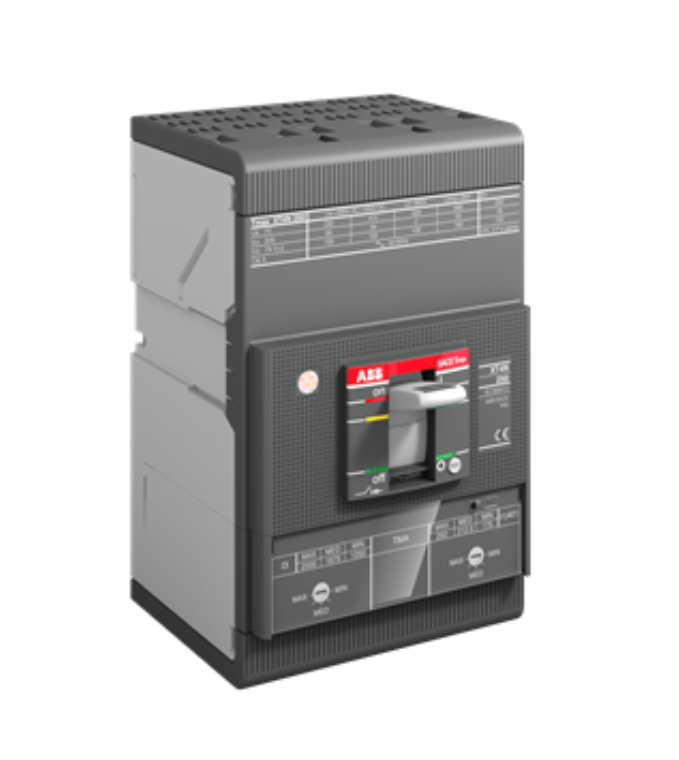

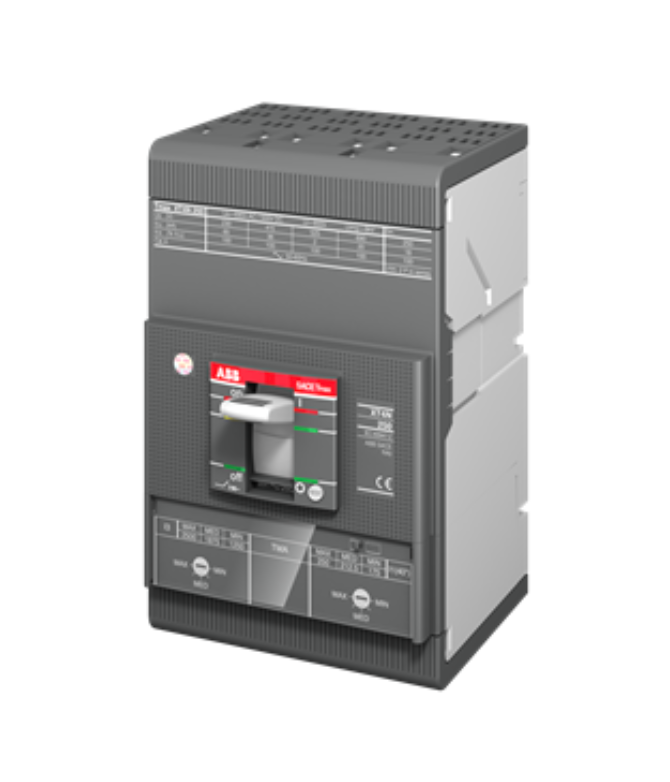

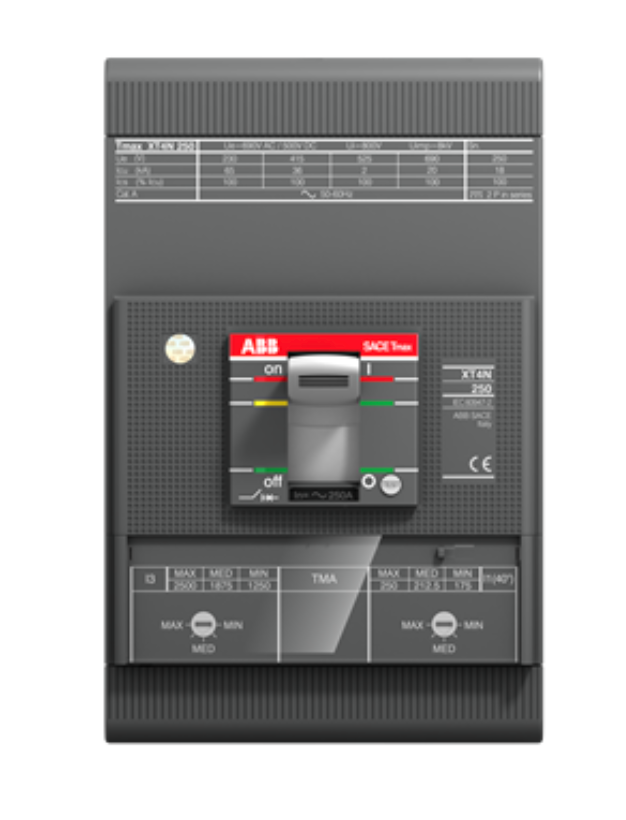

XT4HU3100FYJ000XXX is an ABB Tmax XT4H frame molded case circuit breaker rated at 100A, 3 poles, and 600V with electronic LSI trip unit.This XT4H series breaker features Ekip DIP LSI protection for long-time, short-time, and instantaneous tripping functions, front flat terminals, and is designed for fixed mounting in industrial and commercial applications. It belongs to the high-performance XT4 frame with 100% continuous load rating capability.
- Manufacturer: ABB
- Part Number: XT4HU3100FYJ000XXX
- Frame Size: XT4H 250
- Amperage: 100 A
- Poles: 3
- Voltage Rating: 600 VAC
- Trip Unit: Ekip DIP LSI
- Mounting: Fixed
- Terminals: Front Flat
- Interrupting Rating: 100 kA at 600 V
Specifications
- Part Number: XT4HU3100FYJ000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 100
- Phase : 3
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 4 to 300KCmil, Cu/Al
