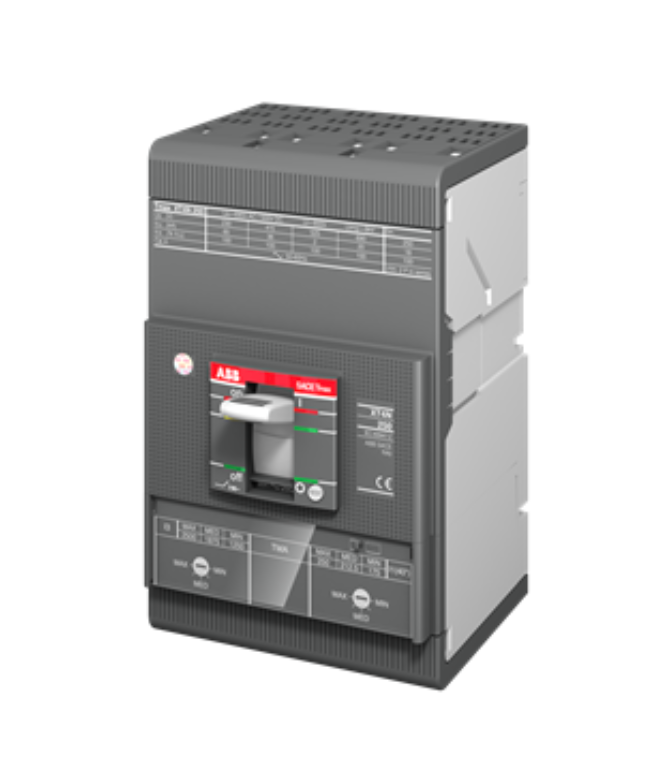

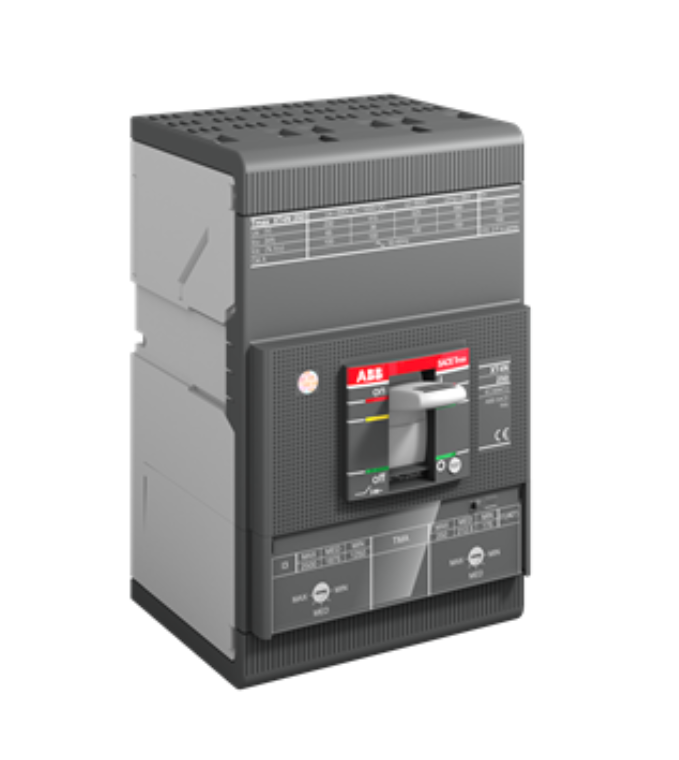

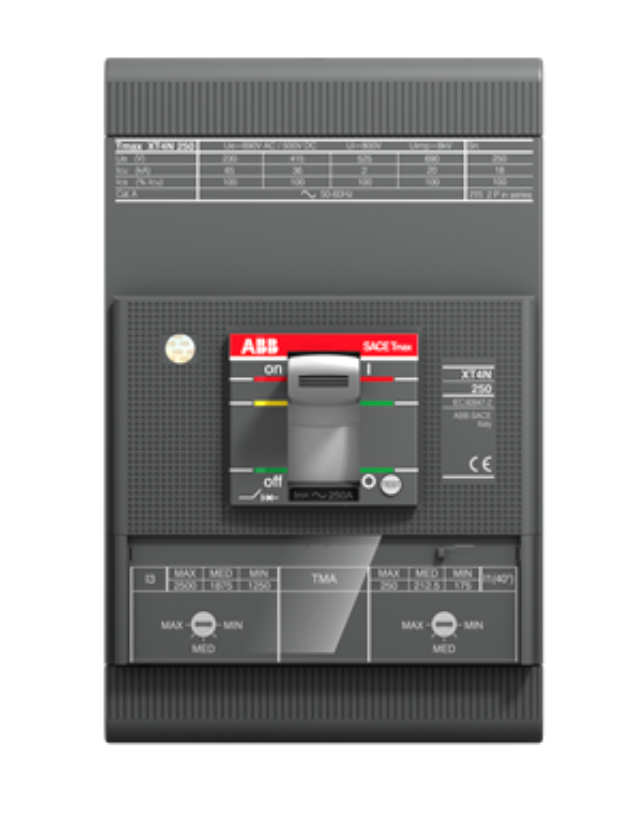

XT4HU3100BYJ000XXX - ABB 100A 600V 3-Pole Molded Case Circuit Breaker Thermal Magnetic TMA Trip

XT4HU3100BYJ000XXX

XT4HU3100BYJ000XXX is a 100 amp, 600 volt, 3-pole molded case circuit breaker from ABB's SACE Tmax XT family designed for reliable power distribution.This circuit breaker features a thermal magnetic trip unit (TMA trip) and a 65kA interrupt rating, suitable for industrial and commercial applications. It is built on the XT4 frame, providing robust protection and compliance with IEC 60947-2, UL 489, and CSA C22.2 standards.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 V
• Poles: 3
• Frame/Series: XT4
• Trip Unit: Thermal Magnetic (TMA)
• Interrupt Rating: 65kA
• Mounting Type: Molded Case
• Certifications: IEC 60947-2, UL 489, CSA C22.2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: XT4HU3100BYJ000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600
• Amperage : 100
• Phase : 3
• Connection : Bolt-On



Product Data

• Country of Origin : United States
• Weight : 8
• Standards : UL, CSA
• Certification : UL, CSA
• Wire Size : AWG 4 to AWG 300, Cu/Al
