Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HQ3250GFF000XXX

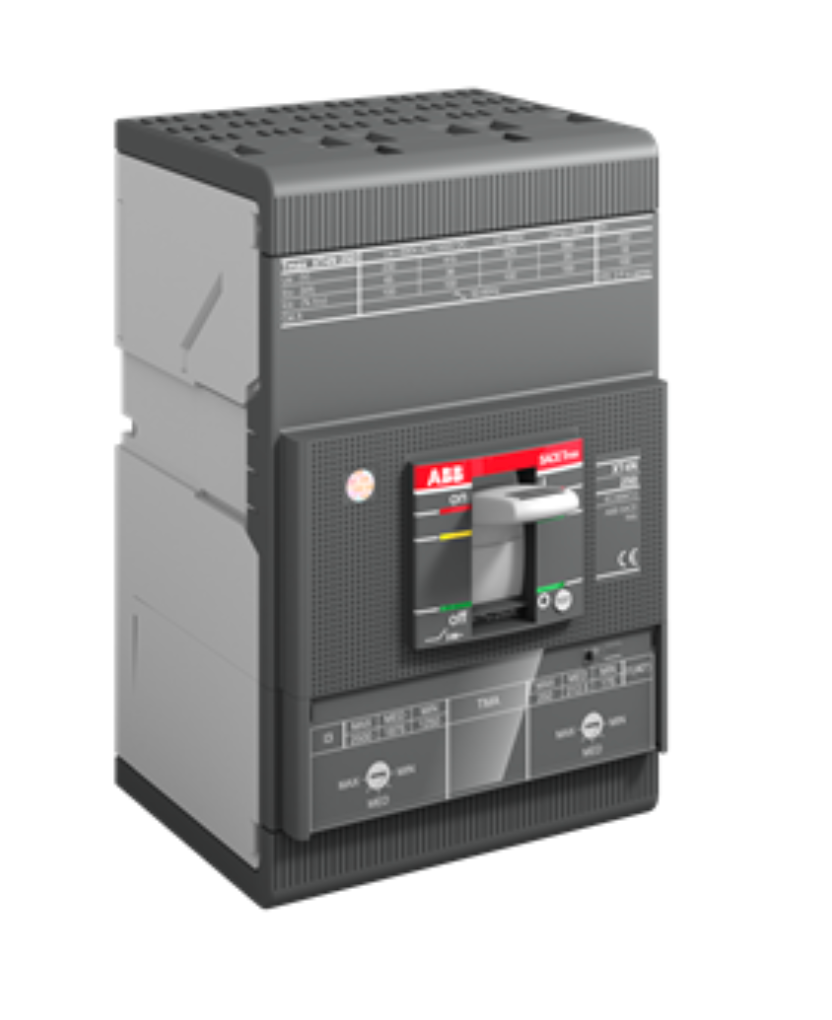

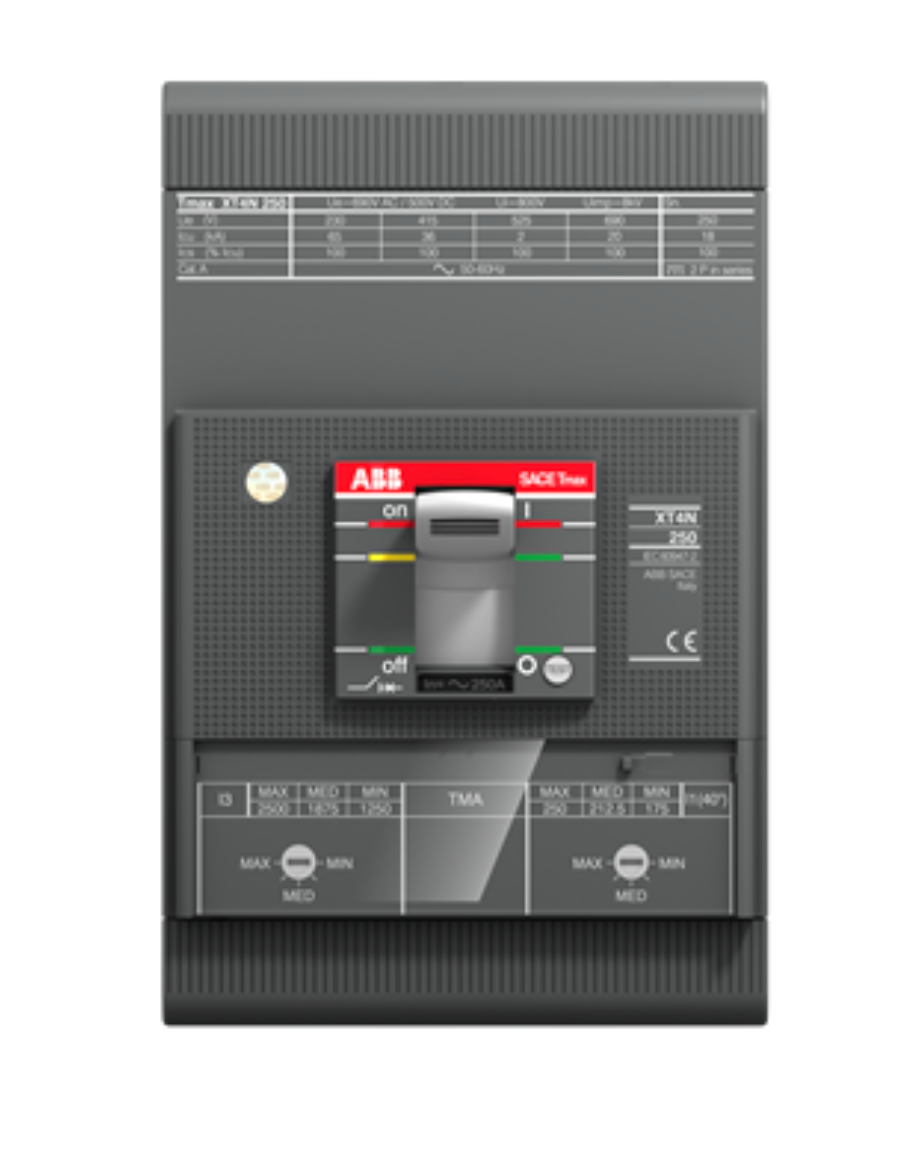

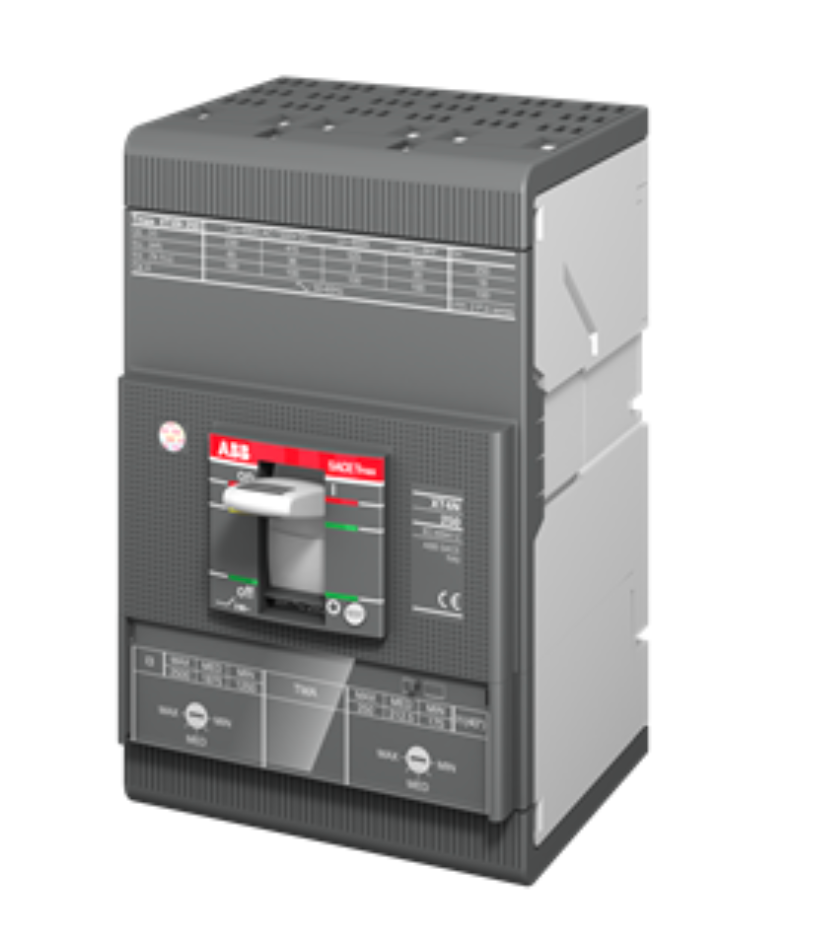

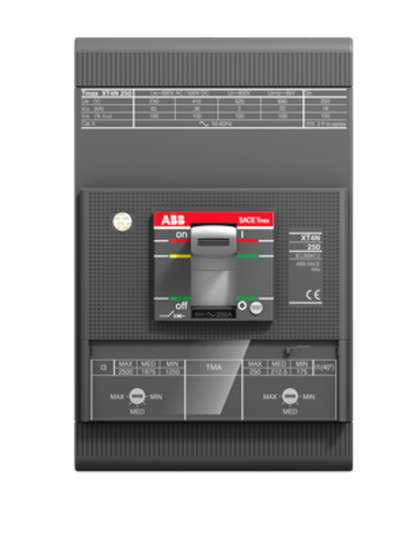

XT4HQ3250GFF000XXX is an ABB Tmax XT molded case circuit breaker designed for low voltage protection up to 250A.This 3-pole circuit breaker from the XT4 frame series features electronic Ekip LSIG trip protection, front terminals (F), and high interrupting capacity for industrial and commercial applications. It supports 600V UL and 690V IEC ratings with double insulated insulation.
- Part Number: XT4HQ3250GFF000XXX
- Manufacturer: ABB
- Series: Tmax XT
- Frame: XT4
- Amperage Rating: 250A
- Number of Poles: 3
- Voltage Rating: 600V UL / 690V IEC
- Trip Type: Ekip LSIG Electronic
- Interrupt Rating: 65kA@480V
- Frequency: 50/60 Hz
- Terminals: Front (F)
- Mounting: Fixed
Specifications
- Part Number: XT4HQ3250GFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HQ
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 05755849795
- GTIN : 08057558497952
- Country of Origin : United States
- Weight : 5.5
- Standards : UL, CSA
- Certification : UL, CSA
