Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

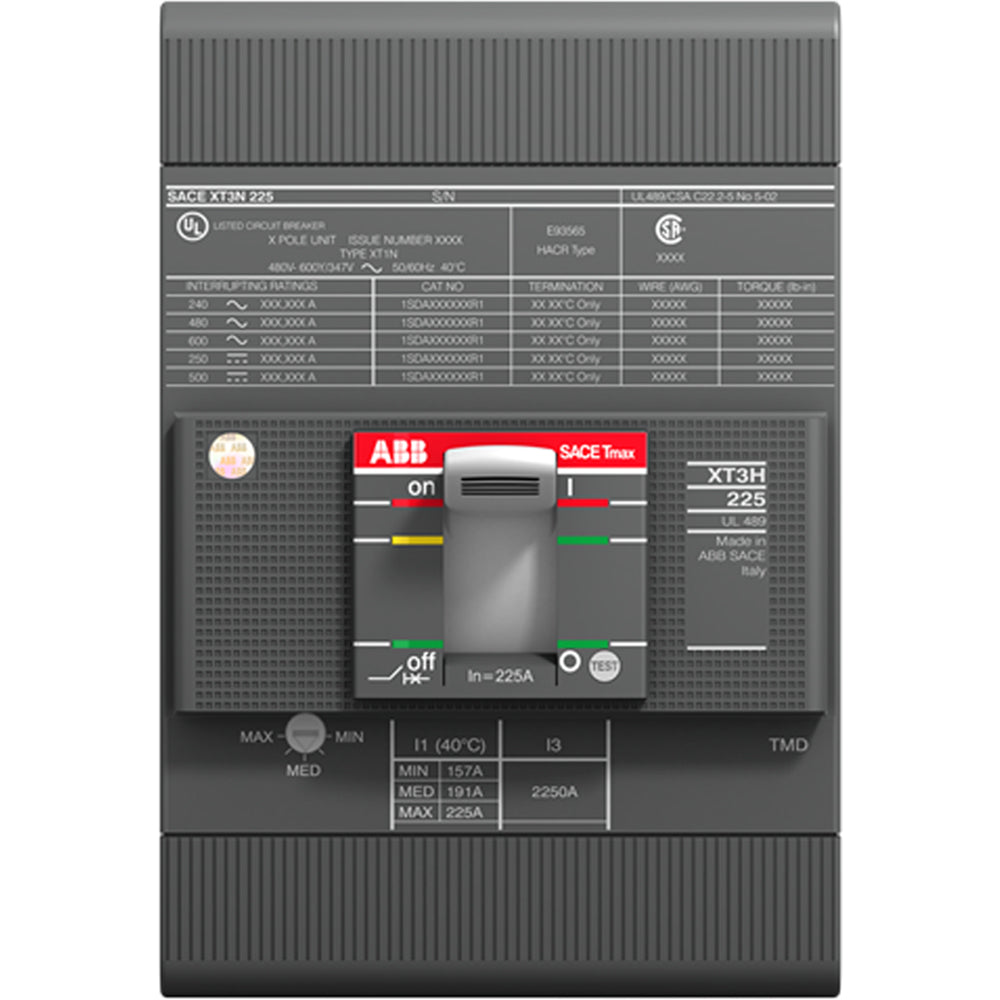

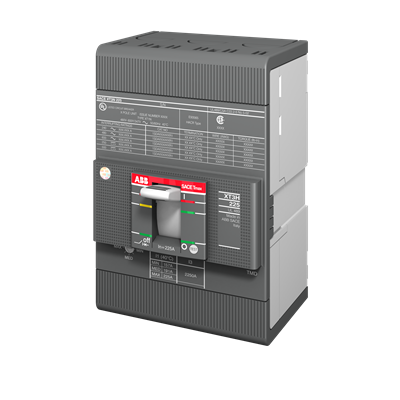

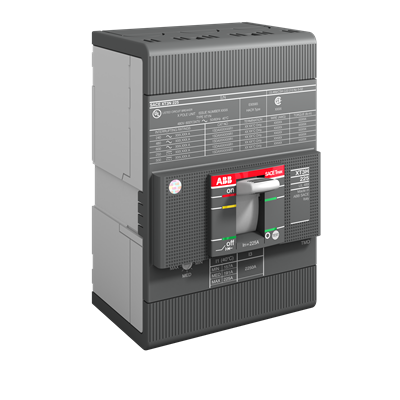

XT3NU3060AFF000XXX
XT3NU3060AFF000XXX is an ABB 60 Amp, 3-pole molded case circuit breaker designed for low voltage applications with fixed thermal and magnetic trip units.This circuit breaker features a 600Y/347 VAC voltage rating, a 10 kA interrupting capacity, and a fixed mounting type. It belongs to the Tmax XT series with a TMF (thermal magnetic fixed) trip unit, suitable for protecting electrical networks with reliable breaking performance and UL certification.
- Amperage: 60 A
- Voltage Rating: 600Y/347 VAC, 500 VDC
- Number of Poles: 3
- Interrupt Rating: 10 kA
- Mounting Type: Fixed
- Trip Unit: Thermal Magnetic Fixed (TMF)
- Series/Frame: Tmax XT 225 TMF
- Dimensions: 5.9 in H x 4.13 in W x 2.75 in D
- UL Certified
- Weight: Approximately 3.05 kg
Specifications
- Part Number: XT3NU3060AFF000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT3NU
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01564479086
- GTIN : 08015644790868
- Country of Origin : United States
- Weight : 3
- Standards : UL, CSA
- Certification : UL, CSA
